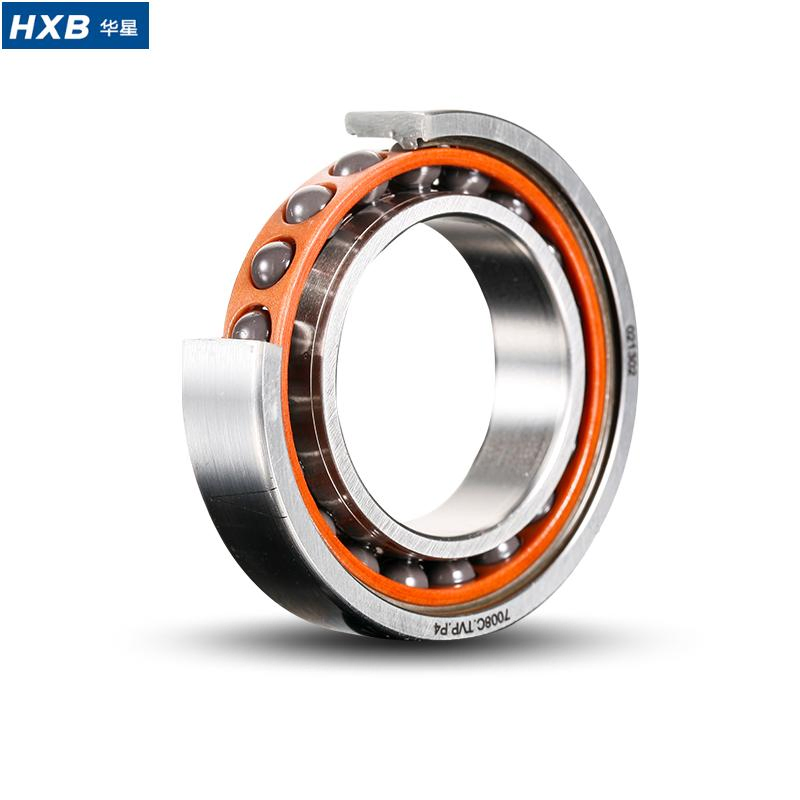

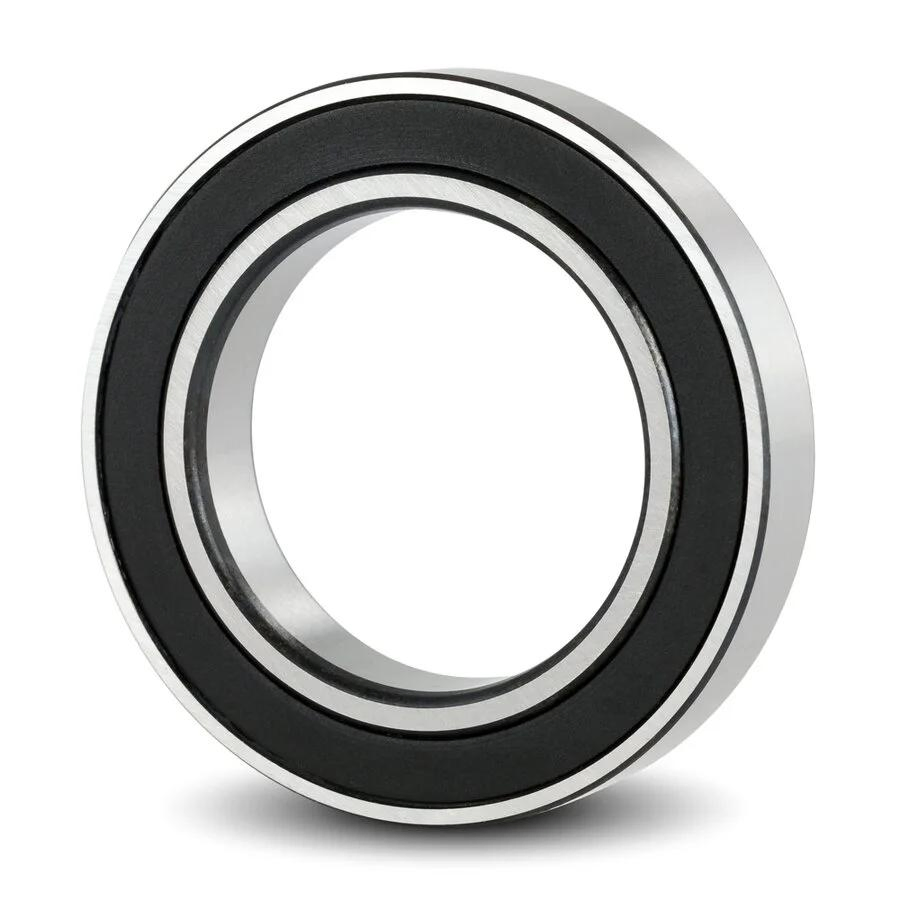

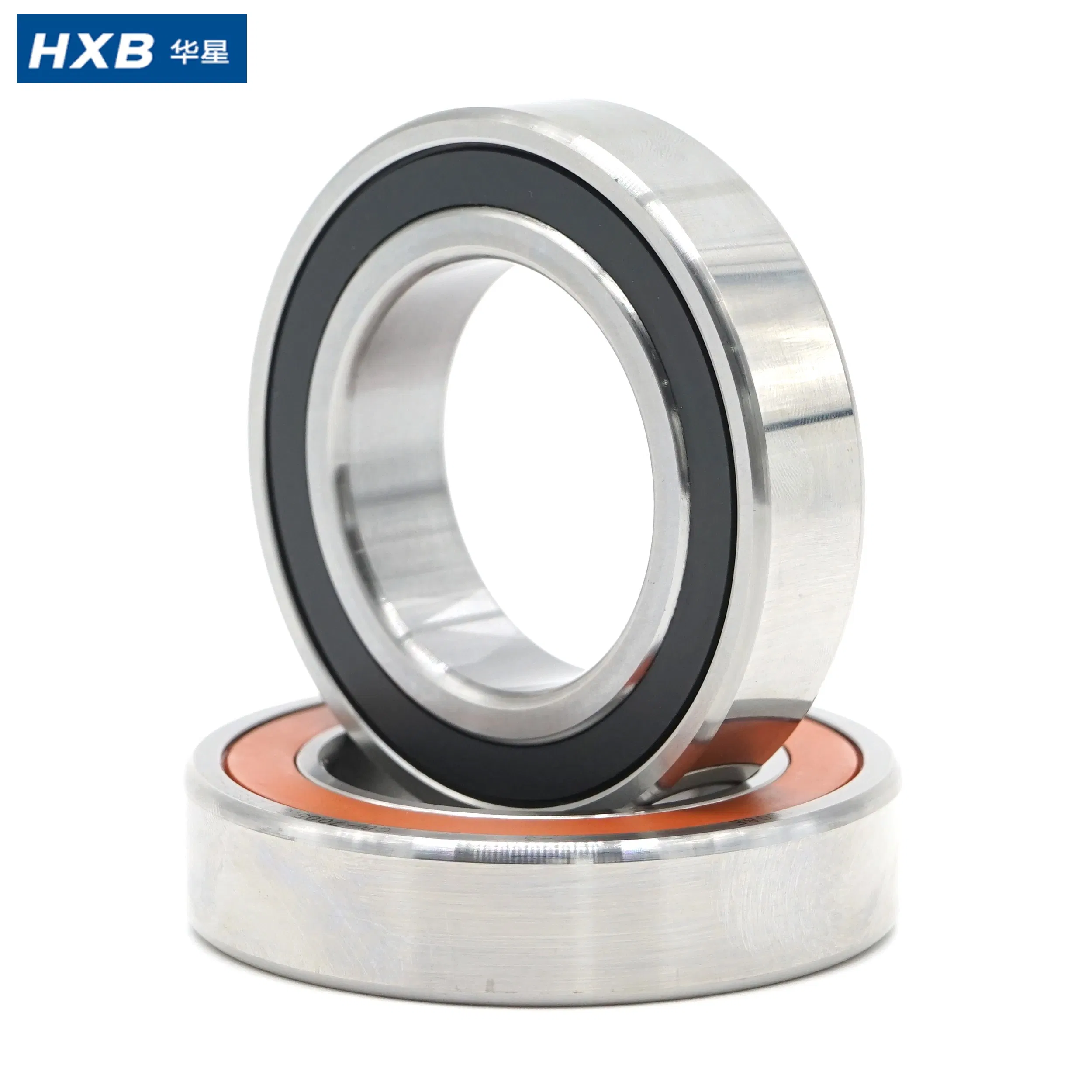

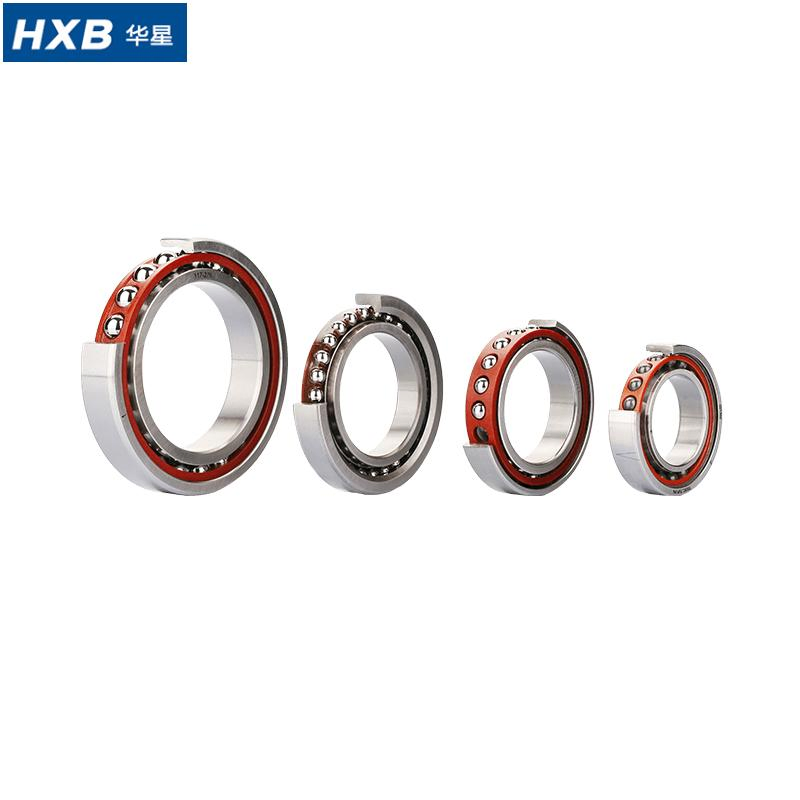

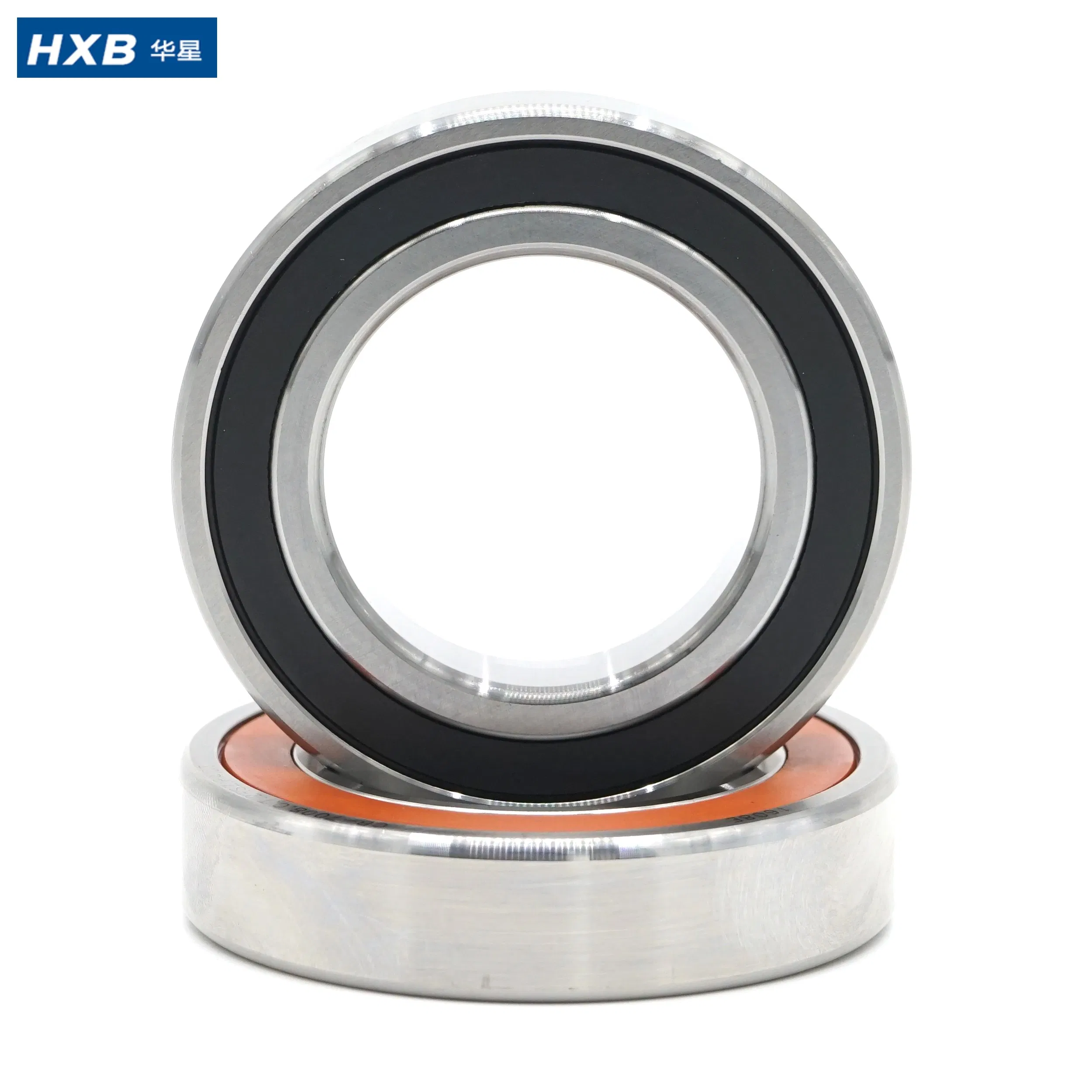

Bearing No. S7008CDGAHCP4A - Angular contact ball bearing - spindle ball bearing
| Technical Data | |
|---|---|
| Inside Ø (mm): | 40 |
| Outside Ø (mm): | 68 |
| Width (mm): | 15 |
| Tolerance for inside-Ø (mm): | 0/-0,006 |
| Tolerance for outside-Ø (mm): | 0/-0,007 |
| Contact Angle: | 15° |
| Seal: | NBR |
| Rolling Element Material: | Ceramics |
| Cage Material: | Phenolic Resin |
| Tolerance Class: | P4S |
| Product weight: | 0,1680 kg |
| Type | Shaft-Ø (mm) | D | B | Da | da | r(min) | Angle | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| HCB7003-C-T-P4S-UL | 17 | 35 | 10 | 31 | 21 | 0.4 | 15° | 0.033 |
| HCB7004-C-T-P4S-UL | 20 | 42 | 12 | 37 | 25 | 0.6 | 15° | 0.061 |
| HCB7005-C-T-P4S-UL | 25 | 47 | 12 | 42 | 30 | 0.6 | 15° | 0.065 |
| HCB7006-C-T-P4S-UL | 30 | 55 | 13 | 49 | 36 | 1 | 15° | 0.103 |
| HCB7007-C-T-P4S-UL | 35 | 62 | 14 | 56 | 41 | 1 | 15° | 0.135 |
| HCB7008-C-T-P4S-UL | 40 | 68 | 15 | 62 | 46 | 1 | 15° | 0.168 |
| HCB7009-C-T-P4S-UL | 45 | 75 | 16 | 69 | 51 | 1 | 15° | 0.197 |
| HCB7010-C-T-P4S-UL | 50 | 80 | 16 | 74 | 56 | 1 | 15° | 0.214 |

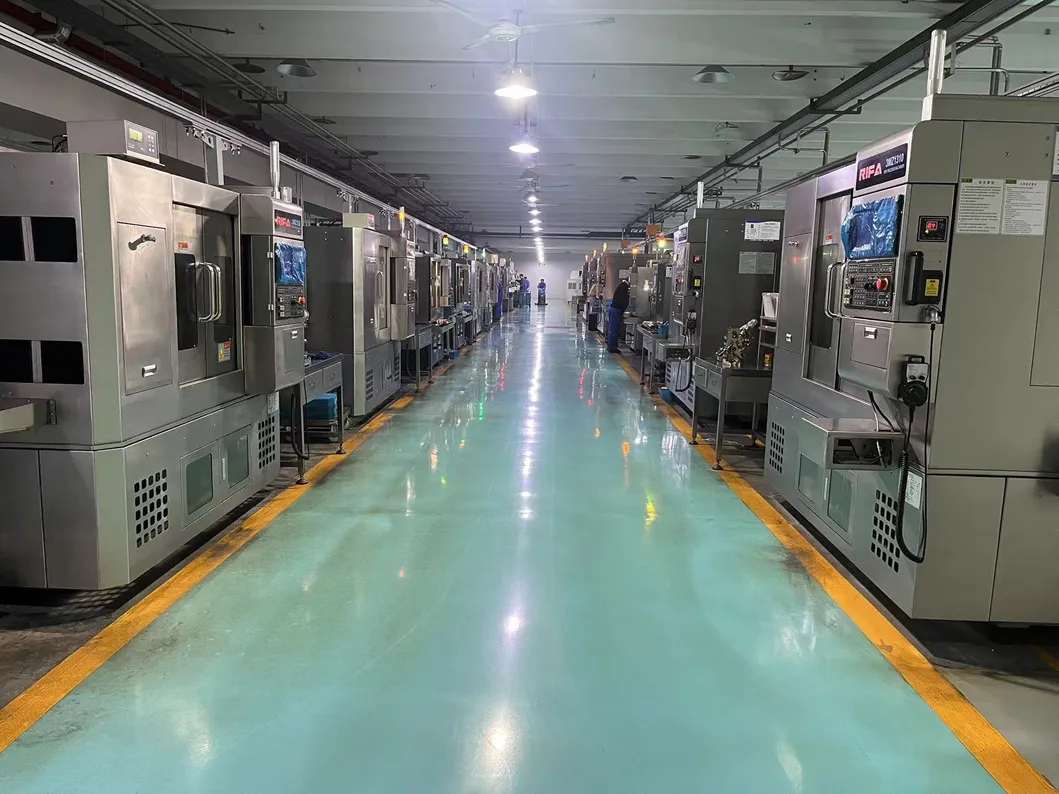

Established in 1995, as a leading ball bearing manufacturer, we offer more than 1,000 kinds of ball bearings. With an excellent production and technical team, we supply high-quality products consistently.

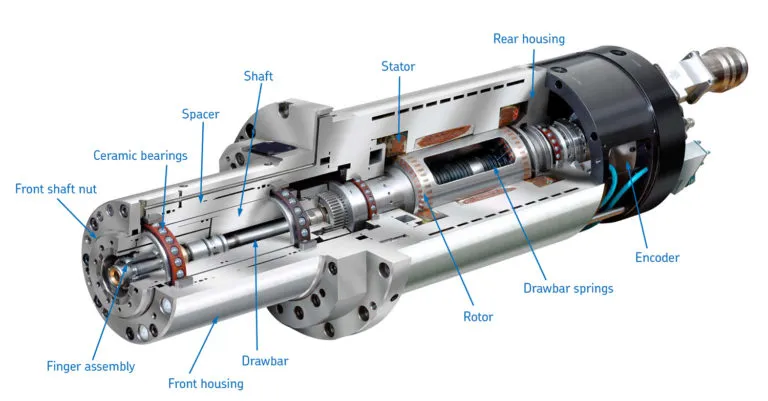

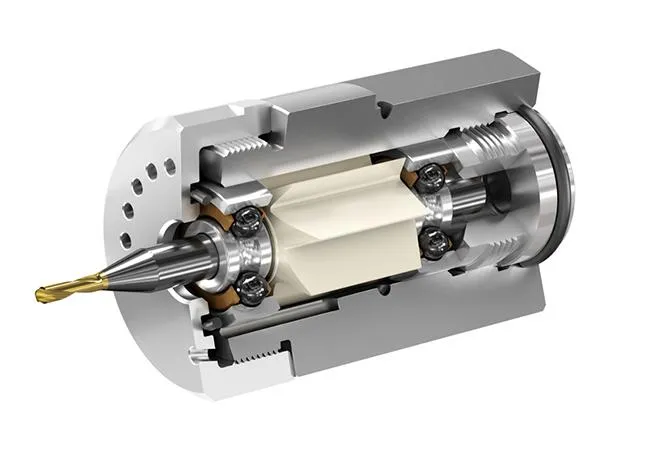

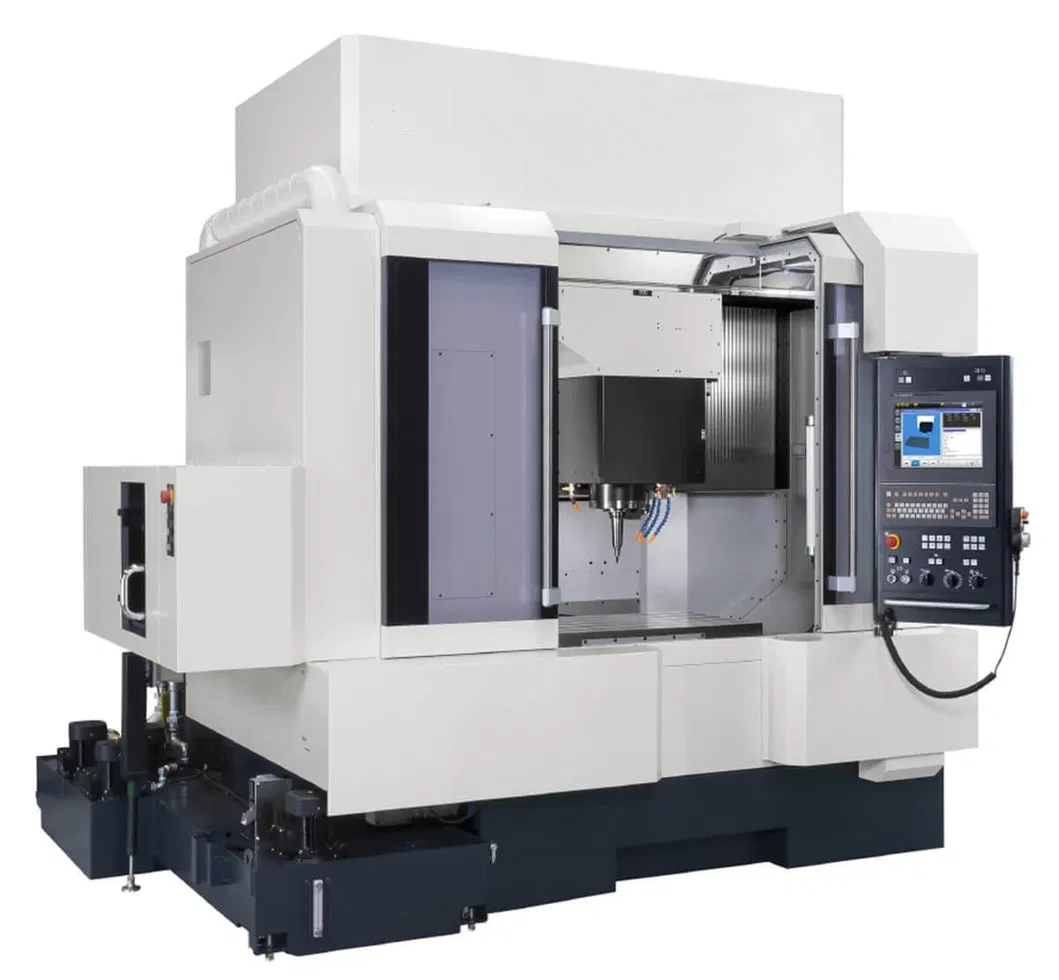

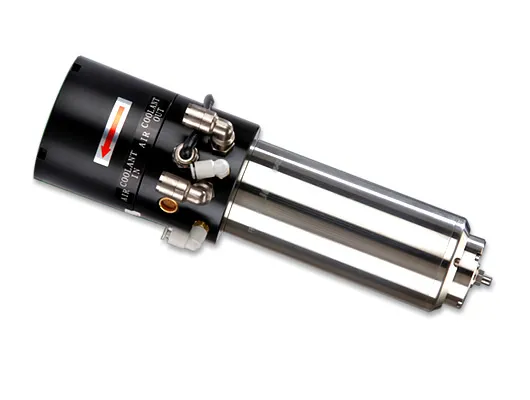

Our main products include deep groove ball bearings, angular contact ball bearings, and high precision spindle bearings. These are widely used in electric motors, machinery tool spindles, CNC, NEVs, and other industrial fields.
