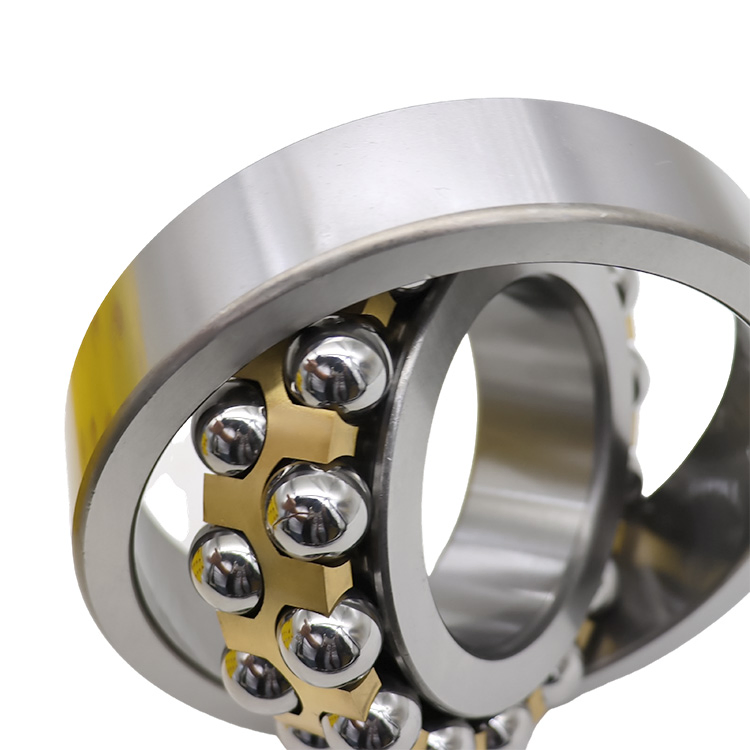

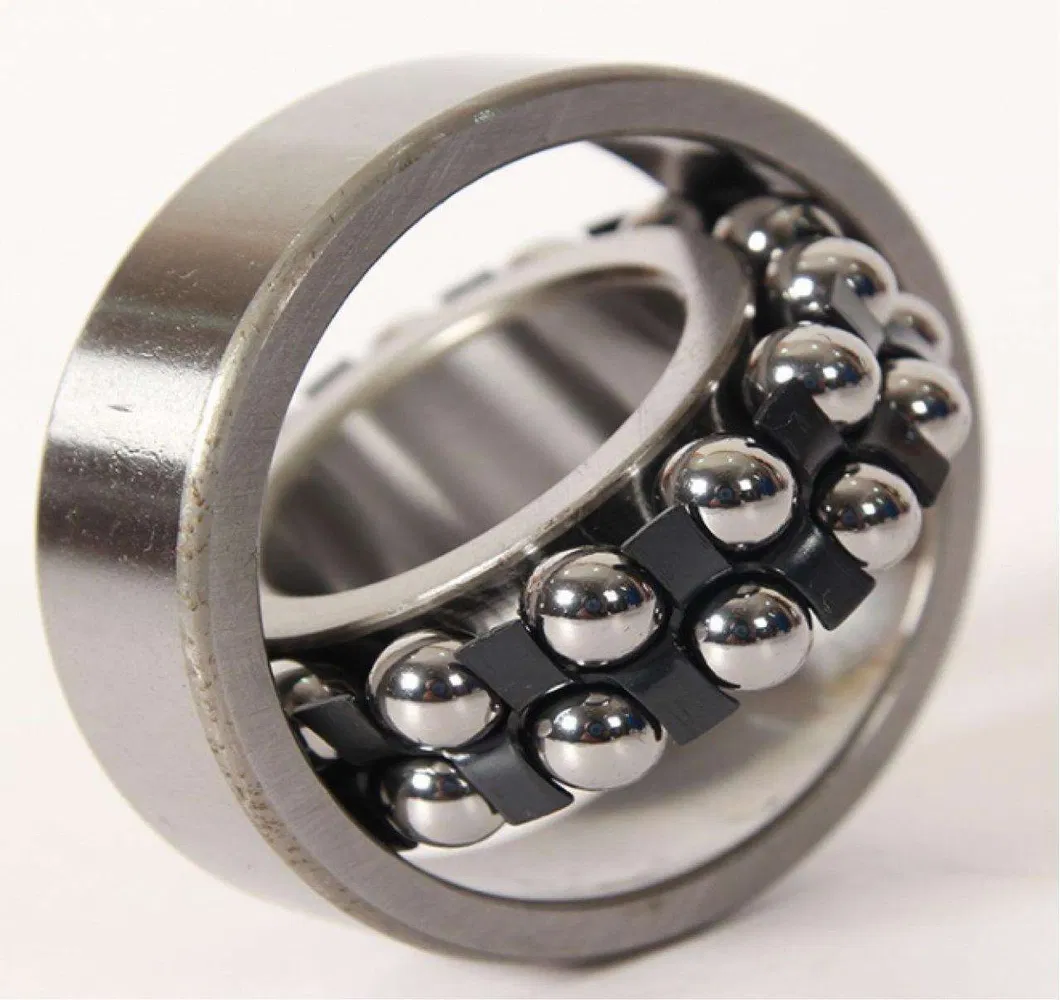

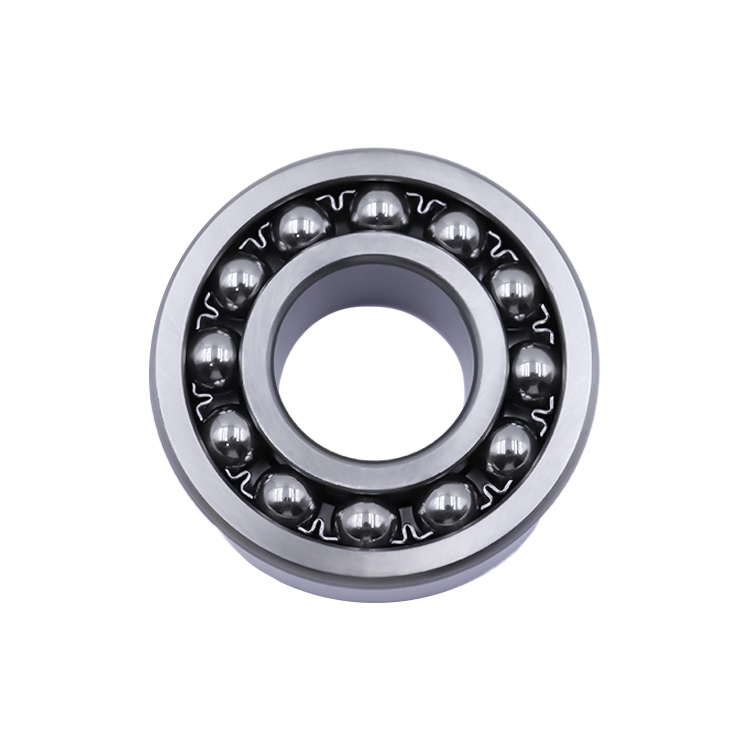

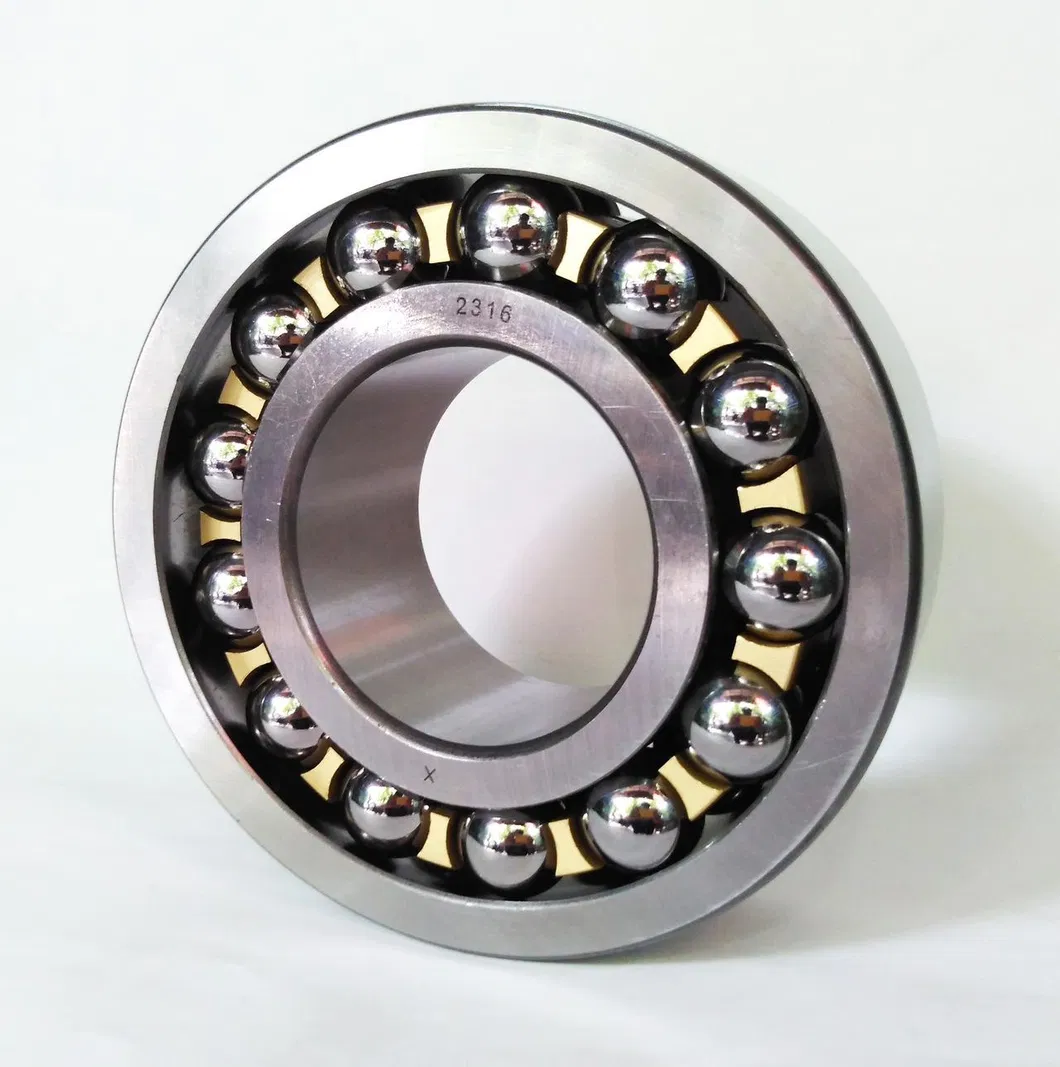

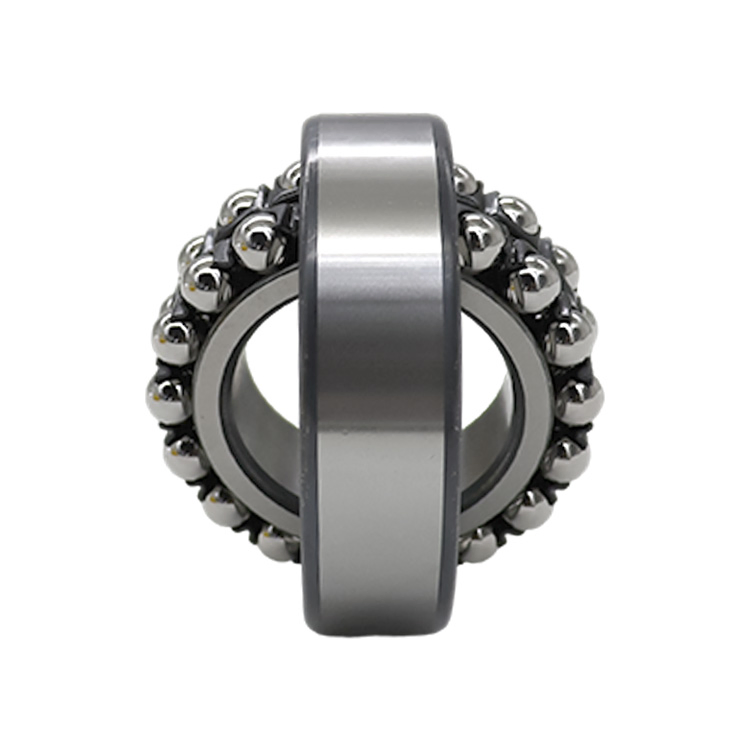

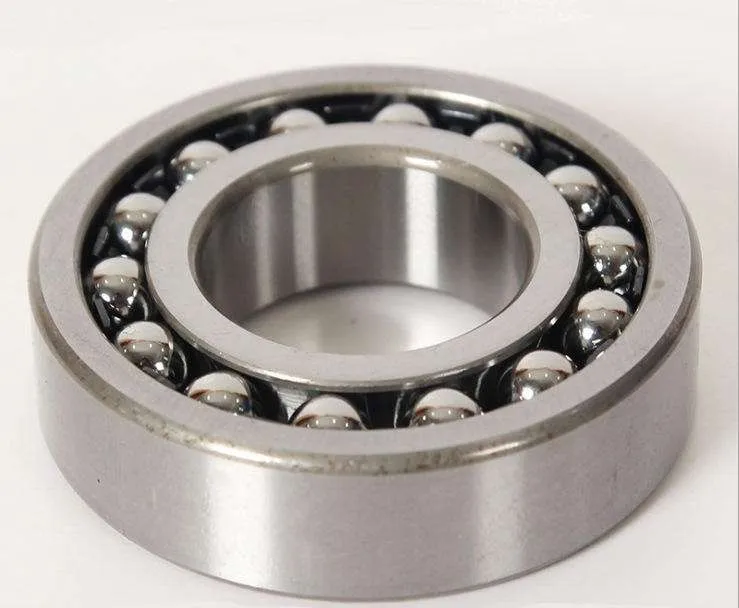

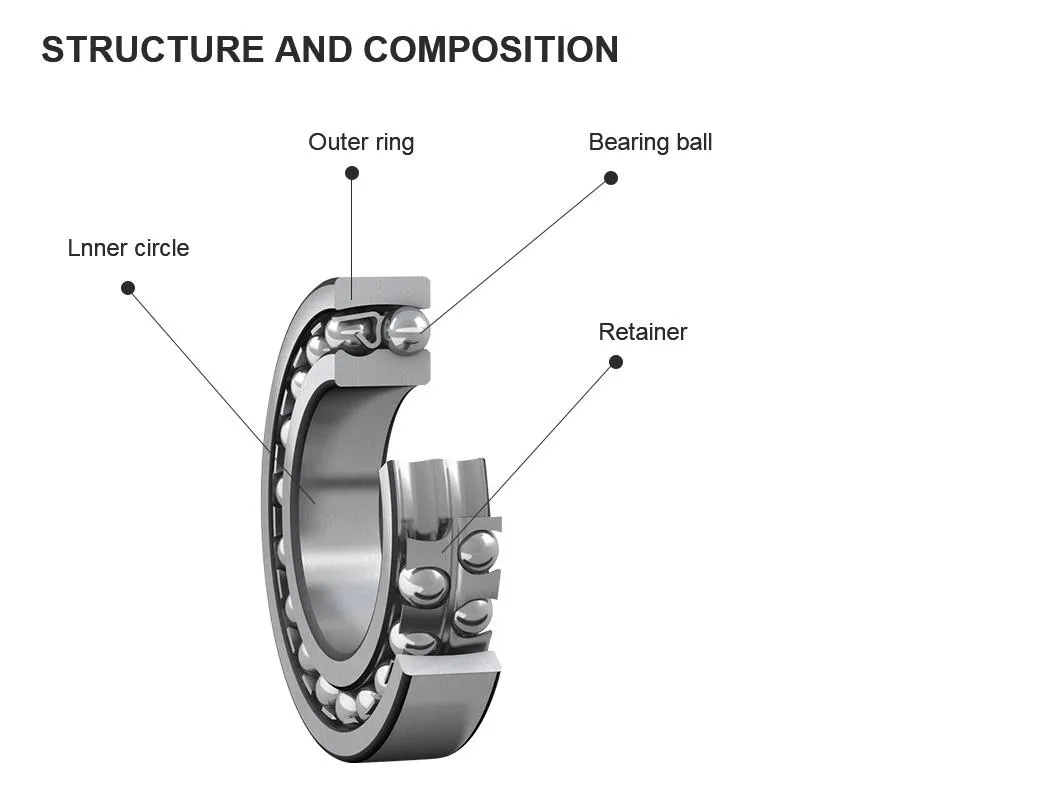

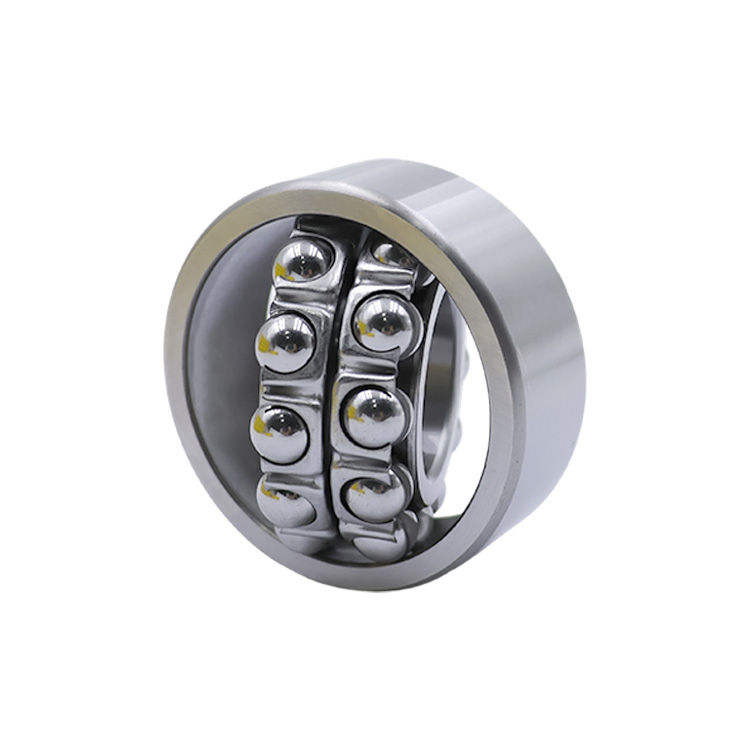

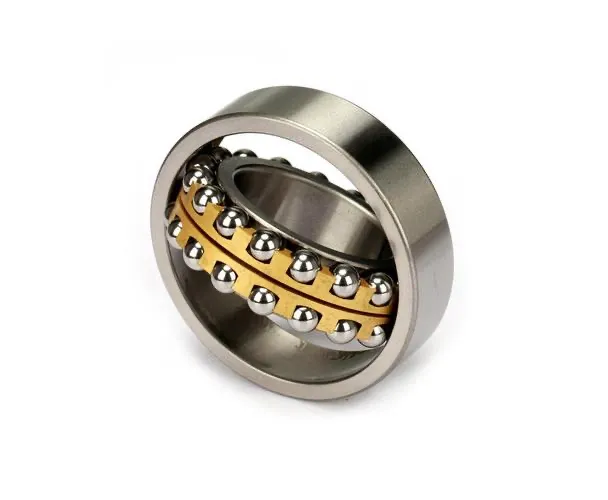

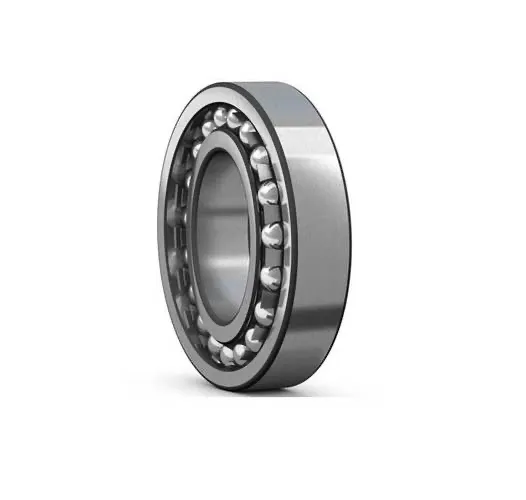

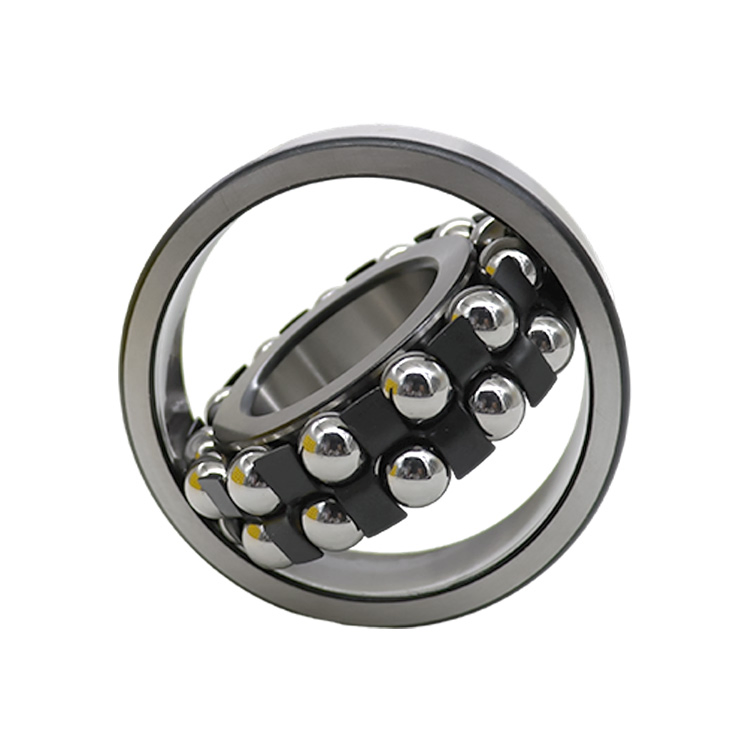

Self-Aligning Ball Bearing features two types of structure: cylindrical or tapered holes. The cage material options include steel plate, brass, and more. Characterized by a spherical raceway, it can automatically adjust to compensate for misalignment and shaft deflection. The relative inclination of the inner and outer rings should not exceed 3 degrees.
These bearings are capable of bearing significant radial loads and can also withstand axial loads. Due to the spherical shape of the outer ring raceway, the bearing maintains self-aligning performance even when the inner center line slopes up to 1 to 2.5 degrees relative to the outer ring.

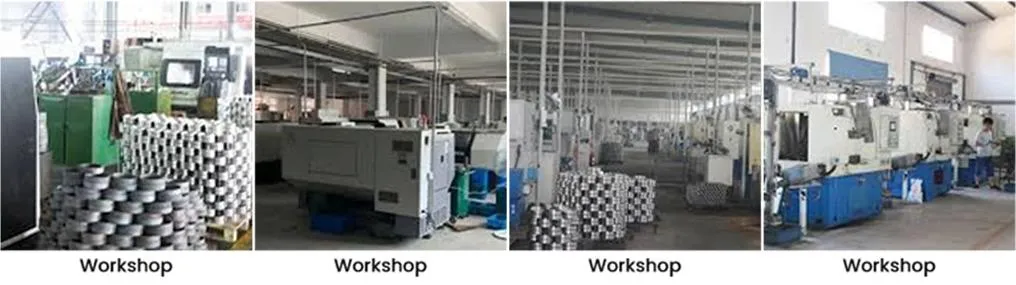

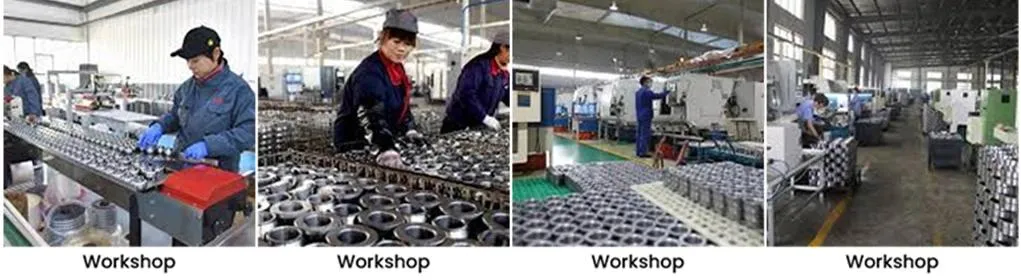

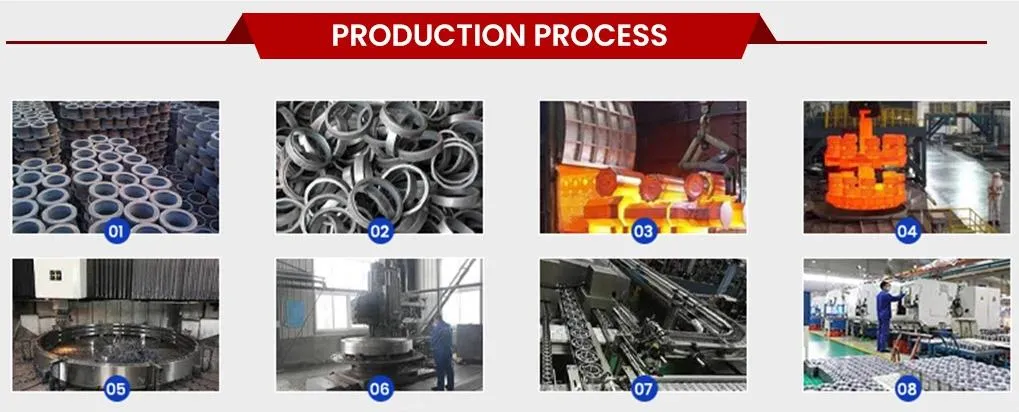

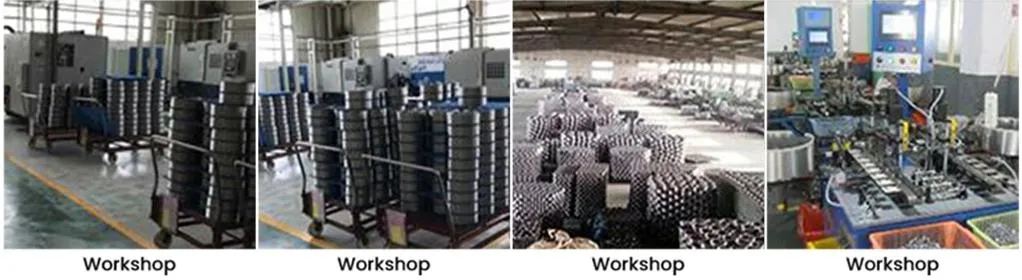

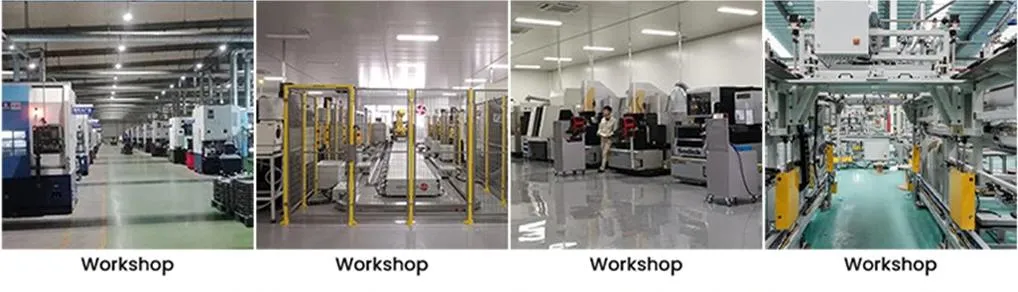

Our facility integrates research, development, design, and production. We focus on providing market-competitive bearings by insisting on independent technology and innovation.
| Bearing Number | d (mm) | D (mm) | B (mm) | rs min | Cr (kN) | Cor (kN) | Grease (rpm) | Oil (rpm) | Mass (Kg) |
|---|---|---|---|---|---|---|---|---|---|
| 1215 | 75 | 130 | 25 | 1.5 | 39 | 15.7 | 3,900 | 4,600 | 1.33 |
| 1216 | 80 | 140 | 26 | 2 | 40 | 17 | 3,700 | 4,300 | 1.65 |
| 1217 | 85 | 150 | 28 | 2 | 49 | 20.8 | 3,500 | 4,100 | 2.06 |
| 1218 | 90 | 160 | 30 | 2 | 57 | 23.5 | 3,300 | 3,800 | 2.51 |
| 1204K | 20 | 47 | 14 | 1 | 9.9 | 2.61 | 13,000 | 15,000 | 0.114 |
| 1205K | 25 | 52 | 15 | 1 | 12.1 | 3.3 | 11,000 | 13,000 | 0.135 |
| 1306K | 30 | 72 | 19 | 1.1 | 21.3 | 6.3 | 7,700 | 9,100 | 0.377 |
| 1308K | 40 | 90 | 23 | 1.5 | 29.6 | 9.7 | 6,000 | 7,000 | 0.698 |
