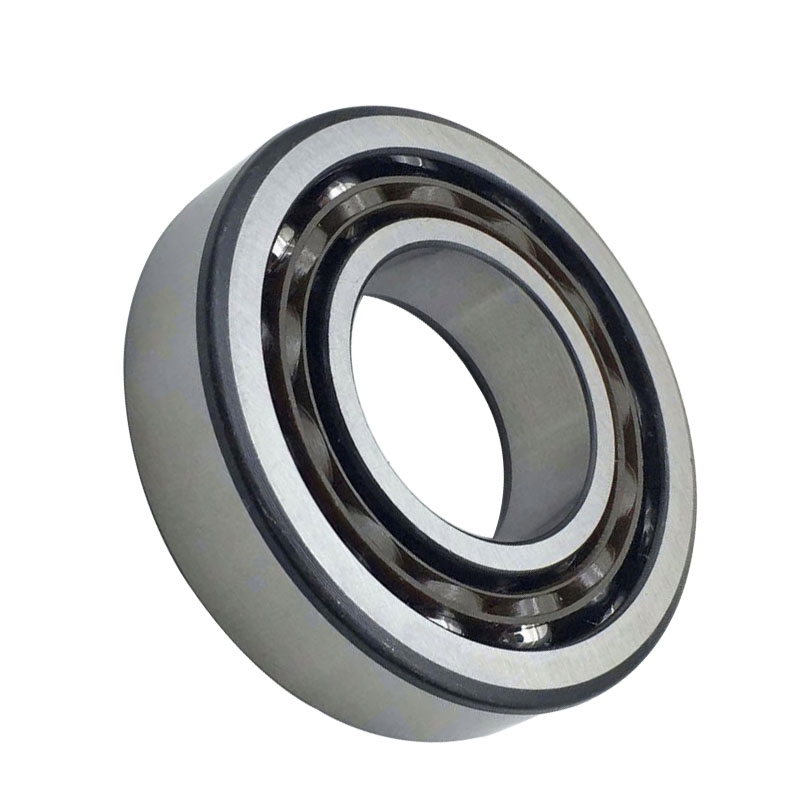

Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. These bearings are specifically designed to accommodate combined loads—simultaneously acting radial and axial loads.
The axial load carrying capacity increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane and a line perpendicular to the bearing axis.
| Model | Dimensions (mm) | Weight (kg) | ||
|---|---|---|---|---|
| d (Inner) | D (Outer) | B (Width) | ||
| 7000 | 10 | 26 | 8 | 0.02 |
| 7004 | 20 | 42 | 12 | 0.08 |
| 7008 | 40 | 68 | 15 | 0.22 |
| 7009 | 45 | 75 | 16 | 0.28 |
| 7012 | 60 | 95 | 18 | 0.48 |
| 7020 | 100 | 150 | 24 | 1.47 |
