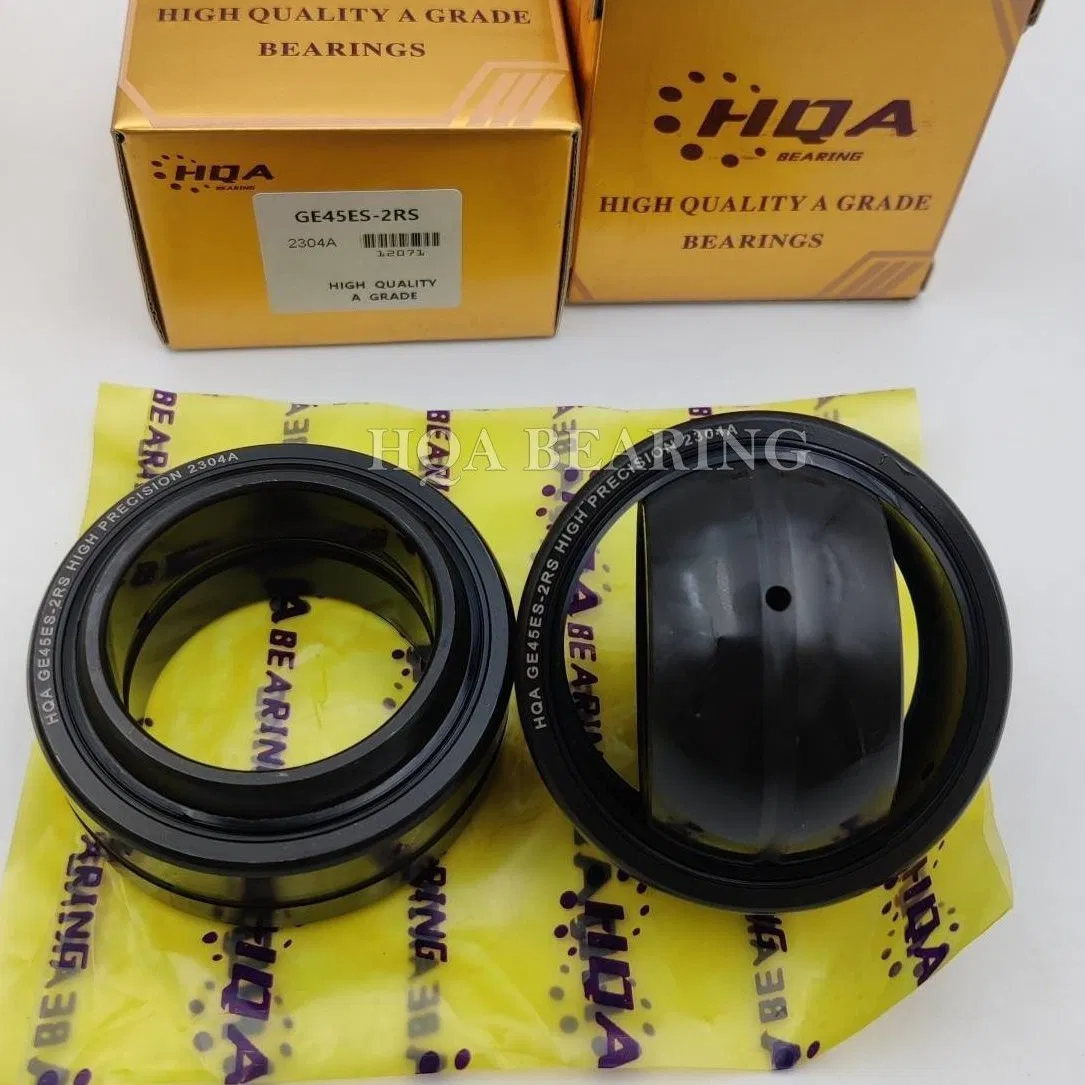

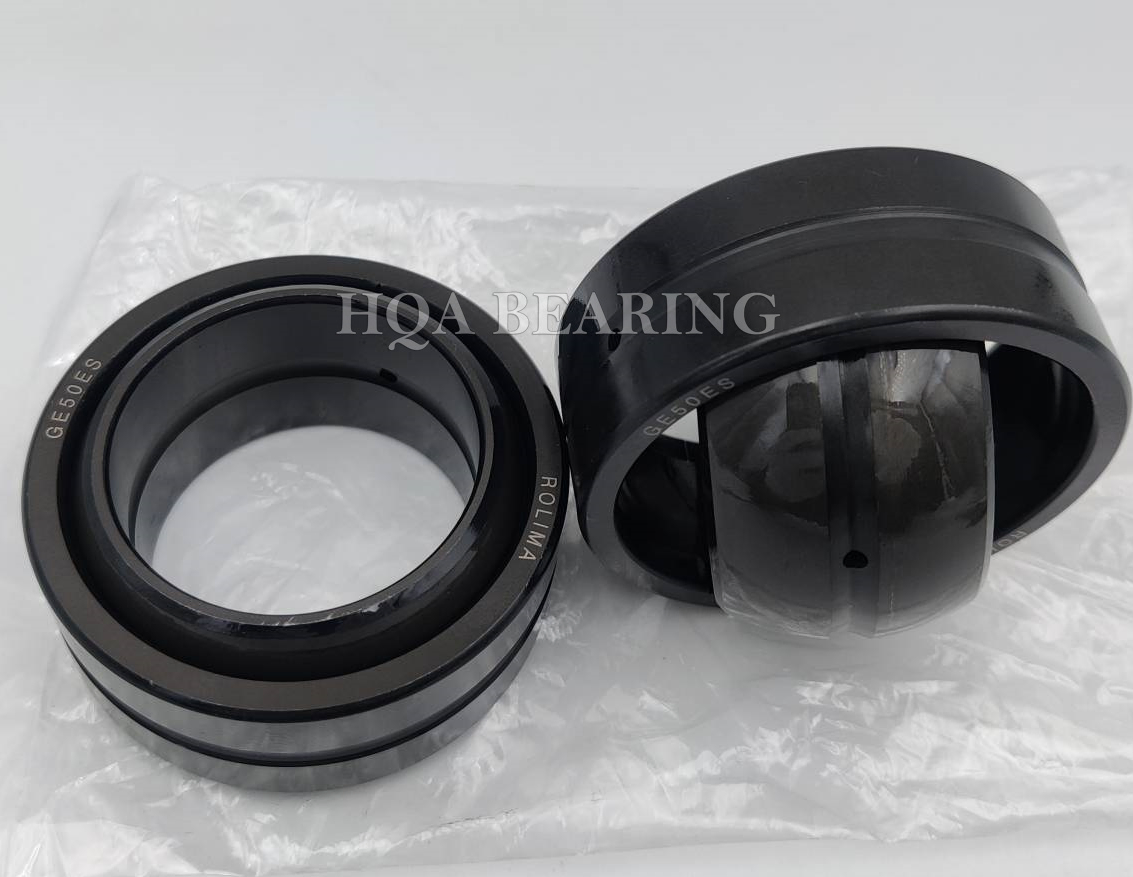

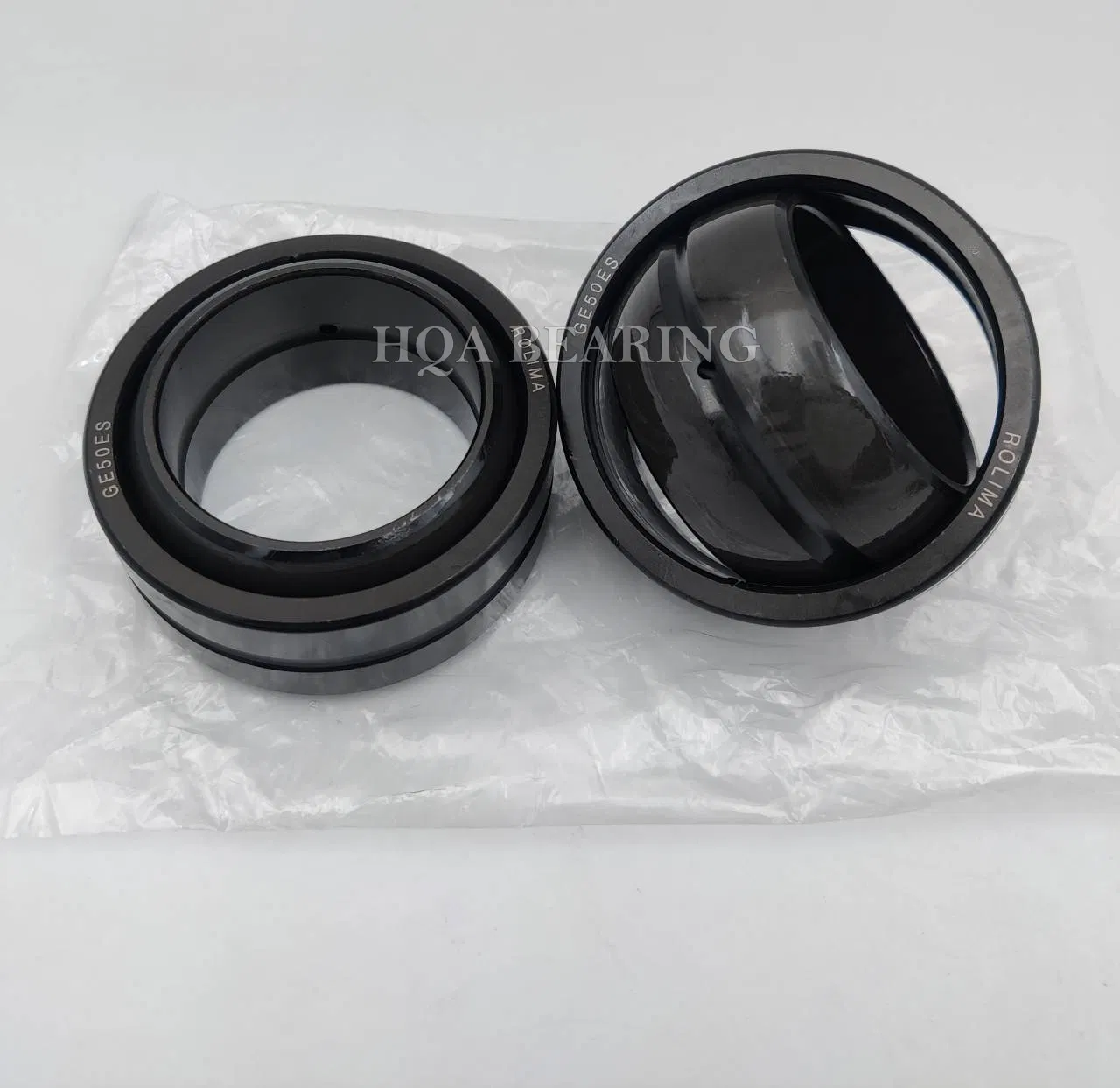

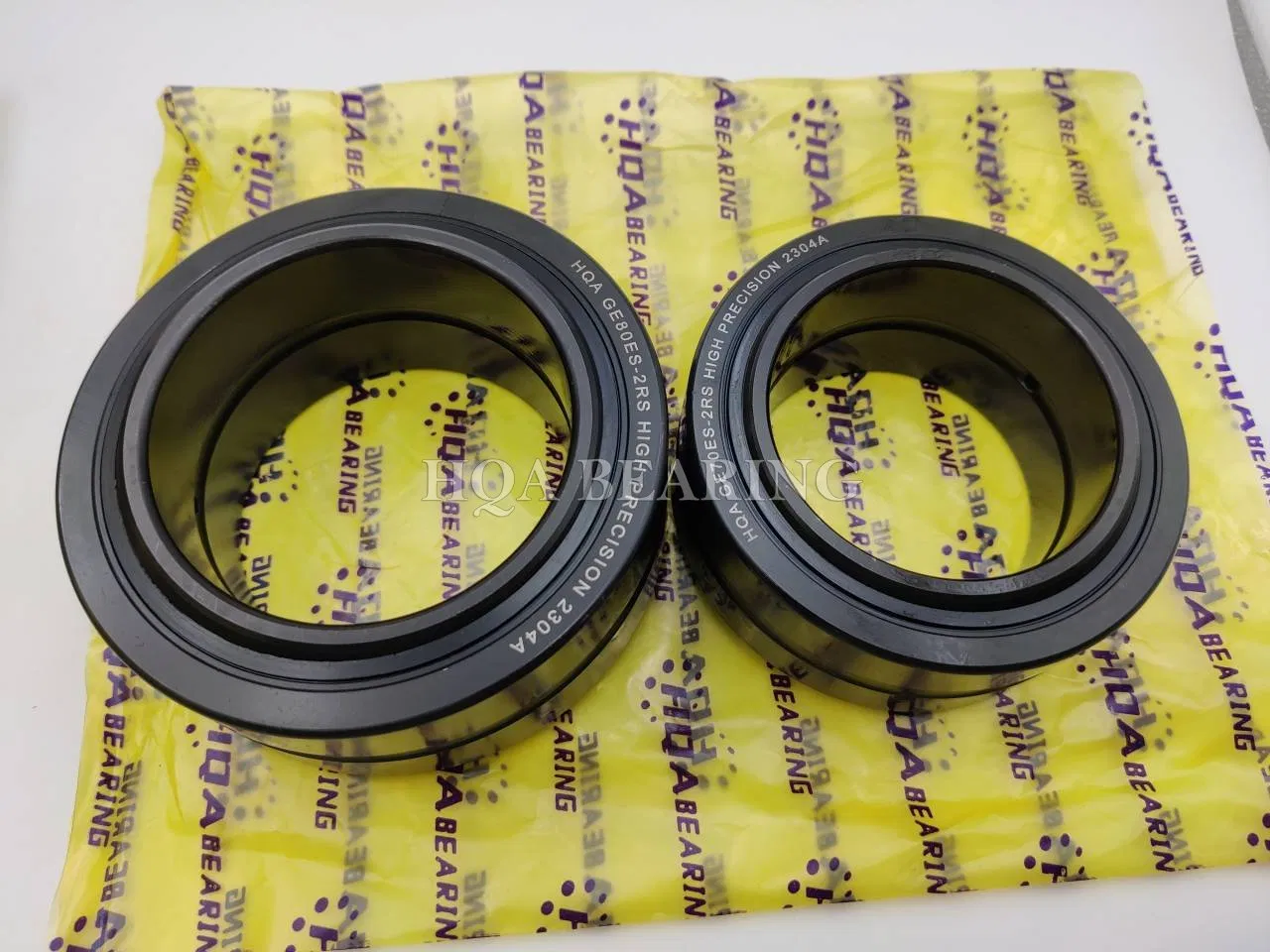

GEG230XS-2RS Ball Joint Bearing Radial Spherical Plain Bearing
Application:

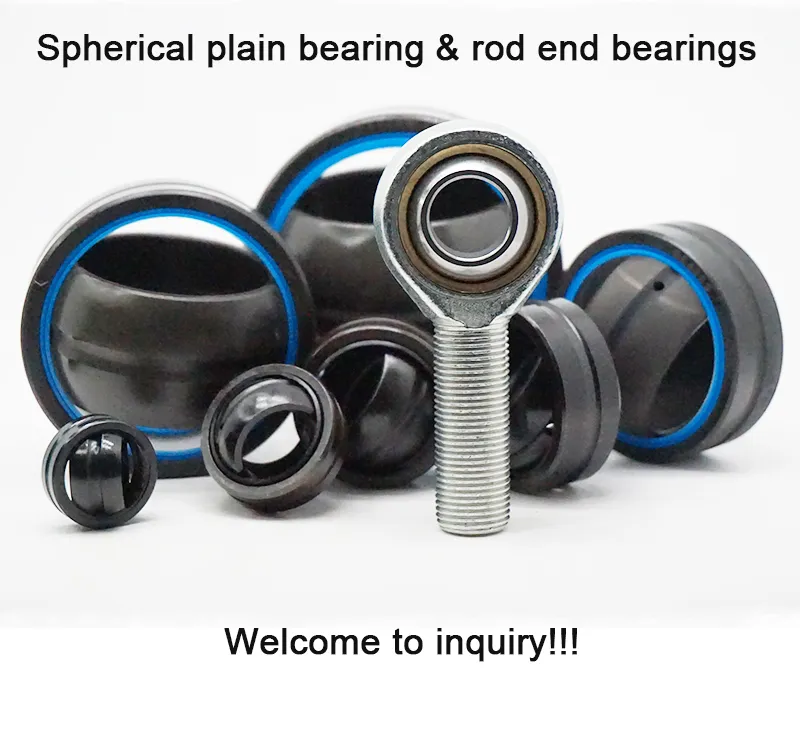

Spherical Plain Bearings have an inner ring with a sphere convex outside surface and an outer ring with a correspondingly sphere concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to accommodate, or where oscillating or recurrent tilting movements must be permitted at relatively slow sliding speeds.
| Feature | Details |
|---|---|
| Sliding Contact | Steel-on-Steel |
| Clearance | C0, C1, C2, C3, C4, C5 |
| Vibration & Noise | Z1, Z2, Z3 / V1, V2, V3 |
| Key Features | High Precision, High Speed, Long Life, Low Noise, Reduced Friction |
| Certification | ISO 9001:2008 |
| Bearing No. | Dimensions (mm) | Load Ratings (KN) | Weight (kg) | |||
|---|---|---|---|---|---|---|
| d | D | B | Dynamic | Static | ||
| GE15ES-2RS | 15 | 26 | 12 | 16 | 84 | 0.027 |
| GE20ES-2RS | 20 | 35 | 16 | 30 | 146 | 0.066 |
| GE25ES-2RS | 25 | 42 | 20 | 48 | 240 | 0.119 |
| GE30ES-2RS | 30 | 47 | 22 | 62 | 310 | 0.153 |

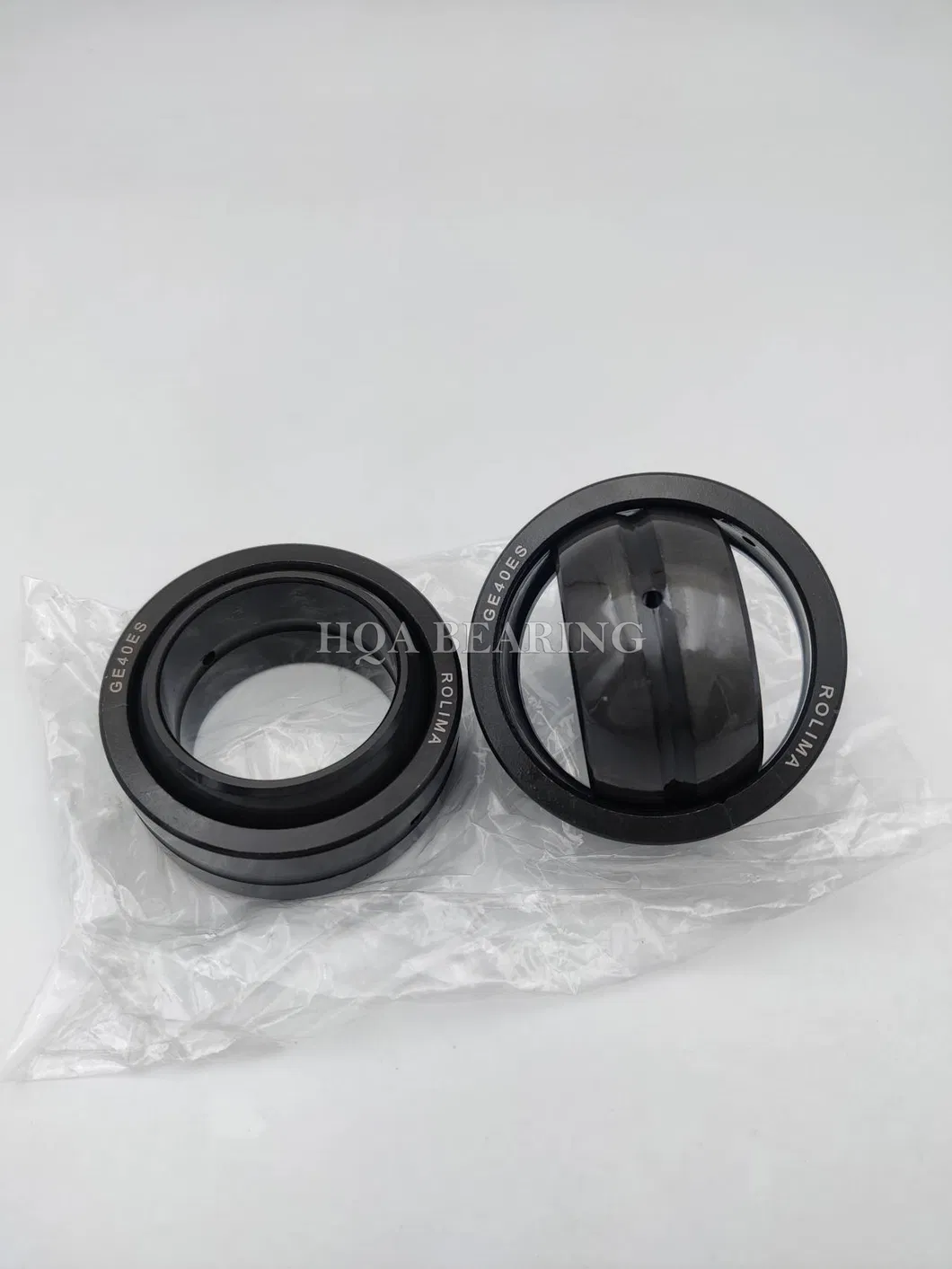

| GE40ES-2RS | 40 | 62 | 28 | 99 | 495 | 0.306 |

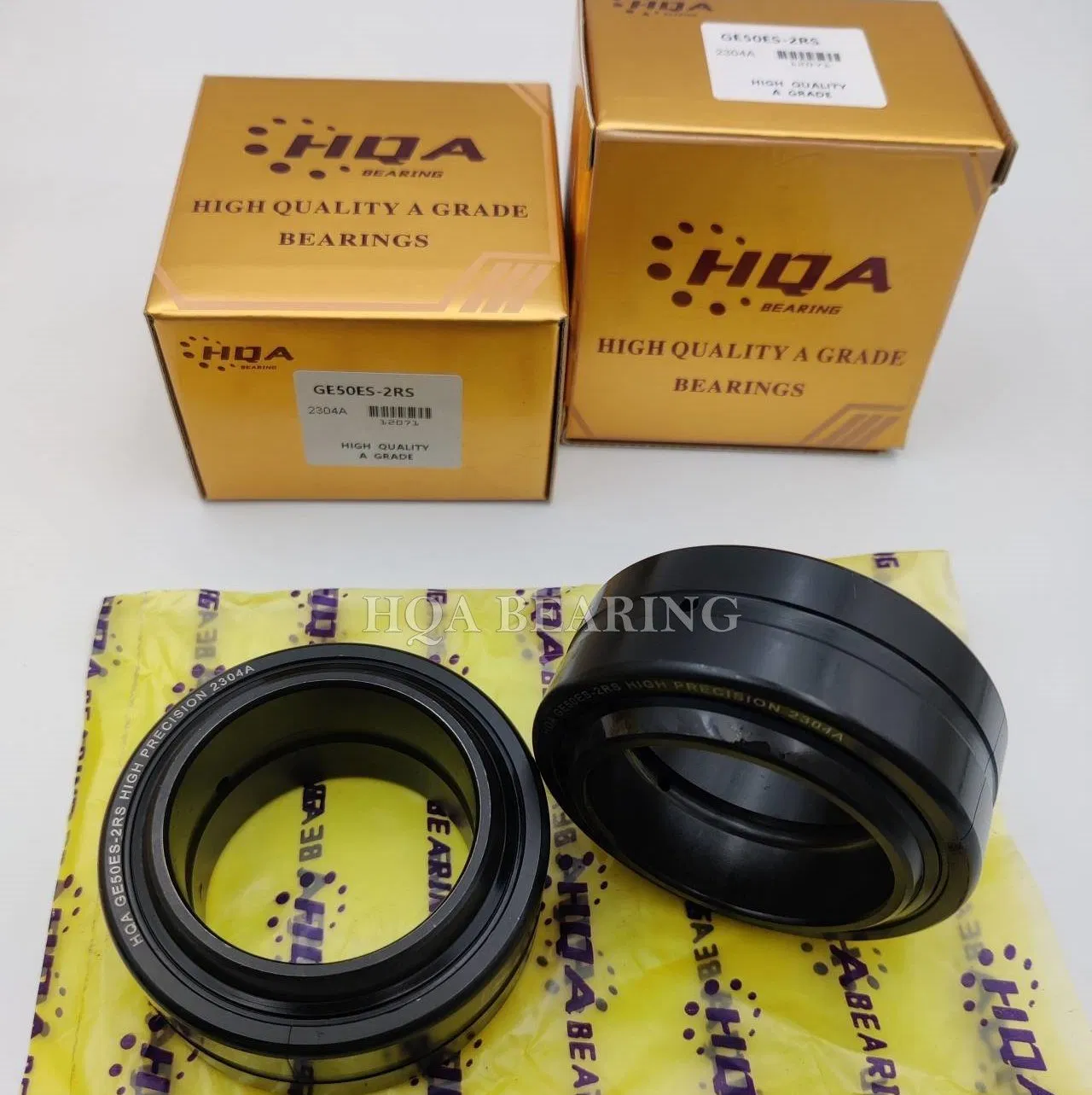

| GE50ES-2RS | 50 | 75 | 35 | 156 | 780 | 0.546 |
| GE60ES-2RS | 60 | 90 | 44 | 245 | 1220 | 1.04 |
| GE80ES-2RS | 80 | 120 | 55 | 400 | 2000 | 2.31 |
| GE100ES-2RS | 100 | 150 | 70 | 607 | 3030 | 4.45 |
