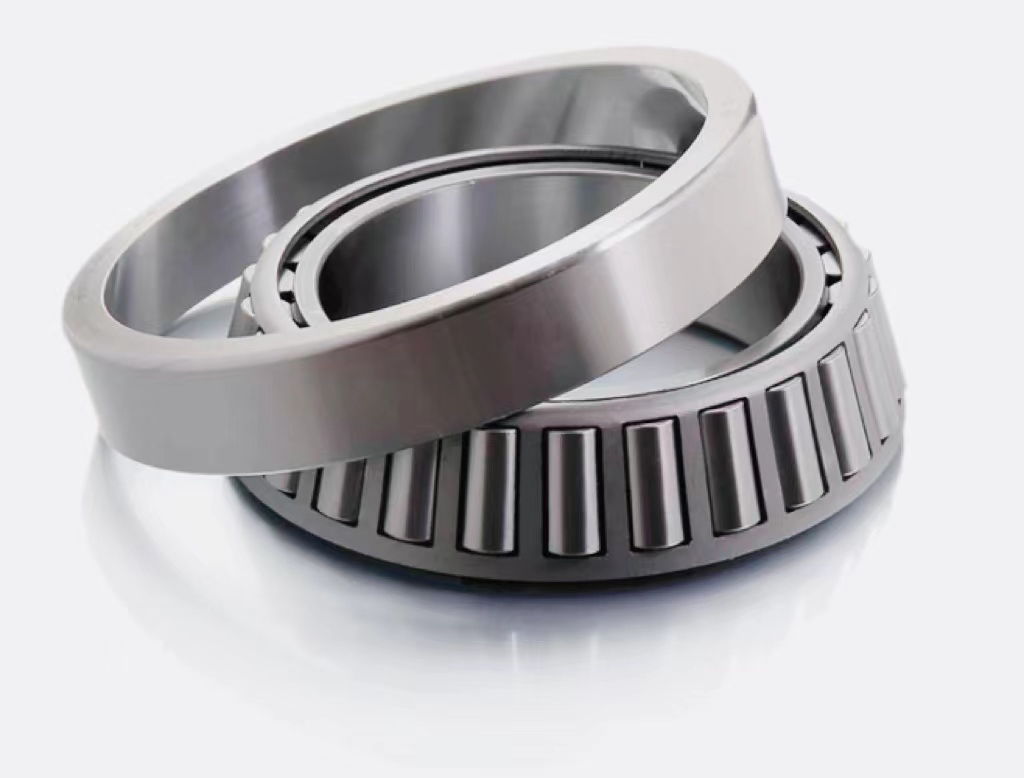

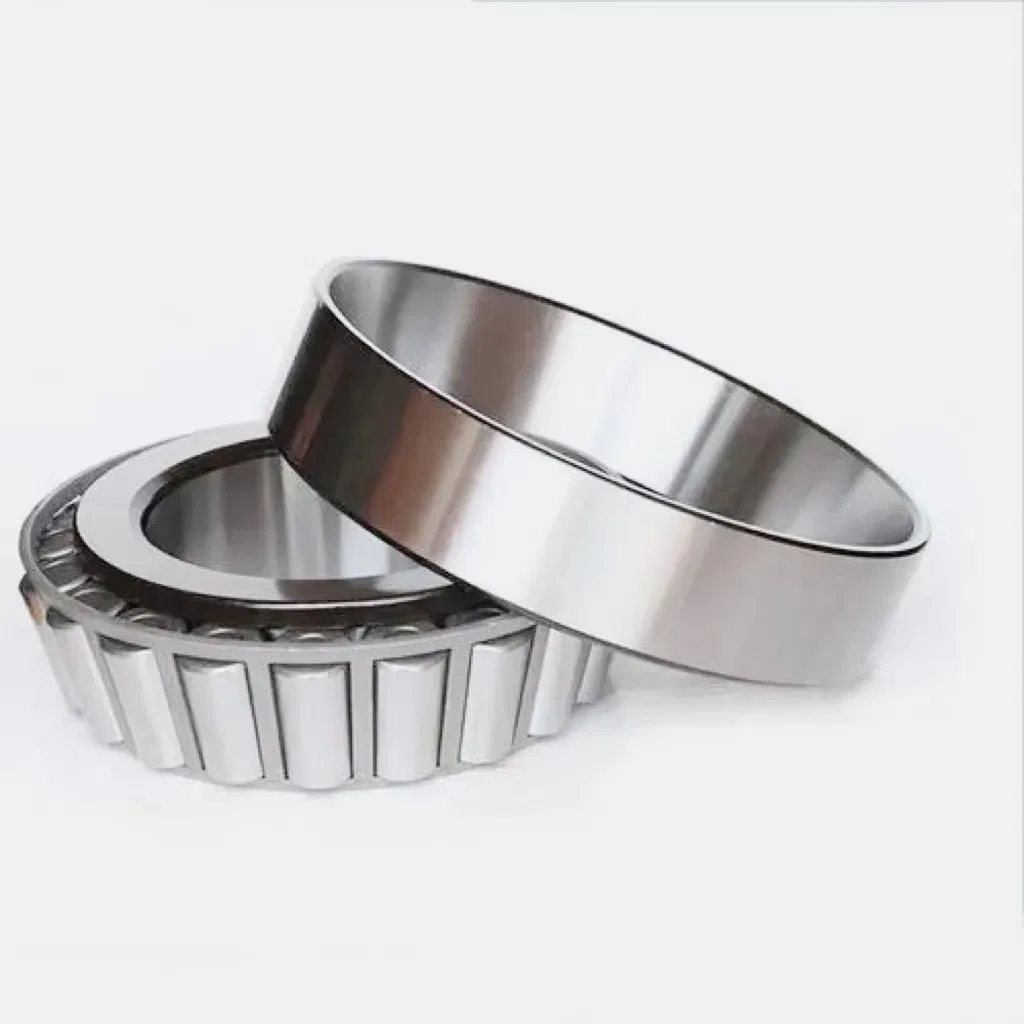

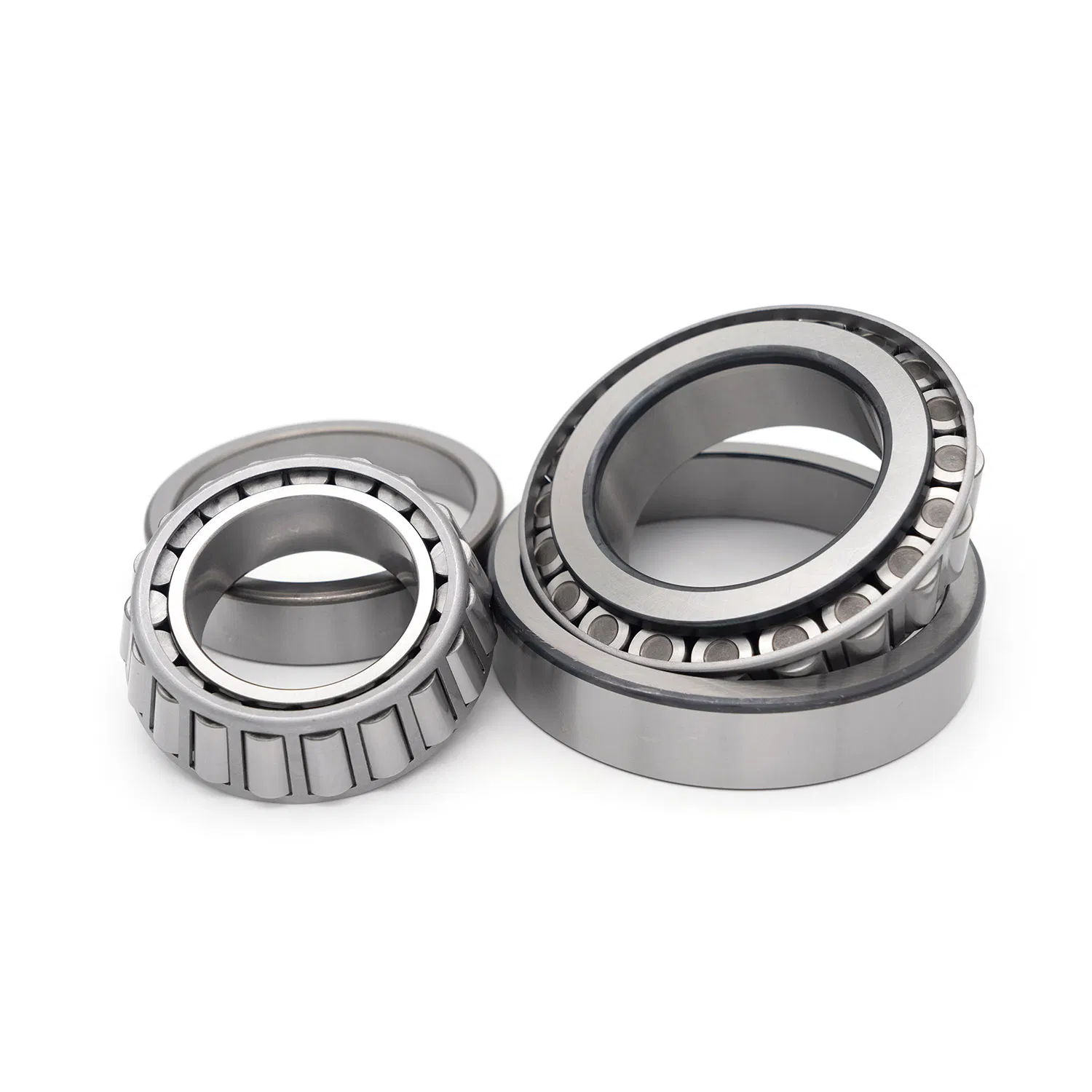

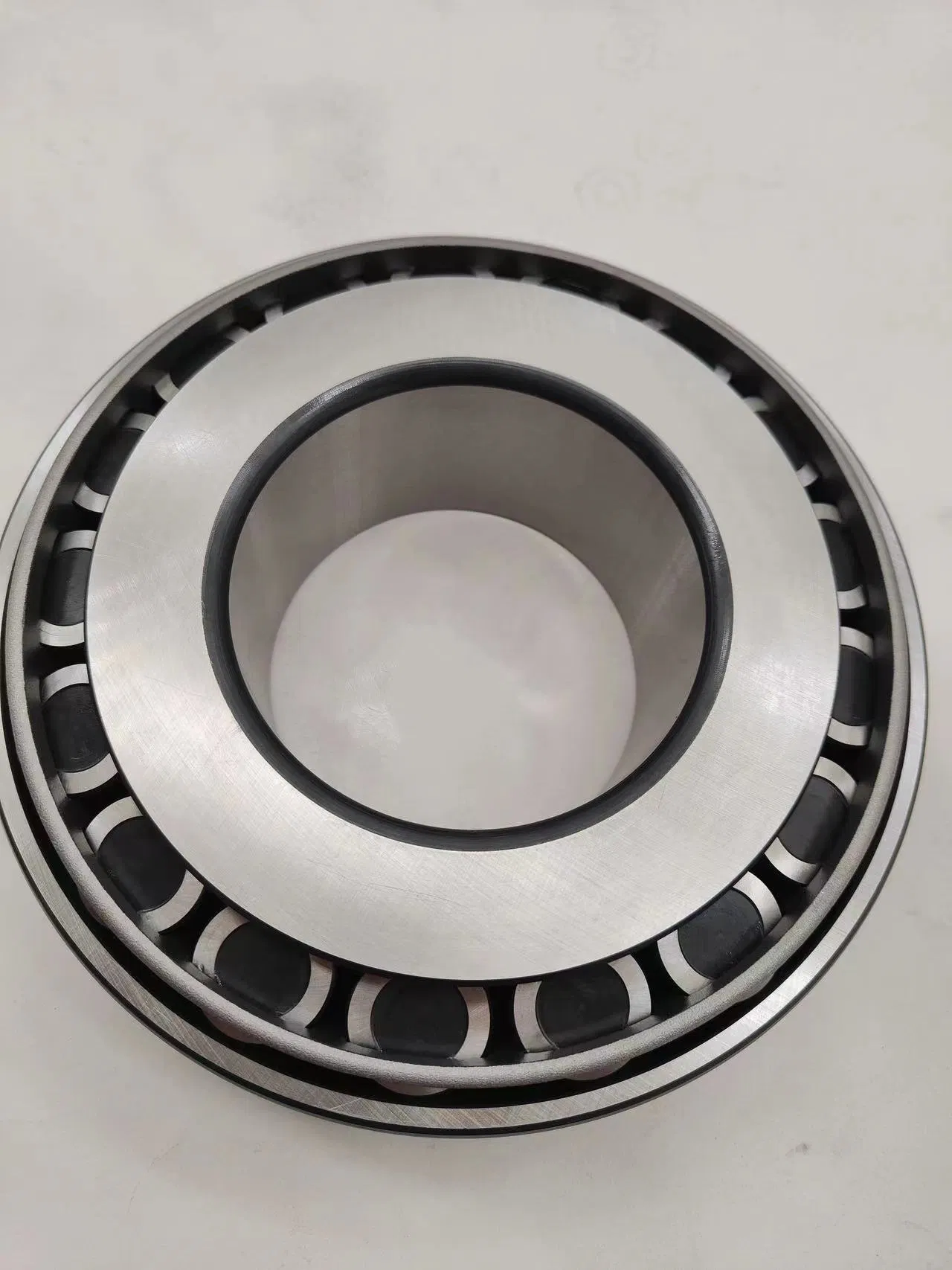

High Quality of China Brand 32013 Tapered Roller Bearing

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.
32013
Type
Separated
Rows
Single
Load
Radial Bearing
Material
Bearing Steel
Bore Size
65mm
OD
100 mm
Width
23mm
Limiting Speed
16000 R/Min
Static Load
34.2kN

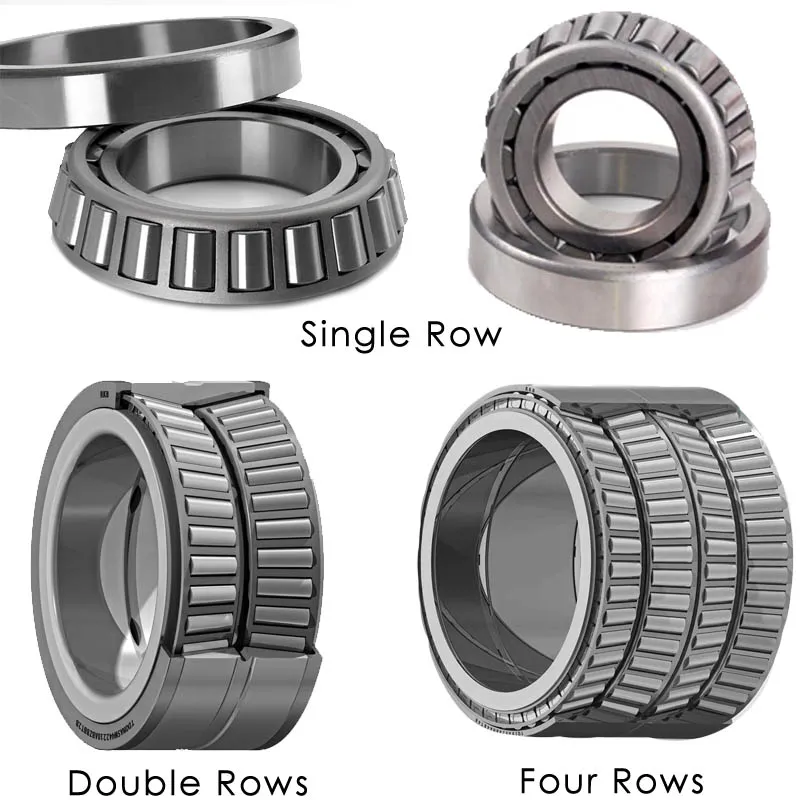

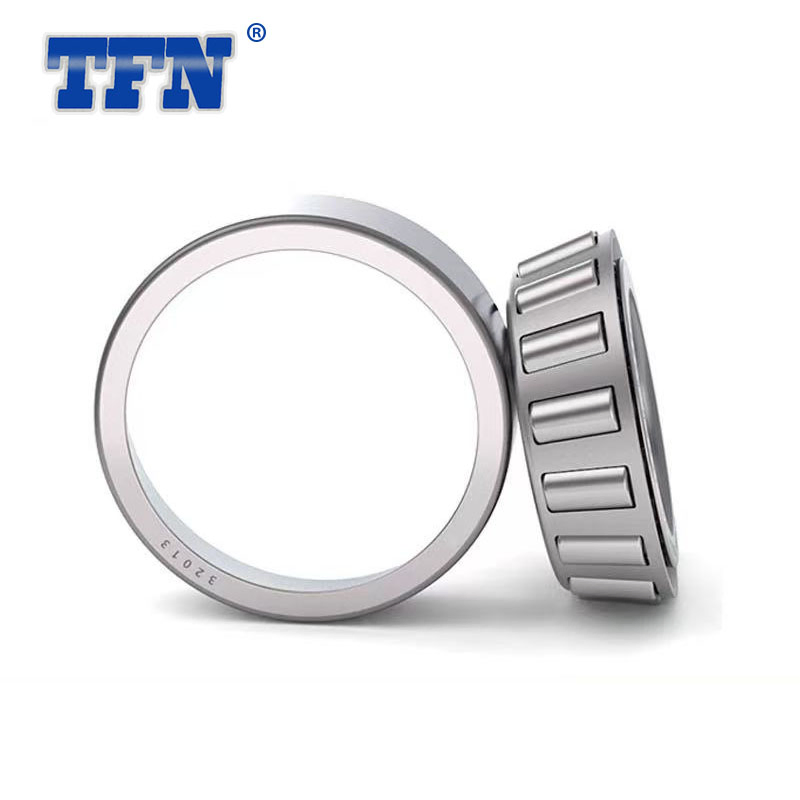

32013 Tapered Roller Bearing View 1

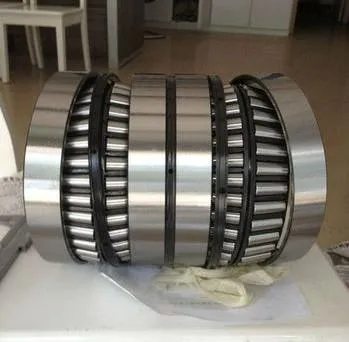

32013 Tapered Roller Bearing View 2
Technical Performance Data
Technical Drawing 32013
Symbol Value Description
d65 mmBore diameter
D100 mmOutside diameter
B23 mmWidth, inner ring
C17.5 mmWidth, outer ring
T23 mmWidth, total
Cr102,000 NBasic dynamic load rating, radial
C0r125,000 NBasic static load rating, radial
Cur20,800 NFatigue load limit, radial
nG8,300 1/minLimiting speed
m0.64 kgWeight
Mounting Dimensions
da max72 mmMaximum diameter of shaft shoulder
Da min90 mmMinimum diameter of housing shoulder
ra max1.5 mmMaximum fillet radius of shaft
Temperature Range
T min-30 °COperating temperature min.
T max120 °COperating temperature max.
Product Diagrams & Certificates
Bearing Diagram
Quality Certificate
Packaging Standard
Frequently Asked Questions
Why choose our 32013 Tapered Roller Bearings?
We provide professional-grade bearings with over 10 years of manufacturing experience. Our products meet high-quality standards including Z1V1, Z2V2, and Z3V3 ratings at competitive factory prices.
What is the quality assurance for these products?
We maintain a strict quality-to-price ratio. For the same quality level, we offer lower prices; for the same price point, we provide superior bearing durability and performance.
What other types of bearings do you supply?
In addition to Taper Roller Bearings, we specialize in Deep groove ball bearings, Cylindrical roller bearings, Thrust roller bearings, Spherical roller bearings, and Angular contact ball bearings.
Can I request samples for testing?
Yes, we offer samples for regular and customized designs. Sample fees are typically refunded once a mass production order is confirmed.
Do you support OEM or customized requirements?
With over 10 years of OEM experience, we can manufacture products according to your specific technical requirements, currently serving over 300 automobile parts factories.
What is the typical lead time and production capacity?
We have a massive production capacity of 5,000,000 units per year, ensuring stable supply and timely delivery for large-scale industrial needs.
