Basic Specifications
| Model NO. | UCT305 |
| Feature | Vacuum, Magnetically, Low Temperature, Corrosion Resistant, High Temperature, High Speed, Dustproof, Waterproof and High Sealing |
| Rows Number | Single |
| Raceway | Spherical Raceway |
| Material | Cast Iron |
| Bearing Block Model | T305 |
| Insert Bearing | UC305 |
| Bearing Material | GCr15(100Cr6)-type of bearing steel |
| Compressive Strength | HT200 |
| Type | Light, Standard, Heavy duty |
| Weight | 1.4KG |
| Internal Radial Clearance | 0.013 - 0.033 |
| Seal | Single Lip Contact |
| Locking Type | Eccentric Locking Collar |
| Application | Agricultural, industrial machinery, coating machine |
| HS Code | 8483200000 |
Packaging & Delivery
| Package Size | 3.00cm * 13.00cm * 4.00cm |
| Package Gross Weight | 1.500kg |
| Packing Method | Individual/ Industrial Packing |

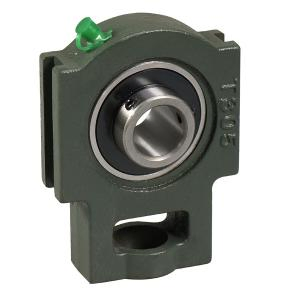

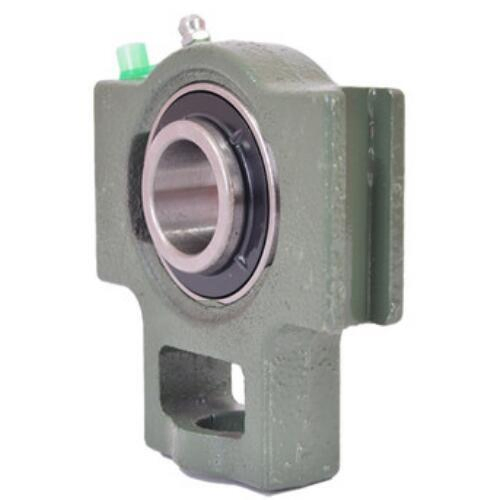

Product Description

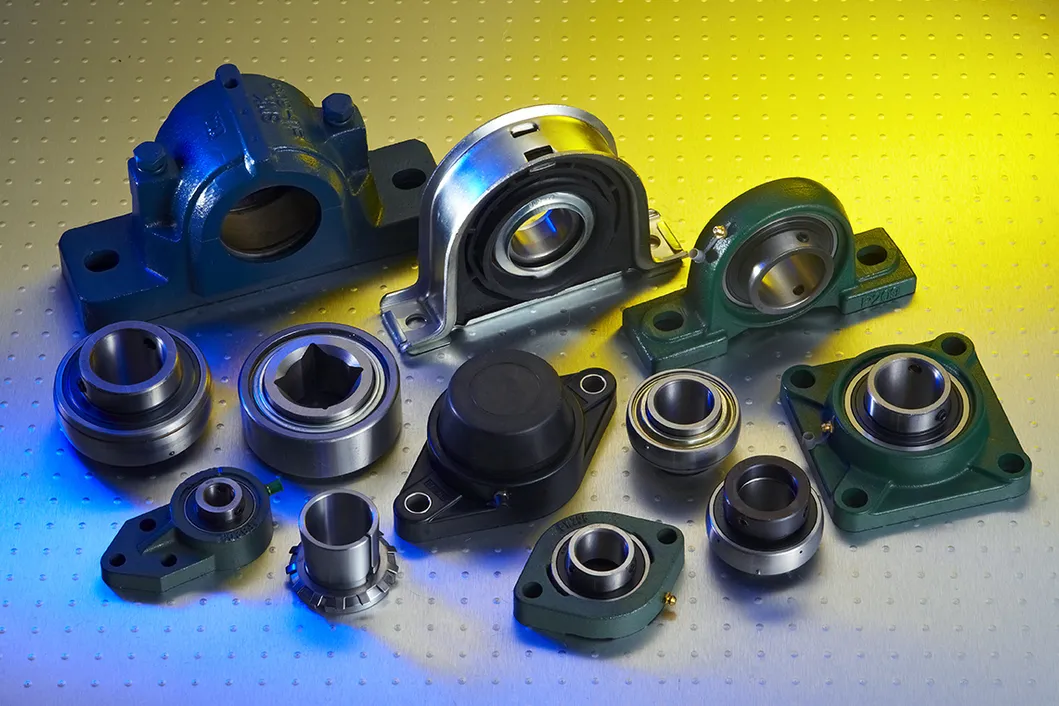

Mounted bearing units combine a spherical outside surface ball bearing, seal, and a housing of high-grade cast iron or pressed steel. Suitable for application under tough conditions.
✓Rational self-alignment
✓Larger load carrying capacity & relubricable
✓Efficient sealing with perfect cover fit
✓Solid housing against deformation
✓Easy and positive locking to shaft
✓Special heat-treatment to prevent cracking
✓Interchangeability between bearing and housing

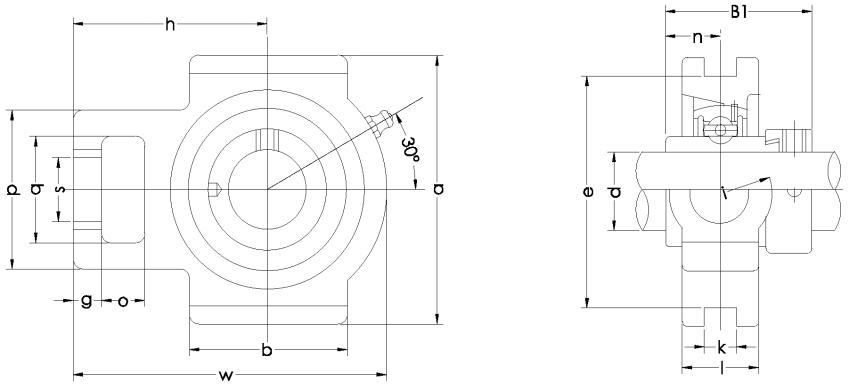

| Manufacturers Part Number | UCT305 |
Insert Bearing | UC305 |
| Bore Dia | 25mm |
Width | 89mm |
| Length | 122mm |
Height | 38mm |
| Material | Cast iron |
Bearing Material | AISI 52100 steel |
Manufacturing & Quality Control

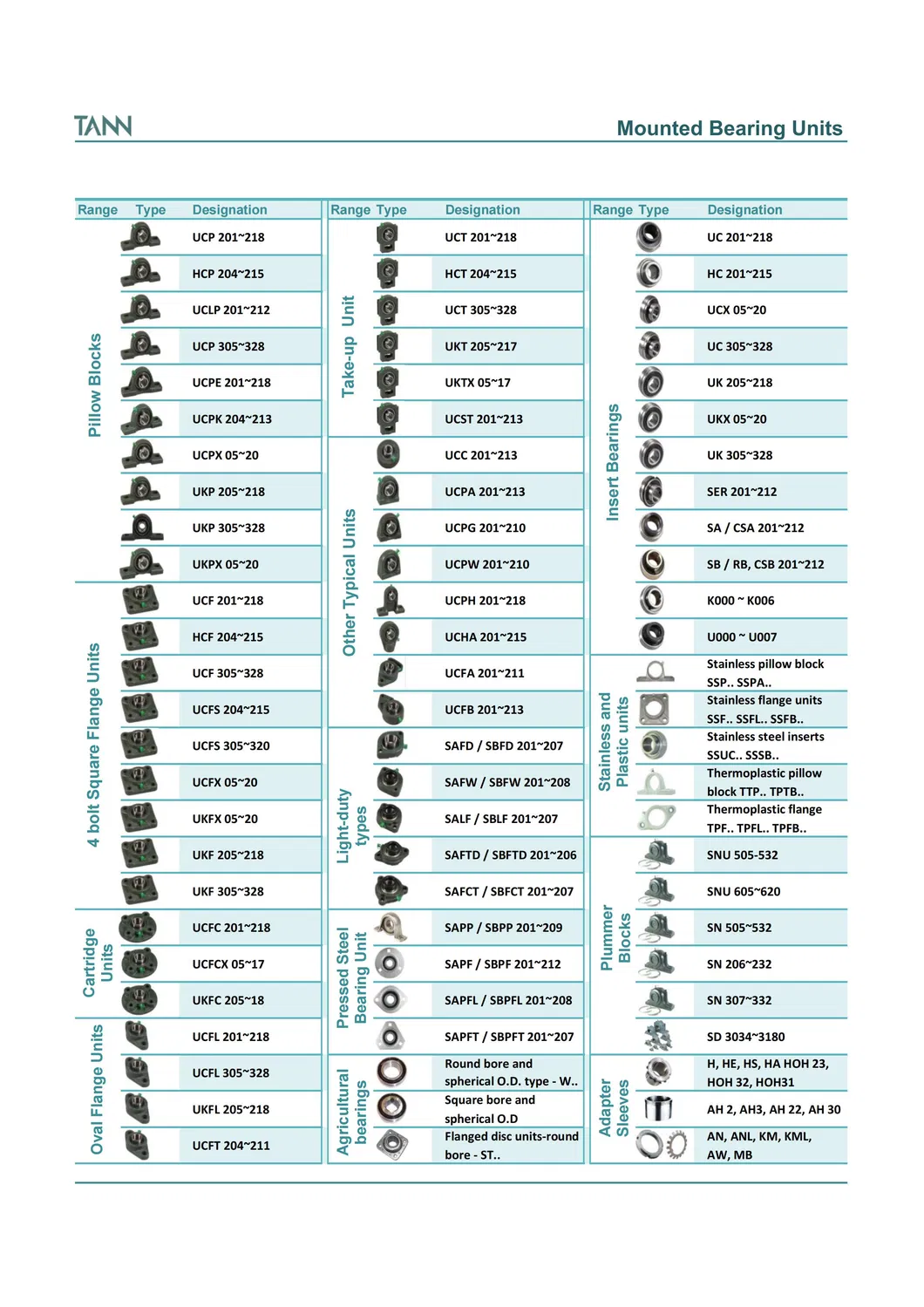

| Comprehensive Range |

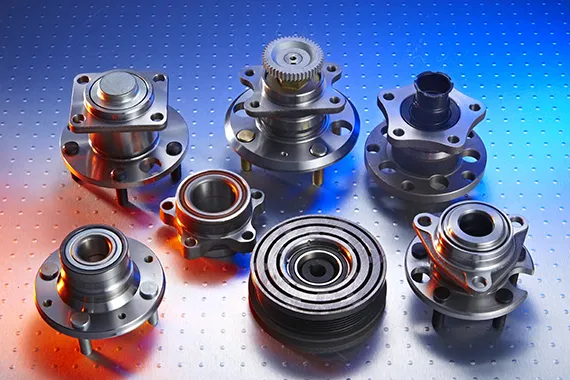

Bearings, Oil seals, Transmission belts, Chains and Sprockets, Hub assemblies, Linear motion. |
| Our Advantage |
1. Advanced Automatic Lines; 2. Comprehensive Range; 3. Premium Quality; 4. Sustainability |

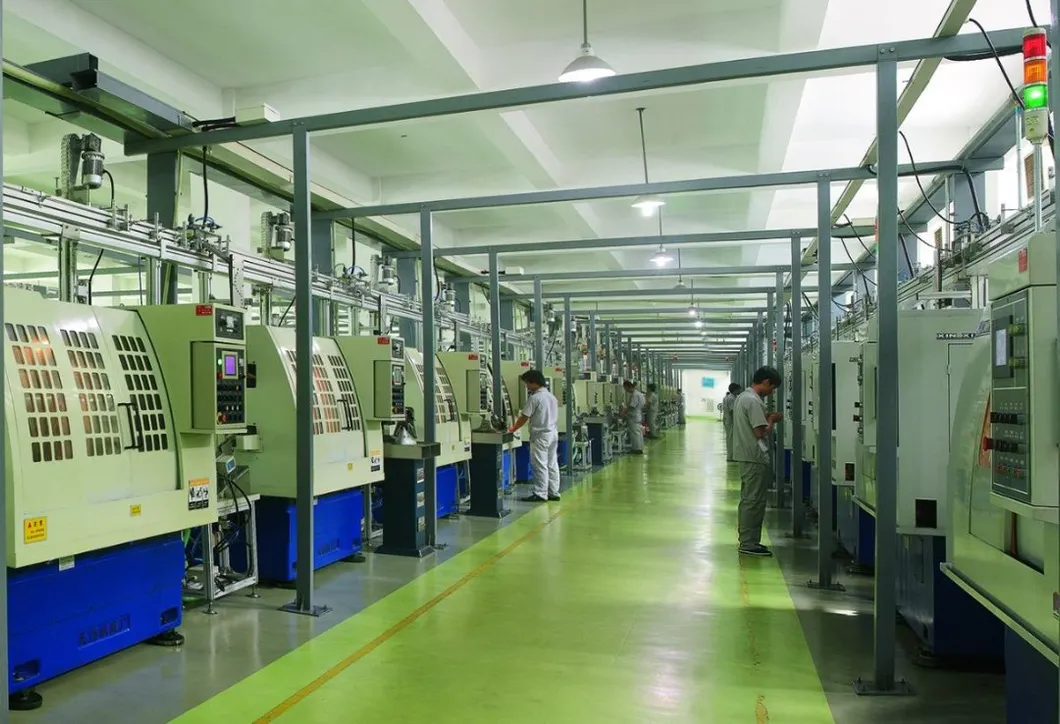

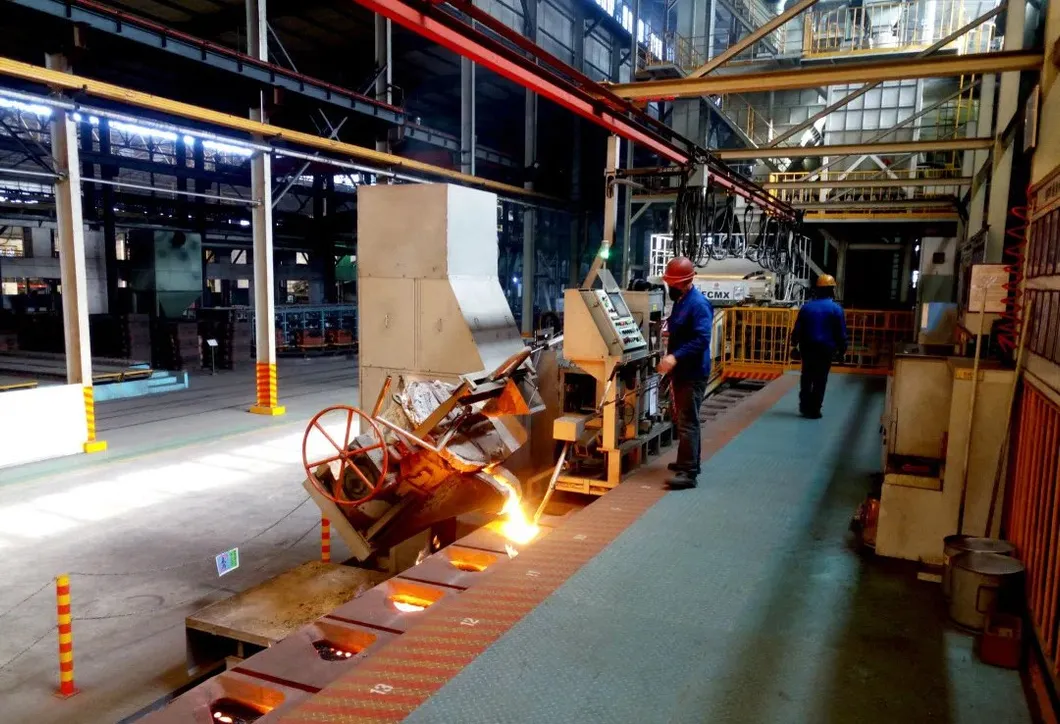

Advanced Manufacturing Processes:
- Heat Treatment
- Centerless Grinding (Advanced)
- Automatic Raceway Production
- Ultrasonic Cleaning
- Automatic Assembly
- Automatic Greasing & Sealing
- Vibration Measurement
- Laser Marking
Frequently Asked Questions
Q1: What materials are used for the UCT305 housing and bearing?
A: The housing is made of high-grade HT200 cast iron, while the insert bearing is constructed from GCr15 (100Cr6) type bearing steel or AISI 52100 steel for high durability.
Q2: Can the bearing unit handle high-temperature environments?
A: Yes, the UCT305 features specialized capabilities for high temperature, high speed, and corrosion resistance, making it suitable for tough industrial conditions.
Q3: What are the main applications for these take-up bearing units?
A: These units are widely used in agriculture, mining, textile machinery, chemical engineering, fans, and various industrial coating machines.
Q4: Is the insert bearing interchangeable?
A: Yes, there is complete interchangeability between the bearing and the housing, allowing for easy maintenance and replacement.
Q5: How is the quality of the bearings verified?
A: Quality is ensured through strict compliance with ISO standards, including ultrasonic cleaning, automatic greasing, and rigorous vibration/speed measurement tests.
Q6: What locking mechanisms are available?
A: The range includes dual set screw locking, eccentric locking collars, and adapter locking (UK type) to suit different shaft requirements.
