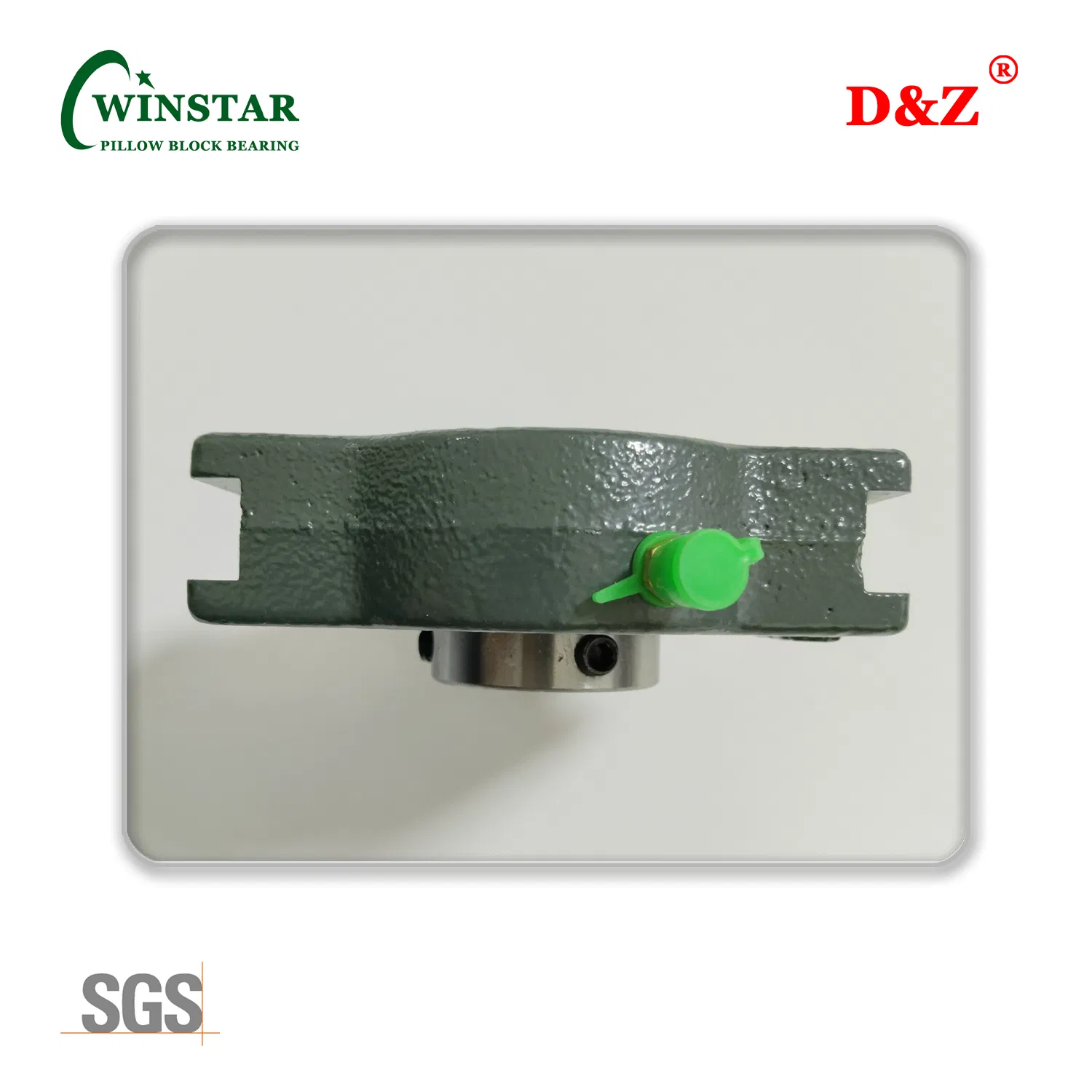

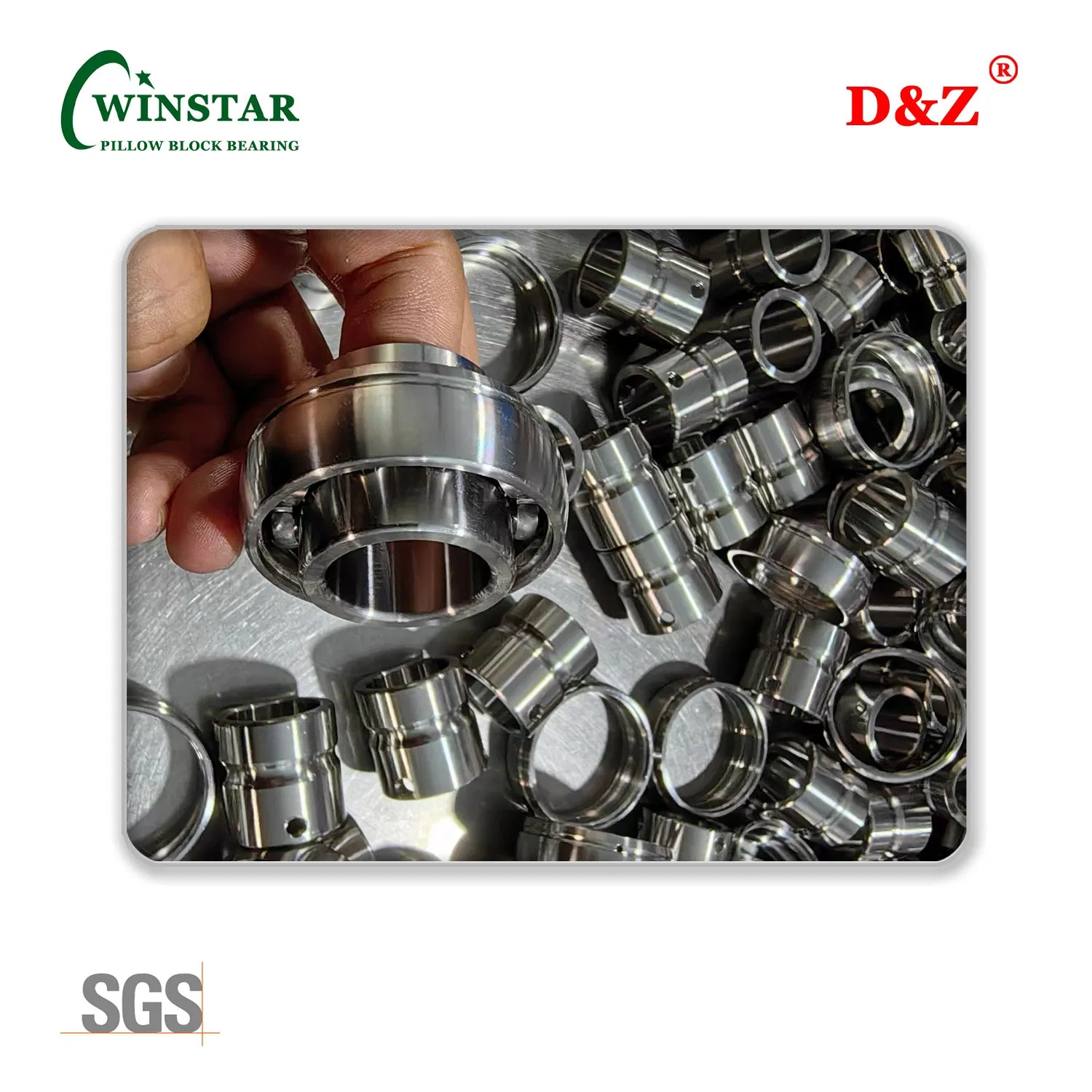

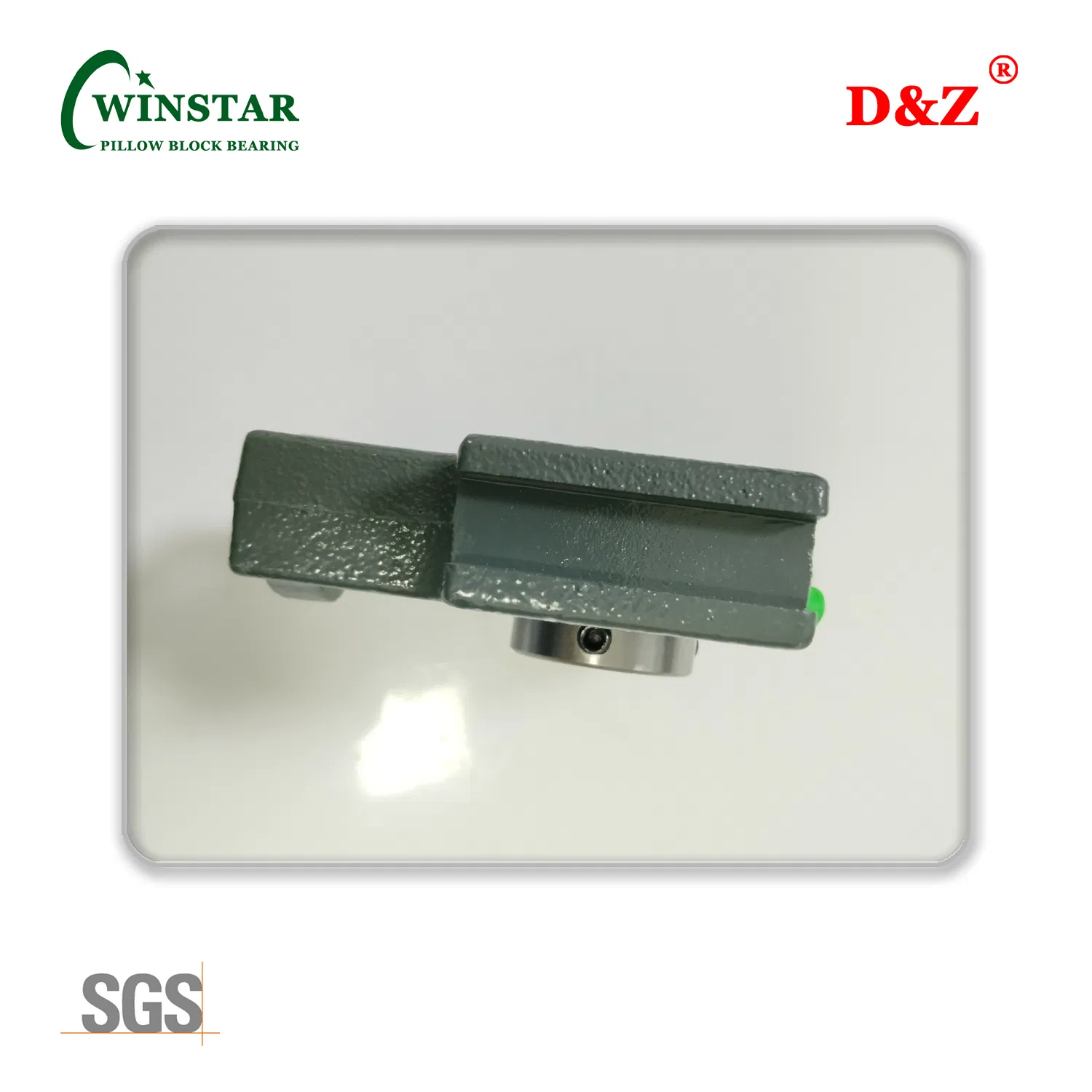

Grey cast housing, radial insert ball bearing with socket set screws, seal with slinger. The UCT207 Cast Iron Pillow Block Bearing Unit is equipped with a fully sealed Bearing Insert already fitted within the housing, ensuring optimal performance and durability. Crafted from high-quality cast iron, this Pillow Block boasts exceptional strength and reliability, making it suitable for a wide range of industrial applications.

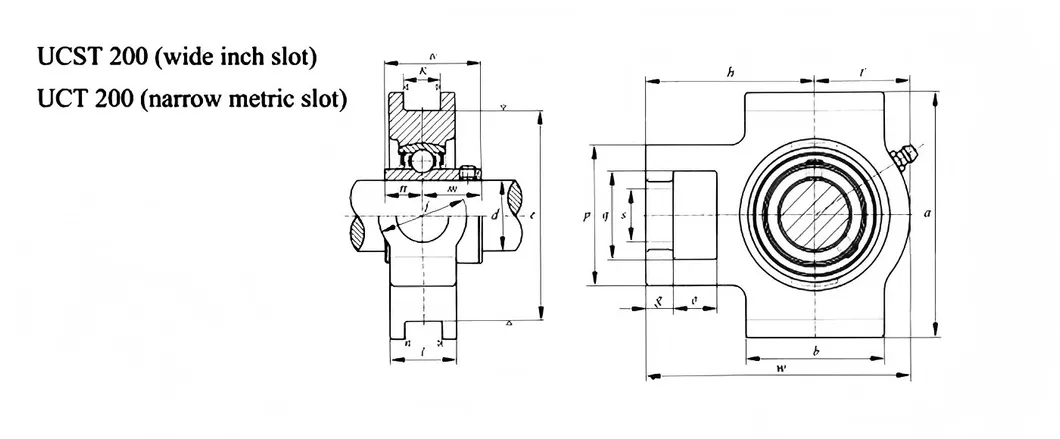

| Shaft Dia (d) | Bearing Unit No. | g | p | q | s | b | k | e / a / w | j | l | h | Bi | n | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12mm | UCT 201 | 16/10 | 51 | 32 | 19 | 51 | 12 | 76/89/94 | 32 | 21 | 61 | 31 | 12.7 | 0.78 |
| 15mm | UCT 202 | 16/10 | 51 | 32 | 19 | 51 | 12 | 76/89/94 | 32 | 21 | 61 | 31 | 12.7 | 0.76 |
| 17mm | UCT 203 | 16/10 | 51 | 32 | 19 | 51 | 12 | 76/89/94 | 32 | 21 | 61 | 31 | 12.7 | 0.74 |
| 20mm | UCT 204 | 16/10 | 51 | 32 | 19 | 51 | 12 | 76/89/94 | 32 | 21 | 61 | 31 | 12.7 | 0.73 |
| 25mm | UCT 205 | 16/10 | 51 | 32 | 19 | 51 | 12 | 76/89/97 | 32 | 24 | 62 | 34 | 14.3 | 0.76 |
| 30mm | UCT 206 | 16/10 | 56 | 37 | 22 | 57 | 12 | 89/102/113 | 37 | 28 | 70 | 38.1 | 15.9 | 1.15 |
| 35mm | UCT 207 | 16/13 | 64 | 37 | 22 | 64 | 12 | 89/102/129 | 37 | 30 | 78 | 42.9 | 17.5 | 1.48 |

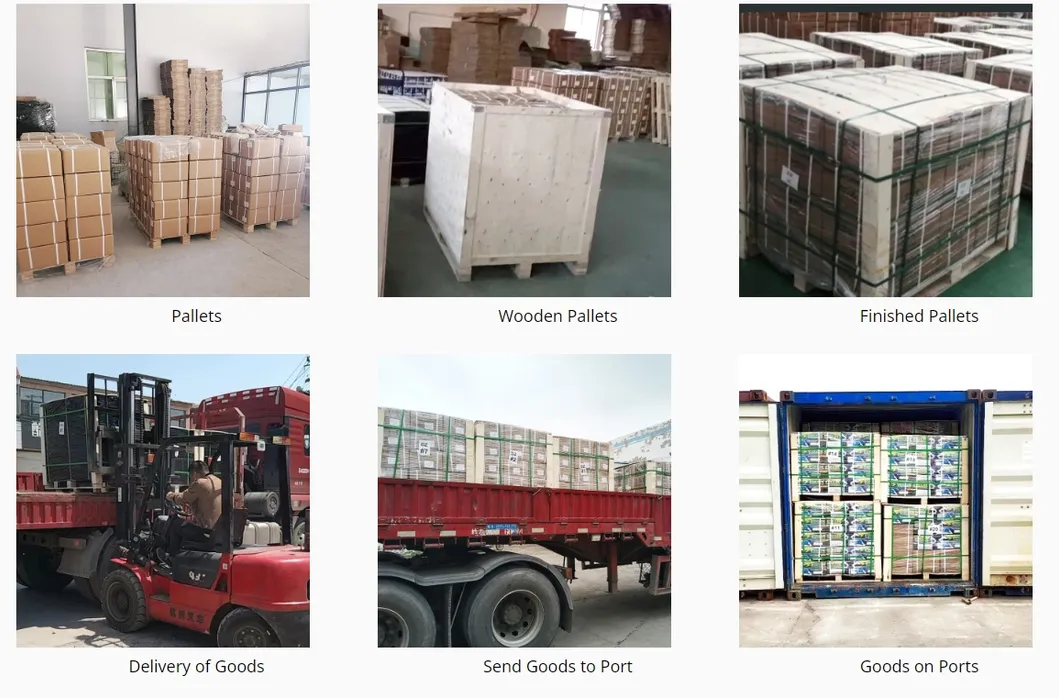

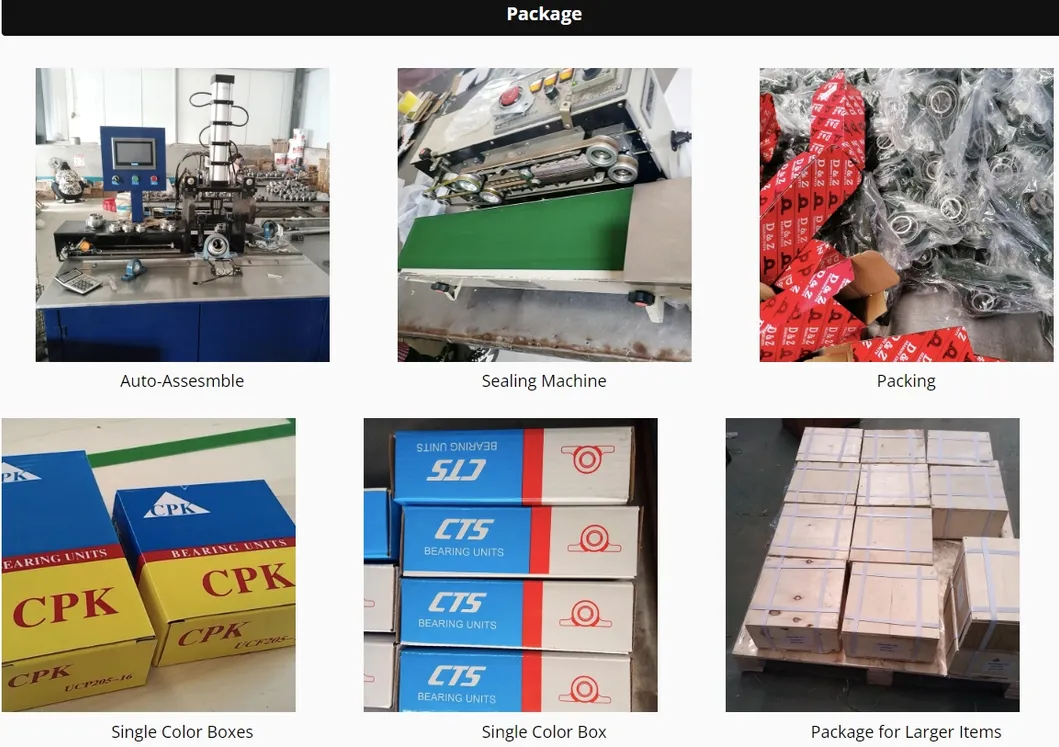

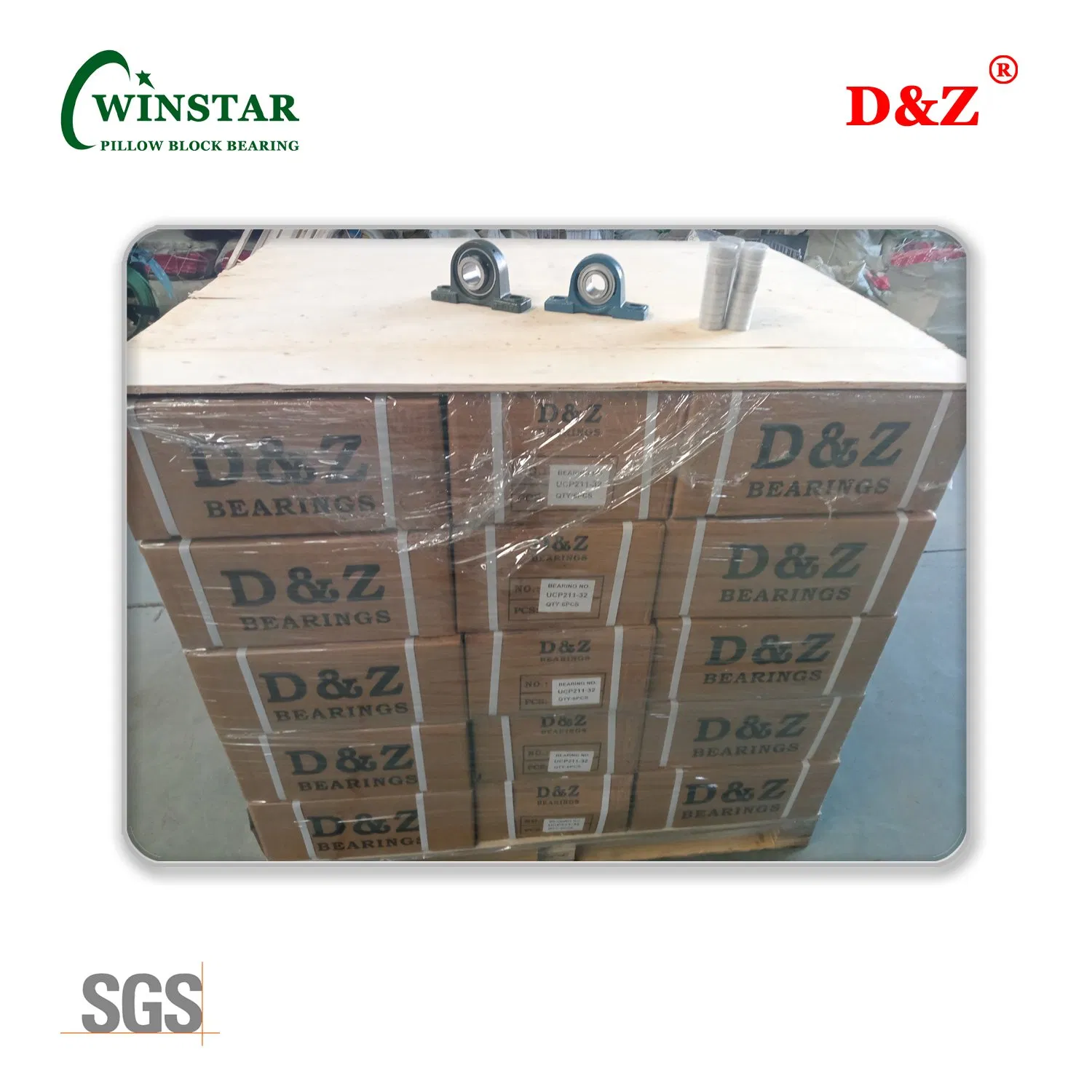

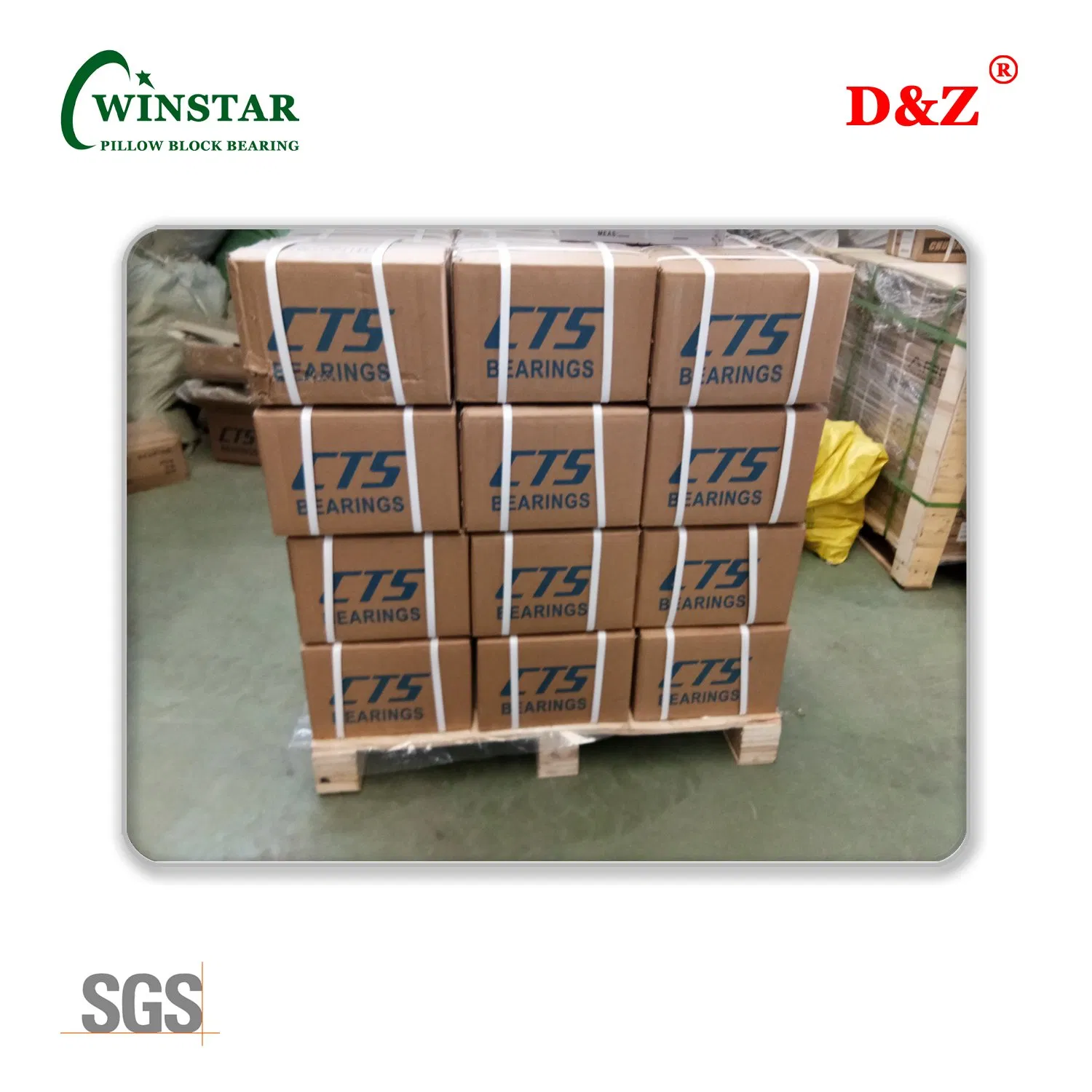

1. Industrial packaging + Carton + Pallets
2. Single Color Box + Carton + Pallets
3. Tube package + Middle box + Pallets
4. Customized packaging according to requirements.

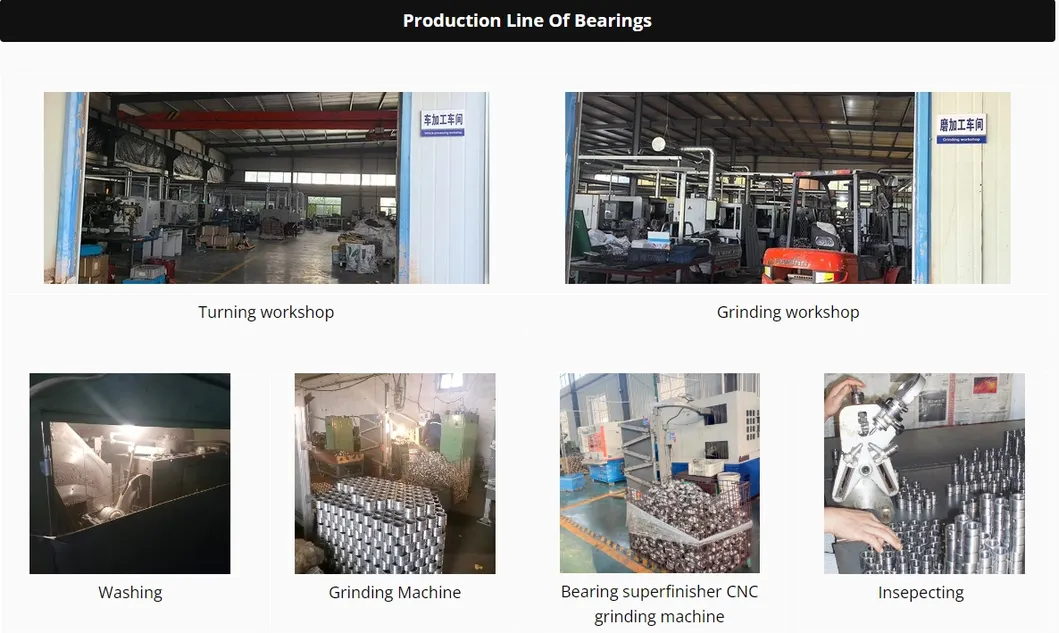

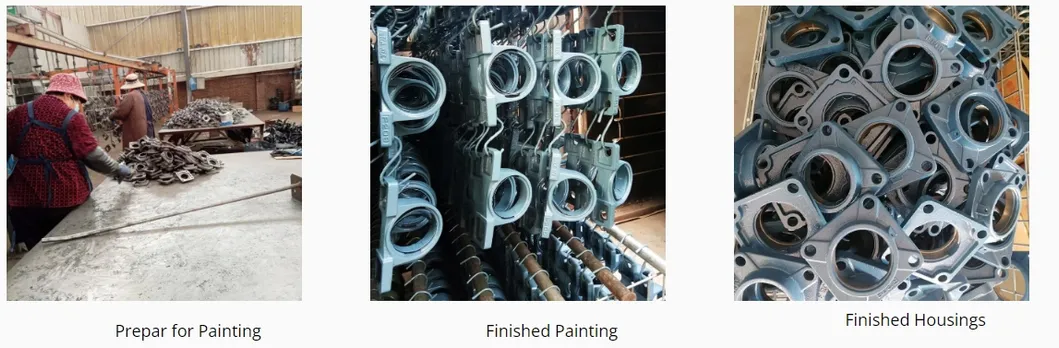

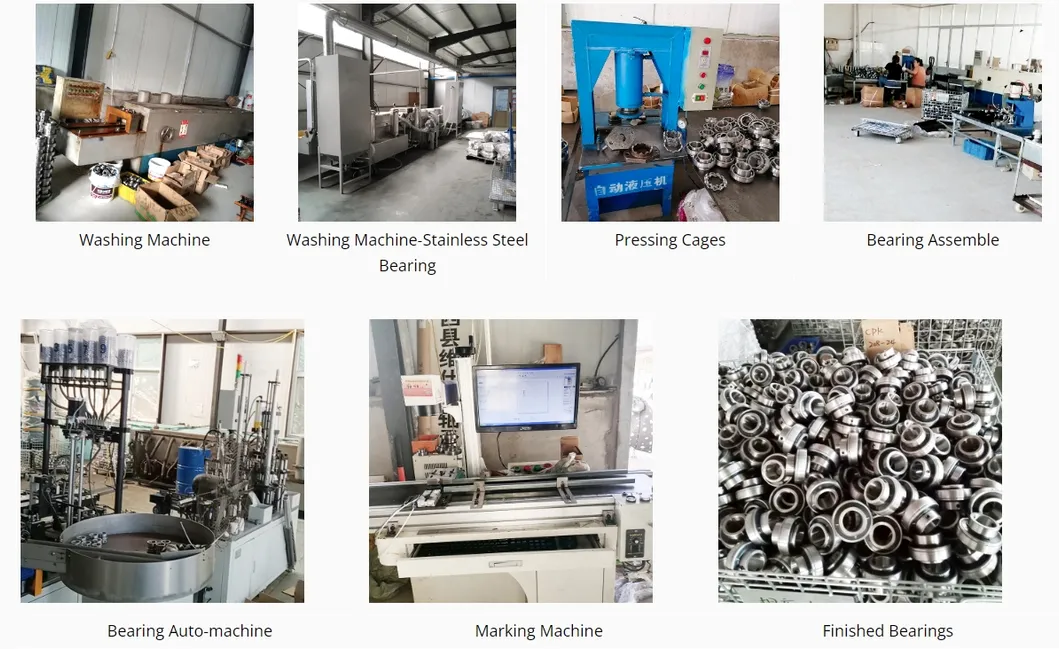

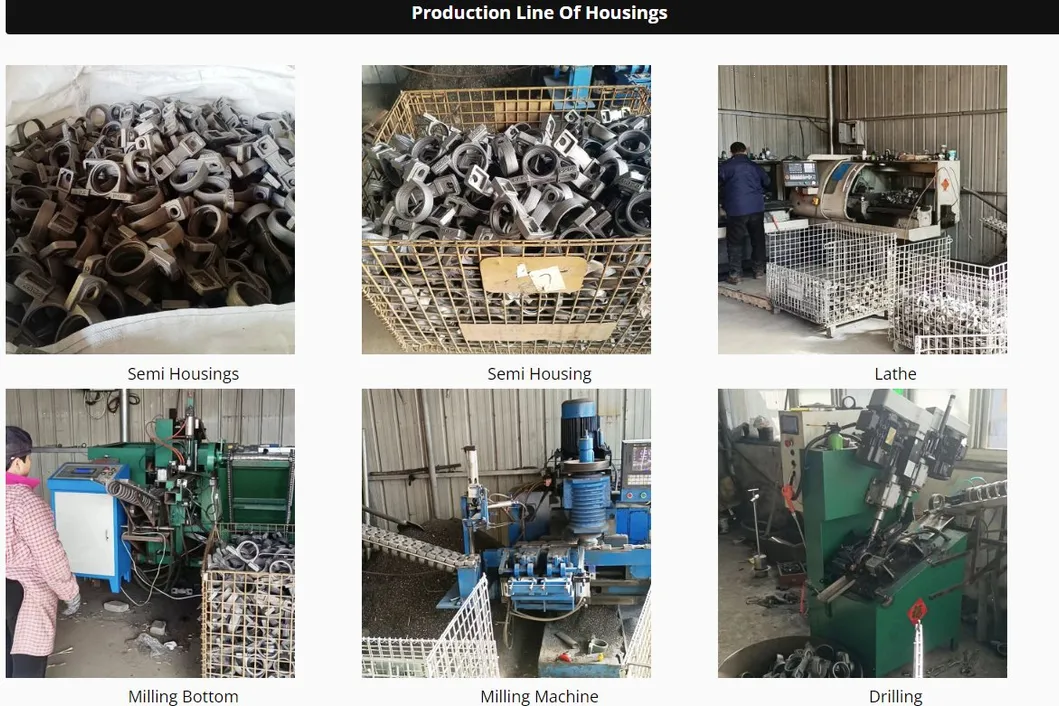

Since 2009, we have focused on producing high-quality bearing units. Our state-of-the-art technology and rigorous testing ensure every bearing meets industry standards for reliability and durability.
