Feature
Magnetically, Low Temperature, Corrosion Resistant, High Temperature, High Speed
Raceway
Deep Groove Raceway
Bearing Material
Chrome Steel (Gcr15)
Housing Material
Cast Iron & Ductile Iron
Operating Temp
-20 °C to 120 °C
Limiting Speed
4 200 R/Min

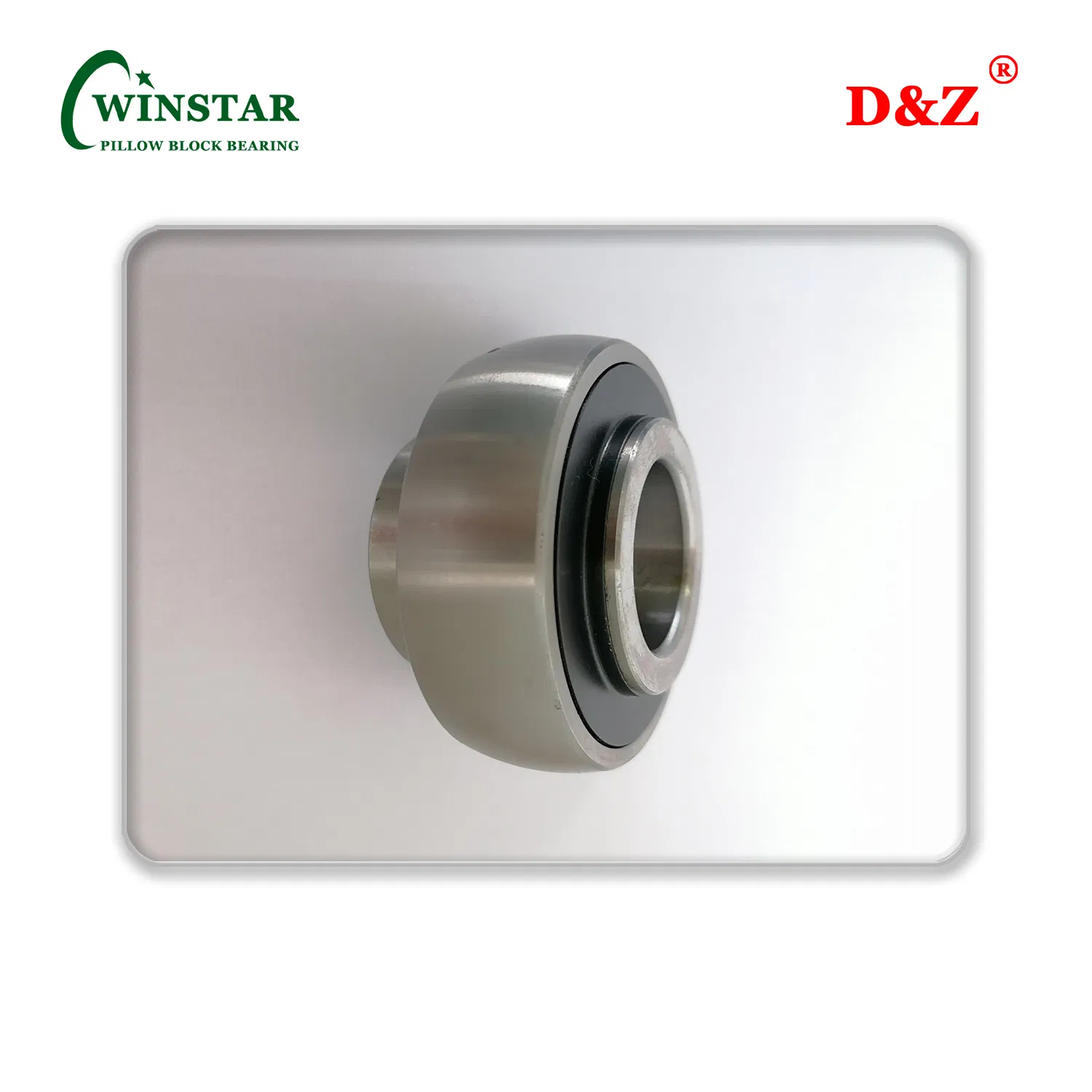

Grey cast housing, radial insert ball bearing with socket set screws, seal with slinger.

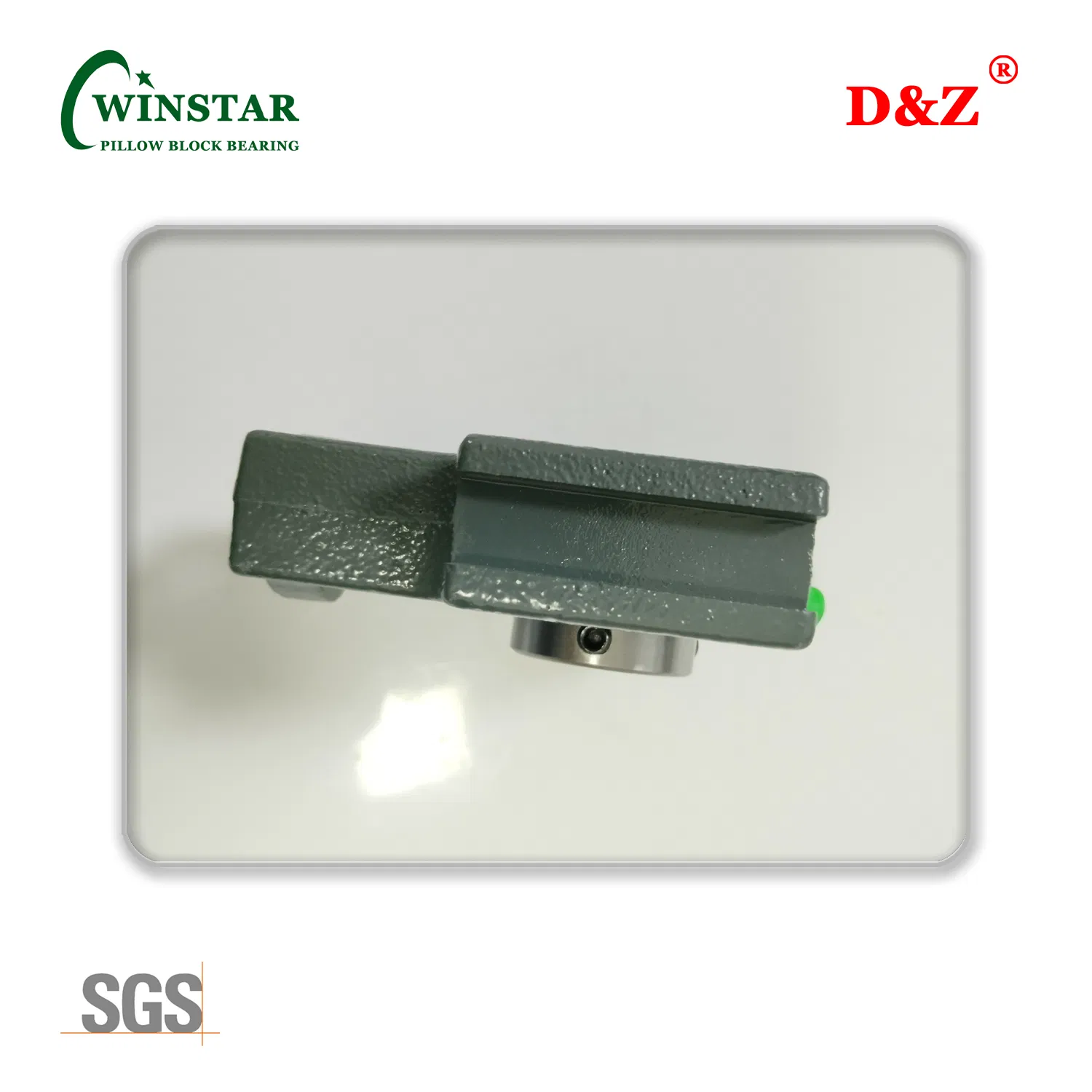

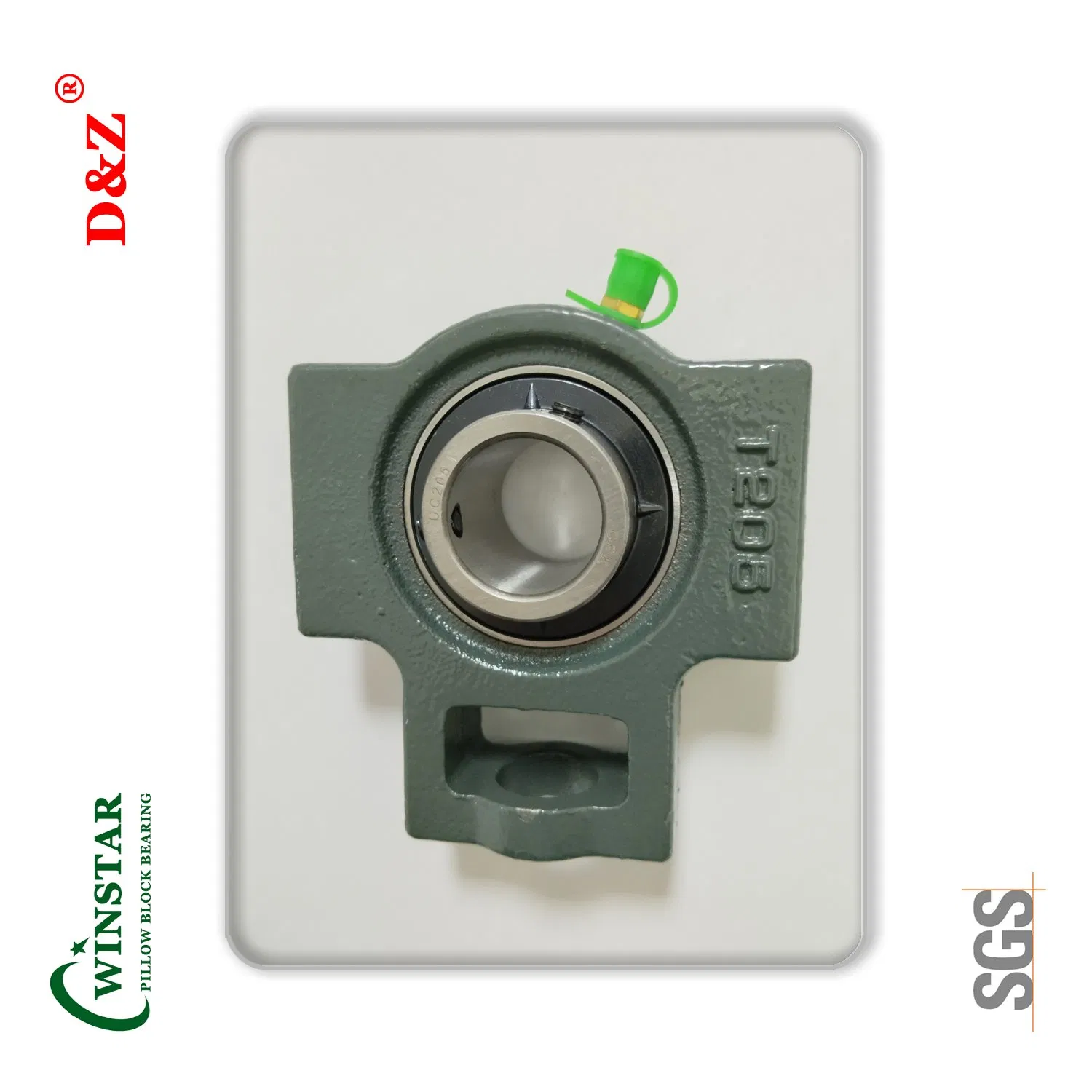

The UCT207 Cast Iron Pillow Block Bearing Unit is equipped with a fully sealed Bearing Insert already fitted within the housing, ensuring optimal performance and durability. Crafted from high-quality cast iron, this Pillow Block boasts exceptional strength and reliability, making it suitable for a wide range of applications.

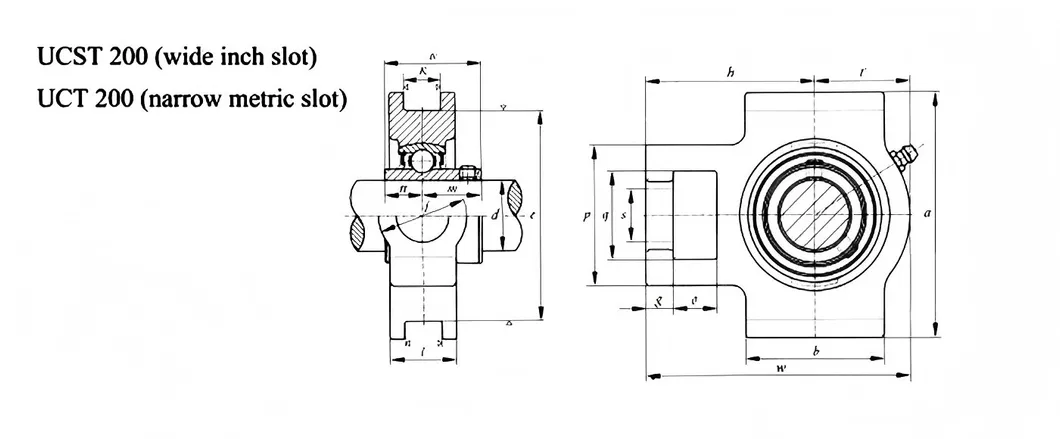

| Shaft Dia. (d) |
Bearing Unit No. |
Dimensions (g) |
p |
q |
s |
b |
k |
e/a/w |
j |
l |
h |
Bi |
n |
Weight (kg) |
| 12 | UCT 201 | 16/10 | 51 | 32 | 19 | 51 | 12 | 76/89/94 | 32 | 21 | 61 | 31 | 12.7 | 0.78 |
| 15 | UCT 202 | 16/10 | 51 | 32 | 19 | 51 | 12 | 76/89/94 | 32 | 21 | 61 | 31 | 12.7 | 0.76 |
| 17 | UCT 203 | 16/10 | 51 | 32 | 19 | 51 | 12 | 76/89/94 | 32 | 21 | 61 | 31 | 12.7 | 0.74 |
| 20 | UCT 204 | 16/10 | 51 | 32 | 19 | 51 | 12 | 76/89/94 | 32 | 21 | 61 | 31 | 12.7 | 0.73 |
| 25 | UCT 205 | 16/10 | 51 | 32 | 19 | 51 | 12 | 76/89/97 | 32 | 24 | 62 | 34 | 14.3 | 0.76 |
| 30 | UCT 206 | 16/10 | 56 | 37 | 22 | 57 | 12 | 89/102/113 | 37 | 28 | 70 | 38.1 | 15.9 | 1.15 |
| 35 | UCT 207 | 16/13 | 64 | 37 | 22 | 64 | 12 | 89/102/129 | 37 | 30 | 78 | 42.9 | 17.5 | 1.48 |
| 40 | UCT 208 | 19/16 | 83 | 49 | 29 | 83 | 16 | 102/114/144 | 49 | 33 | 88 | 49.2 | 19 | 2.17 |
| 45 | UCT 209 | 19/16 | 83 | 49 | 29 | 83 | 16 | 102/117/144 | 49 | 35 | 87 | 49.2 | 19 | 2.25 |
| 50 | UCT 210 | 19/16 | 83 | 49 | 29 | 86 | 16 | 102/117/149 | 49 | 37 | 90 | 51.6 | 19 | 2.33 |
1. Bearing material: chrome steel, zinc alloy, Ceramic and stainless steel
2. Housing Material: Cast iron(HT200), Ductile Iron, Plastic and stainless steel.
3. Product series: UC, UCX, UCP, UCF, UCFL, UCT, UCFC etc., 200 series and 300 series.

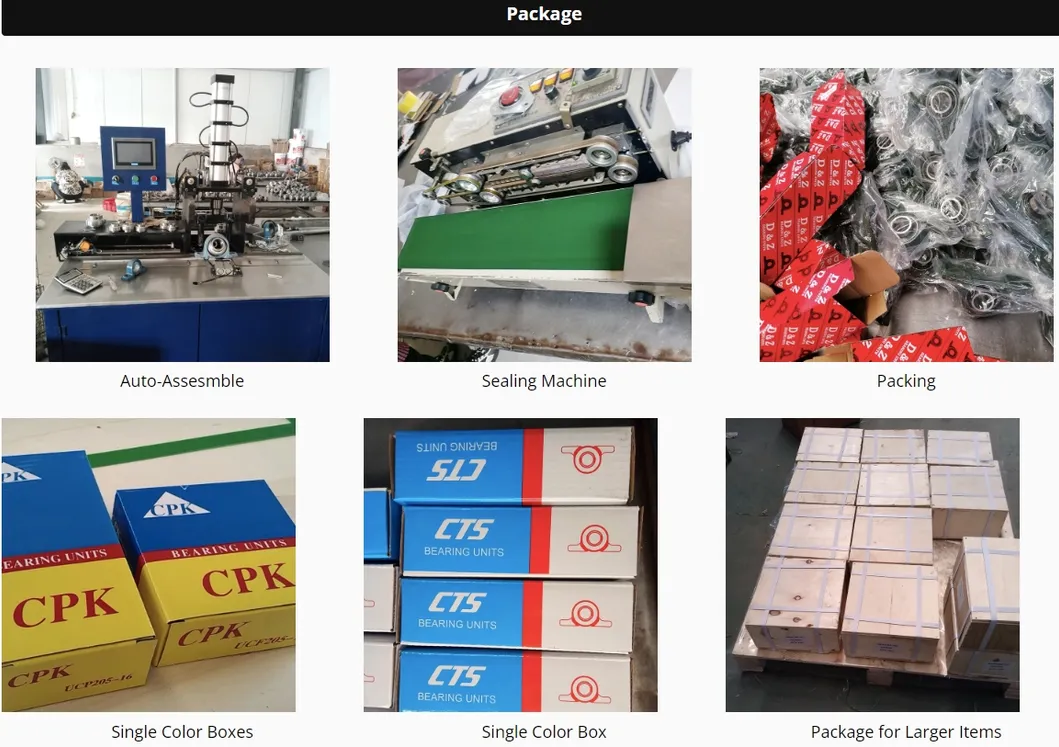

1. Industrial packaging + Carton + Pallets
2. Single Color Box + carton + pallets
3. Tube package + Middle box + pallets
4. Customized packaging according to Customers' needs
C

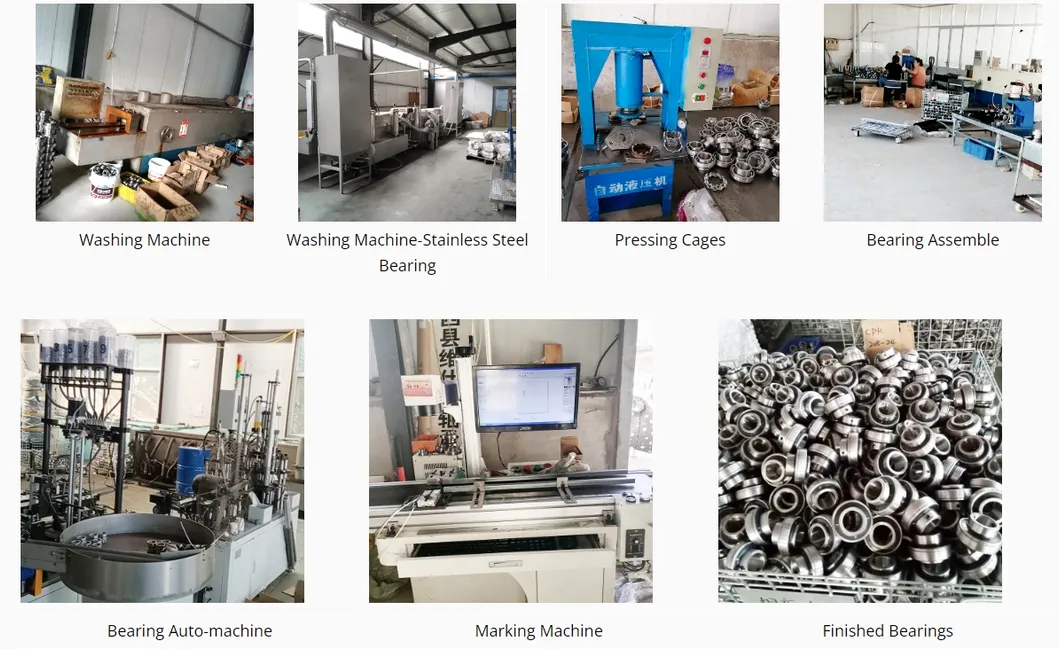

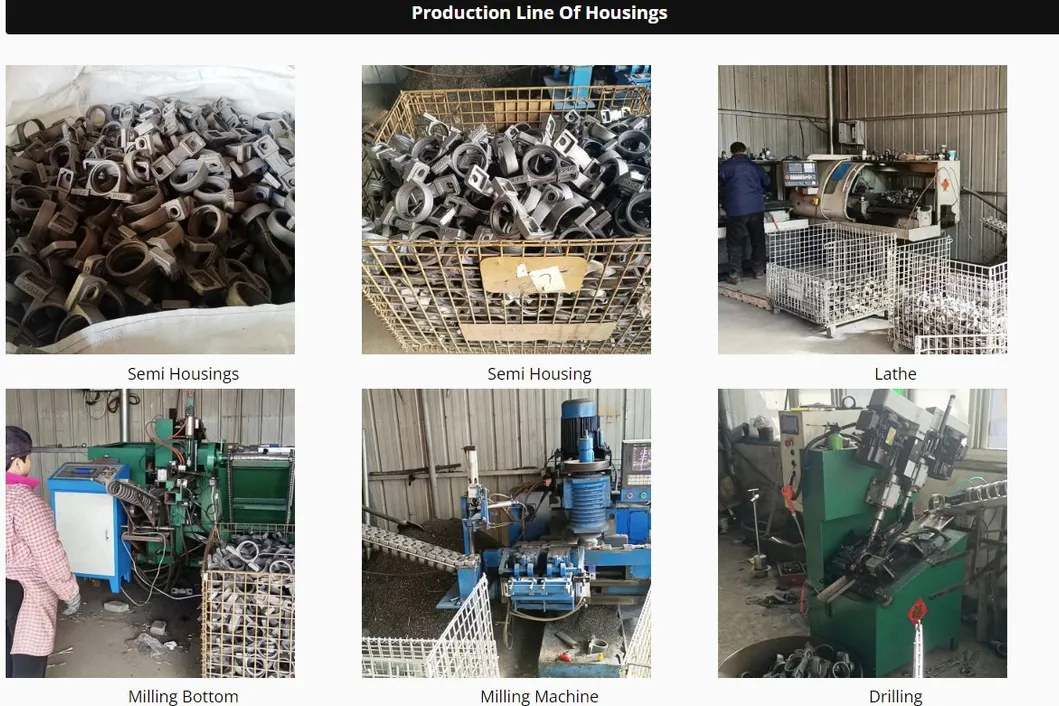

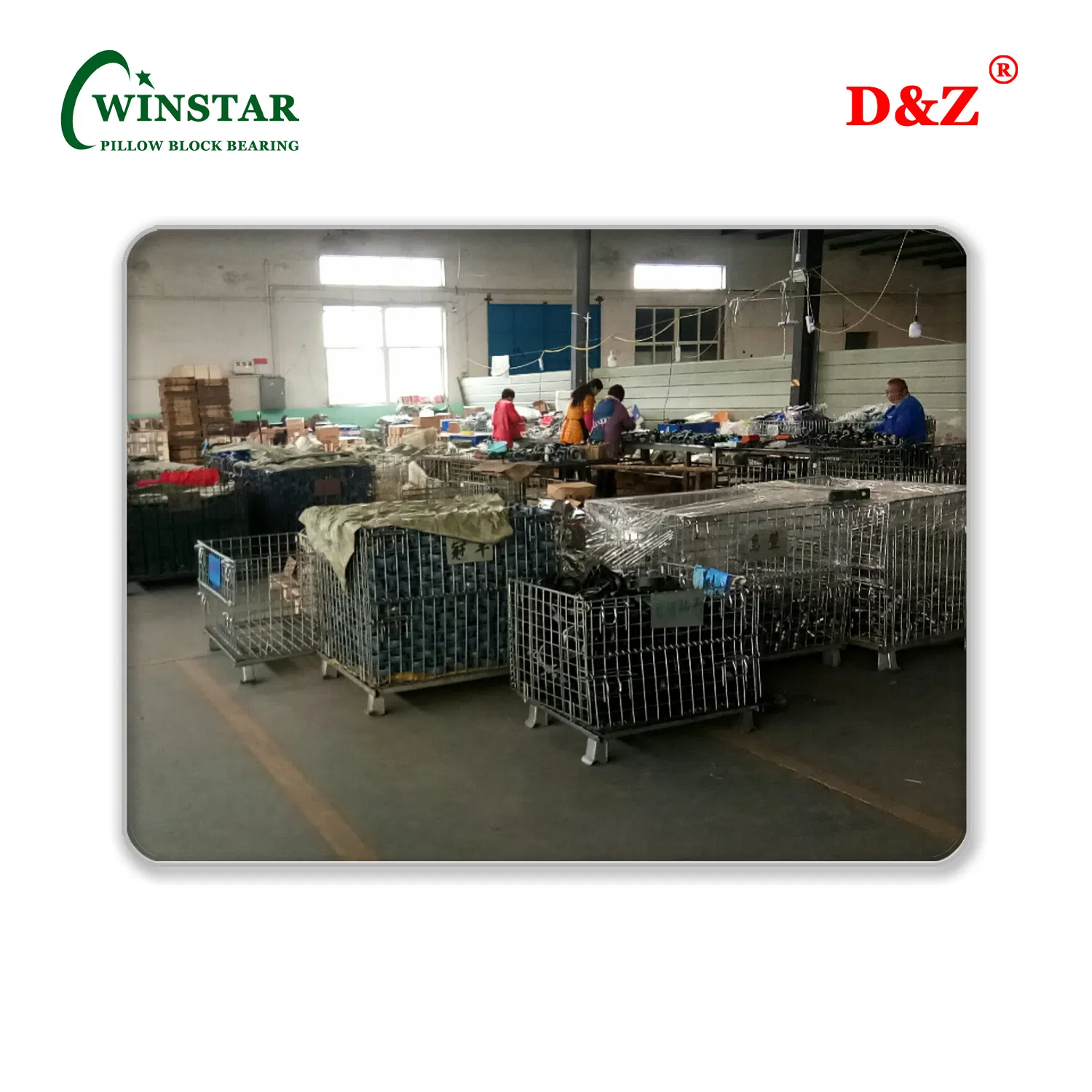

Company Profile & Advantages
As a professional manufacturer for pillow block bearings, we have been dedicated to producing high-quality bearing Units since 2009. We strive to provide our customers with reliable and efficient bearings for various applications, such as automotive, mining, textile, and many other industries.
Key Advantages:
• State-of-the-art technology and equipment for high-quality standards.
• Experienced engineers ensuring rigorous reliability and durability testing.
• Wide range of bearing types and sizes to meet diverse needs.
• Top-notch after-sales service with technical assistance.
?
Frequently Asked Questions
How about the sample?
We are honored to offer you free samples, while you just need to pay for the shipping cost.
How to confirm the Product Quality before placing orders?
All products from our facility are manufactured under a strict quality control system to ensure consistency and reliability.
Is there a discount for bulk orders?
Yes, we offer competitive pricing. Generally, the larger your order, the better the discount we can provide.
What is the typical delivery time?
According to the products ordered, a full container usually takes approximately 35 days to complete.
Do you provide OEM or ODM services?
Yes, we provide professional OEM and ODM services to meet specific technical requirements and branding needs.
What materials are available for the housings?
We offer housings in Cast iron (HT200), Ductile Iron, Plastic, and Stainless Steel depending on your application requirements.
