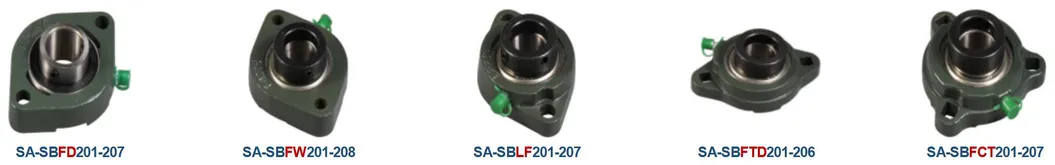

TANN SAFW-SBFW202/SAFD-SBFD203/SA-SBLF204/SA-SBFTD205/SA-SBFCT206 Light Duty Oval Bearing Units Flange Bearing Units for Automation Fields

1 / 5

TANN SAFW-SBFW202/SAFD-SBFD203/SA-SBLF204/SA-SBFTD205/SA-SBFCT206 Light Duty Oval Bearing Units Flange Bearing Units for Automation Fields

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

🔹 Basic Info

Model NO.:SAFW202/ SBFW202

Feature:Vacuum, Magnetically, Low Temperature, Corrosion Resistant, High Temperature, High Speed

Rows Number:Single

Raceway:Spherical Raceway

Material:Cast Iron

Bearing Material:GCr15(100Cr6) Bearing Steel

Weight:0.3KG

Bolt Size:M6

📦 Packaging & Delivery

Package Size:20.00cm * 15.00cm * 5.00cm

Gross Weight:1.000kg

🔍 Product Description

The mounted bearing units combine a spherical outside surface ball bearing, a specialized seal, and a housing made of high-grade cast iron or pressed steel. These units feature various structural patterns and are engineered for performance in tough industrial conditions.

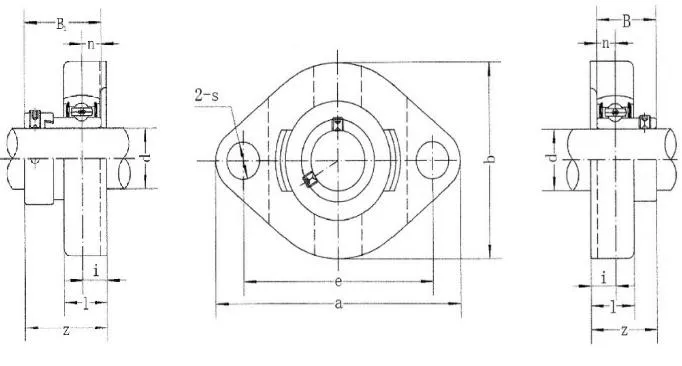

Technical Data
Part Number	SAFW202/SBFW202	Insert Bearing	SA202/SB202
Bore Dia	12mm	Width	81mm
Material	Cast iron	Bearing Material	AISI 52100 steel
Application	Agriculture, mining, engineering, chemical machinery, textile, plastic, food machinery, etc.

⭐ Key Features

Rational self-alignment
Larger load carrying capacity
Longer service life
Efficient sealing with optional covers
Solid housing for maximum rigidity
Easy and positive locking to shaft
Special heat-treatment to prevent cracking
Complete interchangeability

🚀 Applications

Agricultural Industry

Mining Equipment

Food Processing

Textile & Dyeing

HVAC Industry

Parking Systems

🛠️ Material Specifications

Housings are typically made from gray cast iron (HT200), providing high damping capacity to absorb vibration effectively. Suitable for temperatures up to 300°C.

Steel Standard	C	Si	Mn	Cr	P	S
DIN 100Cr6	0.95~1.05	0.15~0.35	0.25~0.45	1.40~1.65	≤0.030	≤0.025
JIS SUJ2	0.95~1.10	0.15~0.35	≤0.50	1.30~1.60	≤0.025	≤0.025
ASTM 52100	0.98~1.10	0.15~0.35	≤0.50	1.30~1.60	≤0.025	≤0.025

🔗 Related Items & Variations

⚙️ Service & Manufacturing

Our focus is on providing maintenance solutions, optimizing customer inventory, and reducing operational costs through advanced automatic production lines and comprehensive quality control.

❓ Frequently Asked Questions

Q1: What are the primary features of these bearing units? These units offer rational self-alignment, high load capacity, and efficient sealing. They are designed for easy installation and a long service life even in tough environments.

Q2: What materials are used for the housing and the bearing? The housing is typically made of gray cast iron (HT200) for superior vibration damping. The bearing itself is made of high-carbon chrome bearing steel like GCr15 or AISI 52100.

Q3: Can these bearings operate in extreme temperatures? Yes, the cast iron housings are suitable for high temperatures up to 300°C, and we offer specialized versions for both high and low temperature applications.

Q4: Are the bearings interchangeable with other housings? Yes, our units are designed for complete interchangeability between the bearing and the housing, ensuring easy maintenance and parts replacement.

Q5: What industries are these bearing units suitable for? They are widely used in agriculture, mining, food processing, textiles, HVAC systems, and material handling industries.

Q6: What is the typical lead time for orders? Stock items can be delivered within 7 days, while general production typically takes around 30 days depending on the volume and specifications.
