Basic Specifications

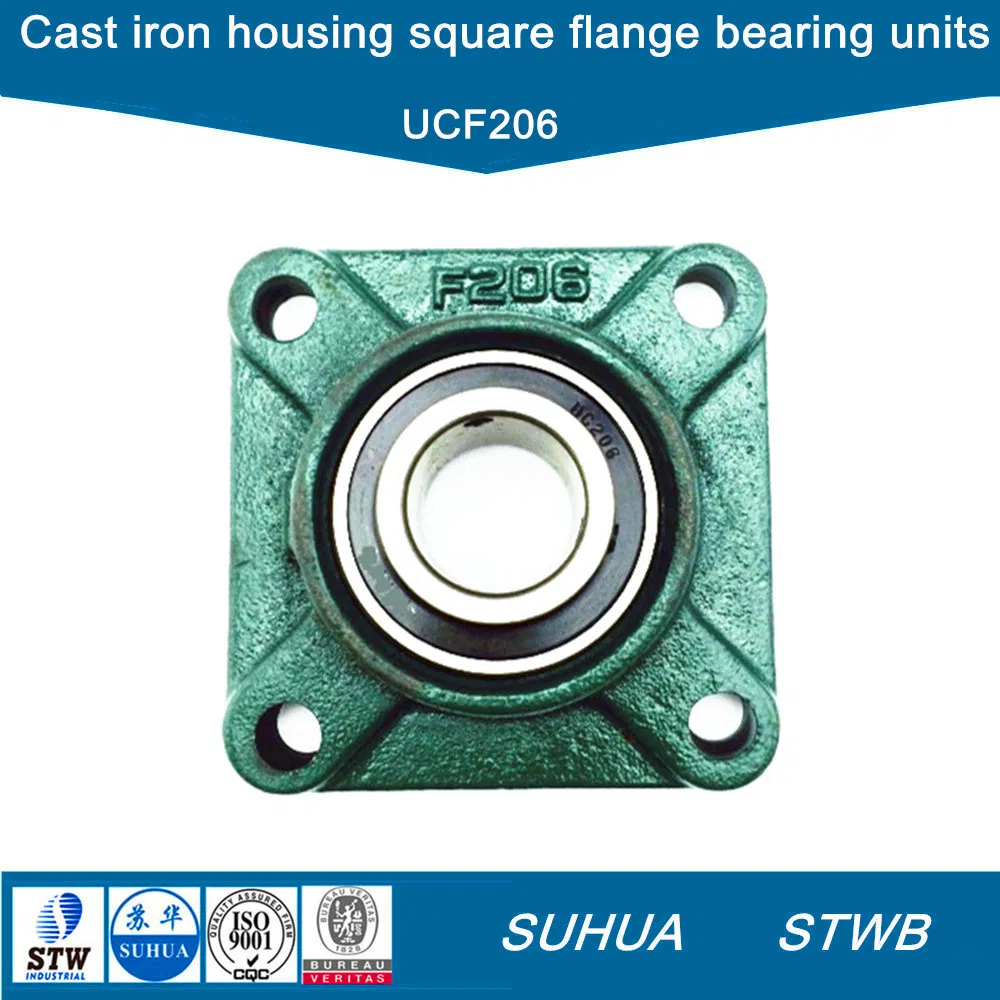

Model NO.:UCF206
Housing Material:Cast Iron (FC100 or Fcd450-10)
Bearing Material:Chrome Steel (AISI52100, Gcr15)
Housing Design:Four-Bolt Square Flange F206
Insert Bearing:Spherical Ball Bearing UC206
Basic Size:30X108X108mm (D*L*L)
Application:Food Machinery, Autos, Tooling, Textiles
HS Code:8483200000
Capacity:30,000PCS/Month
Specification:SGS, BV, ISO
⚙️
Technical Description
| Bearing Type |
Cast iron housing four-bolt square flange bearing units |
| Shaft Diameter |
30mm (d) |
| Production Standard |
JB/T 8876-2010 & JB/T 8919-2010 National standard |
| Precision Level |
ABEC-1 (P0) group national standard |
| Clearance |
C0, C3, C4 available on request |
| Operating Temperature |
-20ºC to +120ºC |
| Basic Load Rating |
Dynamic: 19600N (Cr) / Static: 11300N (Cor) |
| Unit Weight |
1.01 KG |
| Features |
Vibration absorption, High strength, Excellent heat dissipation |
🖼️
Product Visuals

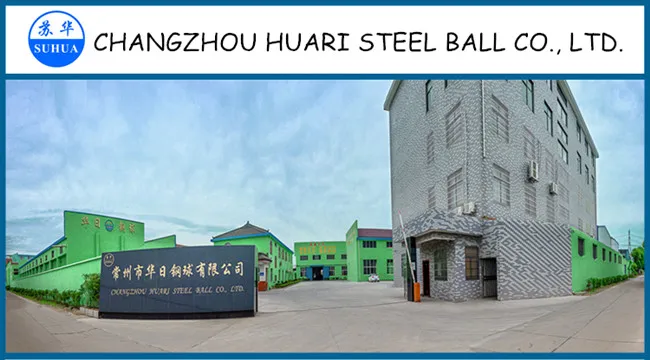

Production Facility

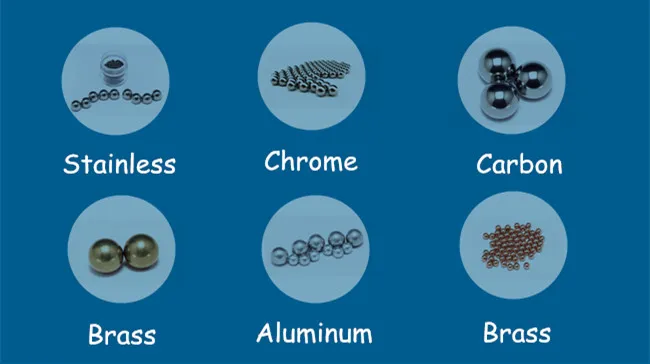

Series Products
Quality Certifications
❓
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are an integrated enterprise with our own manufacturing facility and a professional trading division, allowing us to offer both quality production and comprehensive export services.
What is the typical delivery time for orders?
Generally, it is 7 days for in-stock items. For items not in stock, delivery typically takes 20-30 days, depending on the order quantity.
Can I request samples before placing a bulk order?
Yes, we provide free samples for testing purposes. Please note that the cost of freight is to be covered by the customer.
What is the Minimum Order Quantity (MOQ) for UCF206?
The standard MOQ for this model is 100 pieces.
Does this bearing unit support OEM customization?
Yes, OEM services are highly welcomed. We can provide custom marking for bearing numbers, brands, and origins on both the housing and the bearing itself.
What are the primary applications for the UCF series?
The UCF206 is widely used in food machinery, gearboxes, textile equipment, mining machinery, and agricultural machines due to its high strength and heat dissipation properties.
Welcome to send your inquiry to us.
