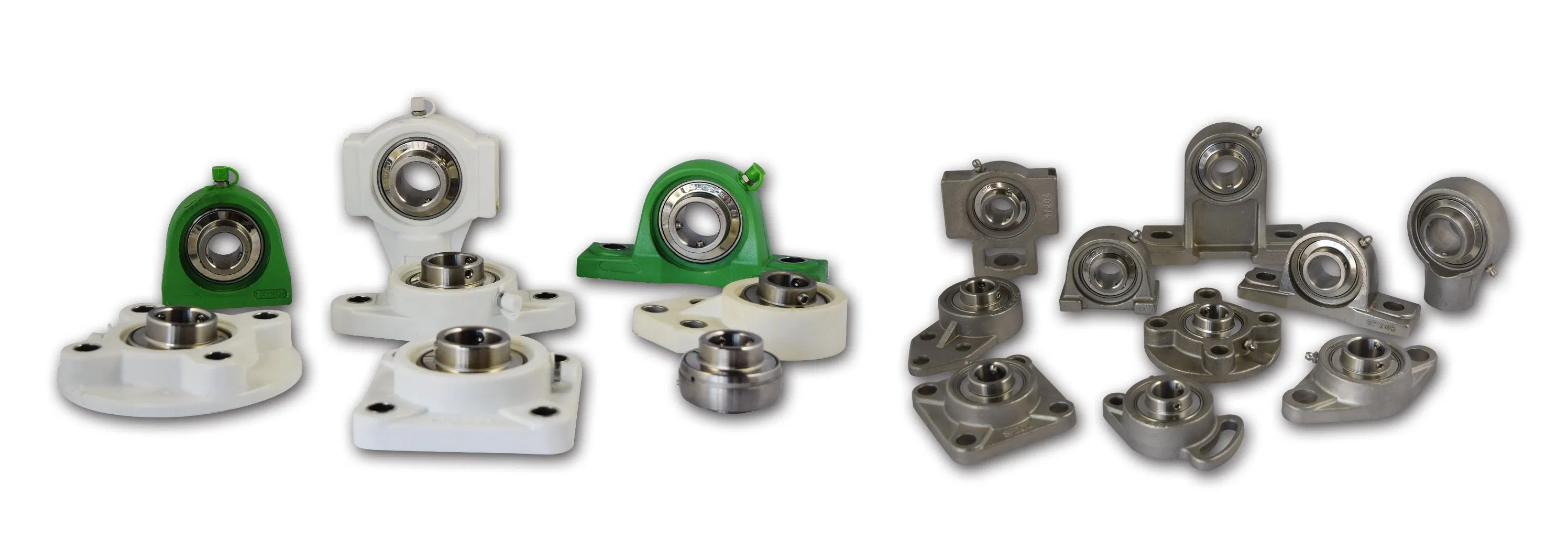

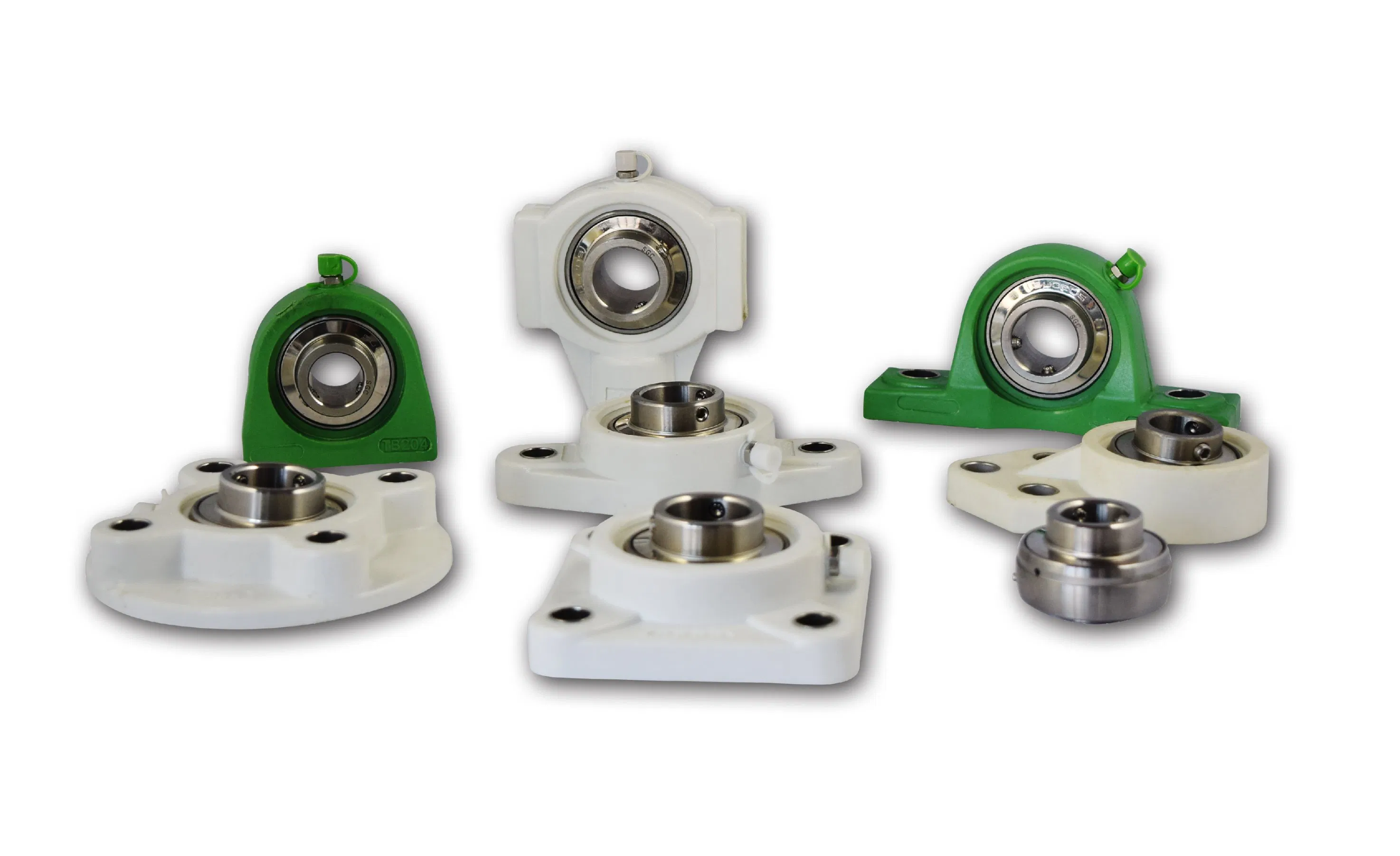

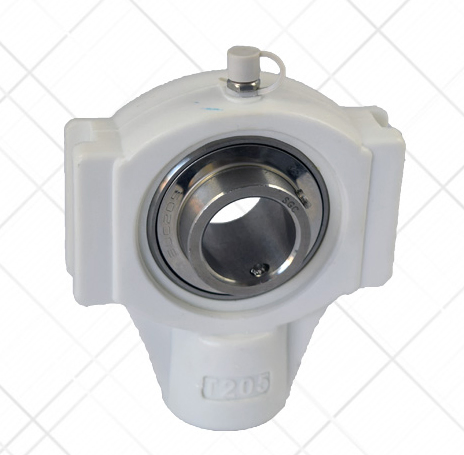

Plastic Base Take-up Units with Stainless Steel Insert Ball Bearings

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
UCT201-TV ~ UCT210-TV
Feature
Corrosion Resistant
Material
Stainless Steel
Housing Material
Thermoplastic
Insert Bearing
AISI420, AISI440c Stainless Steel
Precision
ABEC-1
Working Temp
-35℃ ~ 102℃
Rotation Speed
2900~3500rpm
Vibration & Noise
Z1, Zv1
Seals
304 Stainless Steel Shields
Product Description
Type No. Metric Bore Size UCT201-TV up to UCT210-TV
Inch Bore Size UCT201-8/TV up to UCT210-32/TV
Housing Thermoplastic Standard Weight
Precision ABEC-1
Vibration & Noise Z1, Z1V1
Fitness of Bearing & Housing H7 > J7 > K7
Working Temp. -35ºC up to 102ºC
Lubrication SRL, PS2, B325, etc.

Thermoplastic housings are specially designed to meet particular engineering demand for food, beverage and chemical industry. While the maintenance and handling (weight and delivery) are better than in the cast iron housings, it is proven to stand in hard working conditions for all applications of the industry worldwide.

Thermoplastic housing can be composed with Chrome steel bearing insert that the best meet your particular budget and performance needs or choose stainless bearing inserts for the maximum corrosion resistance.

Key Engineering Features
1). Frequent washdowns
2). Corrosion resistance
3). Resistance to food and liquid contaminants
4). Exposure to harsh chemicals
5). Exposure to high humidity
6). Re-greasable fittings
7). Operating temperature -35ºC to 102ºC
Industry Applications
Food processing
Canning
Bottling
Pharmaceutical
Chemical processing
Frequently Asked Questions
What are the primary benefits of thermoplastic housings?
Thermoplastic housings offer superior corrosion resistance, are lightweight for easier handling, and are specifically designed to withstand frequent washdowns and harsh chemicals in industrial environments.
In which industries are these bearing units commonly used?
They are widely used in food processing, canning, bottling, pharmaceutical, and chemical processing industries due to their non-magnetic and corrosion-resistant properties.
What is the operating temperature range for these units?
These units are designed to operate effectively in temperatures ranging from -35ºC up to 102ºC.
Can I use stainless steel inserts with these housings?
Yes, you can choose stainless steel bearing inserts (AISI420 or AISI440c) for maximum corrosion resistance or chrome steel inserts depending on your budget and performance needs.
Are the bearings pre-lubricated?
Yes, they support various lubricants like SRL, PS2, and B325, and the housings feature re-greasable fittings for ongoing maintenance.
What precision standard do these bearings follow?
The insert bearings are manufactured to ABEC-1 precision standards with vibration and noise ratings of Z1 and Zv1.
