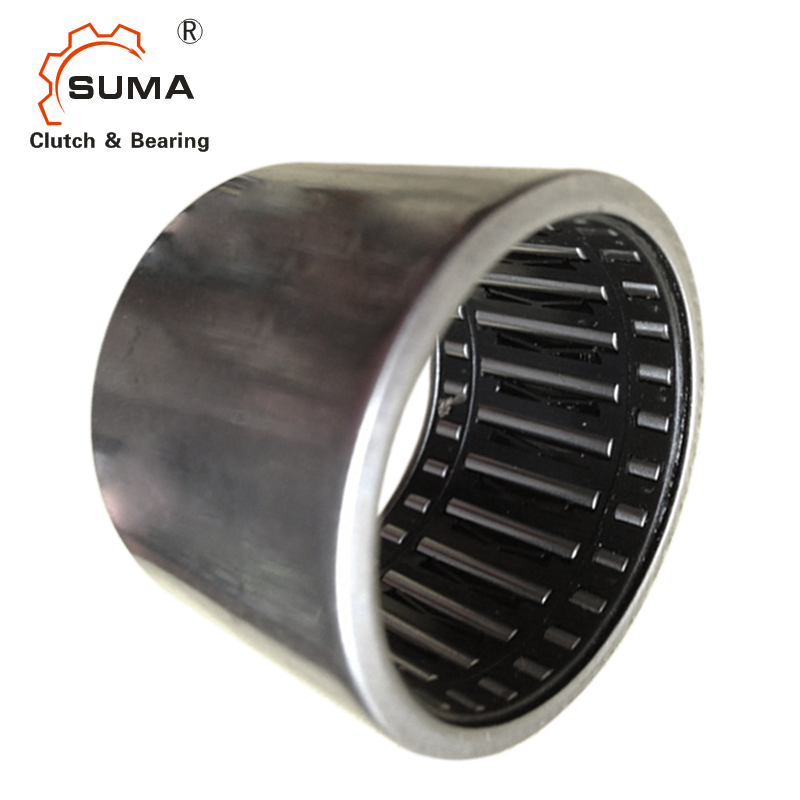

Rcb162117 One Way Clutch Needle Roller Bearing

1 / 5

Rcb162117 One Way Clutch Needle Roller Bearing

Customization:	Available
Cage:	With Cage
Rows Number:	Single

Send Inquiry

Product Description

📋 Basic Information

Model NO.

RCB162117

Load Direction

Radial Bearing

Style

Without Inner Ring

Material

Gcr15

Type

Needle

Model

FC, Fcb, RC, Rcb

Precision

OEM

Stock

Rich

Delivery

5-7 Days

Weight

44.8g

HS Code

84836000

Production Capacity

10000PCS/Month

Specification

📦 Packaging & Delivery

Package Size

30.00cm * 30.00cm * 30.00cm

Package Gross Weight

30.000kg

Packaging Type

Roll pack, wooden box or customized

🔍 Product Description

RCB162117 One Way Clutch Needle Roller Bearing

Technical Data Sheet
Item	RC RCB Series
Material	Outer race: ST14, Holder: Nylon, Needle: Stainless Steel
Inner Diameter	25.4 mm
Outer Diameter	33.338 mm
Thickness	26.99 mm
Torque Capacity	45 Nm
Weight	2 - 44.8 g

⭐ Features of FC RC Series

⚙️ Locking Assembly

Three pieces needles equipped to ensure superior locking assembly function.

🚀 High Torque

Torque increases double compared to the normal HF Model.

📊 Indexing Frequency

Allows high indexing frequencies due to their low mass construction.

📑 Technical Catalogue (RC/RCB)

Model	Mass (g)	Fw (mm)	D (mm)	C (mm)	Torque (Nm)
RC040708	3.5	6.35	11.112	12.7	2.03
RC061008	4.7	9.525	15.875	12.7	5.45
RC081208	9.2	12.7	19.05	12.7	8.84
RC101410	14.5	15.875	22.225	15.88	16.9
RC121610	16.2	19.05	25.4	15.88	23.3
RCB121616	26.5	19.05	25.4	25.4	20.9
RCB162117	44.8	25.4	33.338	26.99	45

🏆 Manufacturing Advantages

Advanced precision producing equipment
Strict requirements for raw material selection
Complete and perfect process flow control
Rigorous quality inspection for each product batch
Diverse price grades to meet different quality requirements

Frequently Asked Questions

What materials are used in the RCB162117 bearing?

The bearing features an outer race made of ST14, a Nylon holder, and Stainless Steel needles for durability and precision performance.

What is the typical delivery time for orders?

For stock items, small quantities can be arranged within 5-7 days. Samples typically take 1 day for processing.

Which payment terms do you support?

We accept a variety of payment methods including T/T, L/C, Western Union, PayPal, D/A, and D/P.

How does the torque capacity of this model compare to others?

The FC/RC needle roller bearings are designed to provide double the torque capacity compared to normal HF models.

Can I request a sample before placing a bulk order?

Yes, bearing samples can be provided for quality evaluation and testing before proceeding with large-scale orders.

Are OEM services available for custom branding?

Yes, we accept OEM requirements and can provide products with custom branding or specific specifications based on your needs.

Product Detail

Rcb162117 One Way Clutch Needle Roller Bearing
