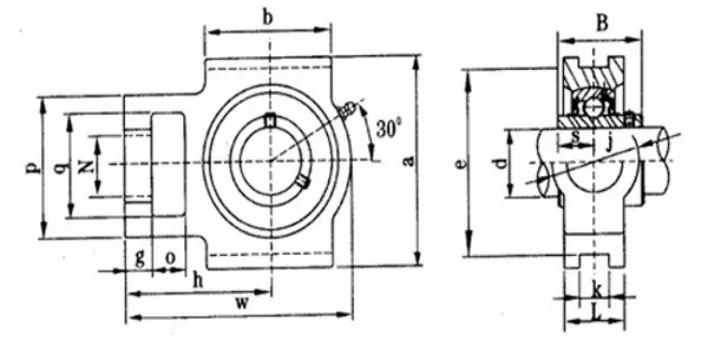

| Bearing No. | Shaft (mm) | w | h | g | b | N | a | e | L | B | S | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SUCT201 | 12 | 94 | 61 | 10 | 51 | 19 | 89 | 76 | 21 | 31 | 12.7 | 0.93 |
| SUCT204 | 20 | 94 | 61 | 10 | 51 | 19 | 89 | 76 | 21 | 31 | 12.7 | 0.89 |
| SUCT205 | 25 | 97 | 62 | 10 | 51 | 19 | 89 | 76 | 24 | 34.1 | 14.3 | 0.99 |
| SUCT206 | 30 | 113 | 70 | 10 | 57 | 22 | 102 | 89 | 28 | 38.1 | 15.9 | 1.46 |
| SUCT208 | 40 | 144 | 88 | 16 | 83 | 29 | 114 | 102 | 33 | 49.2 | 19 | 2.68 |
| SUCT211 | 55 | 171 | 106 | 19 | 95 | 35 | 146 | 130 | 38 | 55.6 | 22.2 | 4.52 |
| SUCT215 | 75 | 232 | 140 | 21 | 121 | 41 | 167 | 151 | 48 | 62.5 | 33.3 | 8.29 |

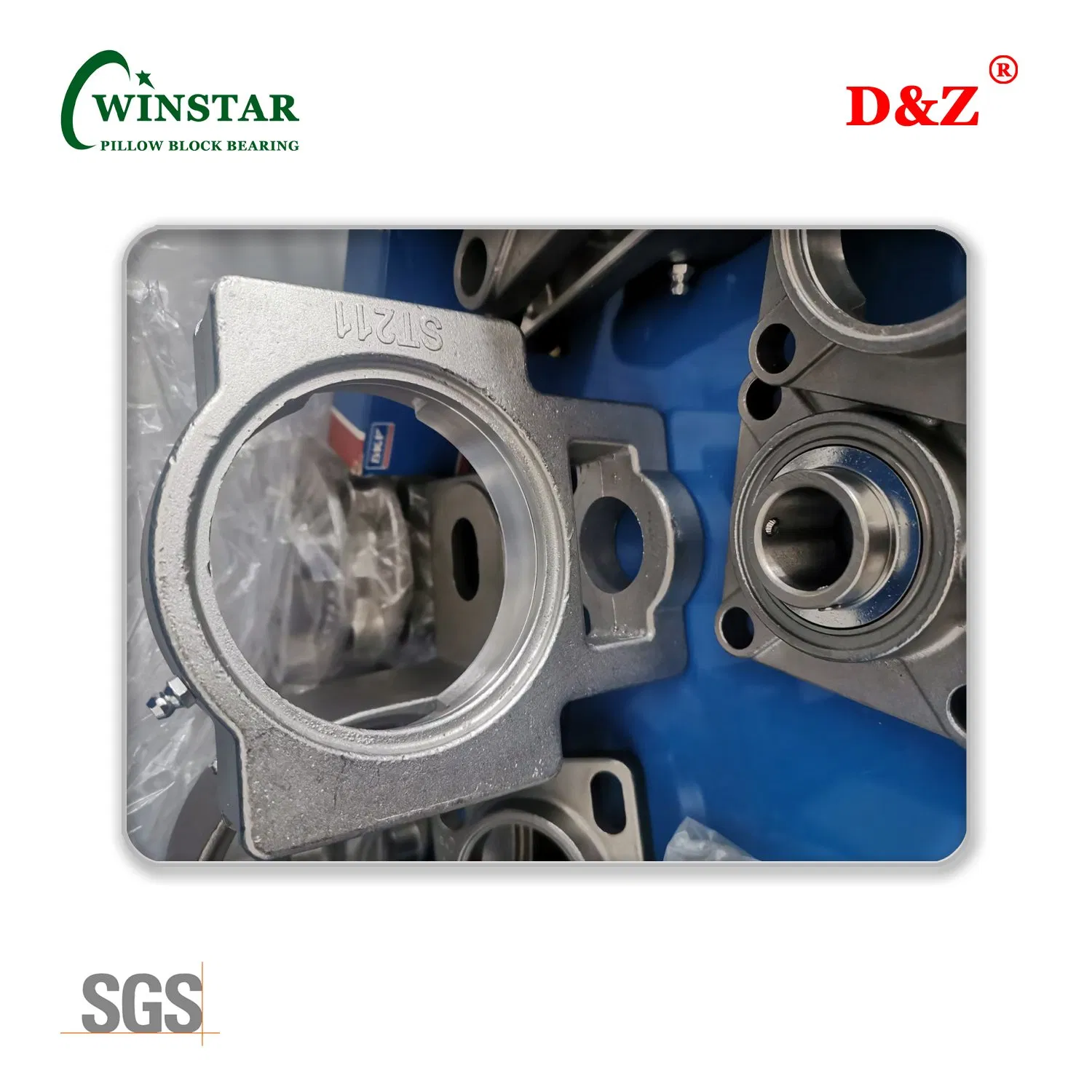

The SSUCT211 series is manufactured using high-grade stainless steel, ensuring excellent corrosion resistance and durability in harsh environments.
Yes, these stainless steel units are food-safe and approved, making them ideal for applications in food and beverage production.

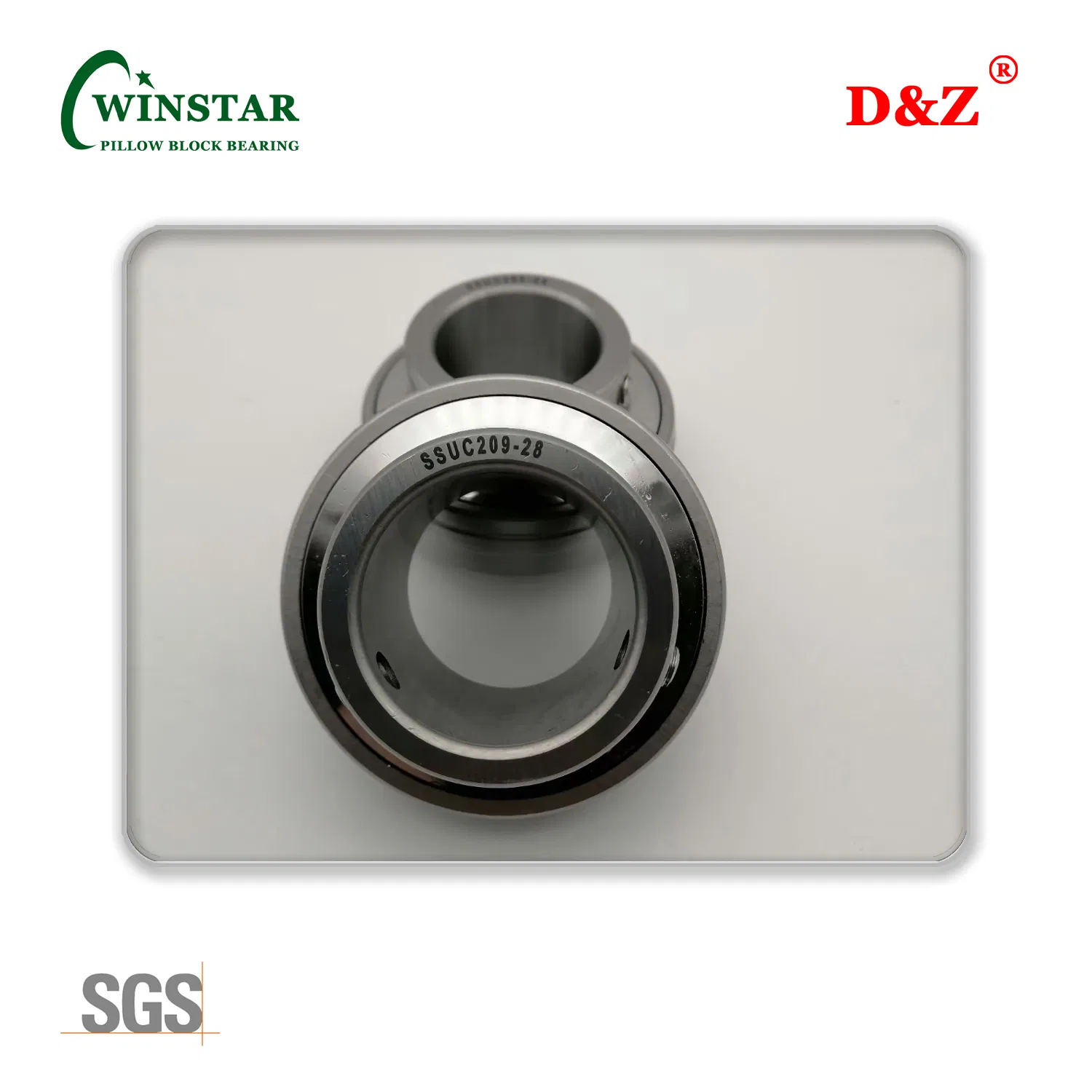

Absolutely. One of the cost-effective features of this assembly is that it has a replaceable insert, allowing for easier maintenance without replacing the entire housing.
The bearing uses a grub screw fixing method, which provides a secure and reliable attachment to the shaft for various industrial applications.
Key features include magnetic properties, low and high-temperature resistance, corrosion resistance, and a re-lubricatable design.
The bearings come pre-greased and are designed to be re-lubricatable through standard grease nipples to ensure long-term performance.
