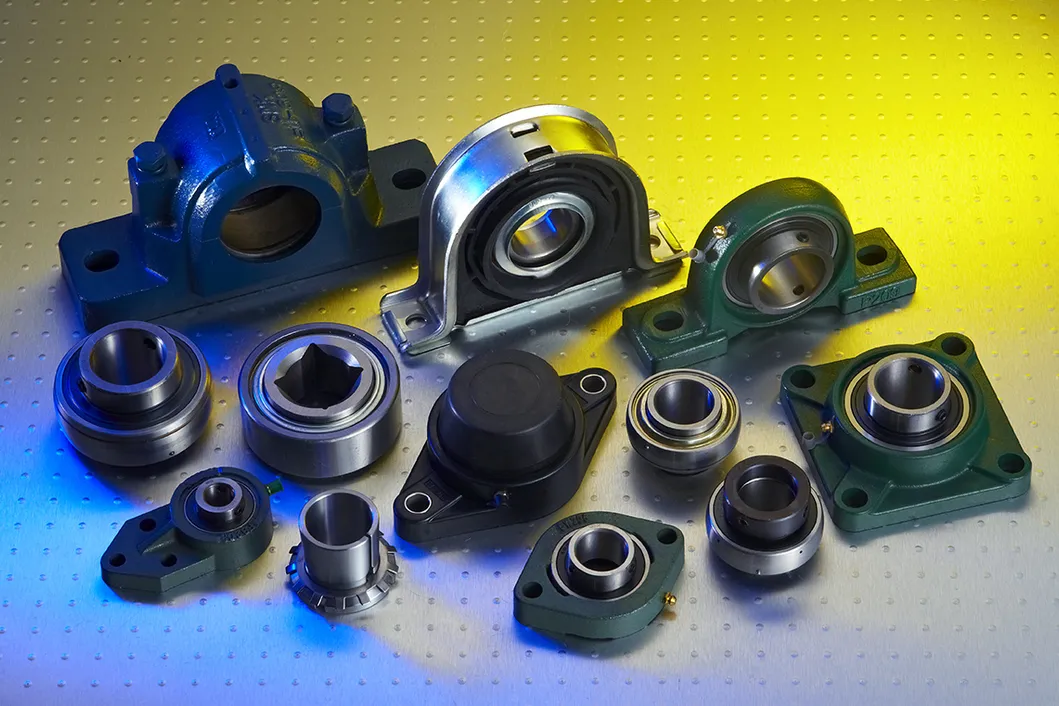

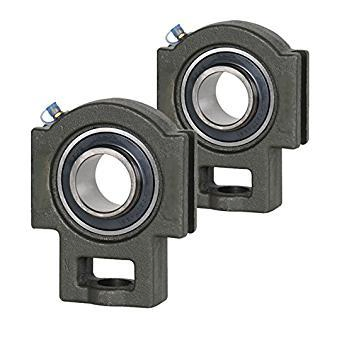

Mounted bearing units combine a spherical outside surface ball bearing, high-performance seals, and a housing made of high-grade cast iron or pressed steel. These units feature various structural patterns and are designed to perform reliably under tough environmental conditions.
Core Features

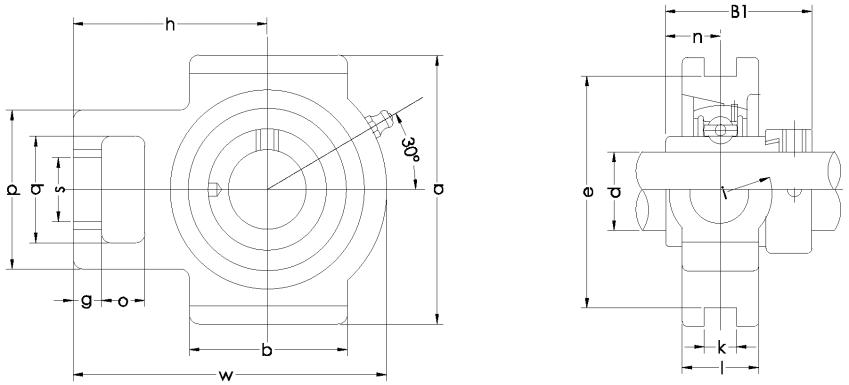

| Unit No. | Bore (mm) | Width (mm) | Length (mm) | Height (mm) | Bearing No. | Housing No. | Weight (kg) |
|---|---|---|---|---|---|---|---|
| HCT204 | 20 | 89 | 94 | 61 | HC204 | T204 | 0.83 |
| HCT205 | 25 | 89 | 97 | 62 | HC205 | T205 | 0.88 |
| HCT206 | 30 | 102 | 113 | 70 | HC206 | T206 | 1.35 |
| HCT207 | 35 | 102 | 129 | 78 | HC207 | T207 | 1.56 |
| HCT208 | 40 | 114 | 144 | 89 | HC208 | T208 | 2.55 |
| HCT209 | 45 | 117 | 144 | 87 | HC209 | T209 | 2.53 |
| HCT210 | 50 | 117 | 149 | 90 | HC210 | T210 | 2.62 |
| HCT211 | 55 | 146 | 171 | 106 | HC211 | T211 | 4.32 |

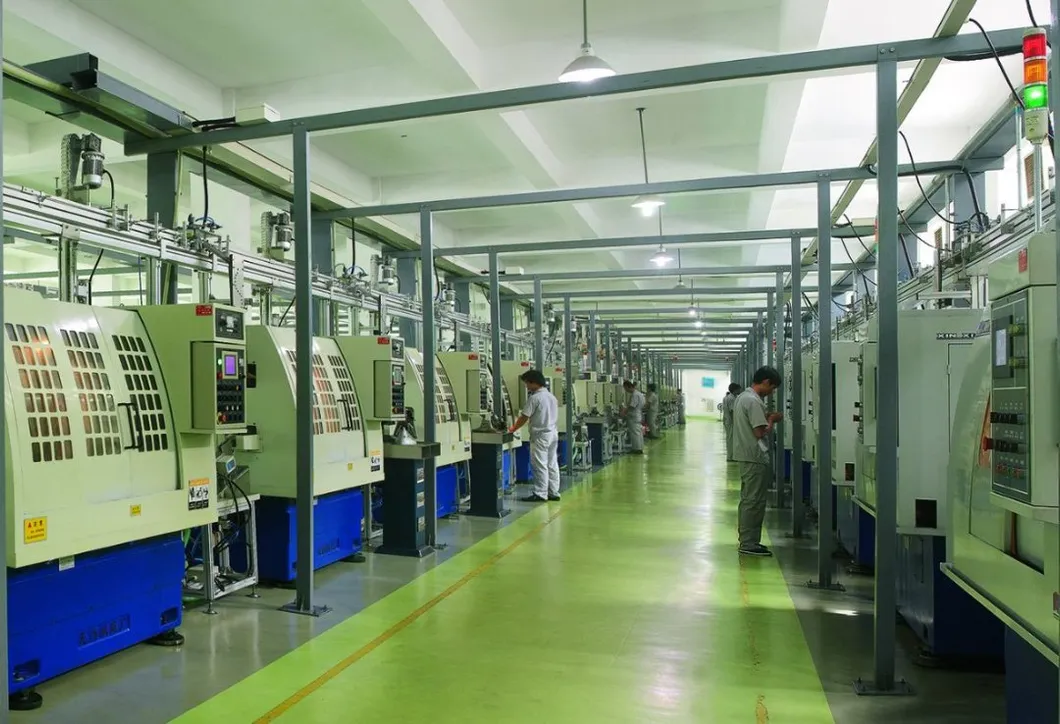

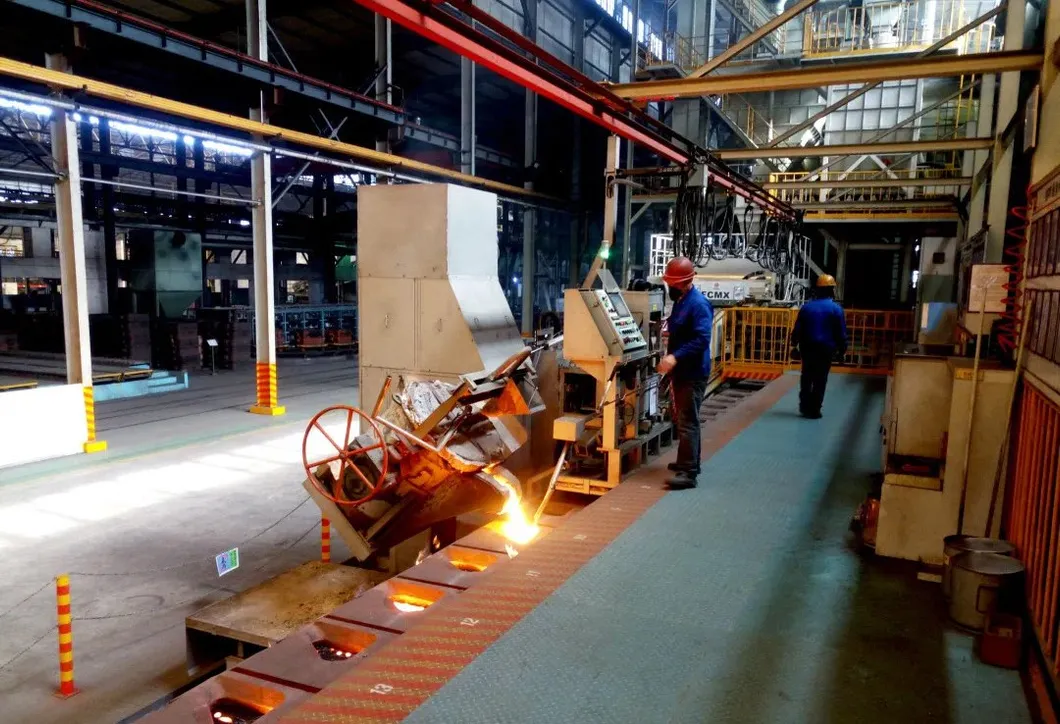

The manufacturing process follows strict standards, utilizing advanced automatic lines for raceways, ultrasonic cleaning, and laser marking. Every product undergoes 100% inspection before delivery to ensure durability and reliability.
