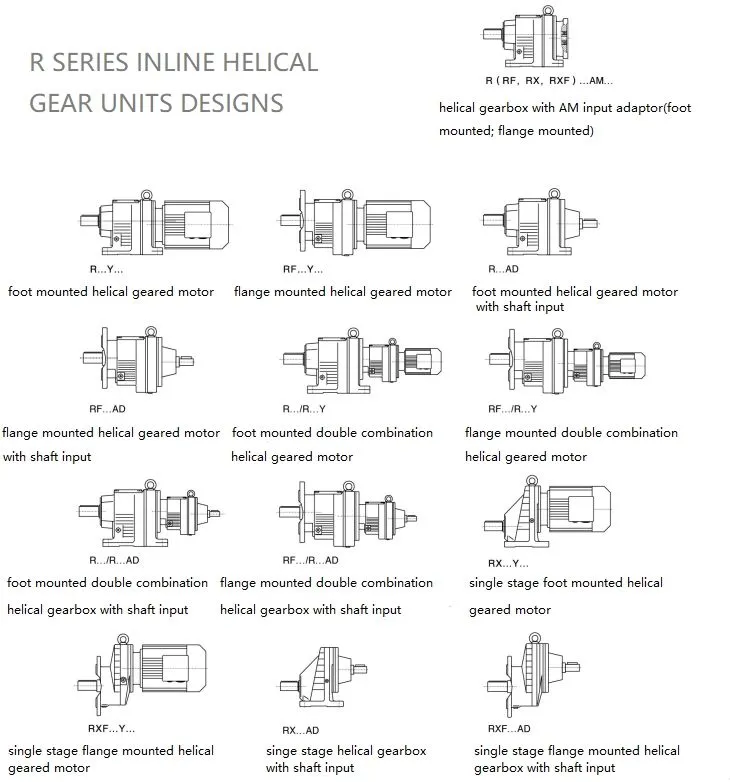

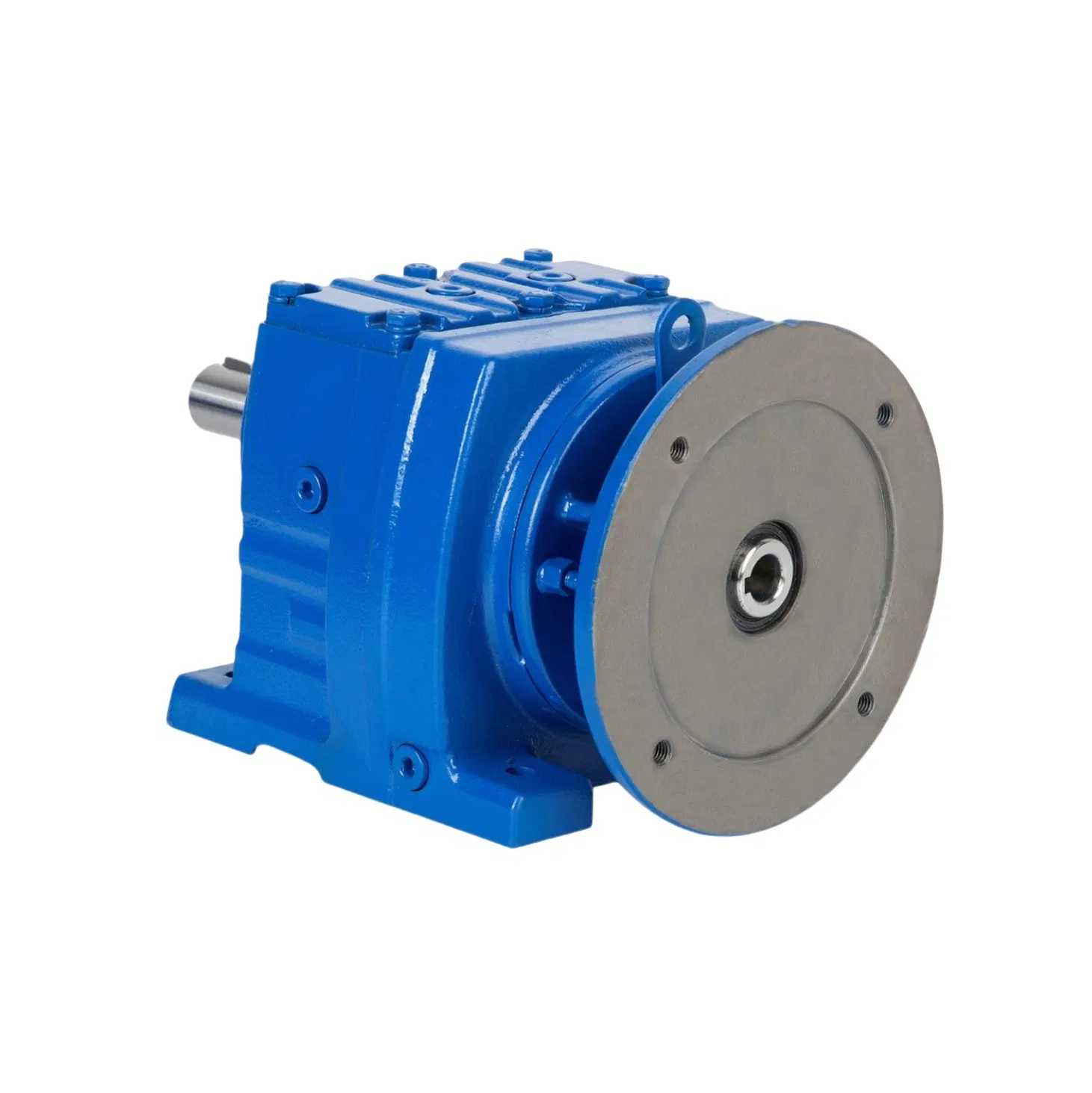

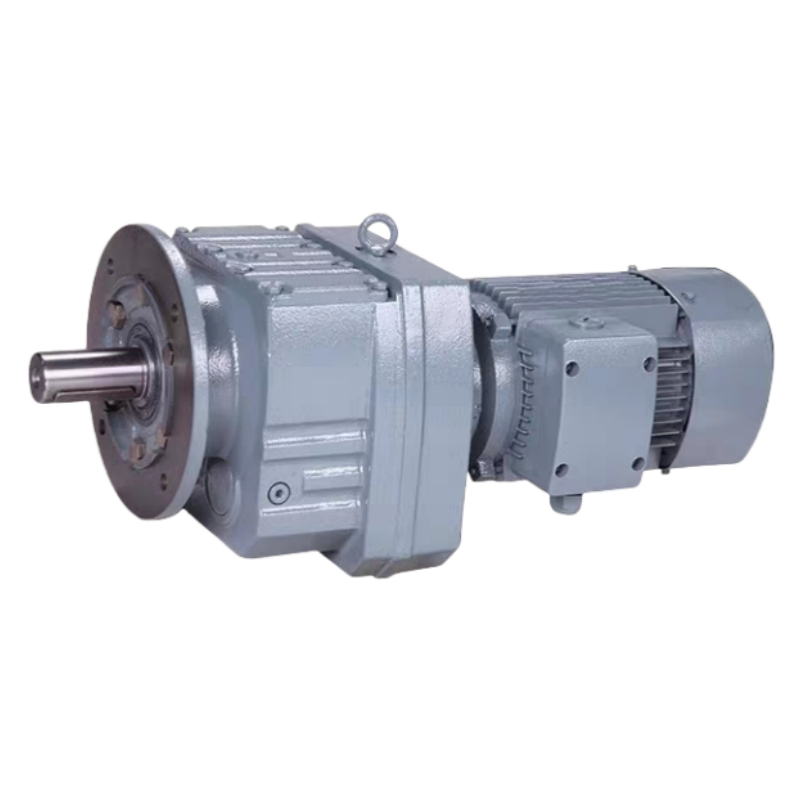

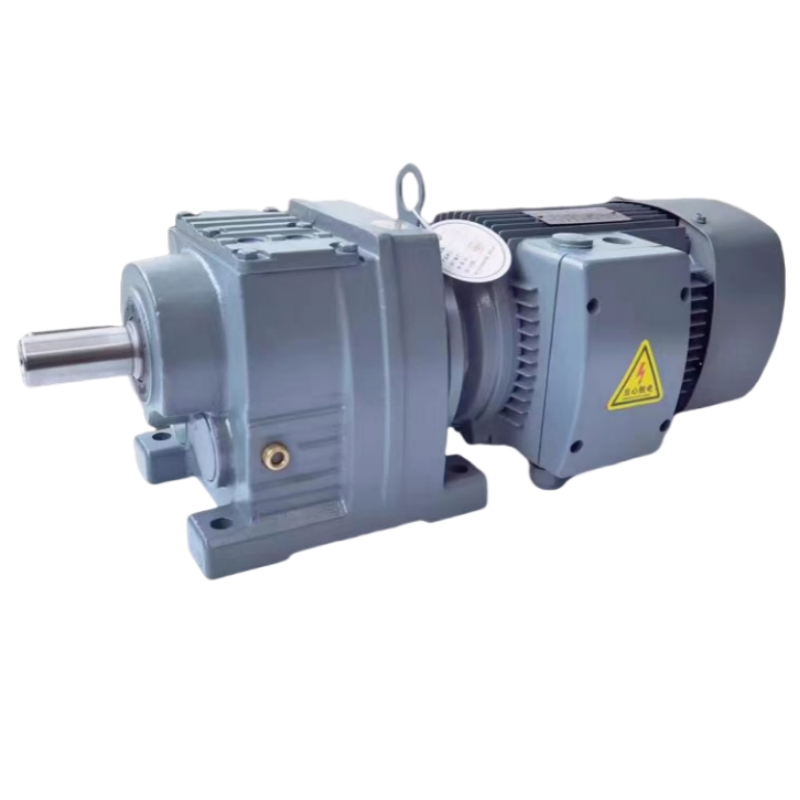

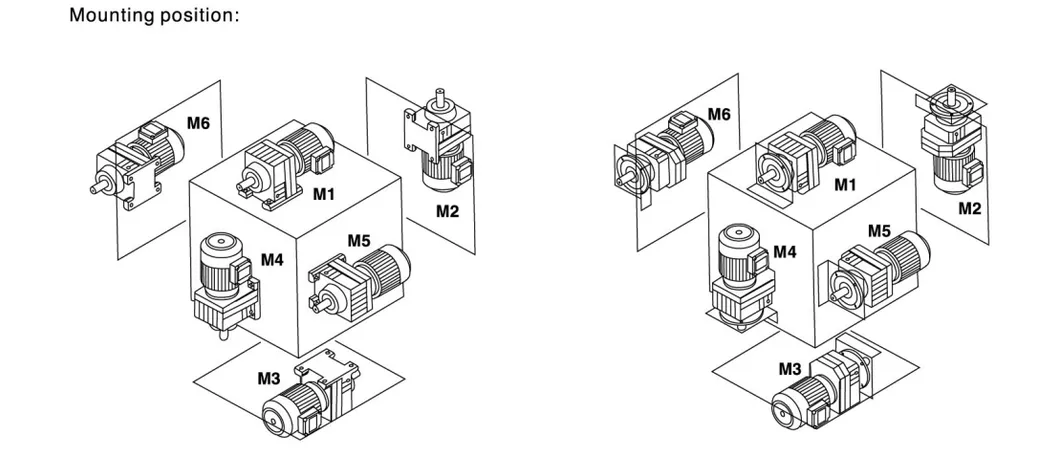

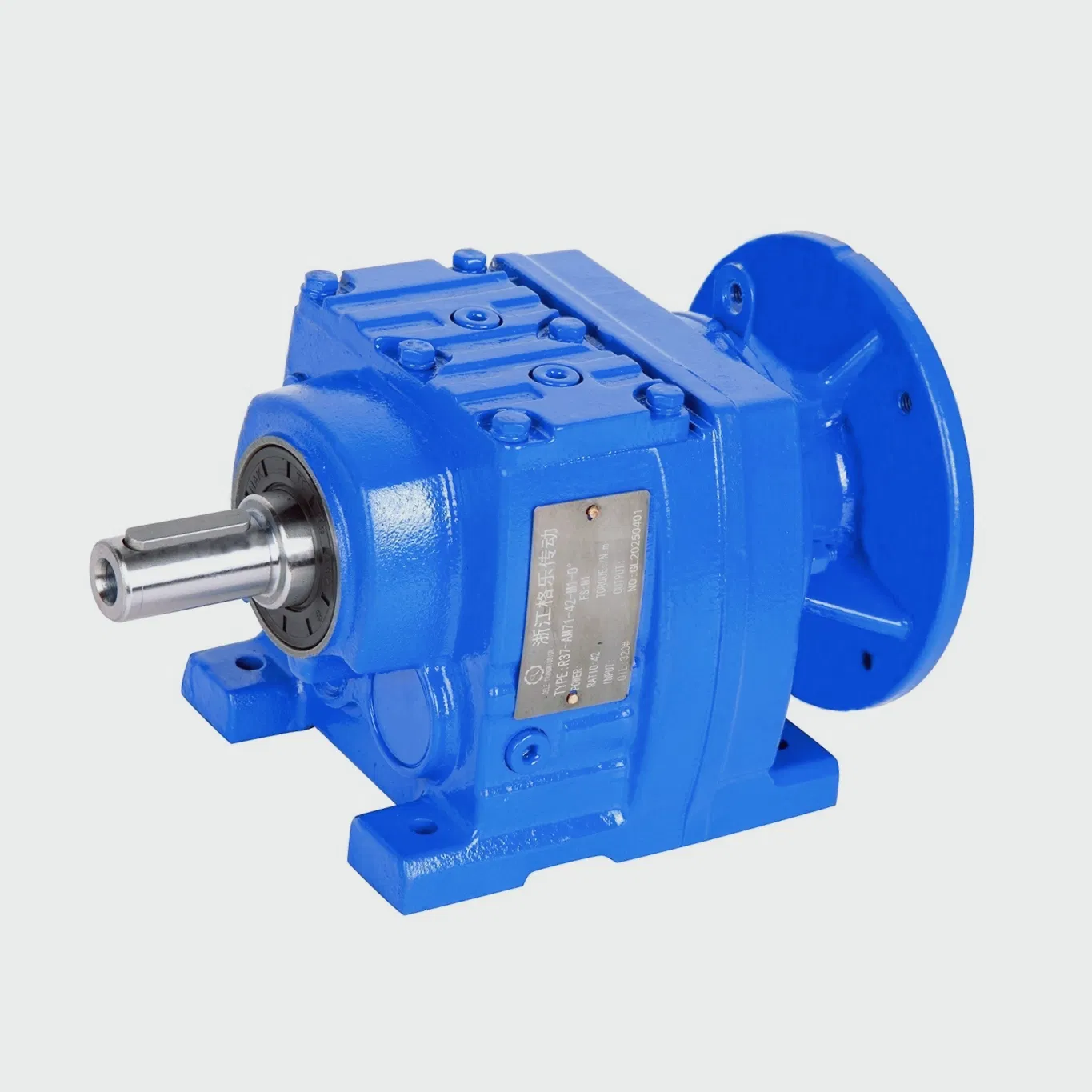

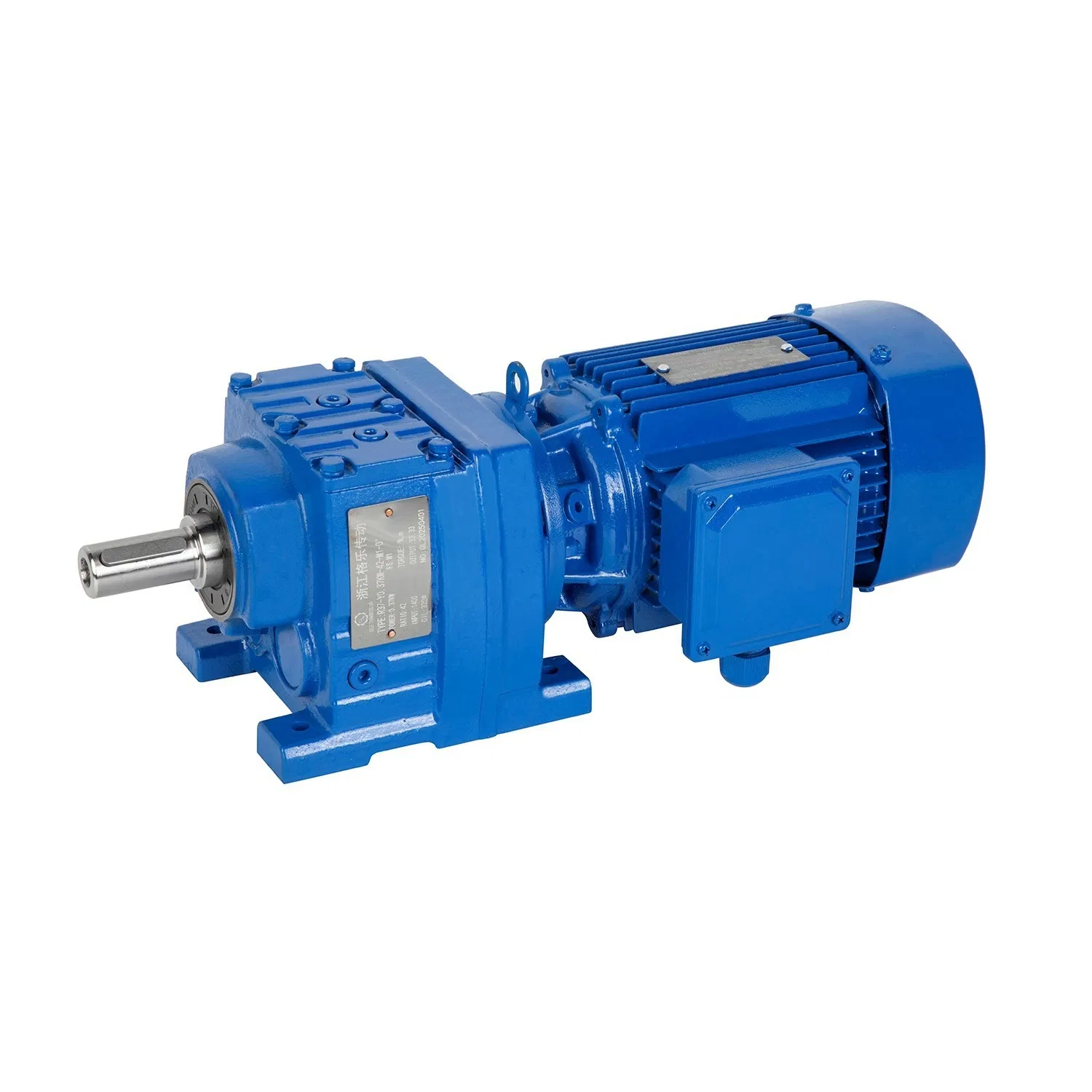

The TR Series helical gearbox is a highly versatile transmission unit designed for integration with various motor types, including IEC standard motors, brake motors, explosion-proof motors, and servo motors. Its flexible design allows for foot or flange mounting across multiple positions, making it ideal for the textile, foodstuff, beverage, and logistics industries.
| Models | Output Shaft Dia | Power(kW) | Motor Frame | Ratio | Max Torque(Nm) |
|---|---|---|---|---|---|
| R28 | 25mm | 0.18~3 | 63-71-80-90-100 | 3.37~135.09 | 130 |
| R38 | 25mm | 0.18~3 | 63-71-80-90-100 | 3.41~134.82 | 200 |
| R48 | 30mm | 0.18~5.5 | 63-132S | 3.83~176.88 | 300 |
| R58 | 35mm | 0.18~7.5 | 63-132S/M | 4.39~186.89 | 450 |
| R68 | 35mm | 0.18~7.5 | 63-132S/M | 4.29~199.81 | 600 |
| R78 | 40mm | 0.18~11 | 63-160M | 5.21~195.24 | 820 |
| R88 | 50mm | 0.55~22 | 80-180 | 5.36~246.54 | 1550 |
| R98 | 60mm | 0.55~30 | 80-200 | 4.49~289.6 | 3000 |
| R108 | 70mm | 2.2~45 | 100-225S/M | 5.06~245.5 | 4300 |
| R138 | 90mm | 5.5~55 | 132-280 | 5.51~223.34 | 8000 |
| R148 | 110mm | 11~90 | 160-315S/M | 5.00~163.46 | 13000 |
| R168 | 120mm | 11~160 | 160-315M | 8.77~196.41 | 18000 |

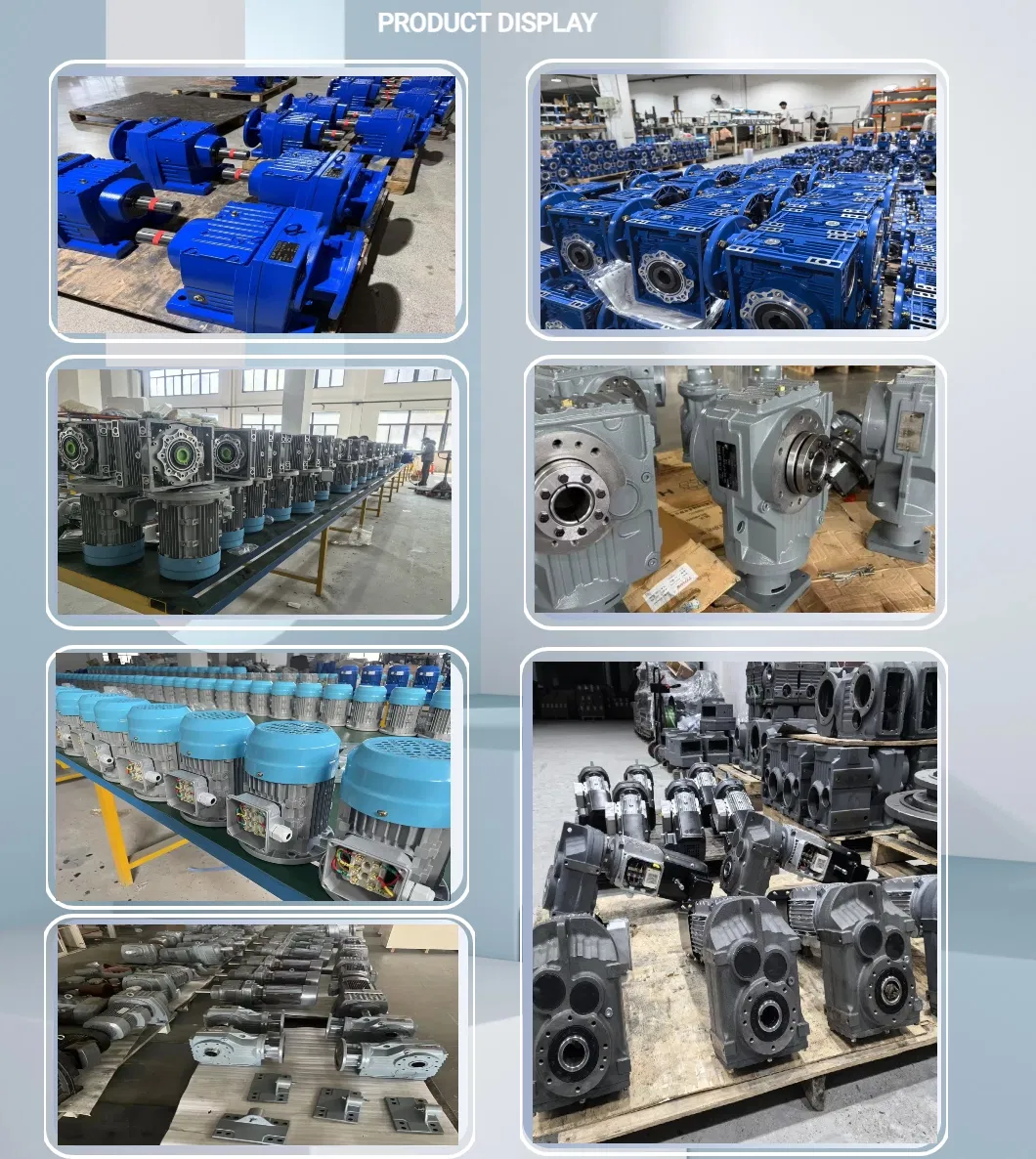

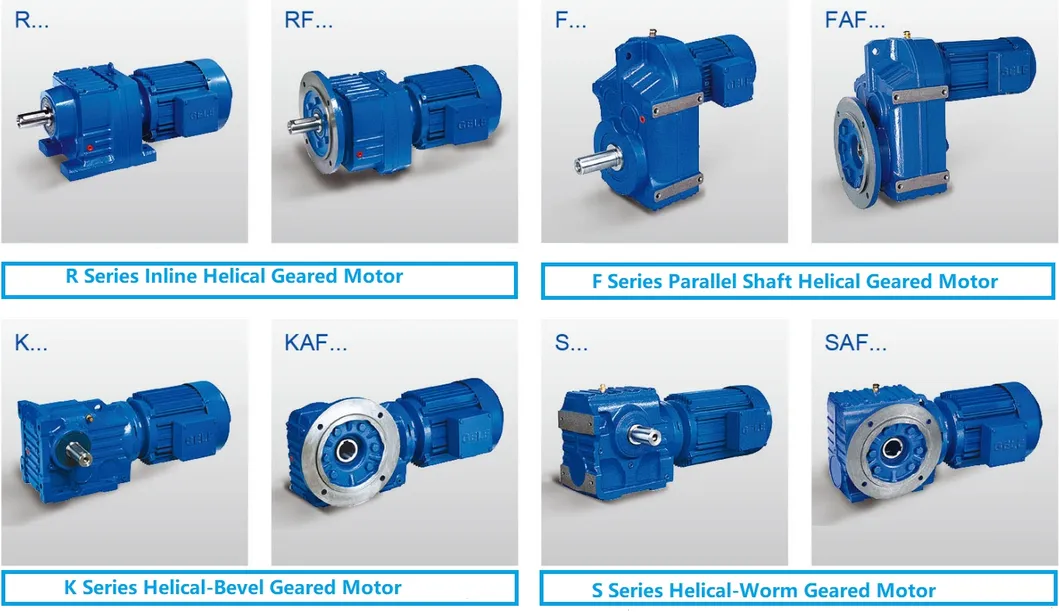

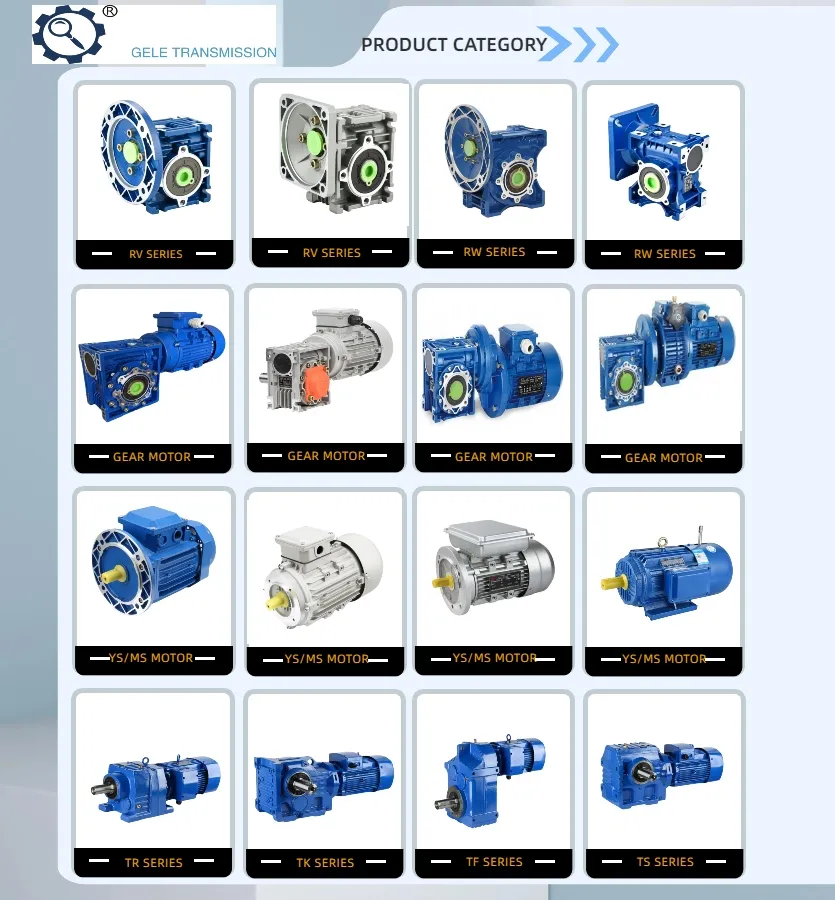

Our facility specializes in high-quality reducer manufacturing. The leading product range includes RV worm gearboxes, three-phase electric motors, R K F S Series helical gearboxes, and specialized mechanical transmission accessories. Our products are widely utilized in ceramics, packaging, chemical, pharmaceutical, and automatic assembly lines.
With certificates like CE, CCC, and SGS, we export globally to Southeast Asia, Germany, Italy, Spain, UK, Middle East, and South America. We focus on innovation and high-quality standards.
