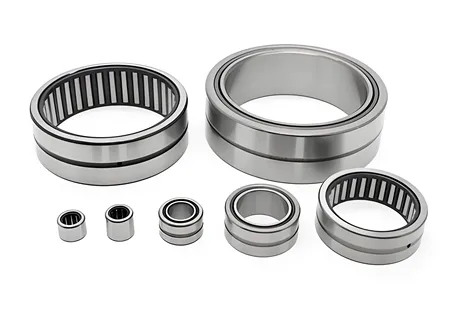

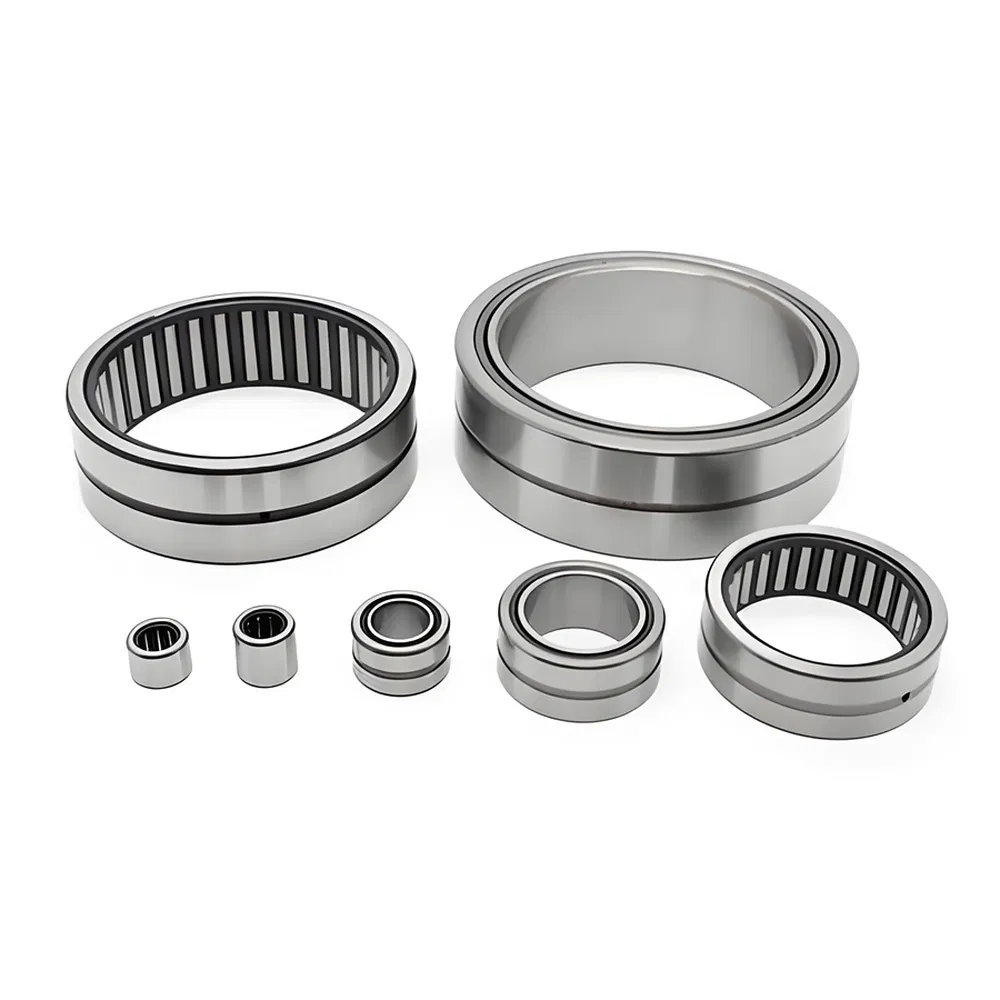

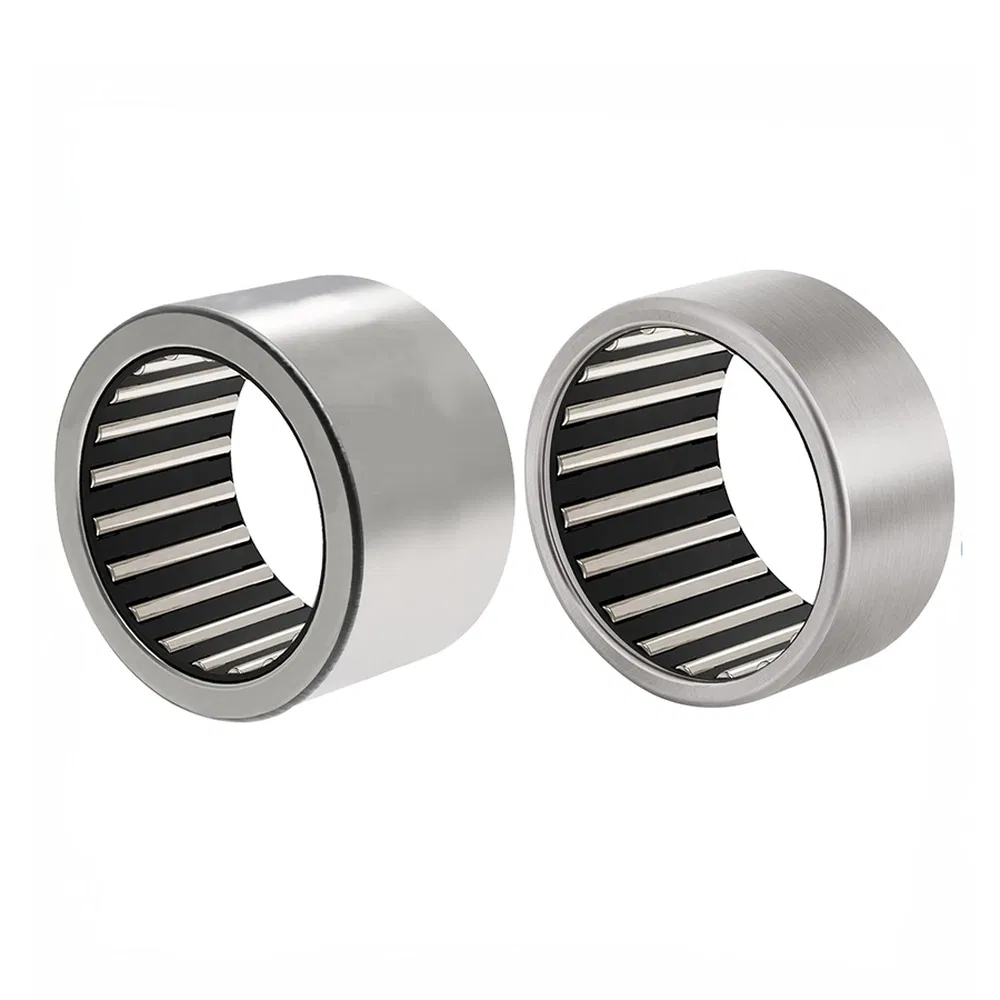

Needle roller bearings are cylindrical rollers that are thin and long relative to their diameter. Despite a smaller cross-section, they possess high load-bearing capacity. The compact radial structure makes them ideal for applications where mounting space is restricted.
Depending on the application, these can be used without the inner ring or as needle roller and cage assemblies. They are designed to handle radial loads efficiently when the journal and housing bore surfaces are matched in hardness and accuracy.
APPLICATION AREAS: Widely used in automotive components, compressors, construction machinery, electric motors, food processing equipment, and home appliances.

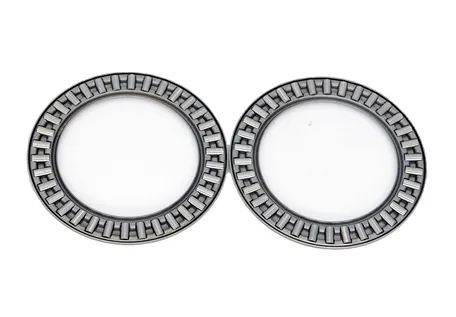

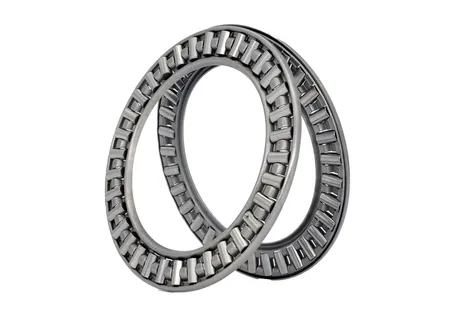

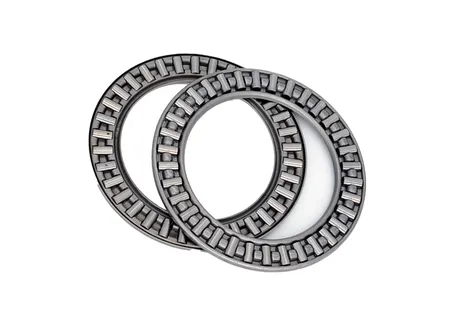

| AXK3047-A SPECIFICATIONS | |
|---|---|

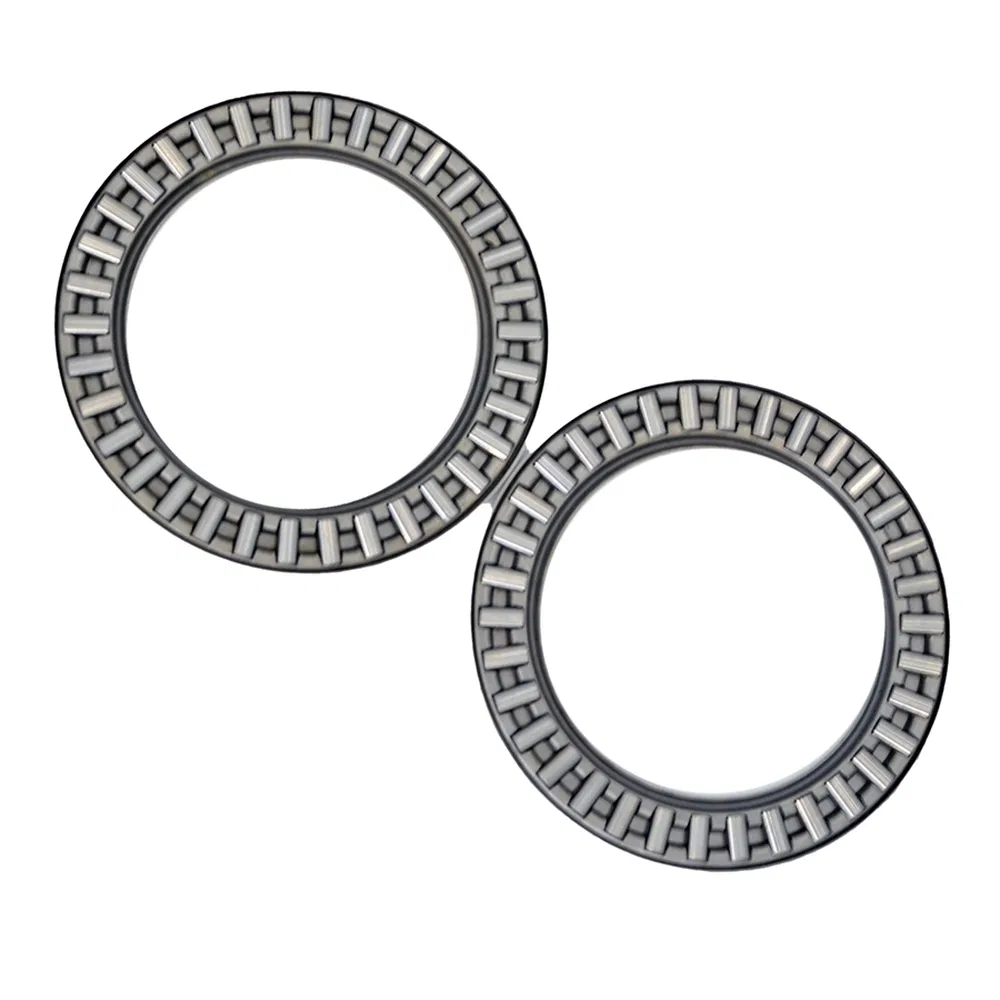

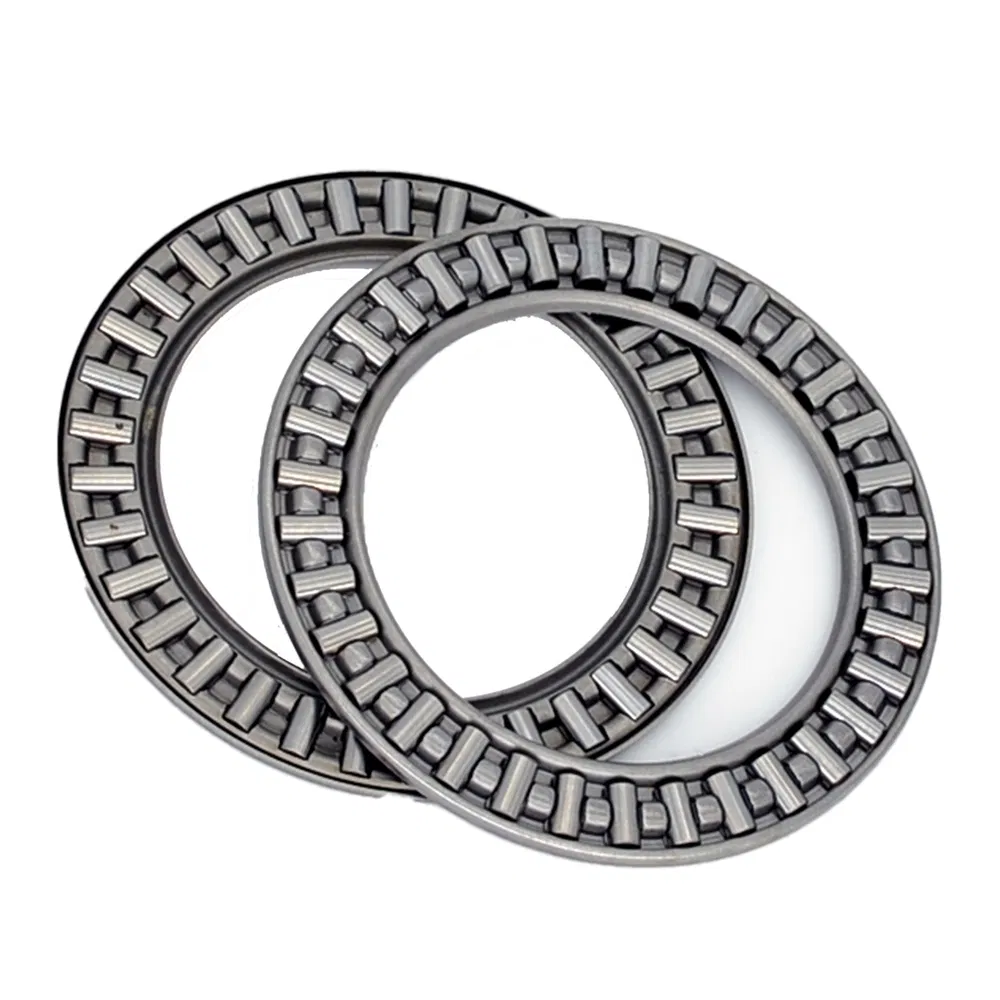

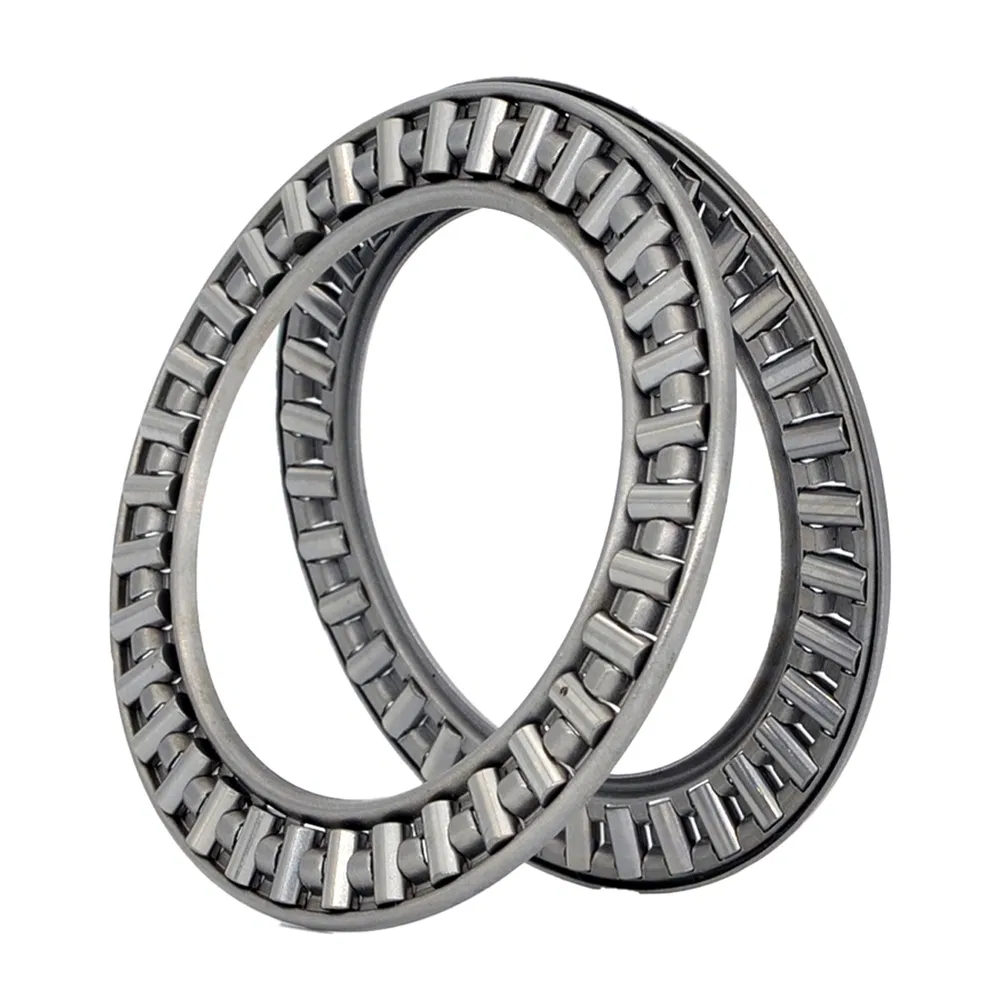

| Product Name | Needle Roller Thrust Bearing |
| Model | AXK3047-A |

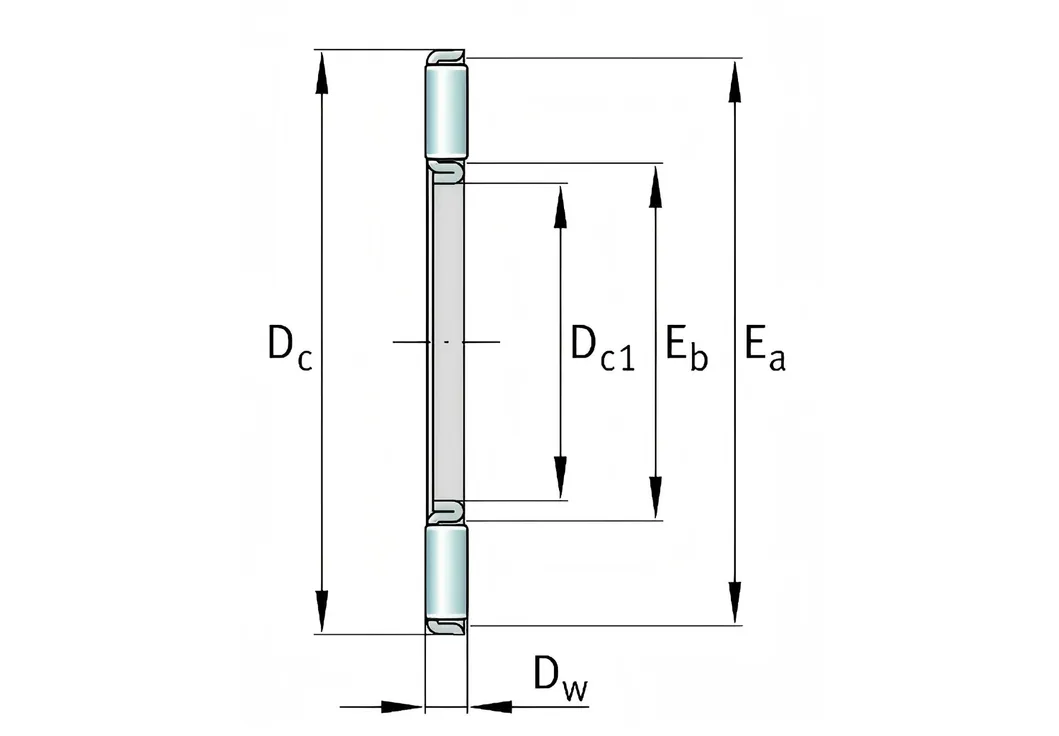

| Bore Diameter Cage (Dc1) | 30 mm |
| Outside Diameter (Dc) | 47 mm |
| Rolling Element Diameter (Dw) | 2 mm |

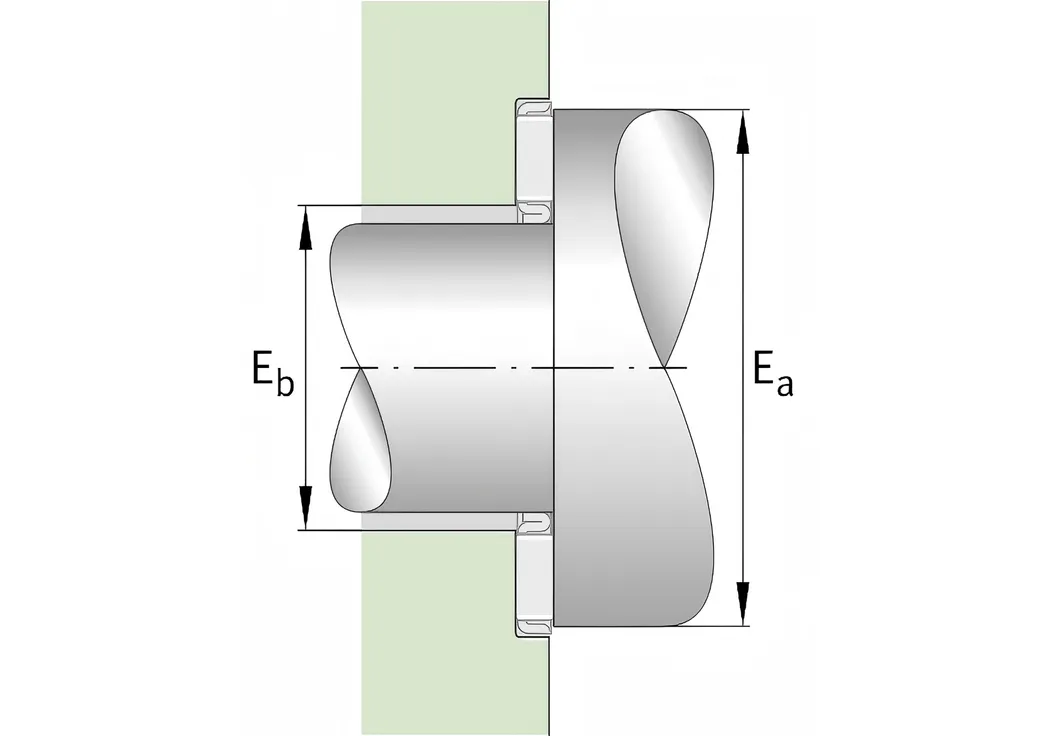

| Raceway Dimension (Ea) | 46 mm |
| Basic Dynamic Load Rating (Axial) | 16.400 N |
| Basic Static Load Rating (Axial) | 70.000 N |
| Limiting Speed | 7.500 1/min |
| Weight | 8.236 g |
| Operating Temperature Range | -20°C to 140°C |

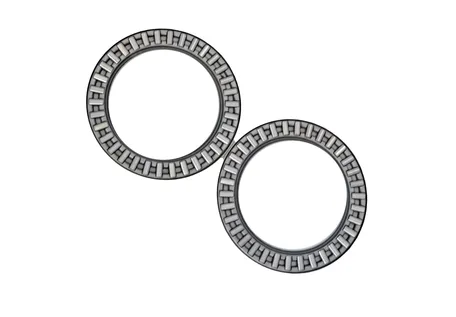

Constructed from premium GCR15 bearing steel, ensuring exceptional durability and resistance to wear and tear for long-term industrial use.

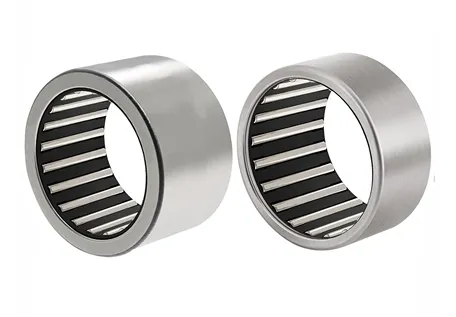

Our bearings boast precision ratings of P0, P6, P5, and P4, making them suitable for high-accuracy applications across various sectors.
The product strictly adheres to ISO 9001:2000 certification standards, guaranteeing international quality and safety for our clients.
