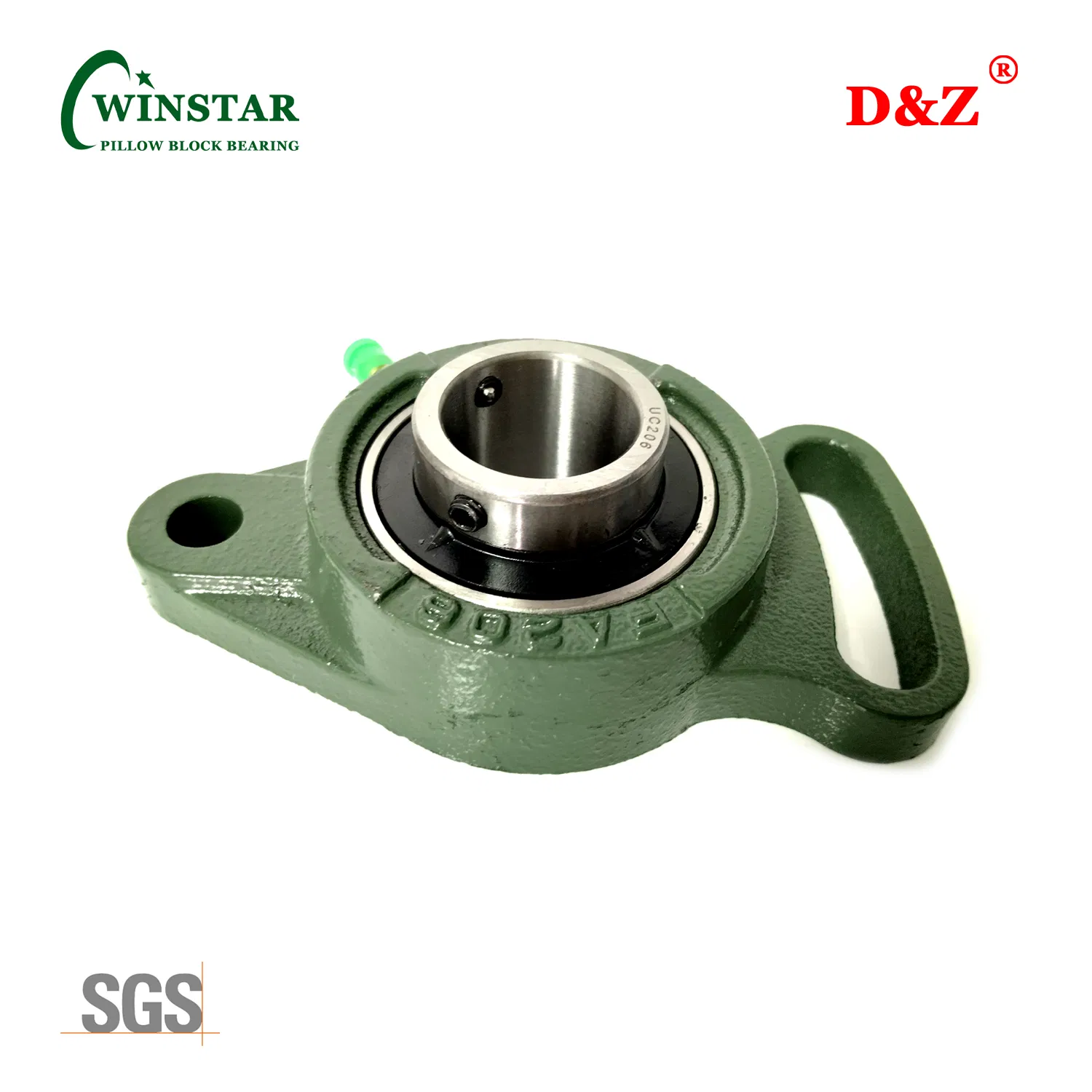

Ucfa206 Set Screw Locking Adjustable Two-Bolt Flange Bearing Unit Ucfa200 Series

1 / 5

Ucfa206 Set Screw Locking Adjustable Two-Bolt Flange Bearing Unit Ucfa200 Series

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

UCFA206

Feature

Magnetically, Low Temperature, Corrosion Resistant, High Temperature, High Speed

Rows Number

Single

Raceway

Deep Groove Raceway

Material

Bearing Steel

Bearing Block Model

Quality

P0, P6, Z1V1, Z2V2

Operating Temp.

-20 °C to 120 °C

Housing Material

Cast Iron & Ductile Iron

Shaft Diameter

30 mm

Bolt Size

M10

Origin

China

⚙️ Product Description

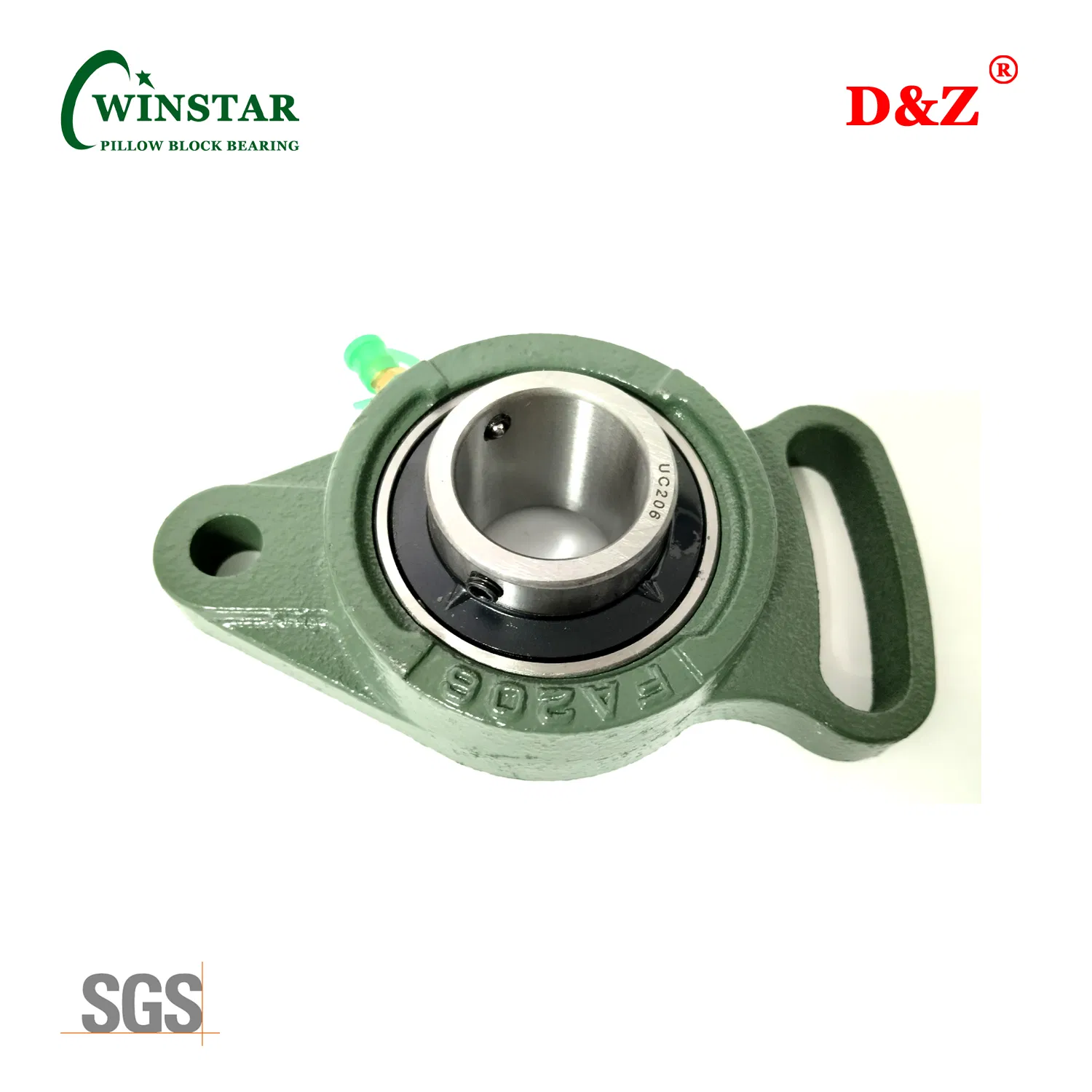

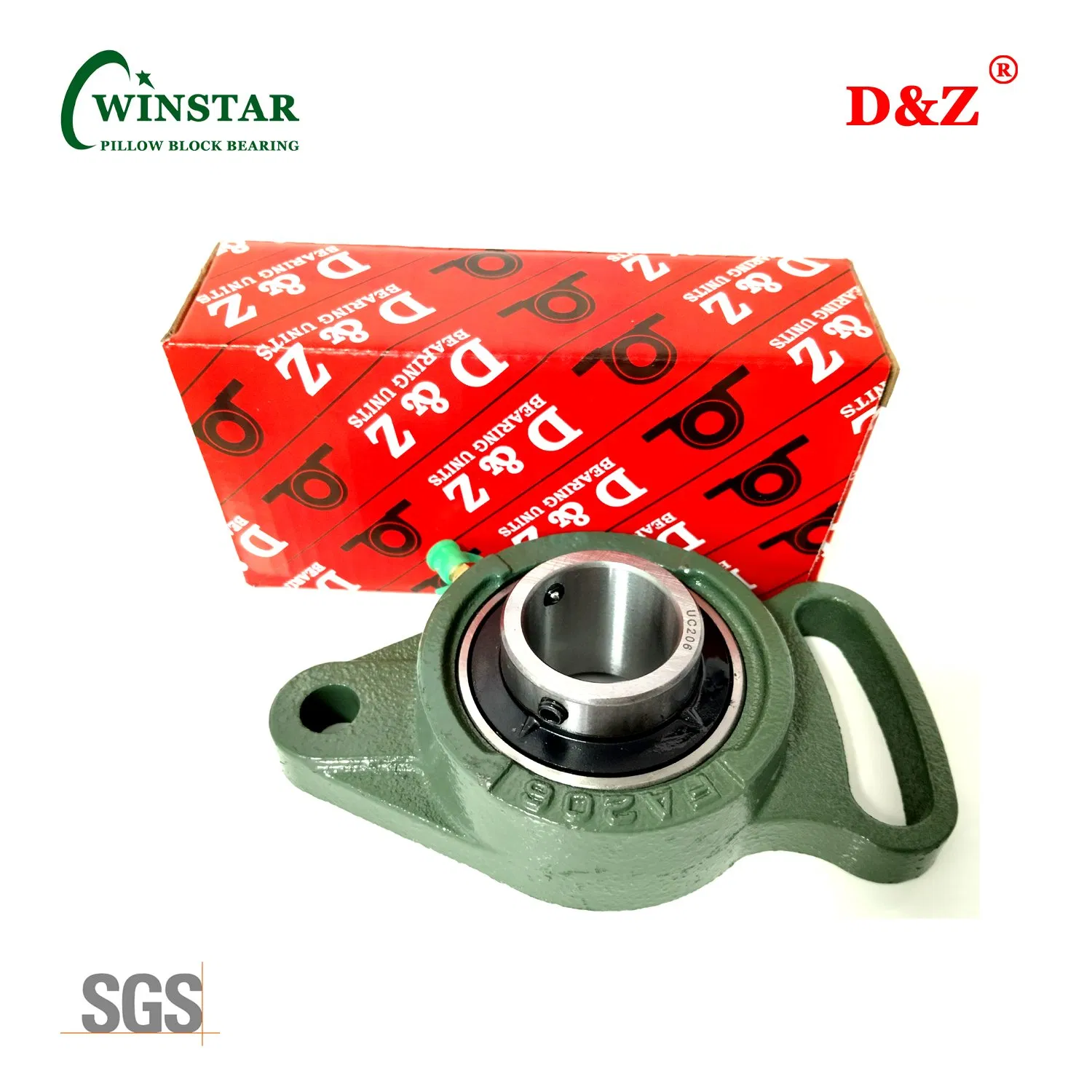

Grey cast housing, radial insert ball bearing with socket set screws, seal with slinger. UCFA206 is a Cast Iron Pillow Block Housing combined with a Chrome Steel Set Screw Insert Ball Bearing. This unit is a standard duty pillow block bearing with a wide inner ring, a standard base to center height and a 45˚ degree grease fitting allowing for re-lubrication of the insert bearing.

📊 Product Parameters

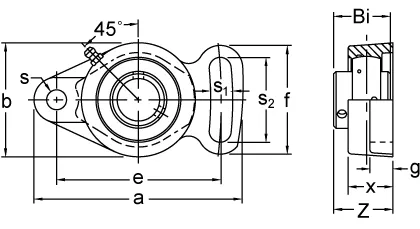

Bearing Unit No.	Shaft Dia(mm)		Dimensions(mm)											Bolt Dimensions		Bearing No.	Housing No.	Weight(kg)
Bearing Unit No.	in	mm	a	e	i	g	l	s	b	z	c	Bi	n	mm	in	Bearing No.	Housing No.	Weight(kg)
UCFA201	-	12	98	78	15	11	25.5	10	60	33.3	50	31	12.7	M8	5/16	UC201	FA201	0.47
UCFA202	-	15	98	78	15	11	25.5	10	60	33.3	50	31	12.7	M8	5/16	UC202	FA202	0.47
UCFA204	-	20	98	78	15	11	25.5	10	60	33.3	50	31	12.7	M8	5/16	UC204	FA204	0.47
UCFA205	-	25	124	98	16	13	27	12	70	35.7	65	34.1	14.3	M10	3/8	UC205	FA205	0.68
UCFA206	-	30	141	117	18	13	31	12	83	40.2	72	38.1	15.9	M10	3/8	UC206	FA206	1.0
UCFA208	-	40	171	144	21	16	36	14	105	51.2	87	49.2	19	M12	7/16	UC208	FA208	1.7

🏢 Company Profile

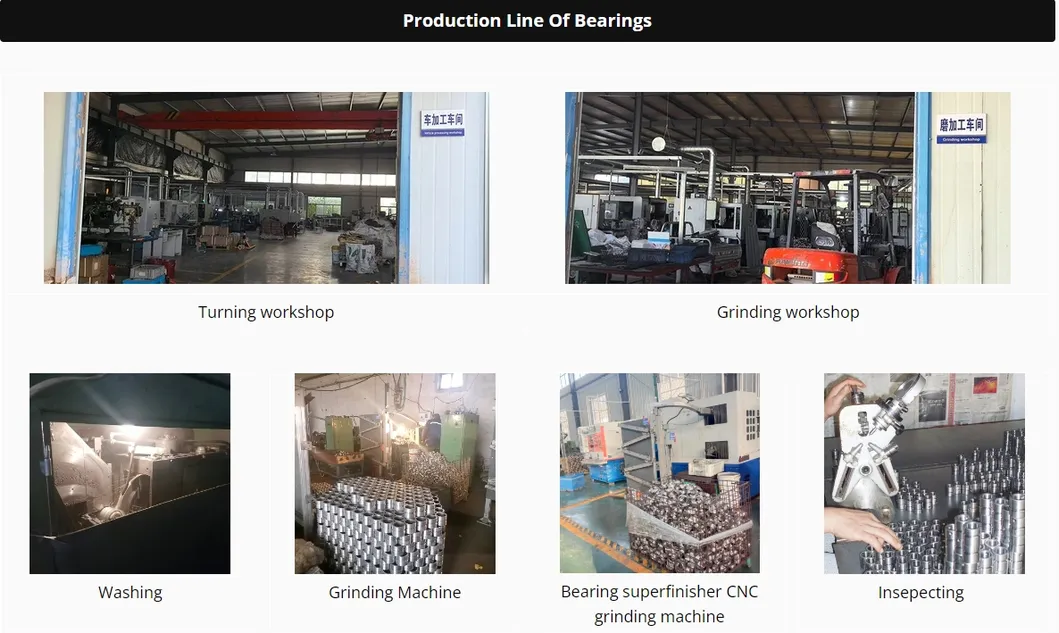

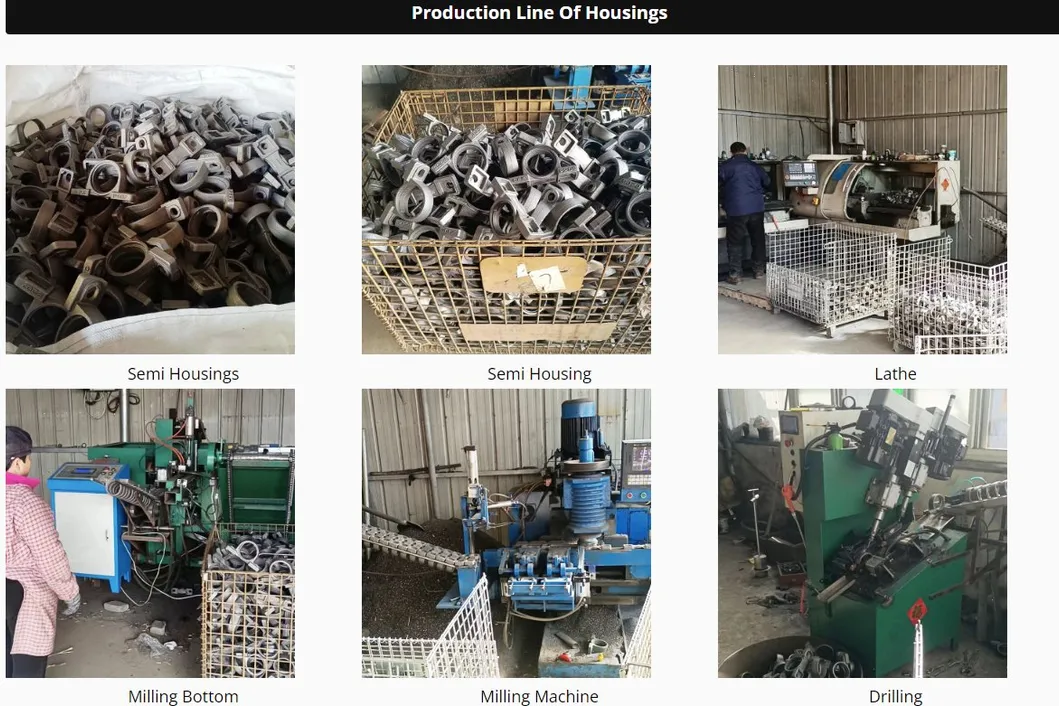

As a professional manufacturer for pillow block bearings, we have been dedicated to producing high-quality bearing Units since 2009. With many years of experience and expertise in the industry, we strive to provide our customers with reliable and efficient bearings for various applications, such as automotive, mining industry, textile industry and many other industries.

🌟 Our Advantages

Advanced Technology
State-of-the-art technology and equipment to produce high-quality bearings meeting industry standards.

Expert Team
Experienced engineers and technicians ensuring rigorous reliability and durability testing for every unit.

Wide Range
A comprehensive selection of bearing types and sizes to meet diverse customer needs.

🛠️ After Sales Service

As a professional manufacturer for bearings, we are sure to provide top-notch after-sales service to our customers. Our team of experienced technicians is always ready to assist with any technical issues or questions you may have regarding our products.

❓ Frequently Asked Questions

Q1: How about the sample?

A: We are honored to offer you free samples, while you just need to pay for the shipping cost.

Q2: How to confirm the Product Quality before placing orders?

A: All our products are manufactured under a strict quality control system to ensure consistency and excellence.

Q3: Is there a discount for large orders?

A: Yes, we offer competitive pricing; the larger your order, the better the discount we can provide.

Q4: What is the typical delivery time?

A: Depending on the order volume, a full container generally takes about 35 days to complete.

Q5: What materials are used for the housing?

A: The housings are typically made from high-grade Grey Cast Iron or Ductile Iron for maximum durability.

Q6: Are these bearings suitable for high-temperature environments?

A: Yes, our bearings are designed to operate efficiently in temperatures ranging from -20 °C up to 120 °C.
