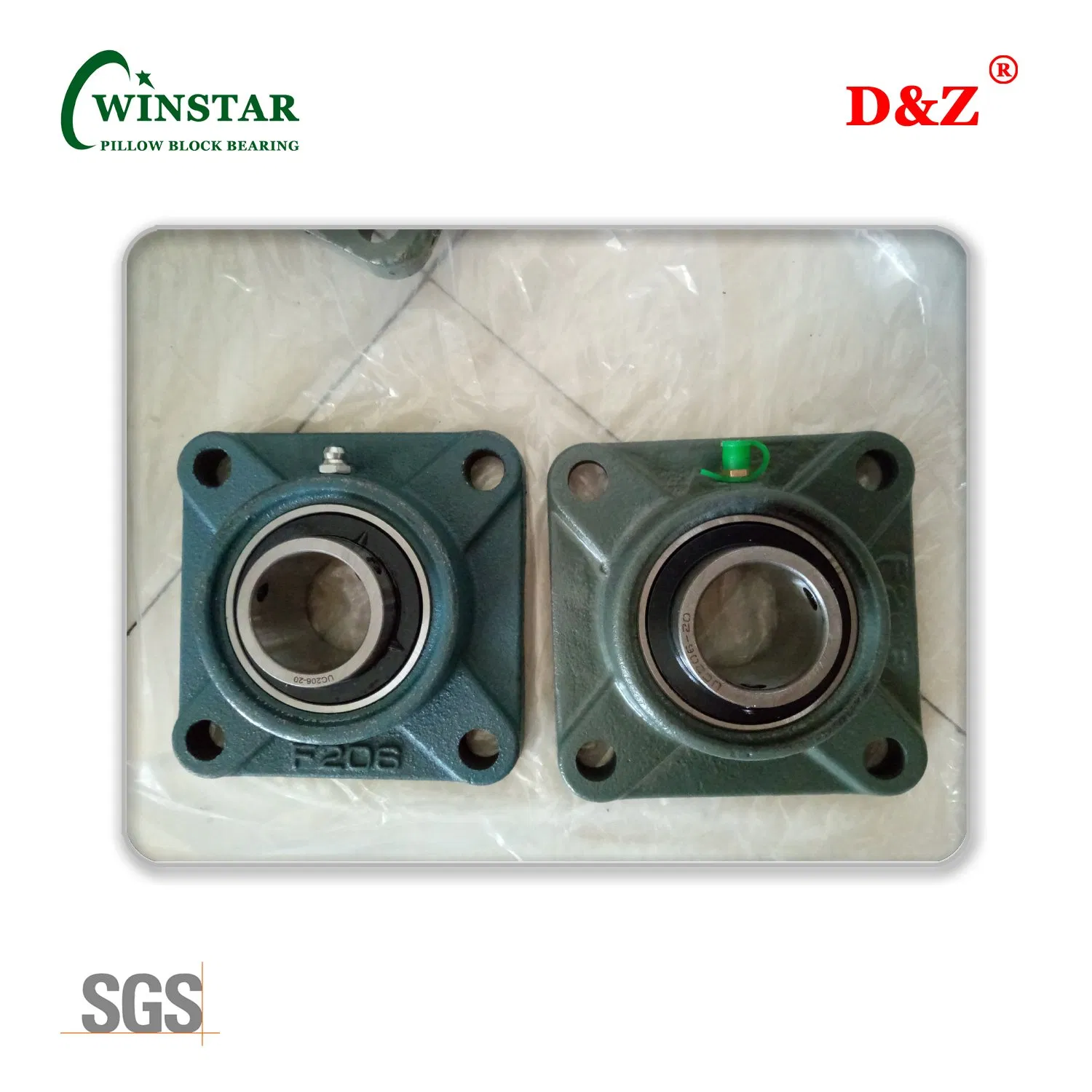

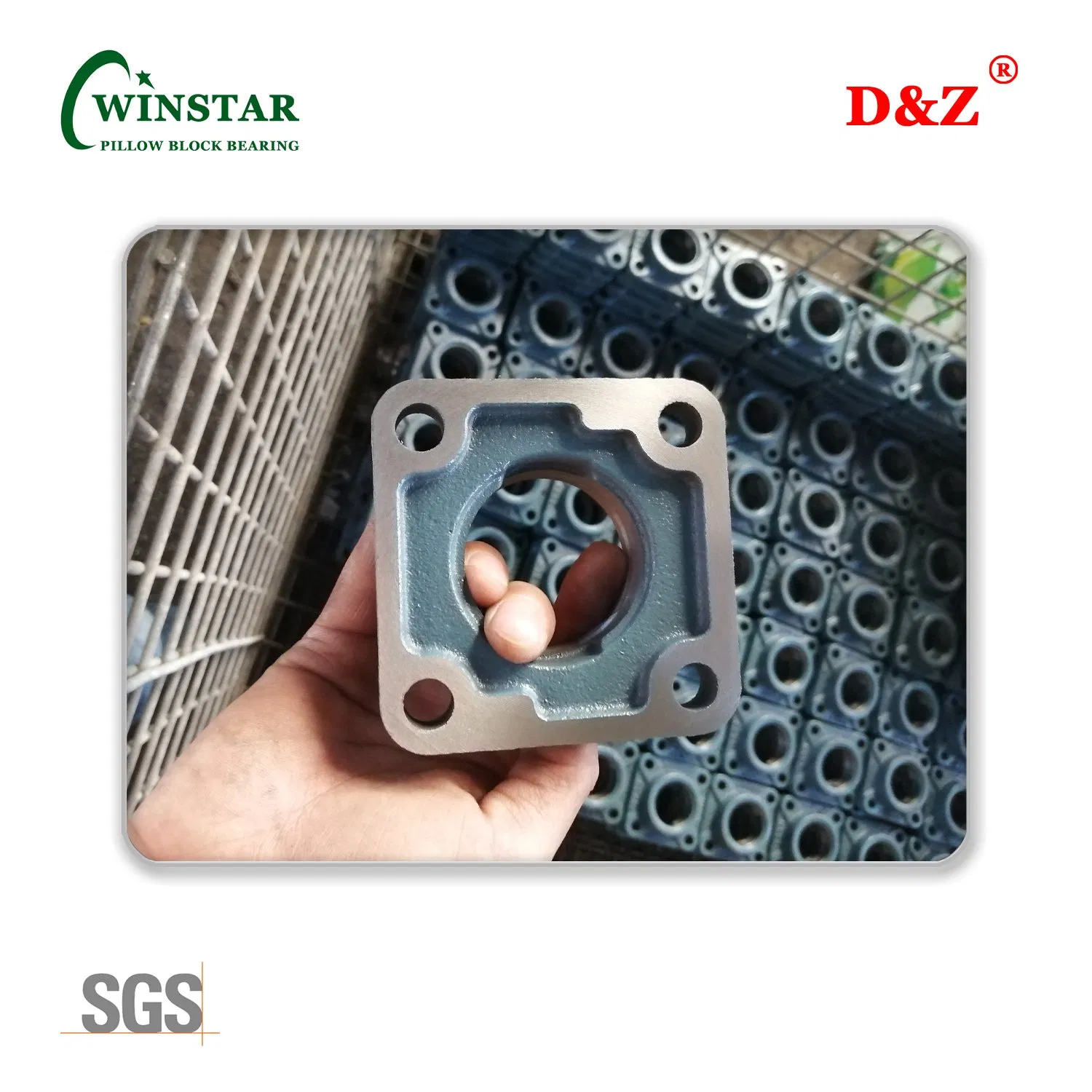

Grey cast housing, radial insert ball bearing with socket set screws, seal with slinger. This UCF206-20 SQUARE FLANGE-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing with solid base.
Product Details:

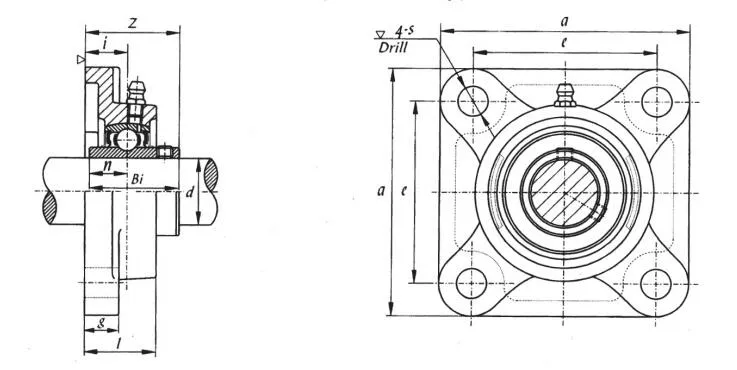

| Bearing Unit No. | Shaft Dia | Dimensions (mm) | Bolt Dimensions | Weight (kg) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | a | e | i | g | l | s | Z | Bi | n | mm | in | ||
| UCF201 | - | 12 | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 31 | 12.7 | M10 | 3/8 | 0.71 |
| UCF204 | - | 20 | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 31 | 12.7 | M10 | 3/8 | 0.65 |
| UCF205 | - | 25 | 95 | 70 | 16 | 14 | 27 | 12 | 35.8 | 34.1 | 14.3 | M10 | 3/8 | 0.79 |
| UCF206 | - | 30 | 108 | 83 | 18 | 14 | 31 | 12 | 40.2 | 38.1 | 15.9 | M10 | 3/8 | 1.12 |
| UCF206-20 | 1 1/4 | 30 | 108 | 83 | 18 | 14 | 31 | 12 | 40.2 | 38.1 | 15.9 | M10 | 3/8 | 1.12 |
| UCF208 | - | 40 | 130 | 102 | 21 | 16 | 36 | 16 | 51.2 | 49.2 | 19 | M14 | 1/2 | 1.89 |
| UCF210 | - | 50 | 143 | 111 | 22 | 18 | 40 | 16 | 54.6 | 51.6 | 19 | M14 | 1/2 | 2.46 |
| UCF212 | - | 60 | 175 | 143 | 29 | 20 | 48 | 19 | 68.7 | 65.1 | 25.4 | M16 | 5/8 | 3.54 |
As a professional manufacturer for pillow block bearings, we have been dedicated to producing high-quality bearing Units since 2009. With many years of experience and expertise in the industry, we strive to provide our customers with reliable and efficient bearings for various applications, such as automotive, mining industry, textile industry and many more.
Our team of experienced technicians is always ready to assist with any technical issues or questions regarding our products. We provide top-notch support to ensure your operations run smoothly.
