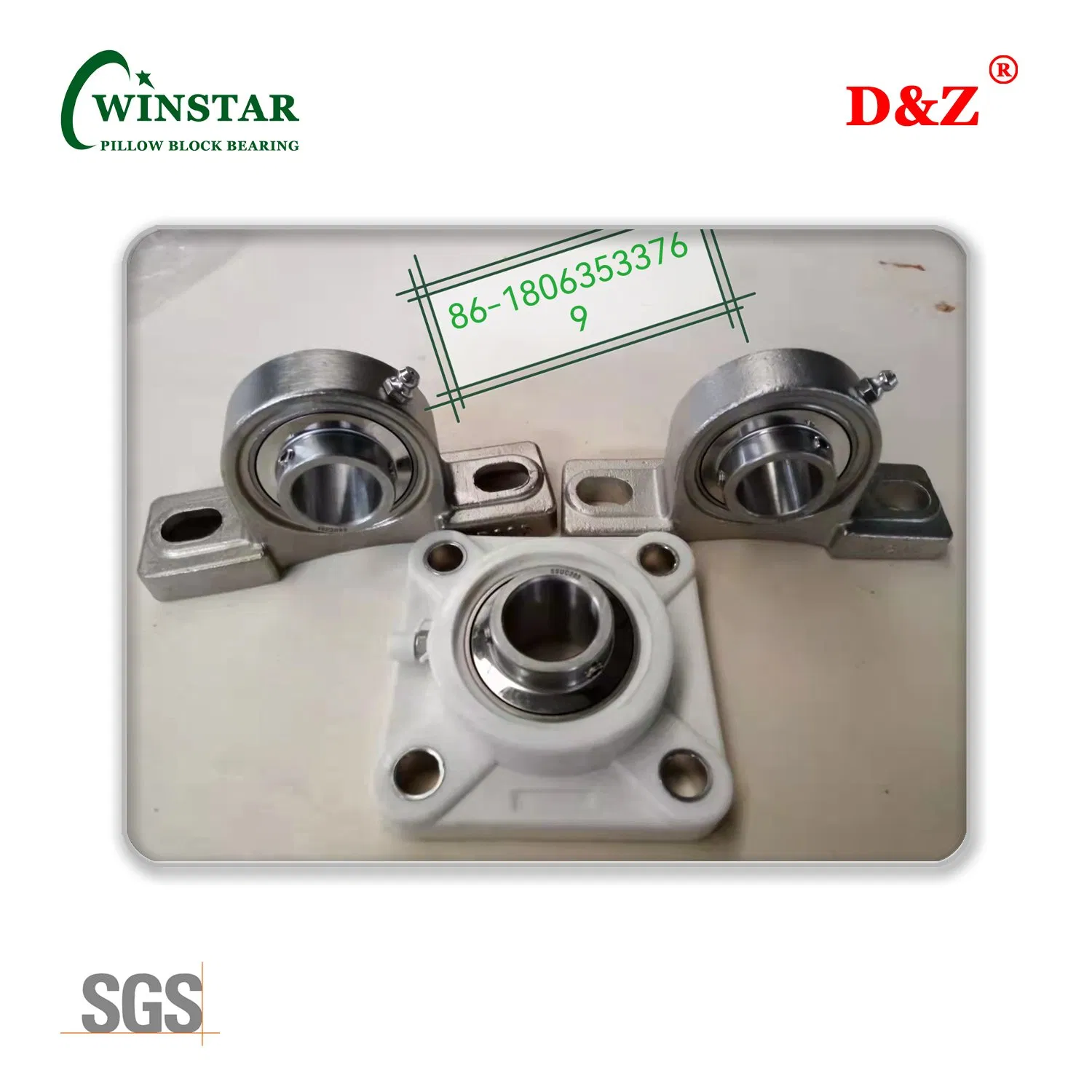

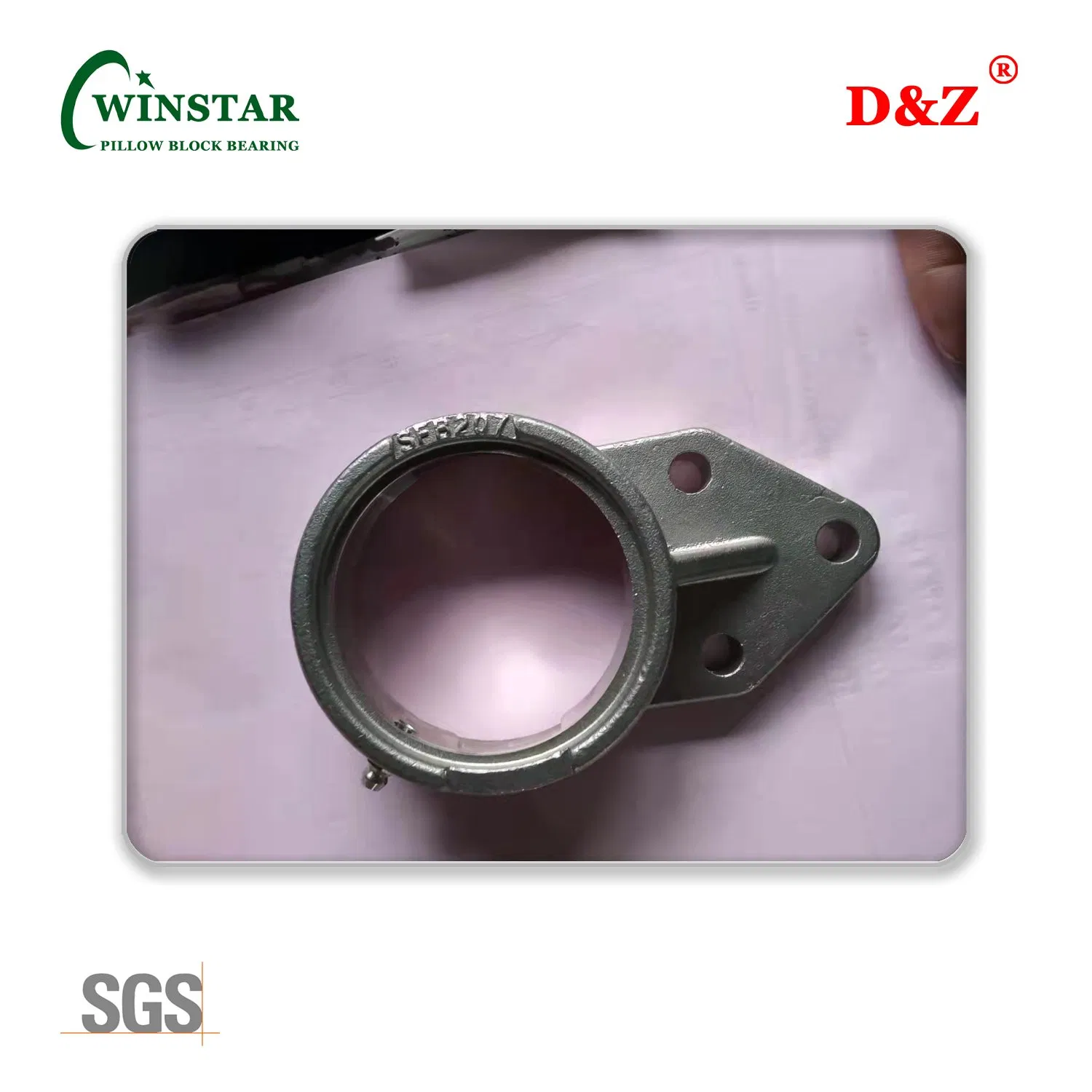

Stainless Steel One-Side Fastening Flange Type Ball Bearing Unit Ucfb207

📊 Basic Info.

Model NO.

SSUCFB 207

Feature

Magnetically, Low Temperature, Corrosion Resistant, High Temperature

Rows Number

Single

Raceway

Deep Groove Raceway

Material

Stainless Steel

Bearing Block Model

Fb

Bearing No.

Ssuc207

Housing No.

Ssfb207

Housing Type

Plummer Block Bearing

Type of Lubrication

Greased

Type

Bearing Unit

Shaft Diameter

35mm

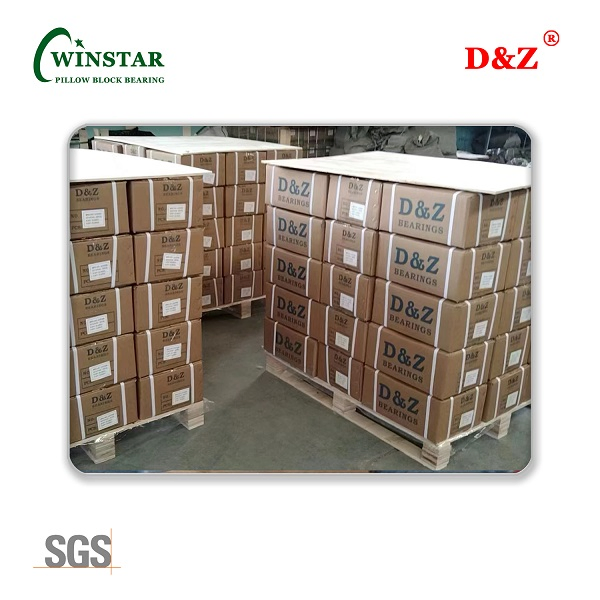

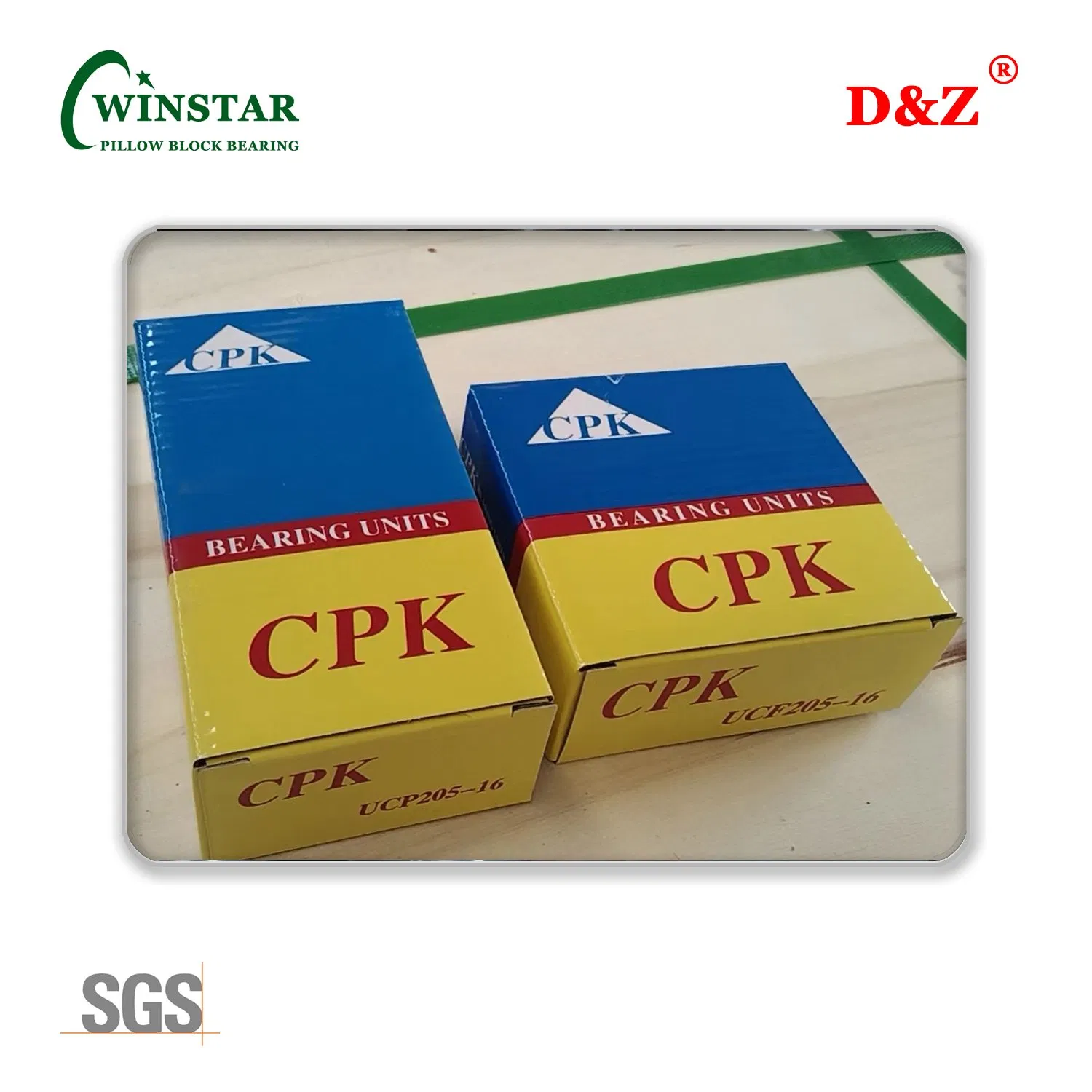

Transport Package

Box + Carton+Pallet

HS Code

8483200000

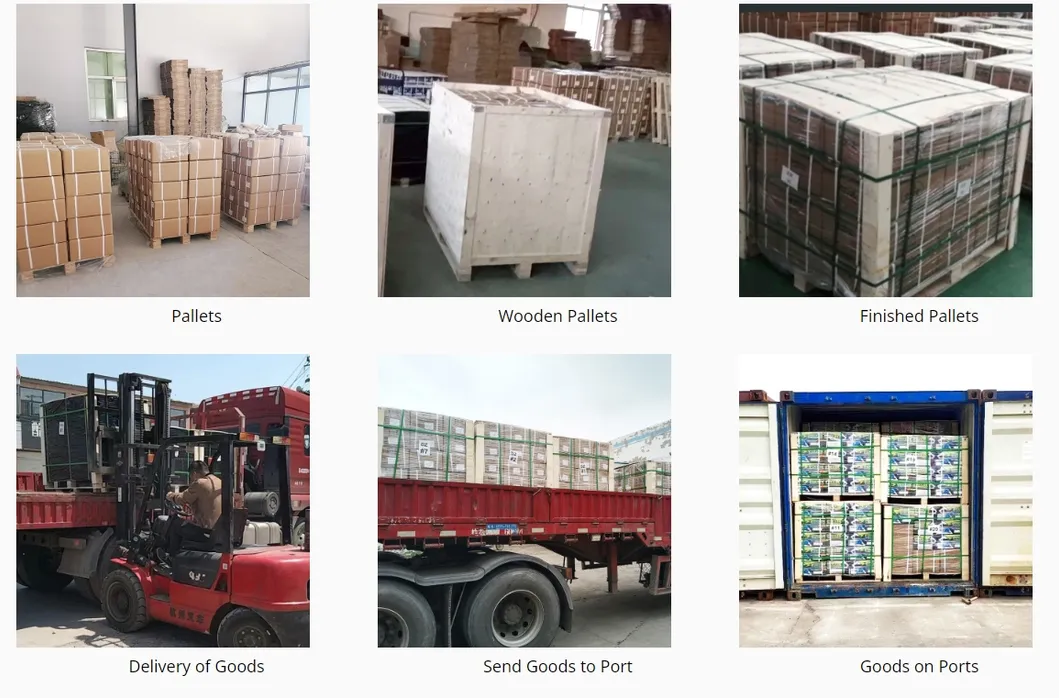

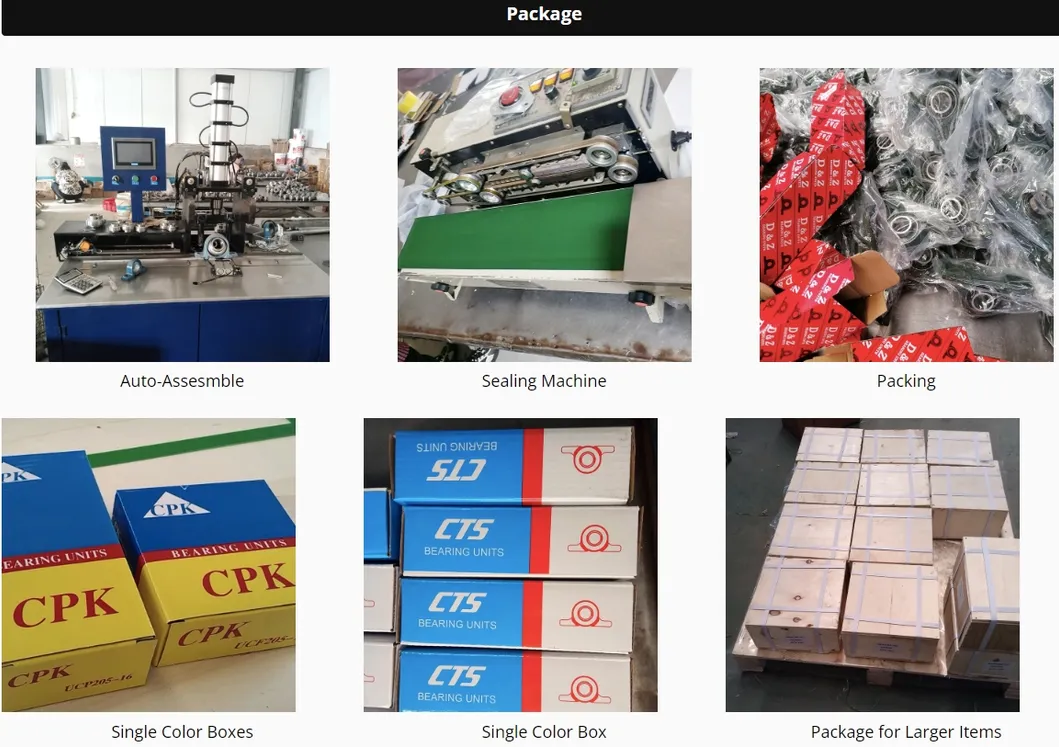

📦 Packaging & Delivery

Package Size

40.00cm * 30.00cm * 20.00cm

Package Gross Weight

25.000kg

📝 Product Description

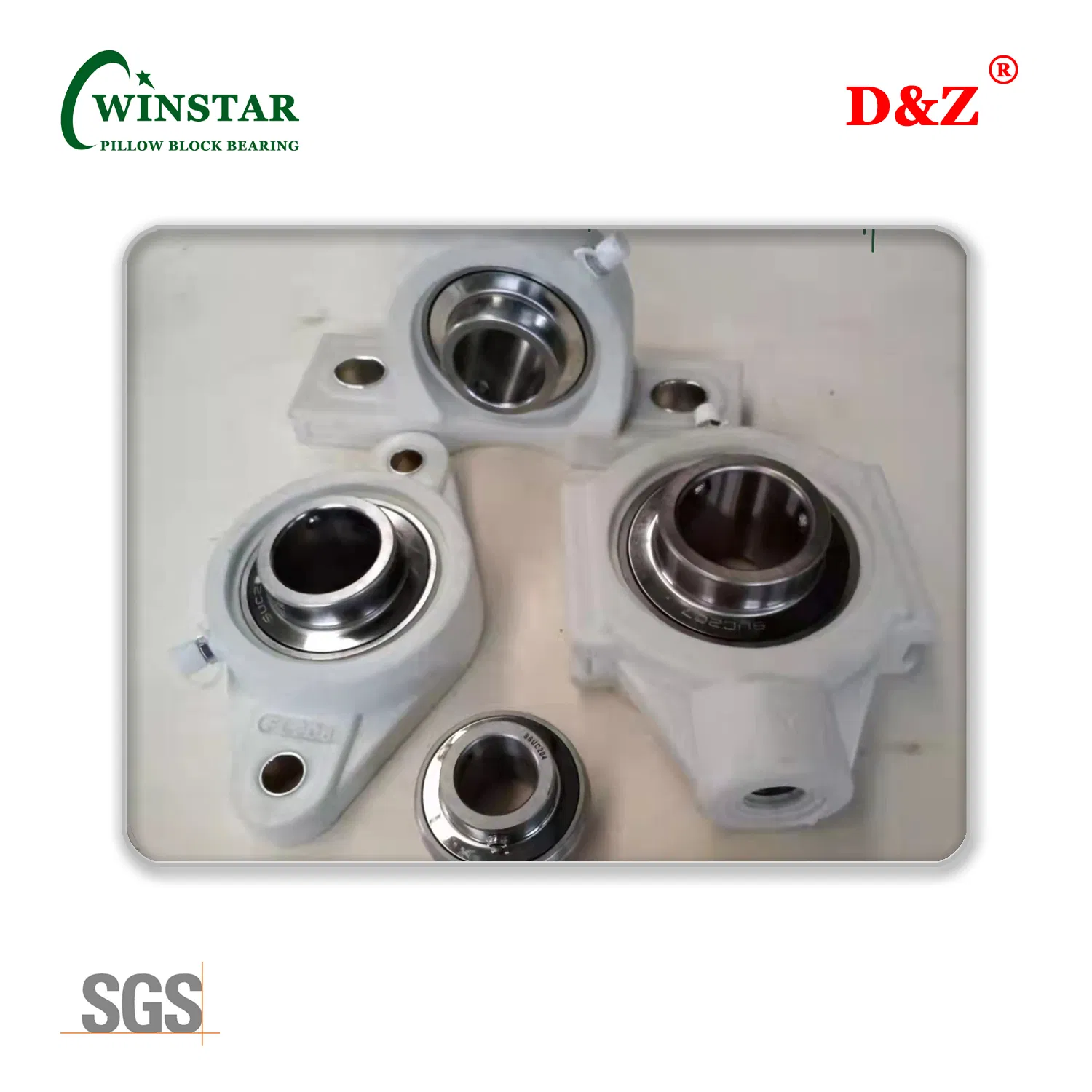

Stainless steel pillow block bearings offer a reliable, high-performance solution for a range of industrial and commercial applications.

The stainless steel housing is durable and corrosion-resistant, which can protect bearings from pollutants, moisture, and harsh environments. They are usually made of high-grade stainless steel and have rust, stain, and corrosion resistance properties.

📐 Product Parameters

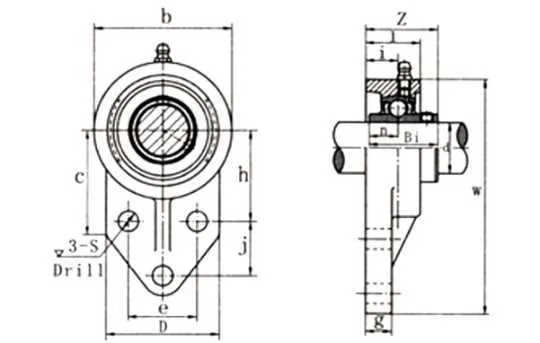

Stainless Steel One-Side Fastening Flange Type Ball Bearing Unit Ucfb207

Bearing no.	din (inch)	dmm	a	h	e	j	i	q	I	s	b	f	z	n	Bi	Bearing Insert	Housing	Weight (kg)
SUCFB201	-	12	108	43.3	38.1	22	15.9	8	25.4	10	63.5	60.3	34.1	12.7	31	SUC201	SFB203	0.71
SUCFB204	-	20	108	43.3	38.1	22	15.9	8	25.4	10	63.5	60.3	34.1	12.7	31	SUC204	SFB204	0.69
SUCFB205	-	25	121	46	41.3	28.5	16.7	9.5	28.5	10	70	63.5	36.5	14.3	34	SUC205	SFB205	0.87
SUCFB206	-	30	137	52.4	47.6	31.7	18.6	9.5	32	10	83	70	40.9	15.9	38.1	SUC206	SFB206	1.11
SUCFB207	-	35	156	60.3	50.8	31.7	21	12.7	36.5	13	95	83	46.4	17.5	42.9	SUC207	SFB207	1.27
SUCFB208	-	40	164	60.3	50	41.3	21	15.9	35.7	12	100	78	51.2	19	49.2	SUC208	SFB208	1.54

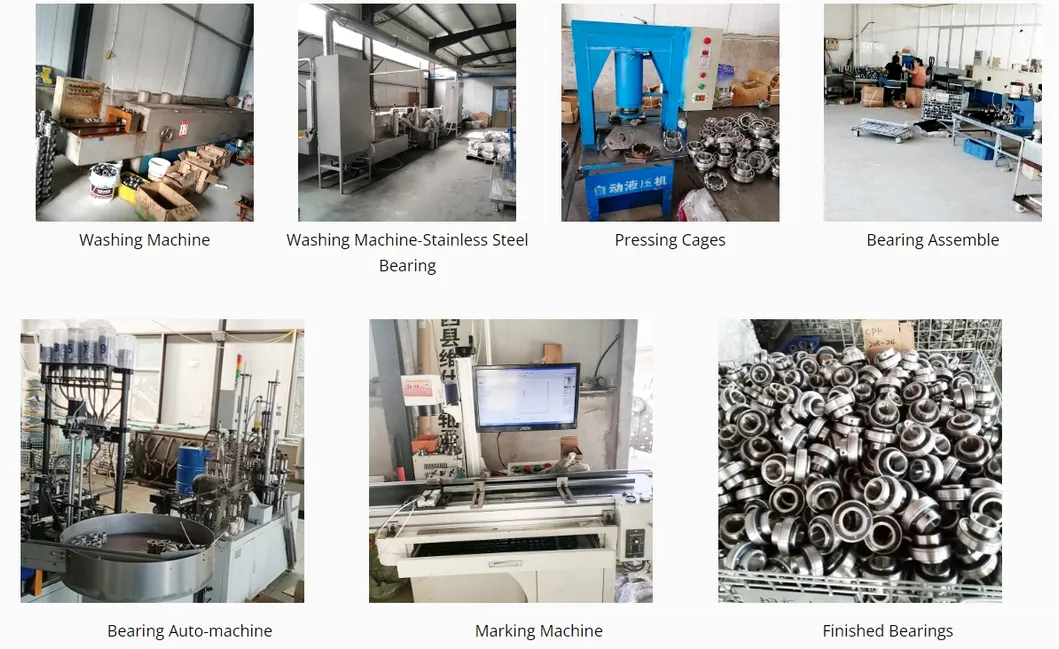

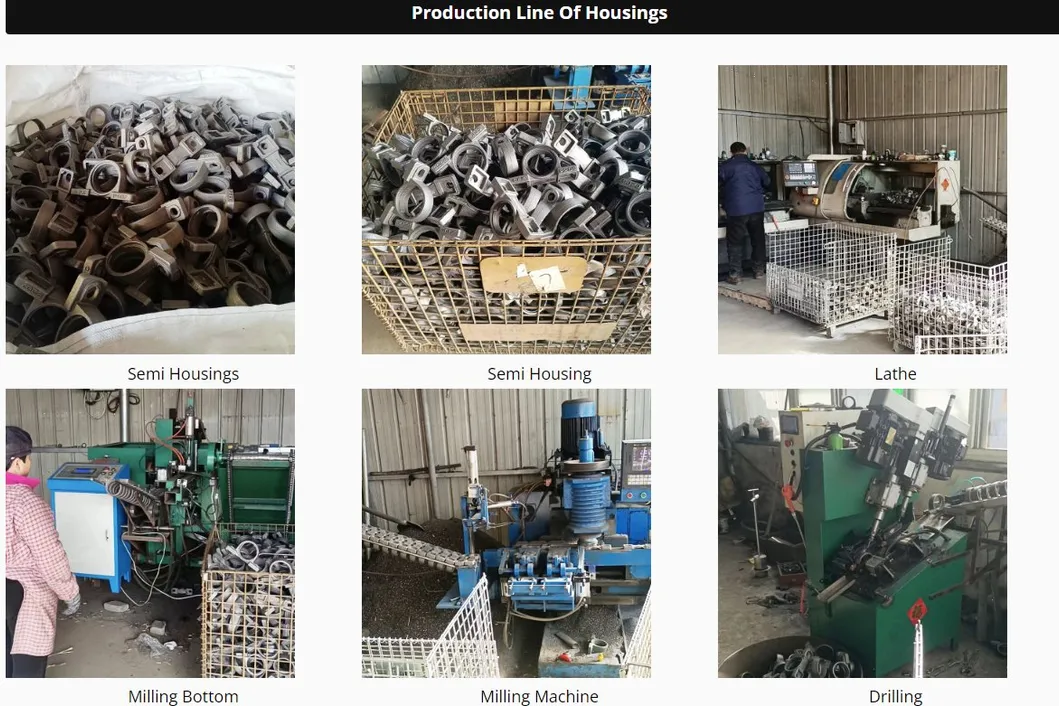

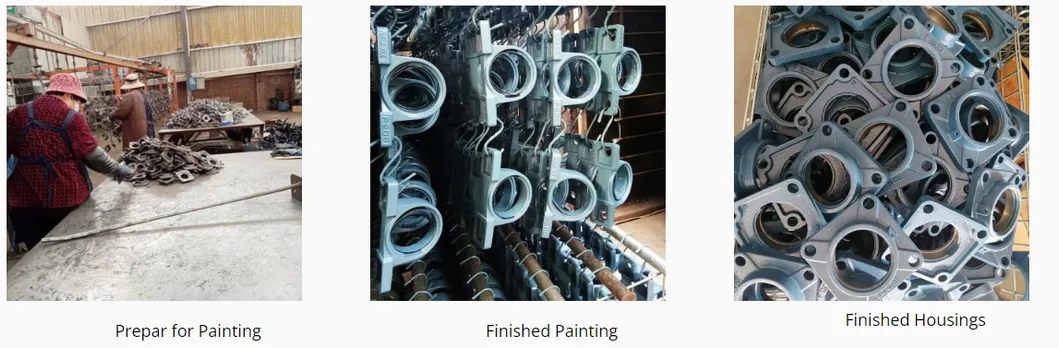

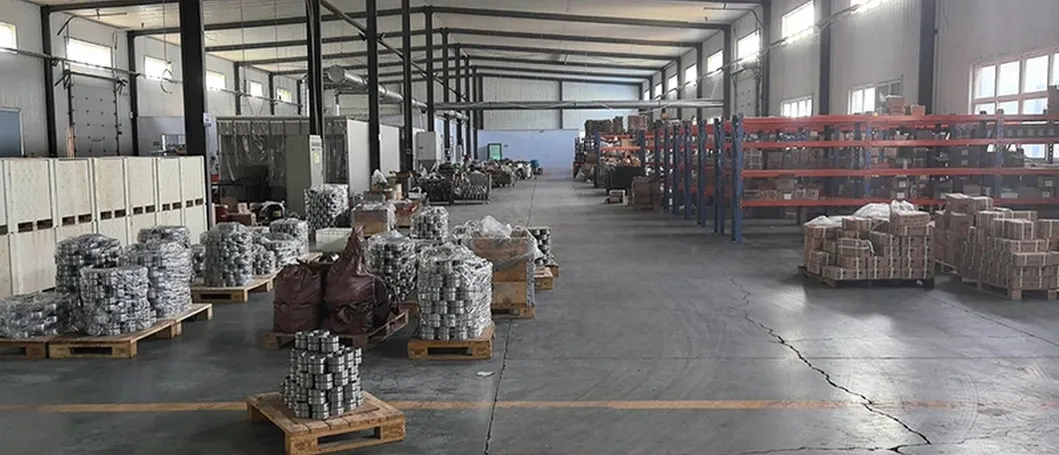

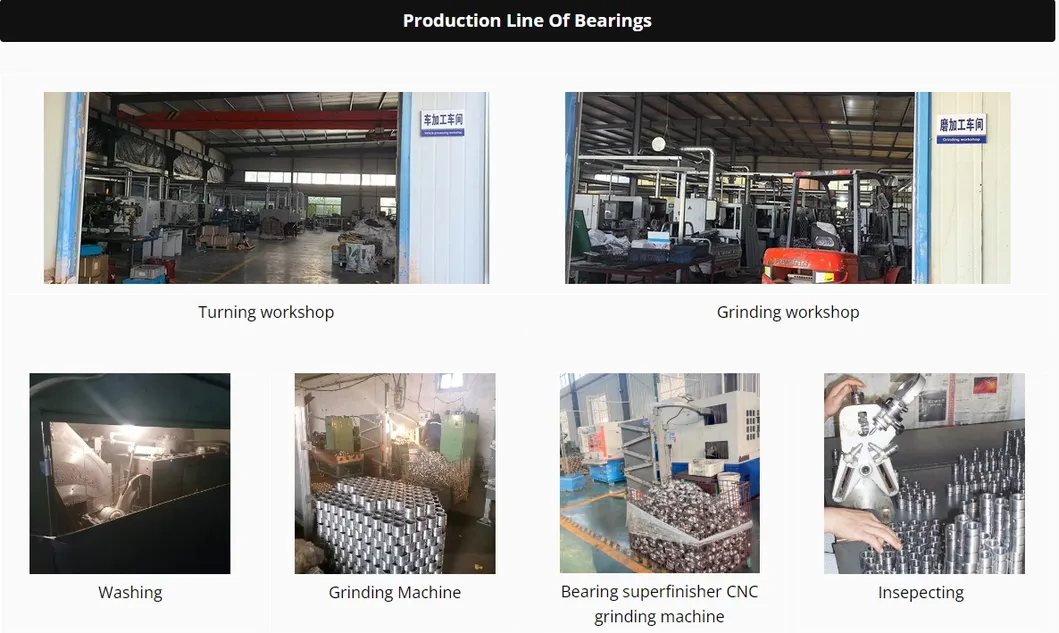

🏭 Production Showcase

⭐ Advantages of Stainless Steel Bearing

1. Corrosion resistance: Stainless steel bearings can resist the erosion of various chemicals, especially suitable for humid, corrosive media or high temperature environments.

2. Wear resistance: Stainless steel bearings have high hardness and wear resistance, making them suitable for use in high load and high friction environments.

3. Stability: They perform well during operation with low noise and are suitable for various working conditions, including precision machine tools and high-speed equipment.

🛠️ Application

❓ FAQ

How about the sample?

We are honored to offer you free samples, while you just need to pay for the shipping cost.

How to confirm the Product Quality before placing orders?

The products from us are all produced under a strictly controlled manufacturing system to ensure consistent quality.

Is there a discount available?

Yes, we offer volume-based discounts; the larger your order, the better the discount we can provide.

What is the typical delivery time?

According to the products ordered, generally, one full container will need approximately 35 days to be finished.

What grades of stainless steel are used?

We primarily use high-grade series such as 304, 316, and 440C depending on the specific requirements for corrosion resistance and hardness.

Are these bearings suitable for food processing?

Yes, due to their excellent corrosion resistance and ability to withstand moisture and washdowns, they are ideal for food and beverage industry applications.
