Ebmotrix Bearings
1 / 5
| Model NO. | 22212E1 P6 |
| Cage Feature | E Design, Heavy Duty Bearings |
| Cage Design | E, Ca, MB, Cc |
| Quality Level | ABEC-3 |
| Clearance | C3 |
| Heat Treatment | Bainite Quenching |
| HRC | 60~64 |
| Net Weight | 1.14kg |
| Type | Double Row |
| Chamfer | Black |
| Application | Water Pump, Gear Reducer, Air Compressor |
| Production Range | ID10-200mm |
| Specification | 110*110*28mm |
| Origin | China |
| HS Code | 84823000 |
| Production Capacity | 500000 PCS Per Year |

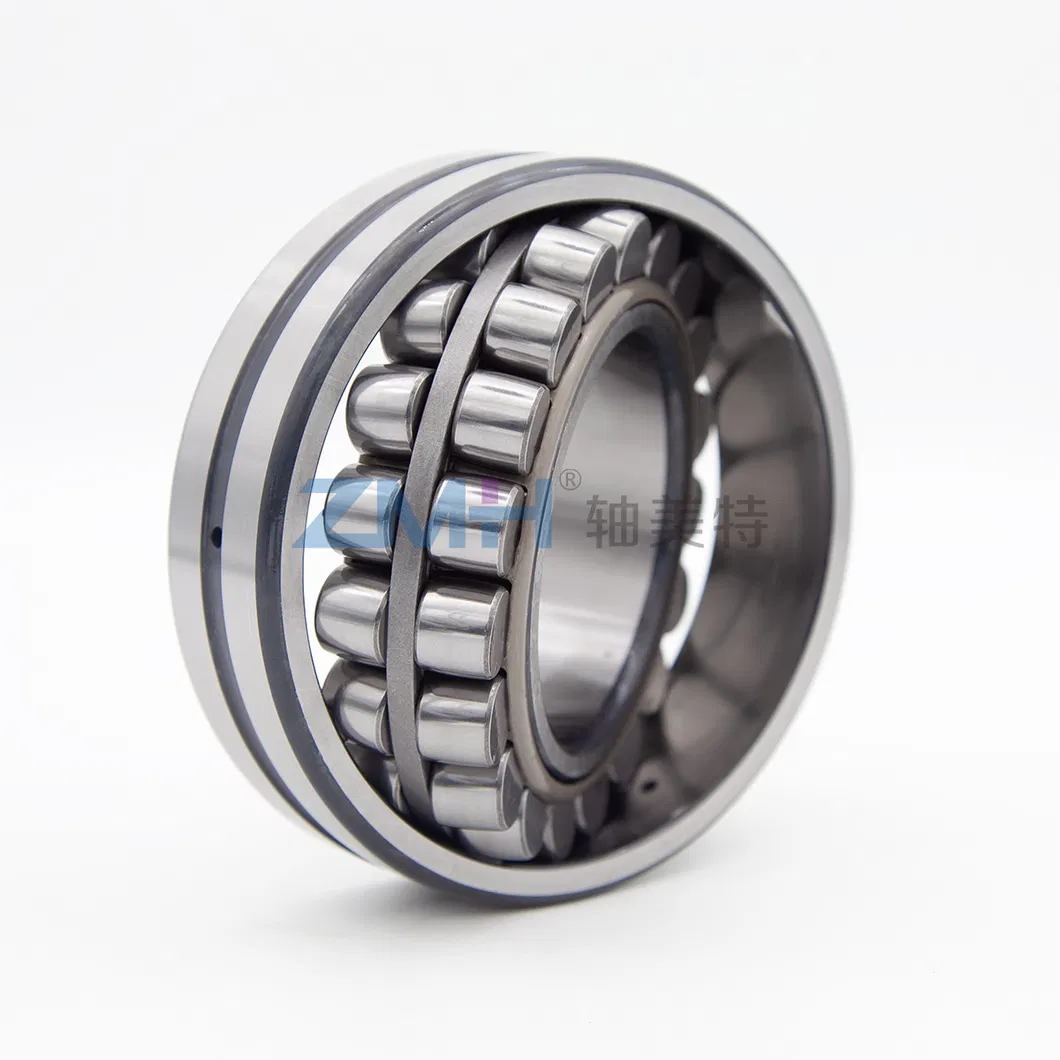

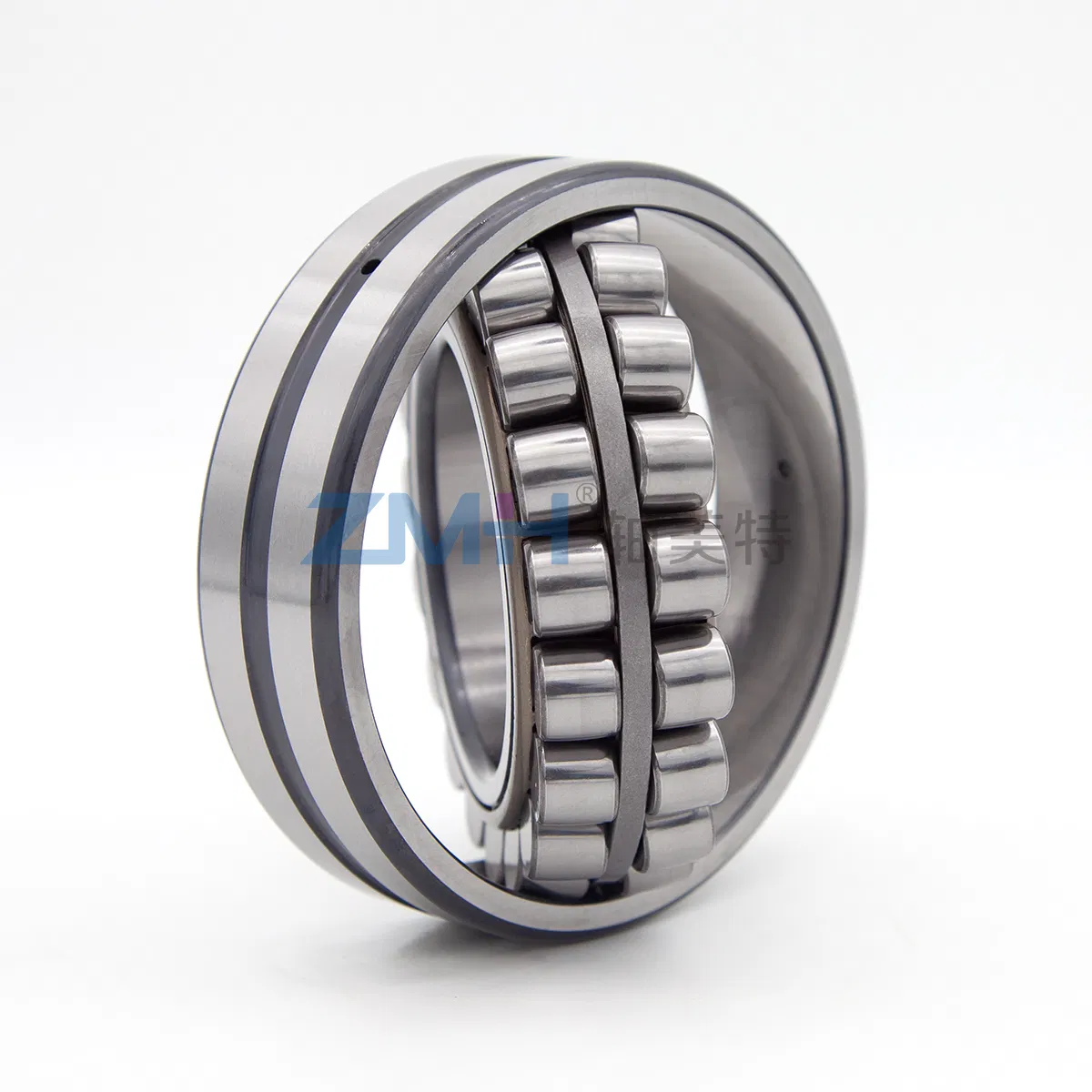

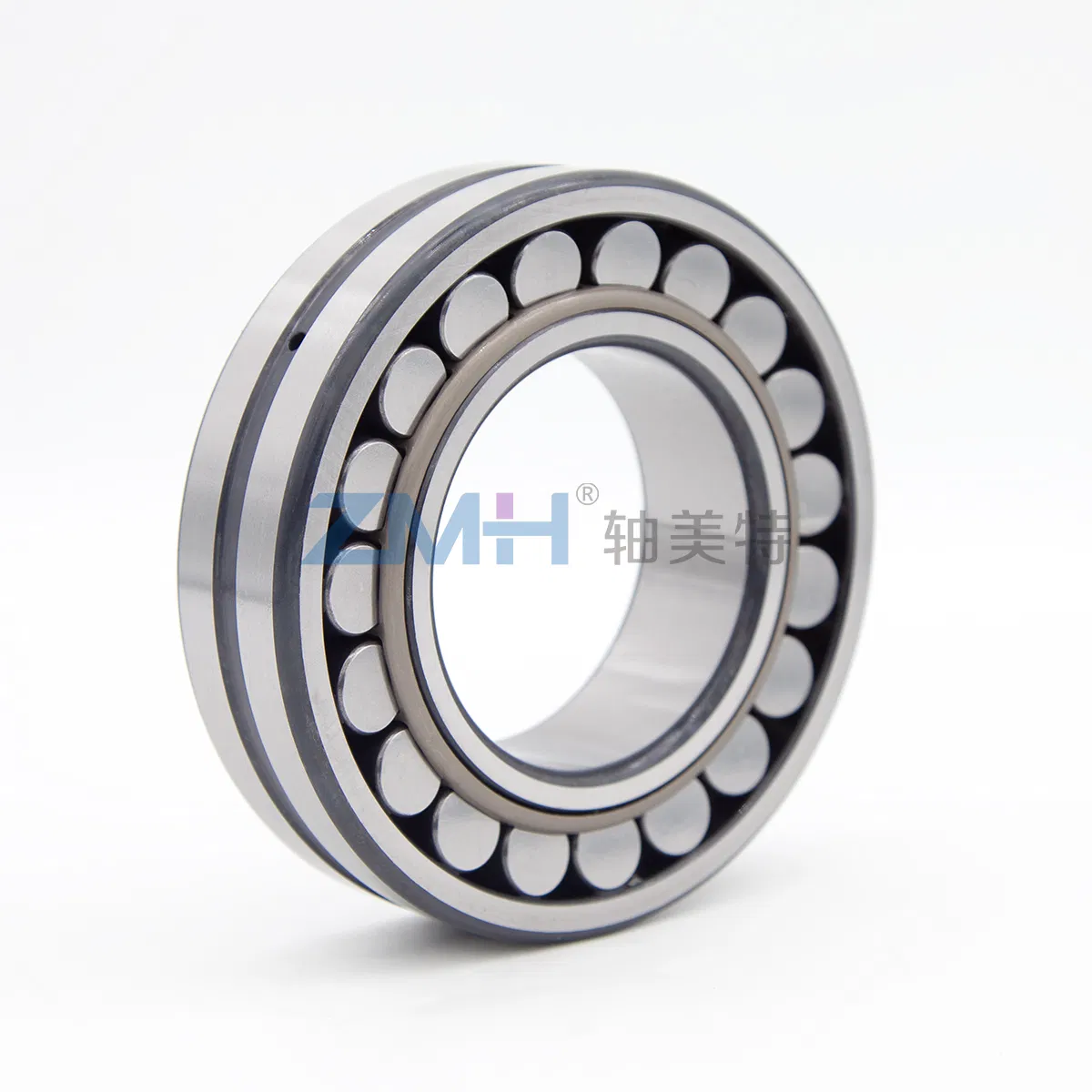

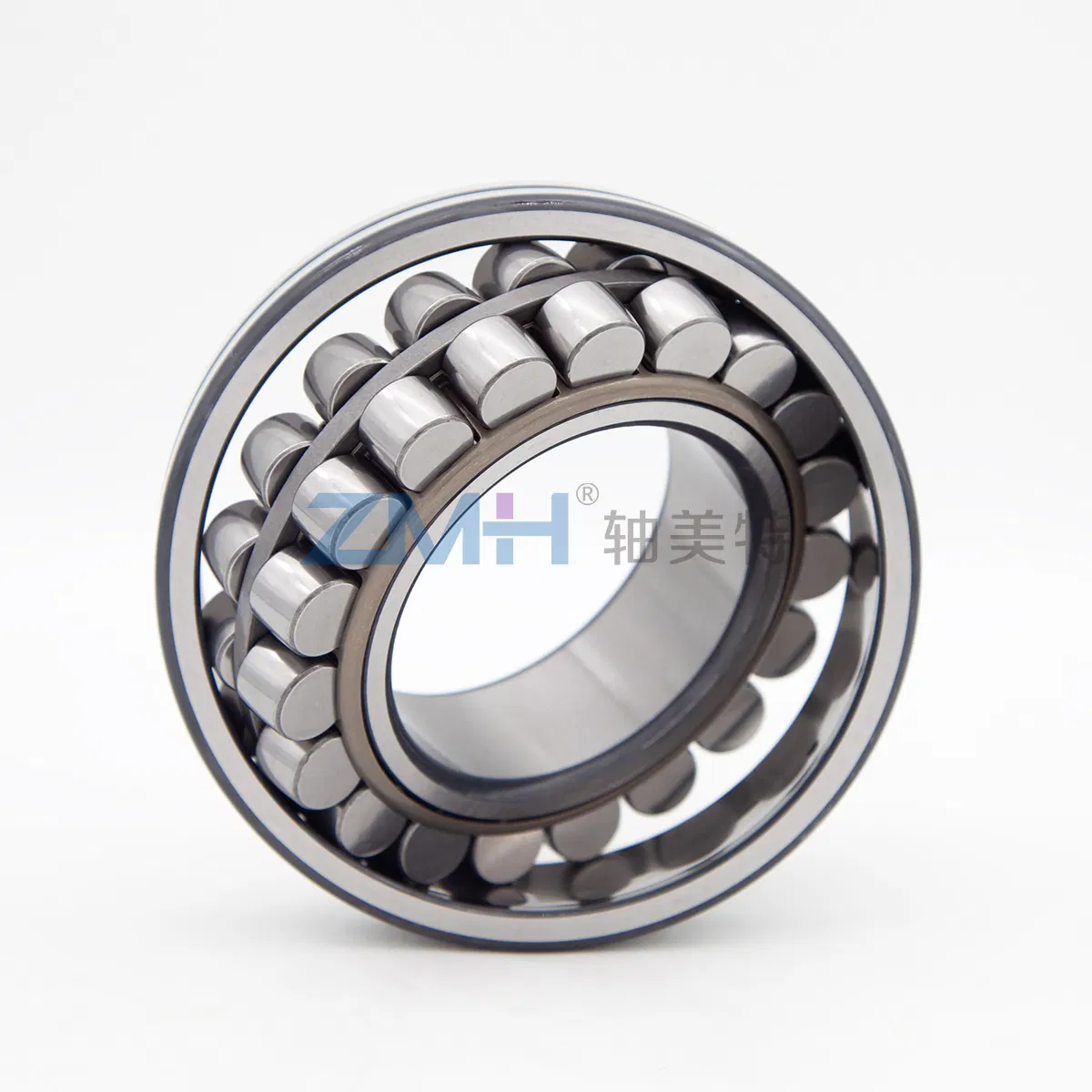

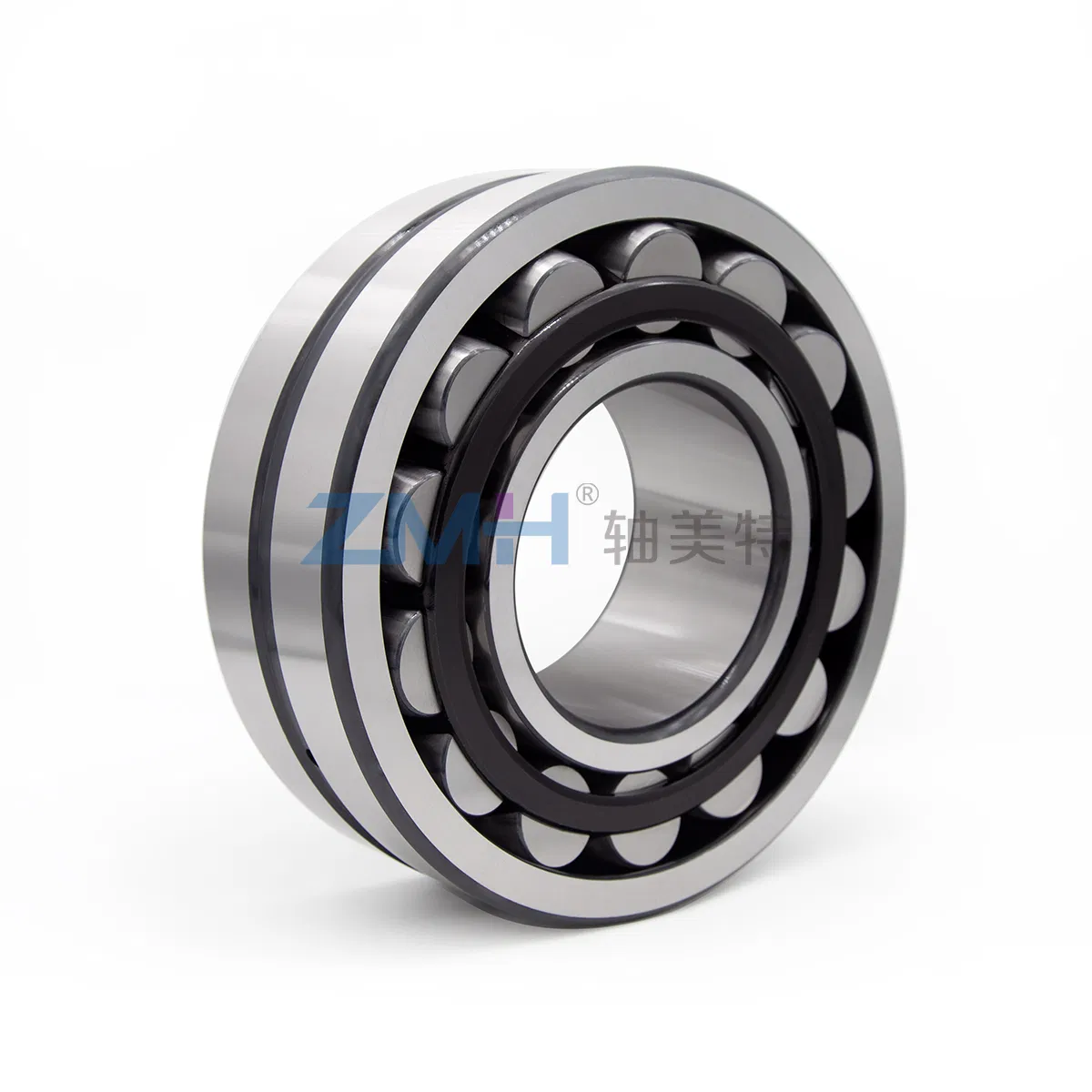

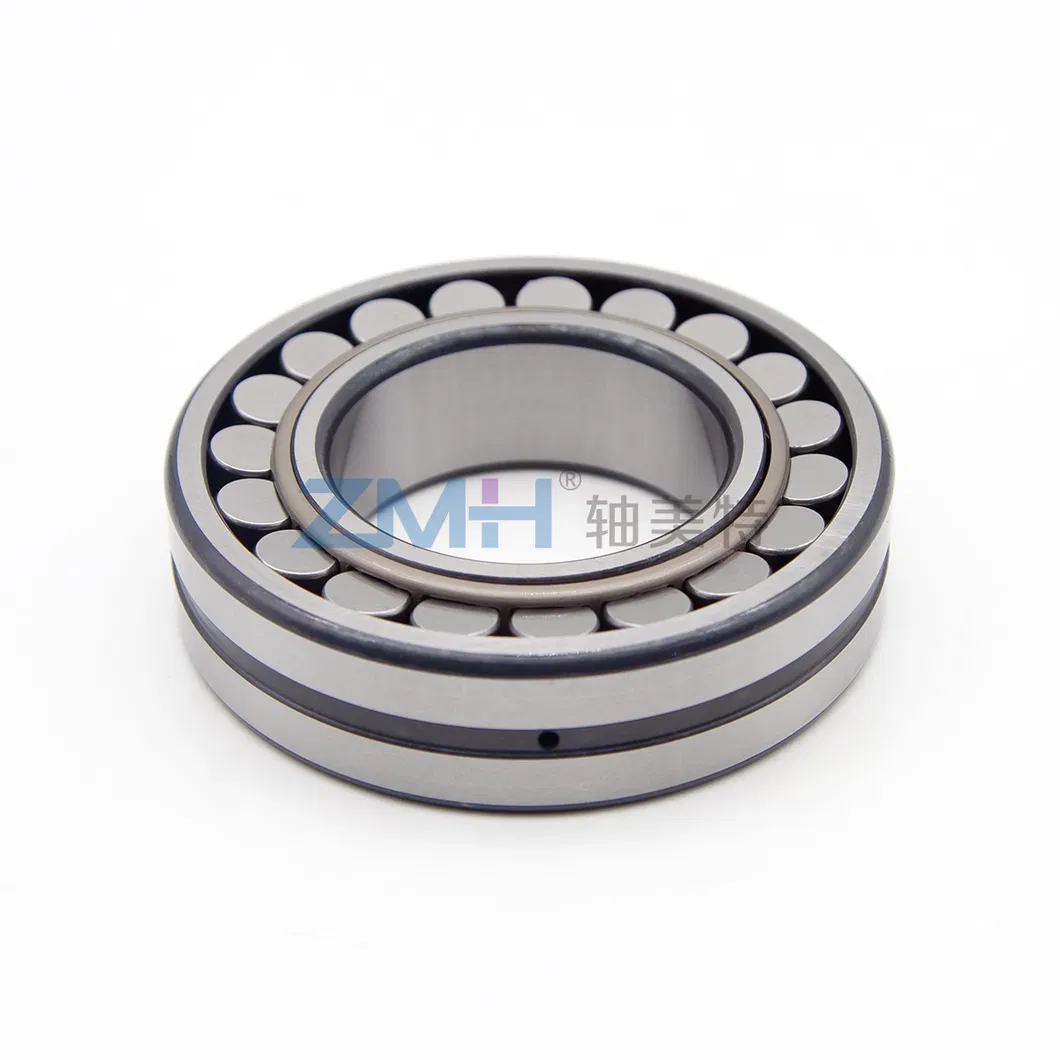

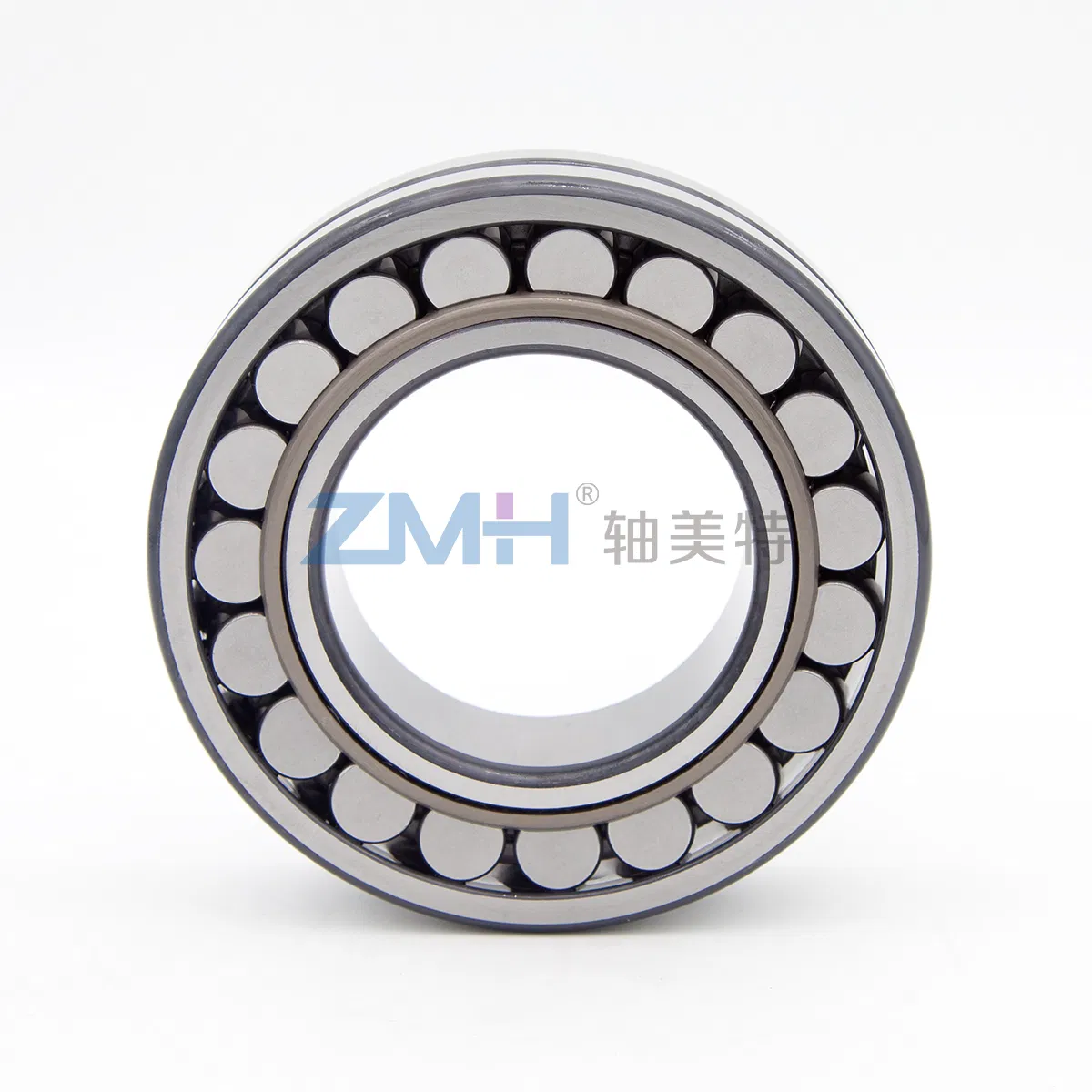

Self aligning roller bearing with relubrication features
Self aligning roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
| Dimension & Load Capacity | Operating Limits | ||
|---|---|---|---|
| Bore diameter | 60mm | Reference speed | 5600 r/min |
| Outside diameter | 110mm | Limiting speed | 7500 r/min |
| Width | 28mm | Basic dynamic load | 159 kN |
| Tolerance class | P6-P5 | Basic static load | 166 kN |
| Number of rows | 2 | Product net weight | 1.14kg |
The MOQ can be negotiated as we strive to meet specific customer requirements. While we primarily handle wholesale orders (often exceeding 1 ton), we are open to discussing your specific needs.
Most orders are processed and shipped within 7 to 15 business days after the receipt of payment.
Yes, we provide a quality guarantee for a period of 1 year for our spherical roller bearings.
Our bearings are characterized by high precision (P6/P5 levels), high-speed capability, high load ratings, and significantly low operating noise.
We aim to be flexible to meet customer needs; payment terms are negotiable to ensure a smooth transaction process.
The E1 design signifies an optimized internal structure for increased load carrying capacity, featuring a heavy-duty cage and black chamfer for enhanced durability and performance.
