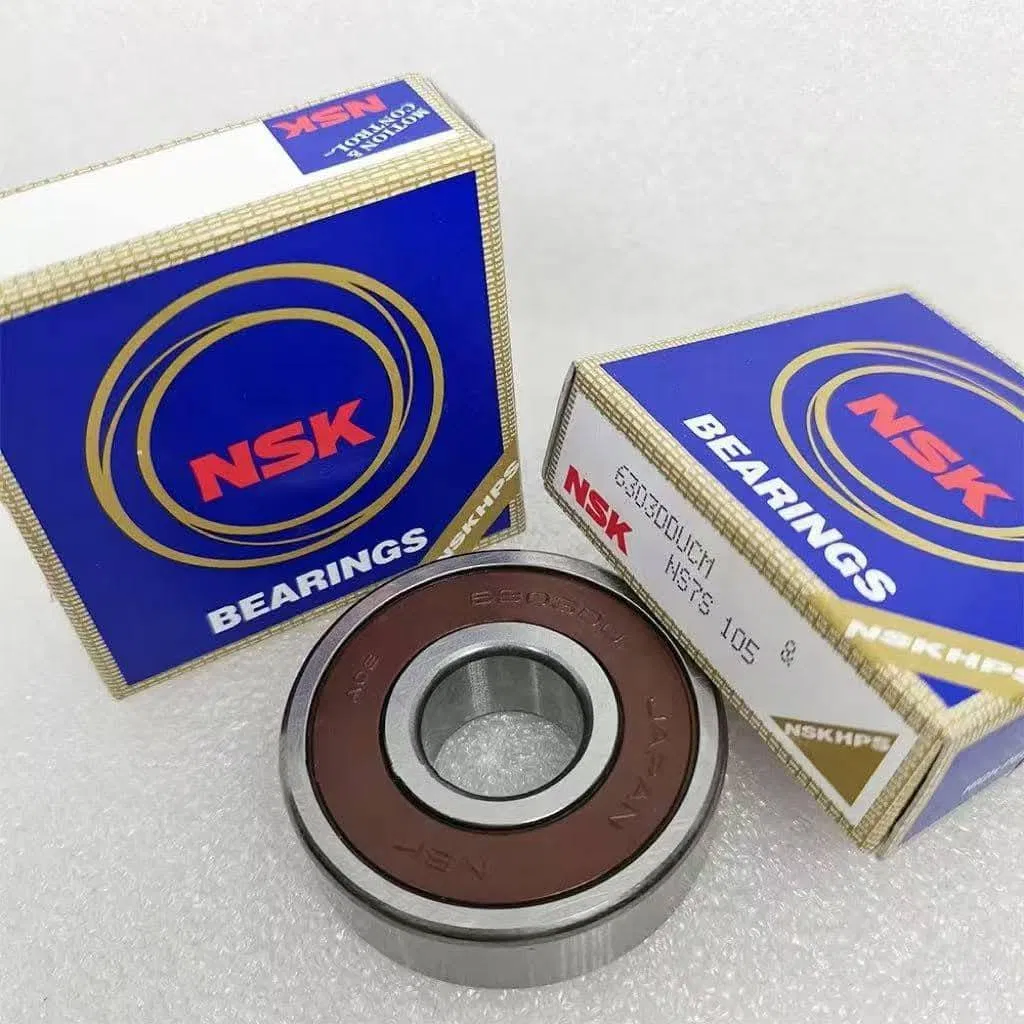

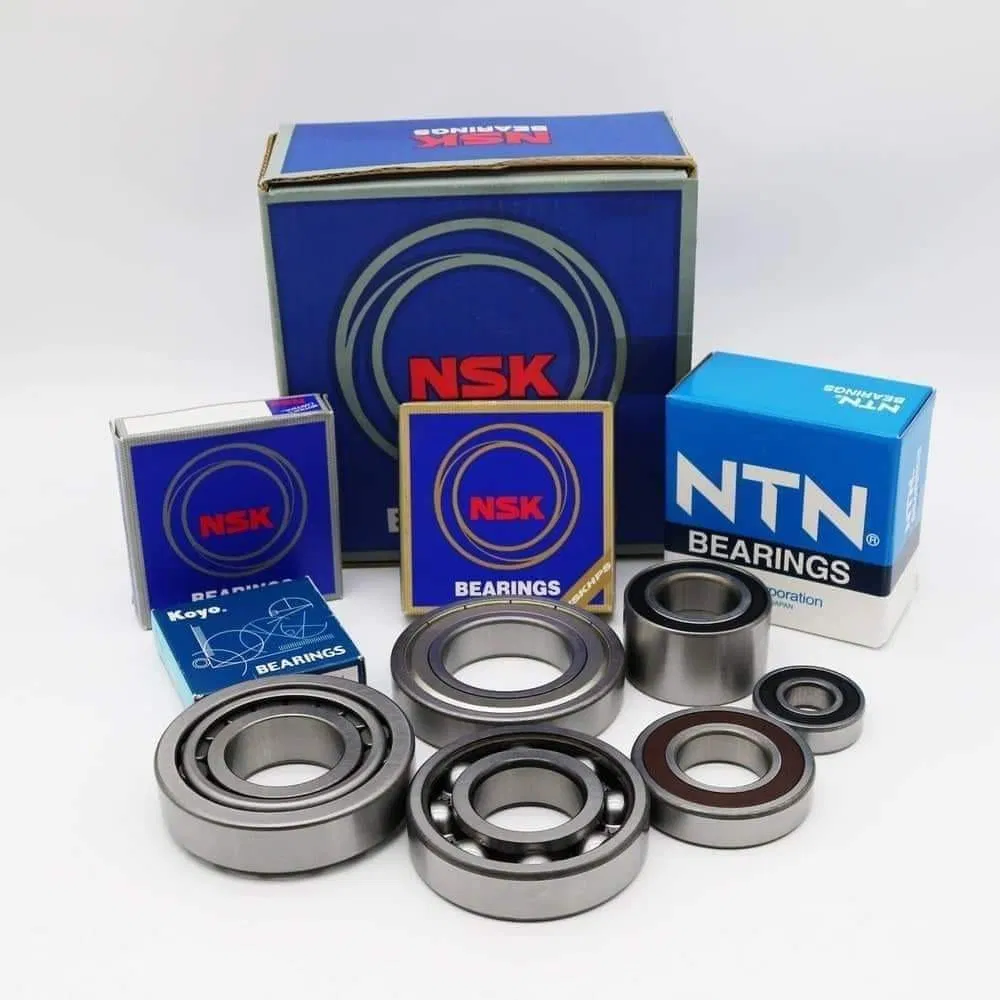

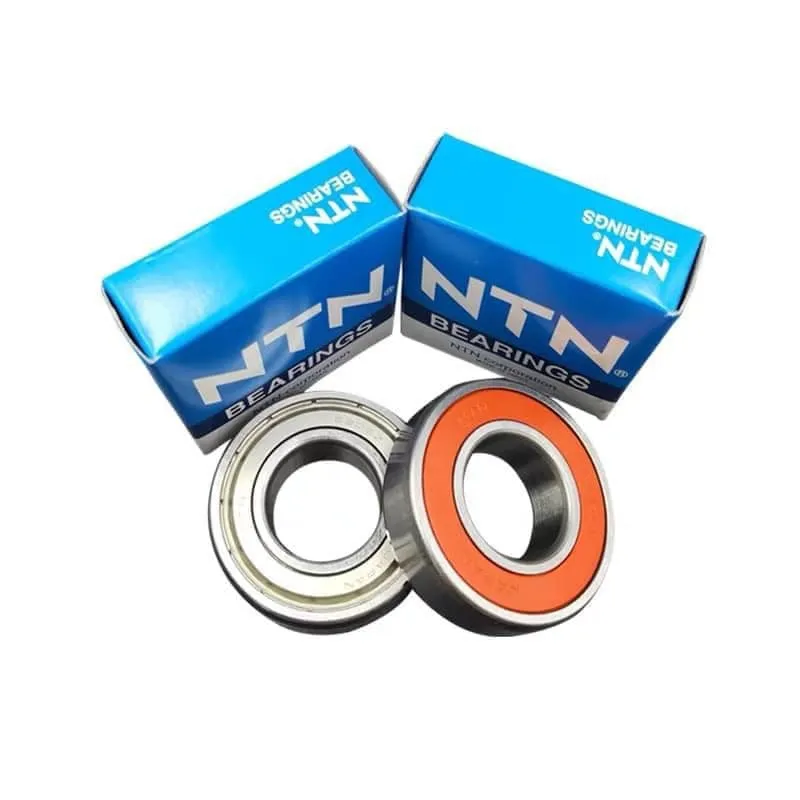

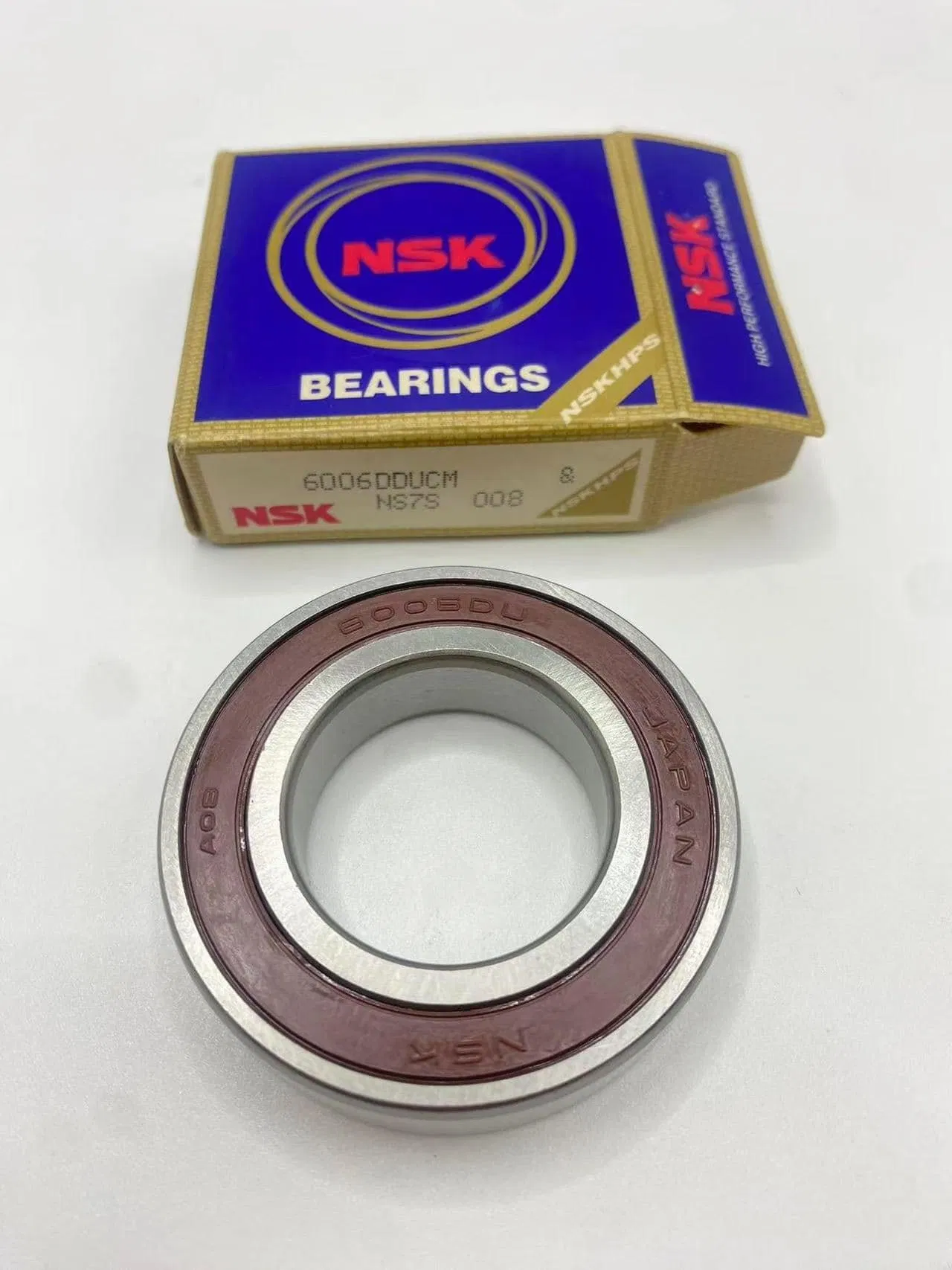

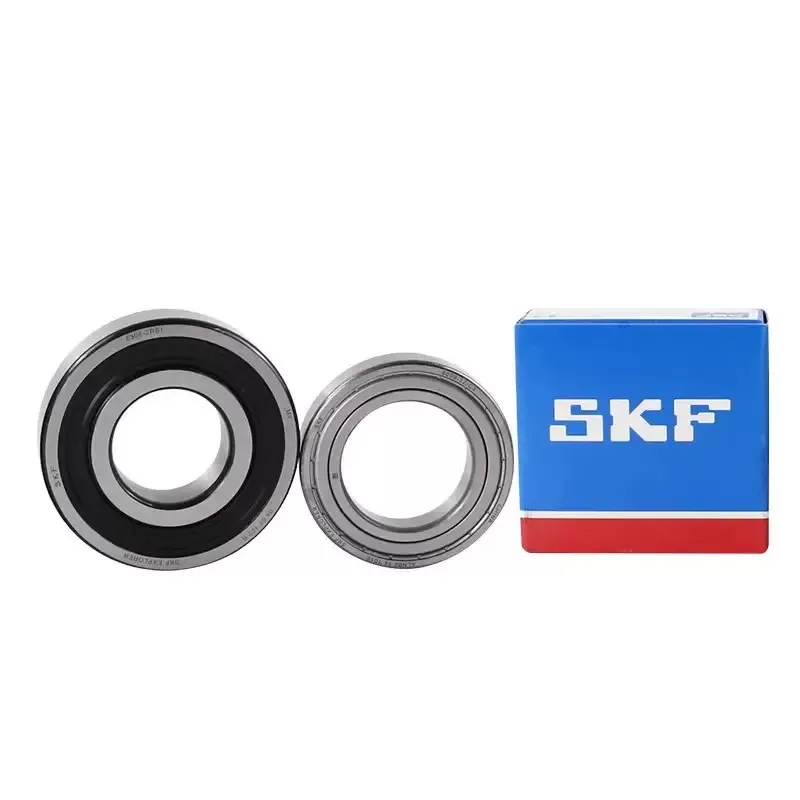

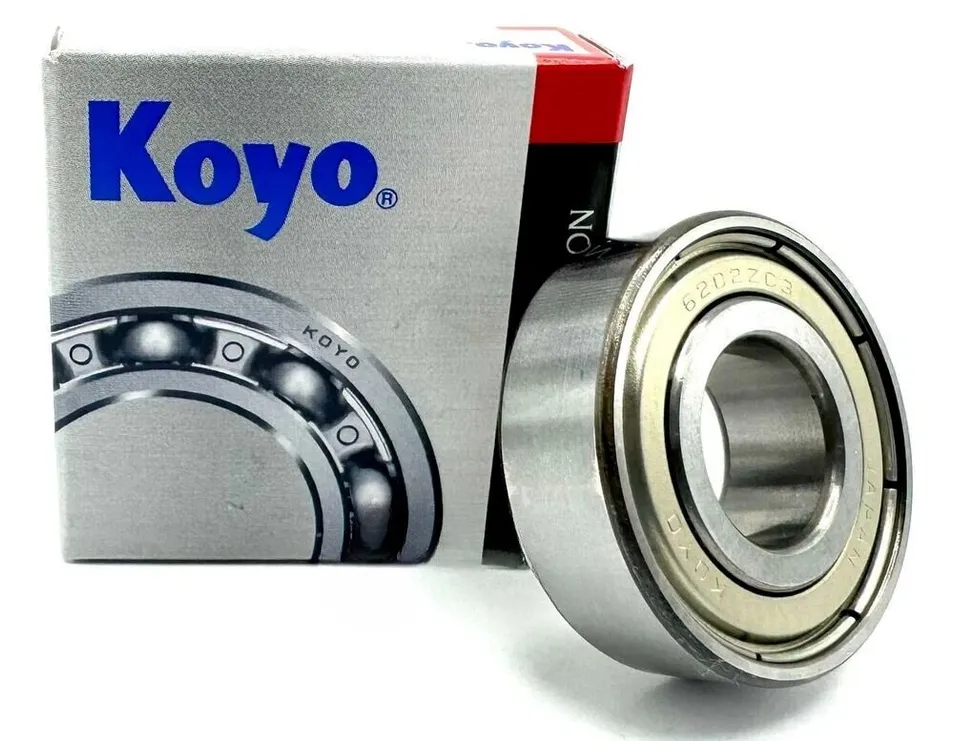

Deep groove ball bearings are the most common type of rolling bearings, featuring a simple structure and a wide range of applications. Their inner and outer rings have deep groove-shaped raceways, which can simultaneously withstand radial loads and bidirectional axial loads, making them suitable for high-speed and low-friction scenarios.
| Series No. | Available Models |
|---|---|
| 6000 series | 604 to 6012 |
| 6200 series | 624 to 6212 |
| 6300 series | 634 to 6312 |
| 6400 series | 6403 to 6420 |
| 6700 series | 673 to 6705 |
| 6800 series | 685 to 6812 |
| 6900 series | 695 to 6912 |
| 16000 series | 16001 to 16015 |
| Model | d (Inner) | D (Outer) | B (Width) | Model | d (Inner) | D (Outer) | B (Width) |
|---|---|---|---|---|---|---|---|
| 603 | 3 | 9 | 3 | 6203 | 17 | 40 | 12 |
| 604 | 4 | 12 | 4 | 6204 | 20 | 47 | 14 |
| 605 | 5 | 14 | 5 | 6205 | 25 | 52 | 15 |
| 606 | 6 | 17 | 6 | 6206 | 30 | 62 | 16 |
| 607 | 7 | 19 | 6 | 6207 | 35 | 72 | 17 |
| 608 | 8 | 22 | 7 | 6208 | 40 | 80 | 18 |
| 609 | 9 | 24 | 7 | 6209 | 45 | 85 | 19 |
