| Boundary Dimensions (mm) | Cr (Kn) | Cor (Kn) | Limit Speed (r/min) | Weight | |||
|---|---|---|---|---|---|---|---|
| d | D | B | Dynamic | Static | Grease | Oil | (Kg) |
| 10 | 26 | 8 | 4.58 | 1.97 | 30000 | 36000 | 0.019 |
| 12 | 28 | 8 | 5.11 | 2.39 | 28000 | 32000 | 0.021 |
| 15 | 32 | 9 | 5.59 | 2.84 | 24000 | 28000 | 0.03 |
| 17 | 35 | 10 | 6 | 3.25 | 22000 | 26000 | 0.04 |
| 20 | 42 | 12 | 9.38 | 5.03 | 18000 | 20000 | 0.068 |
| 25 | 47 | 12 | 10.06 | 5.85 | 15000 | 18000 | 0.079 |
| 30 | 55 | 13 | 13.23 | 8.3 | 13000 | 15000 | 0.113 |
| 35 | 62 | 14 | 16.21 | 10.42 | 11000 | 13000 | 0.149 |
| 40 | 68 | 15 | 17.03 | 11.7 | 10000 | 12000 | 0.185 |
| 45 | 75 | 16 | 21.09 | 14.77 | 9000 | 11000 | 0.231 |
| 50 | 80 | 16 | 22.02 | 16.25 | 8500 | 10000 | 0.25 |

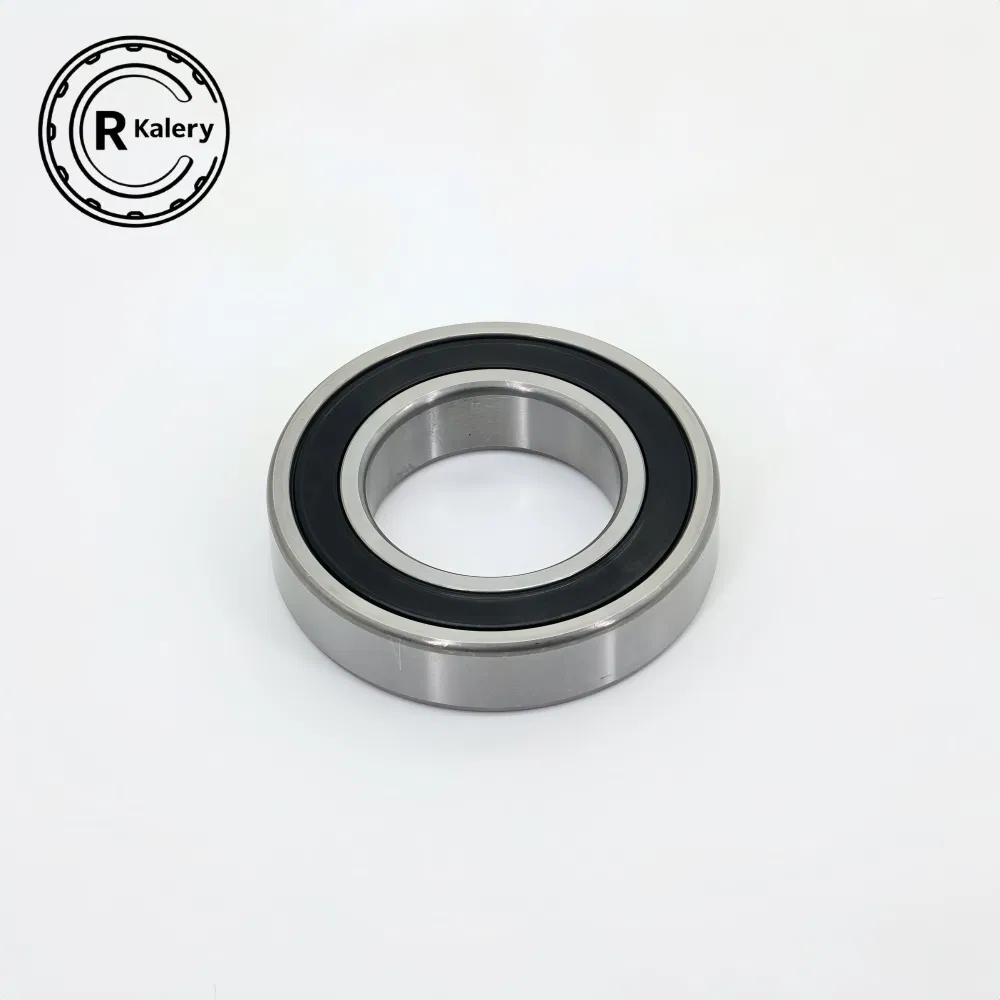

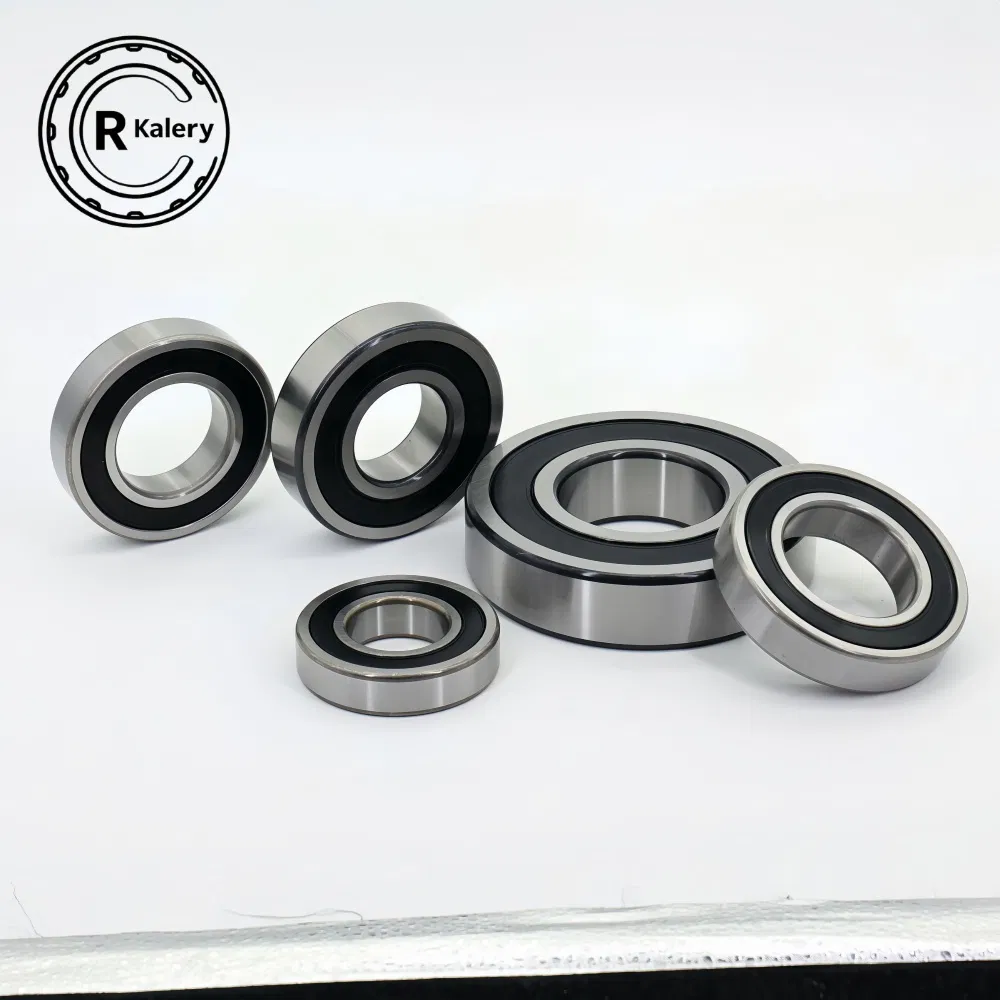

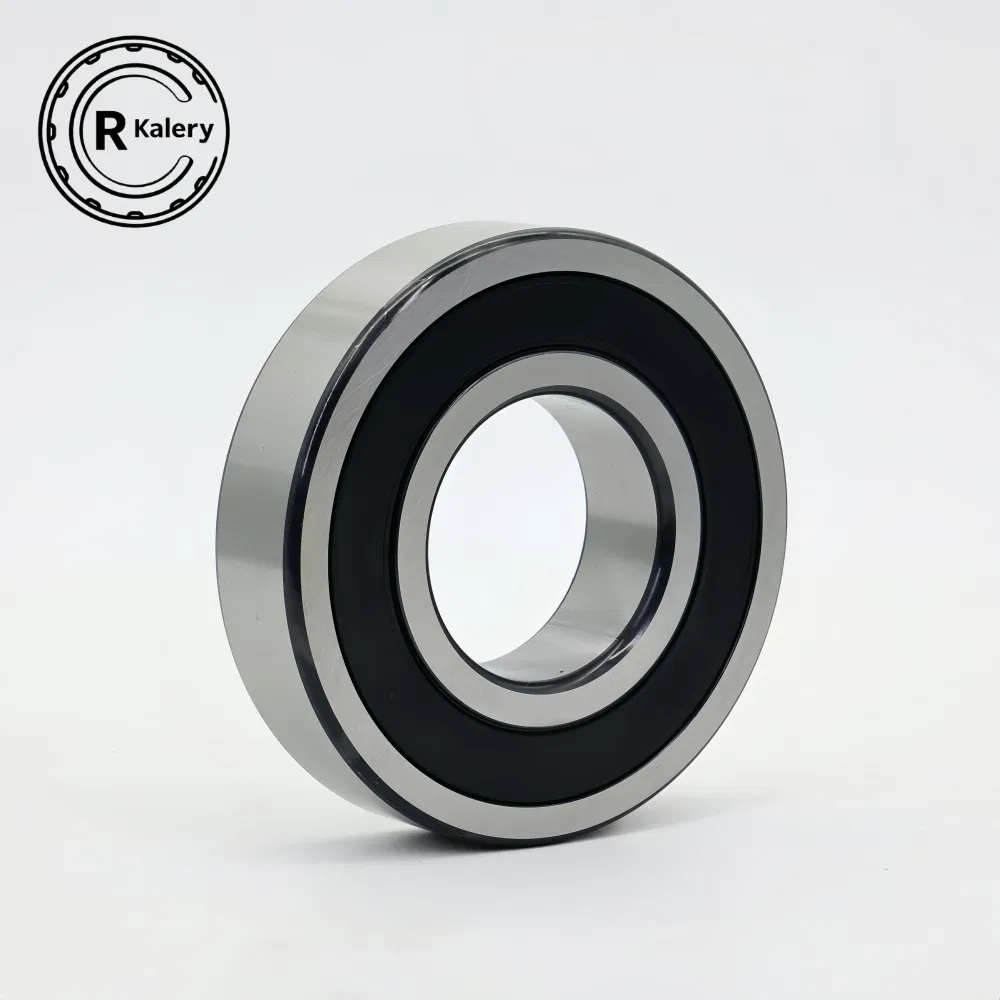

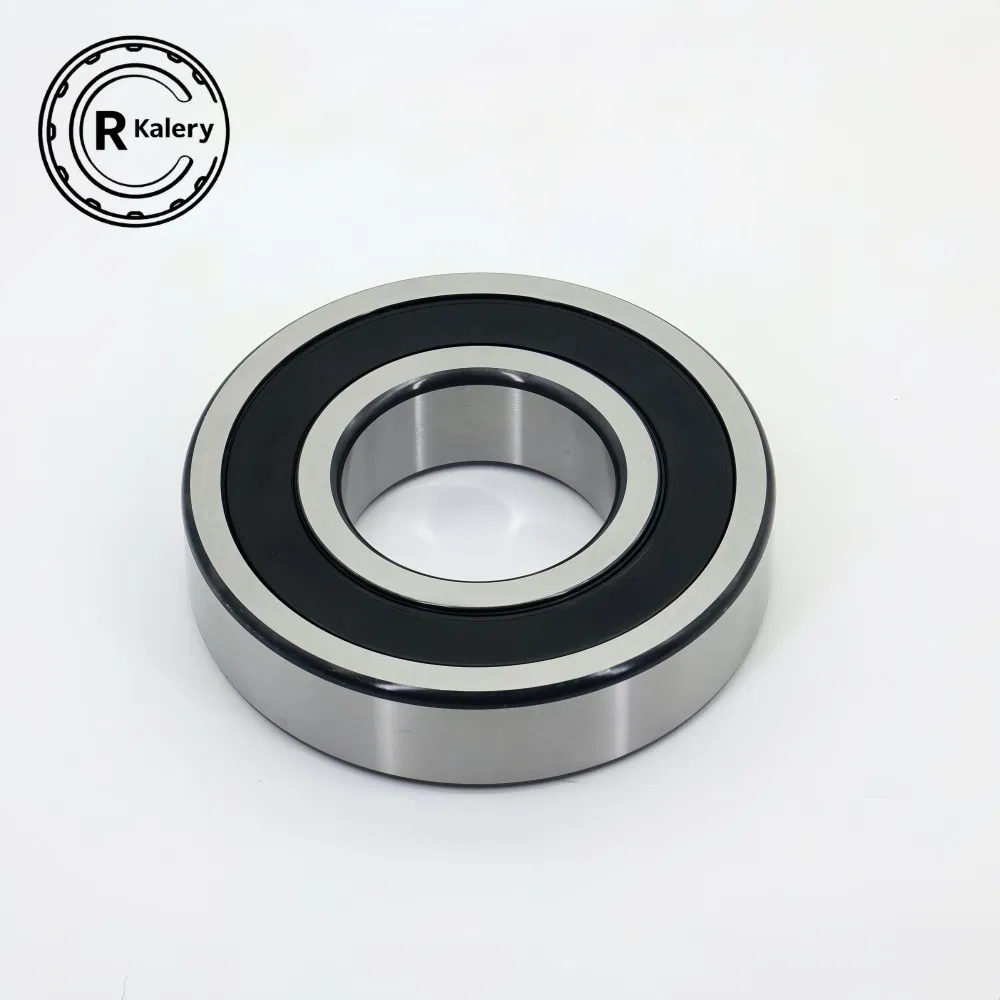

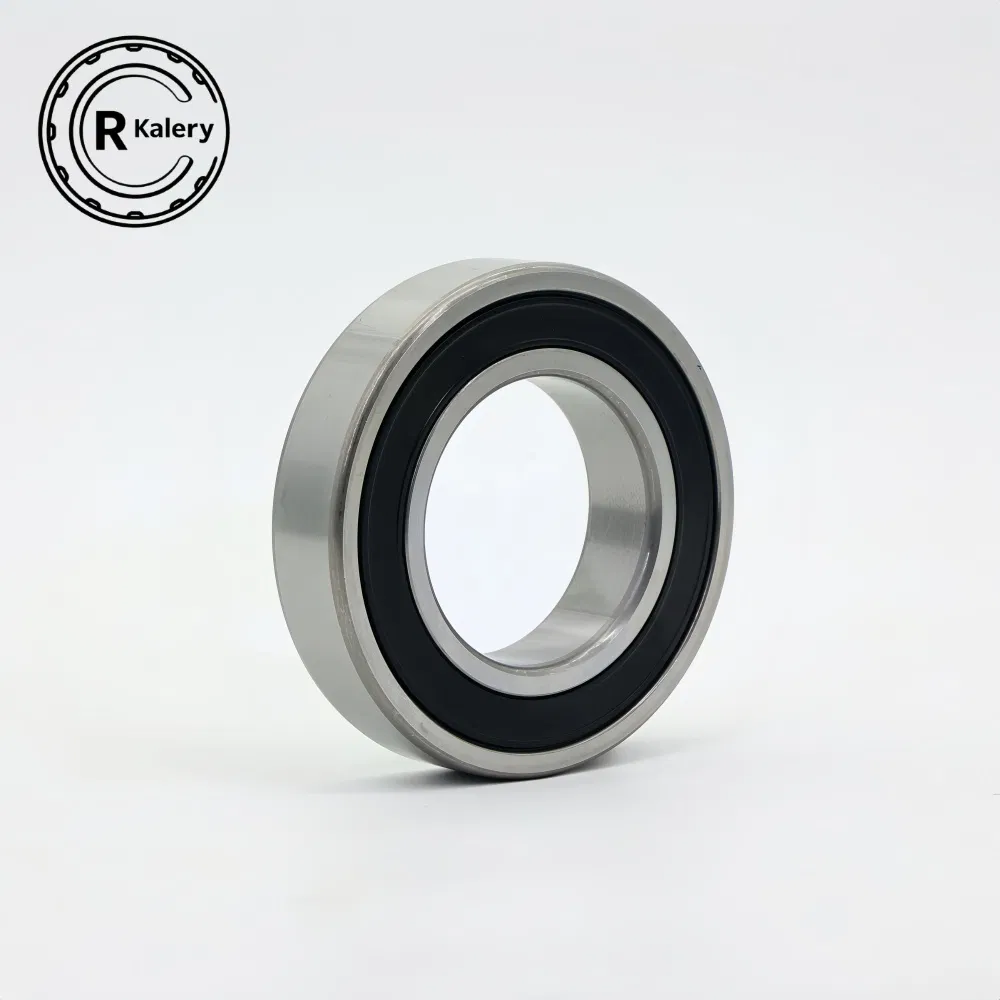

Product Feature: Product codes include the 6000 series, etc. It has a relatively high limiting speed, generally reaching several thousand revolutions per minute.
Application: Mainly used in motors, household appliances, and automobiles. Capable of bearing radial loads and certain axial loads.

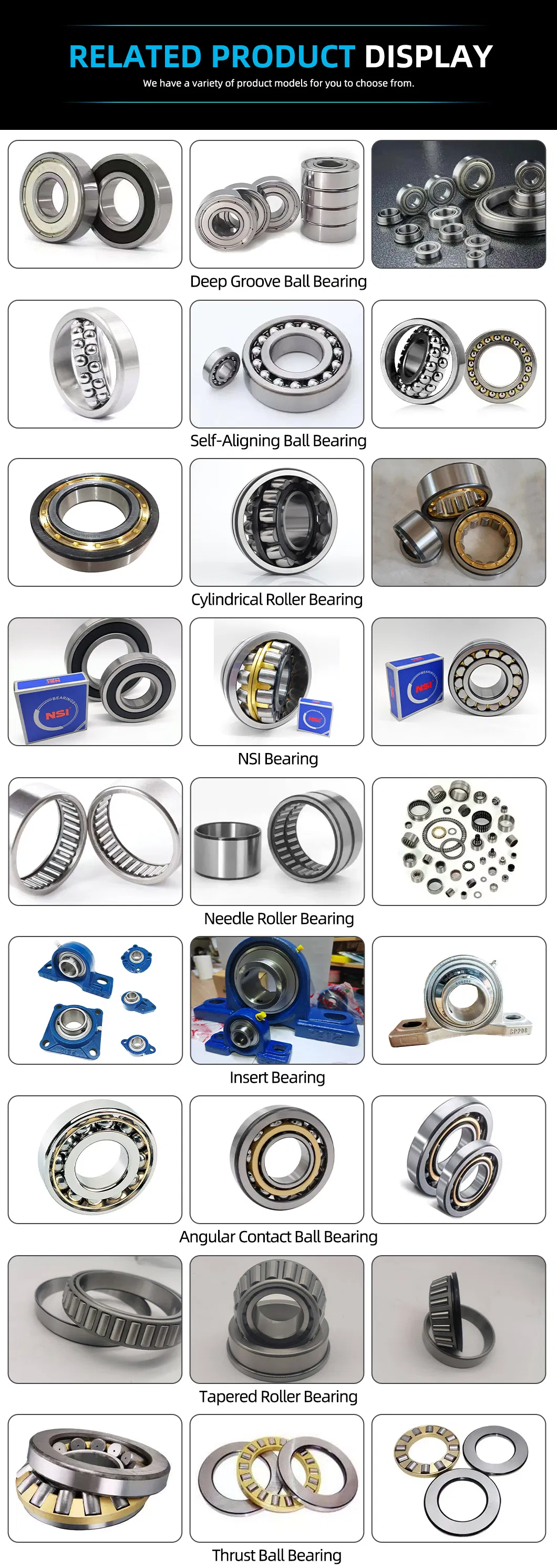

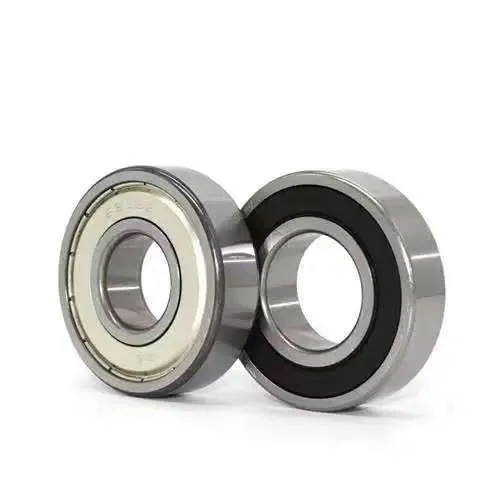

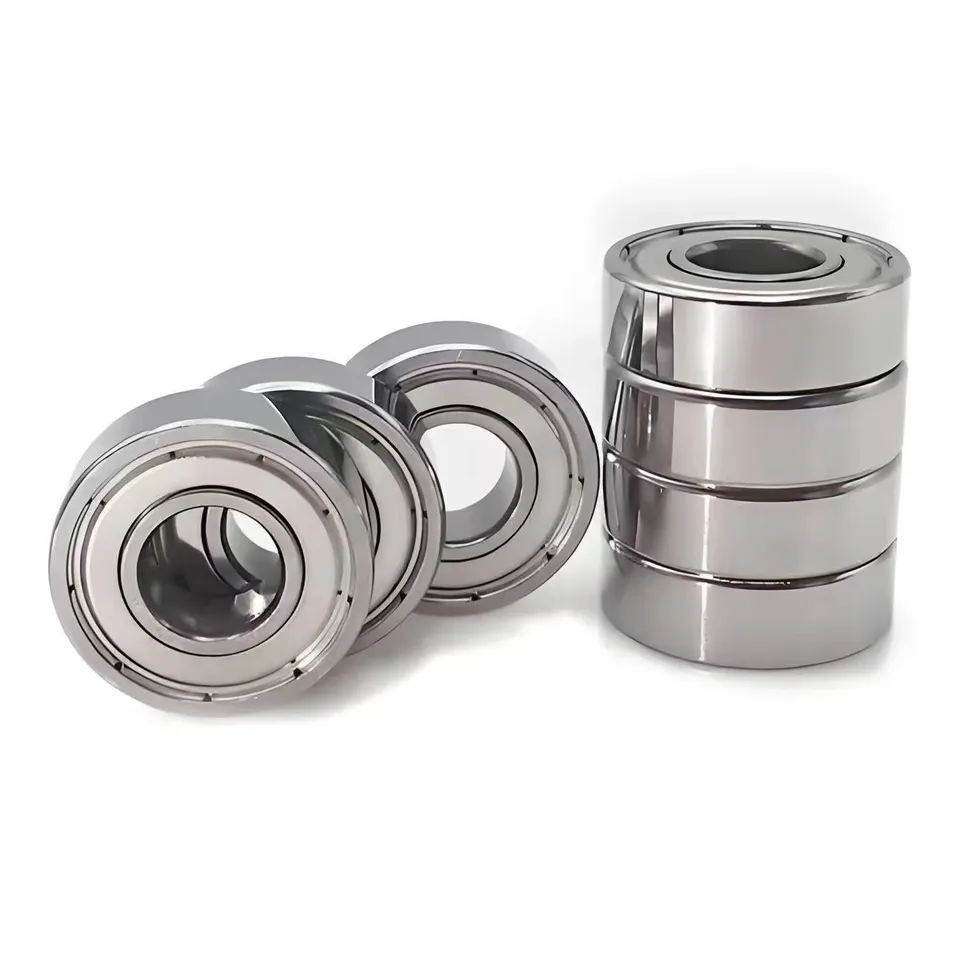

| 1. Deep Groove Ball Bearing (6000, 6200, 6300, 6400, 61800, 61900, Z, RS, ZZ, 2RS) |
| 2. Spherical Roller Bearing (22200, 22300, 23000, 24000, 23100, 24100, CA, CC, E, MA) |
| 3. Cylindrical Roller Bearing (N, NU, NJ, NN, NUP, M, EM, P, TN, FC, E) |
| 4. Tapered Roller Bearing (30200, 30300, 32200, 32300, 31300, 32000DT, DB, DF) |
| 5. Needle Roller Bearing (NA, NAV, NK, NKI, RNA, NK, RNAO, ZKLF, ZKLN) |
| 6. Thrust Ball Bearing (51100, 51200, 51300, 51400, E, M) |
| 7. Angular Contact Ball Bearing (7000, 7100, 7200, 7300, AC, BECBM, C, B, DB) |

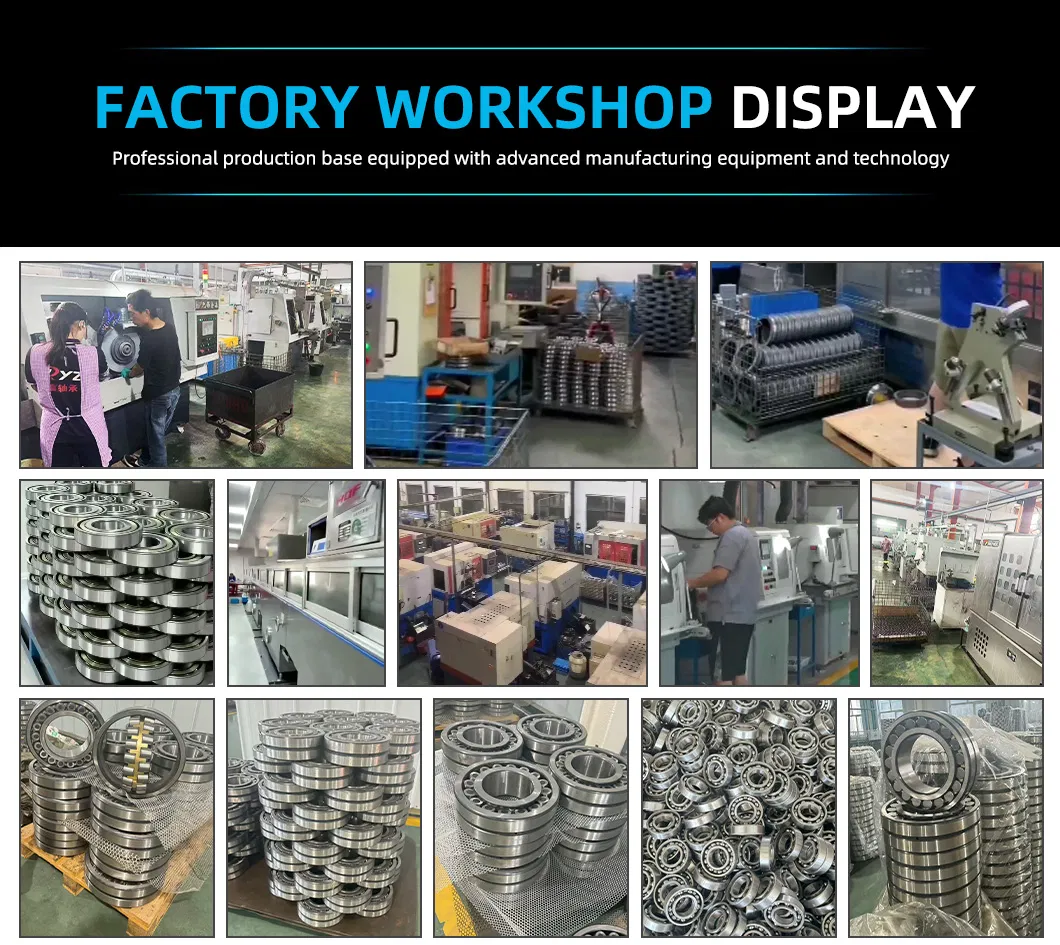

Our team has been dedicated to bearings for 13 years, focusing on high-quality manufacturing and sales. We operate under the philosophy of "Quality, Innovation, and Management," ensuring all products meet strict quality control requirements.

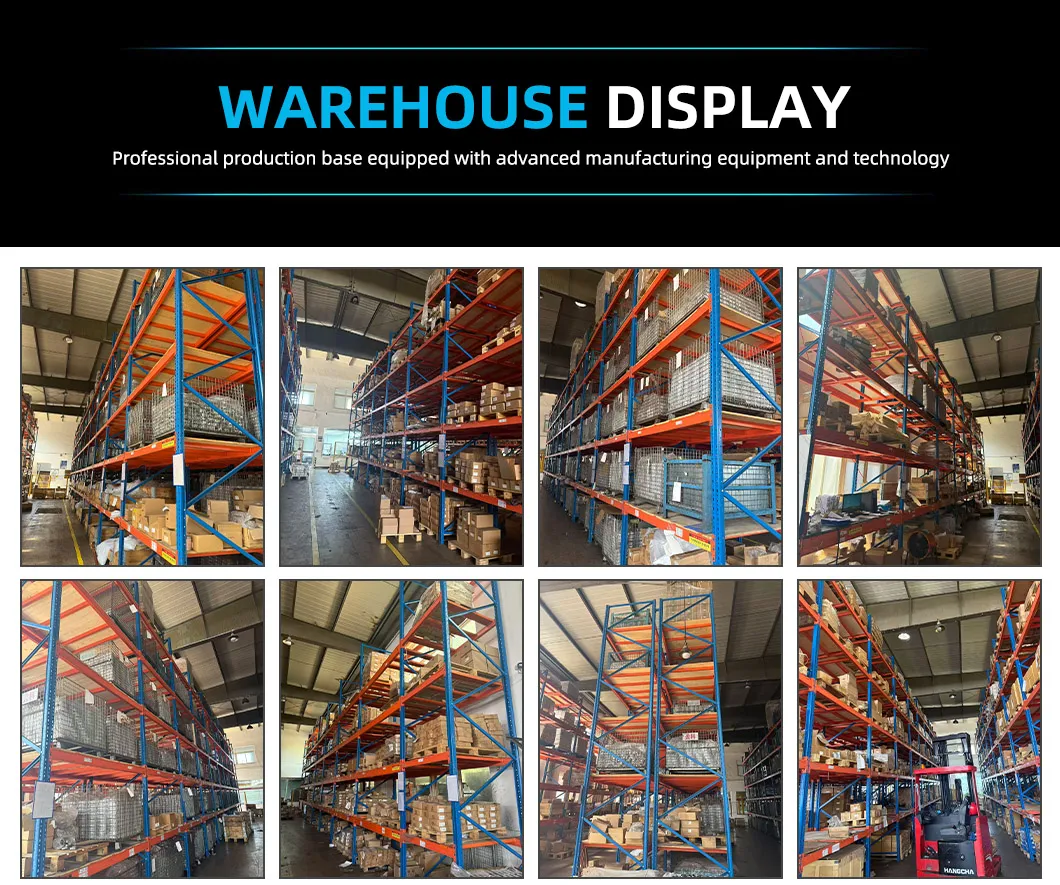

With professional technical expertise and a robust warehouse system, we provide a one-stop service for our global clients, prioritizing high-precision and reliable operation.
