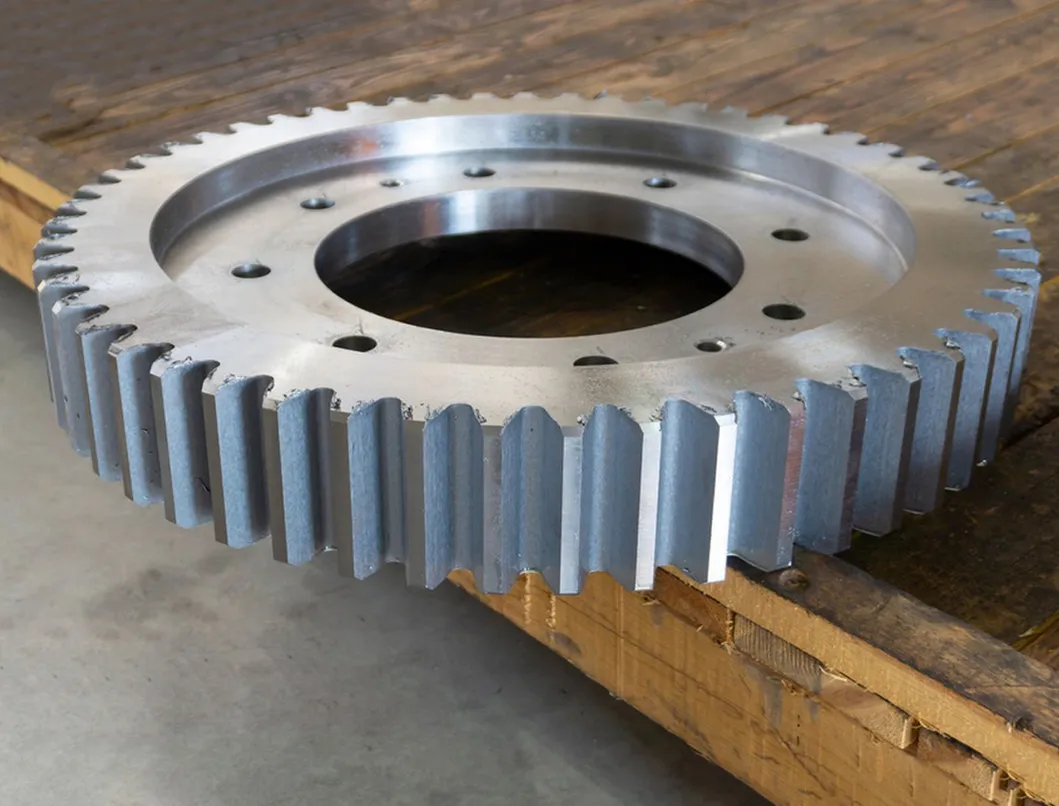

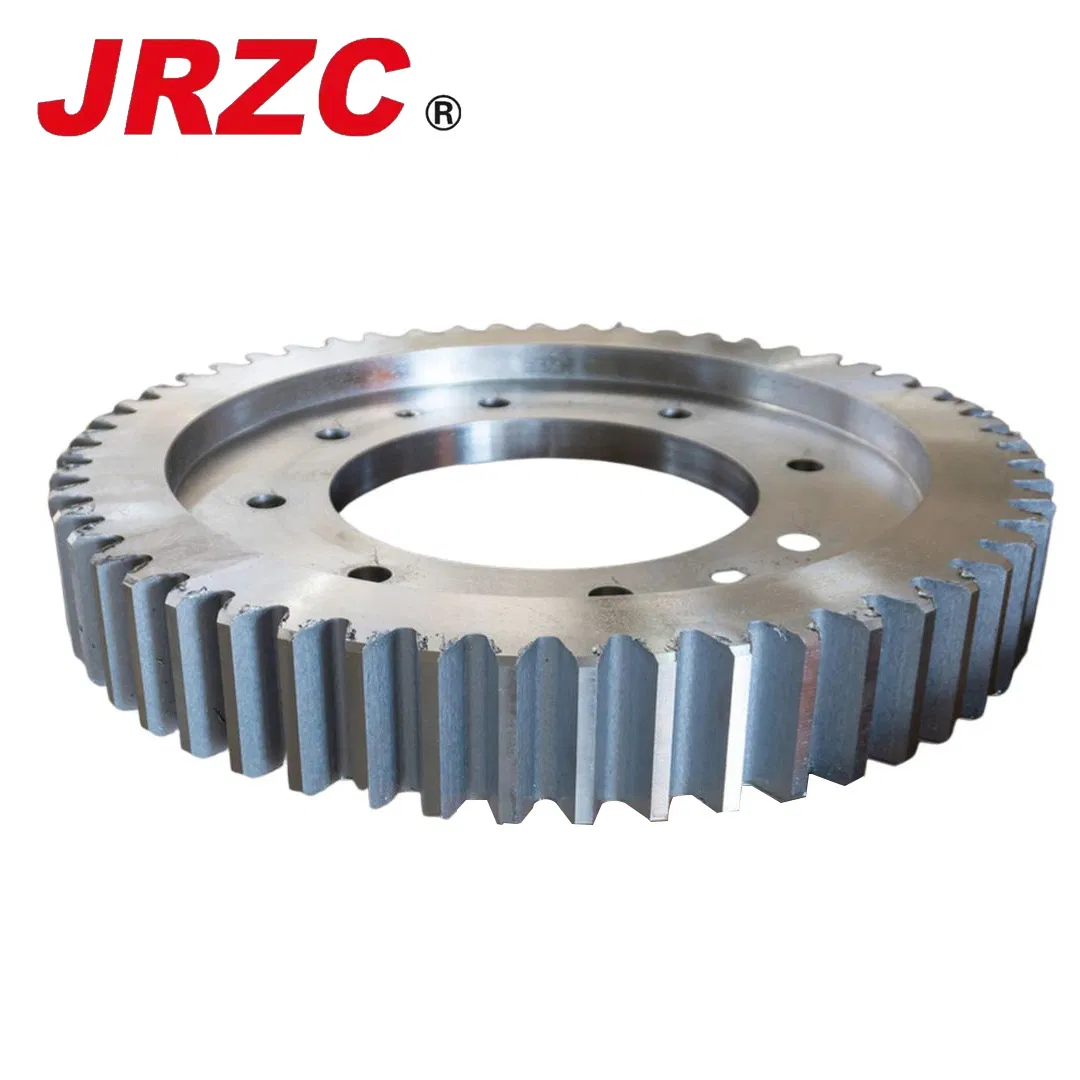

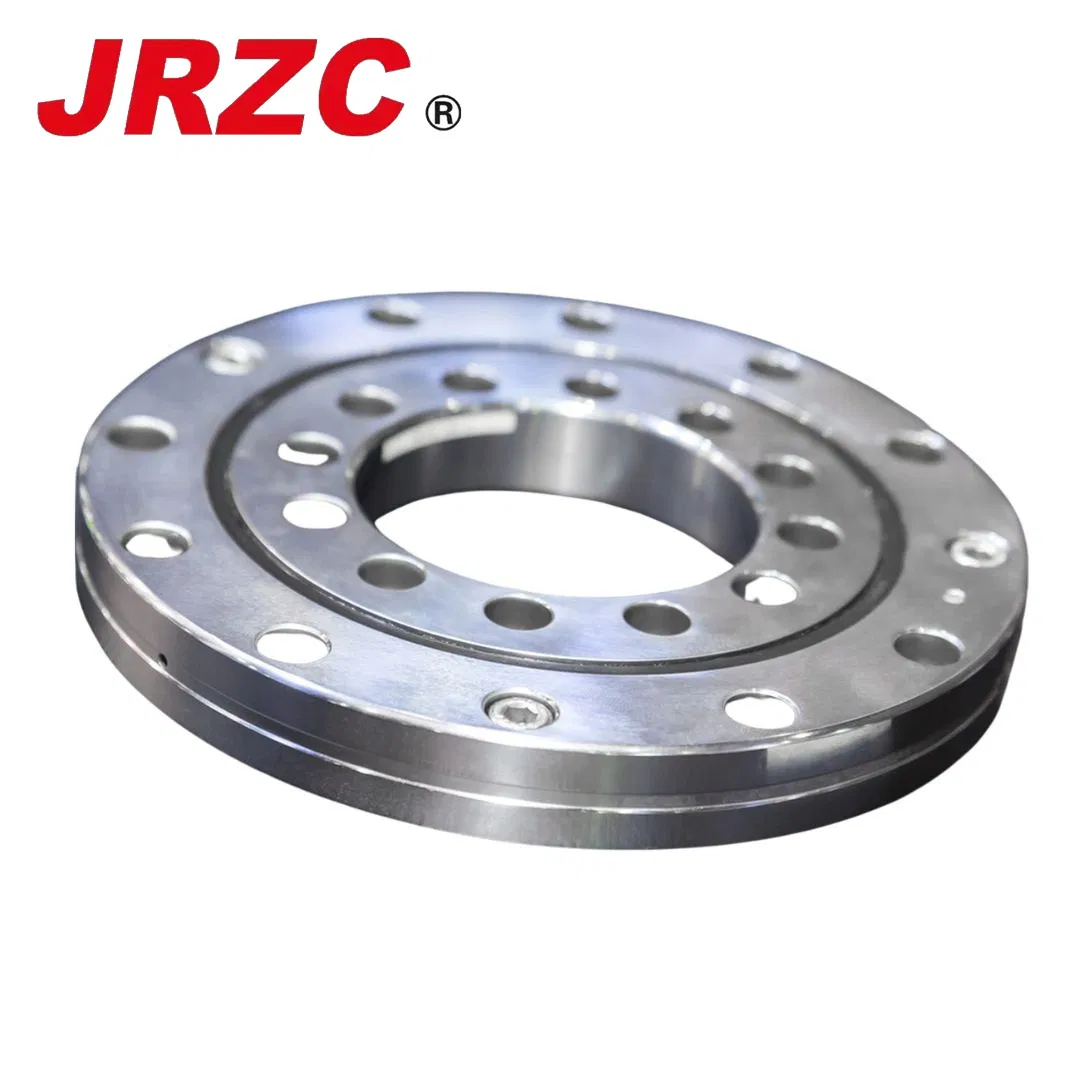

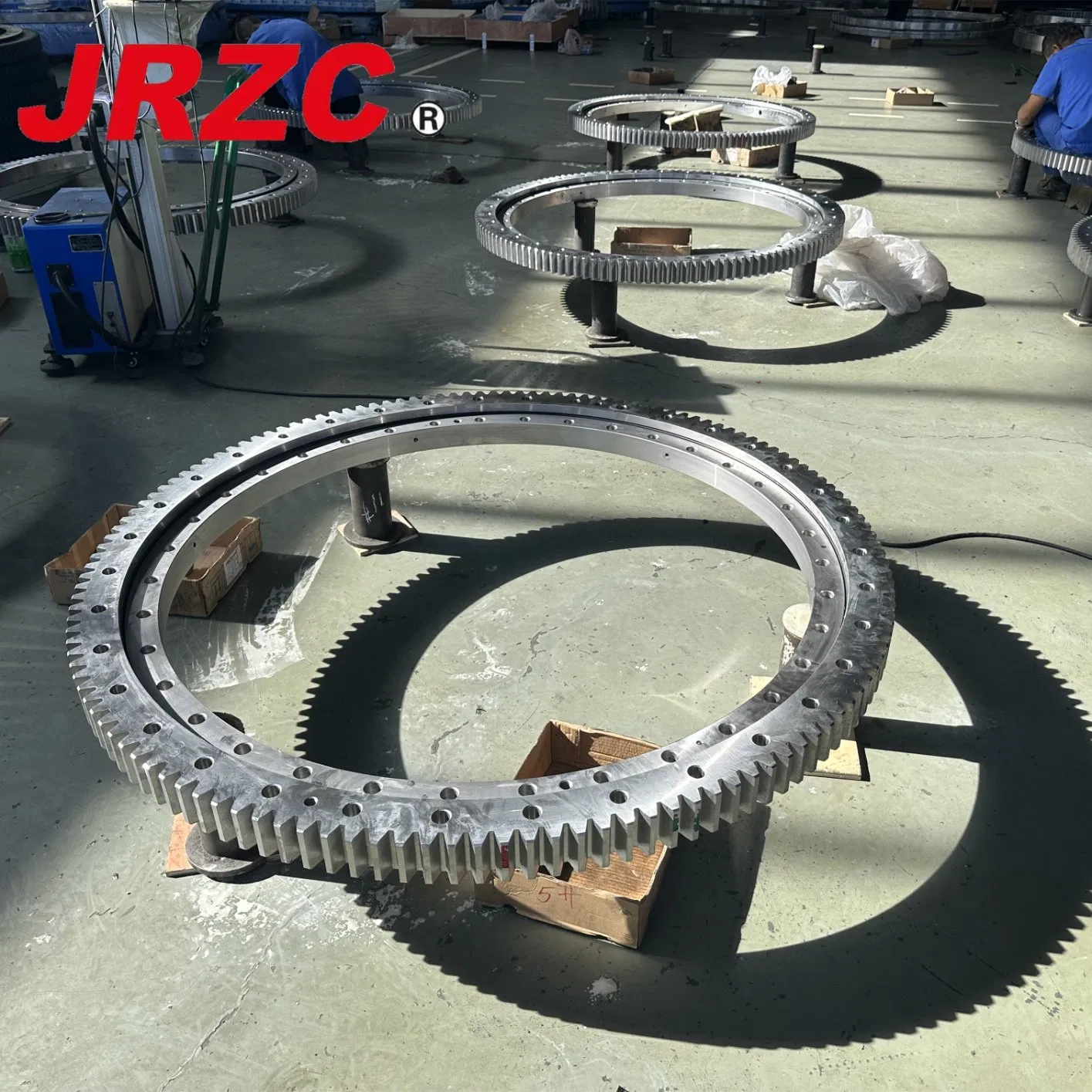

The VE140A01 four-point contact ball slewing bearing is engineered for high-performance applications including rotary conveyors, welding manipulators, cranes, and excavators. Made from high-grade materials like 42CrMo and GCr15, these bearings support customized inner ring sizes from 200mm to 5000mm.

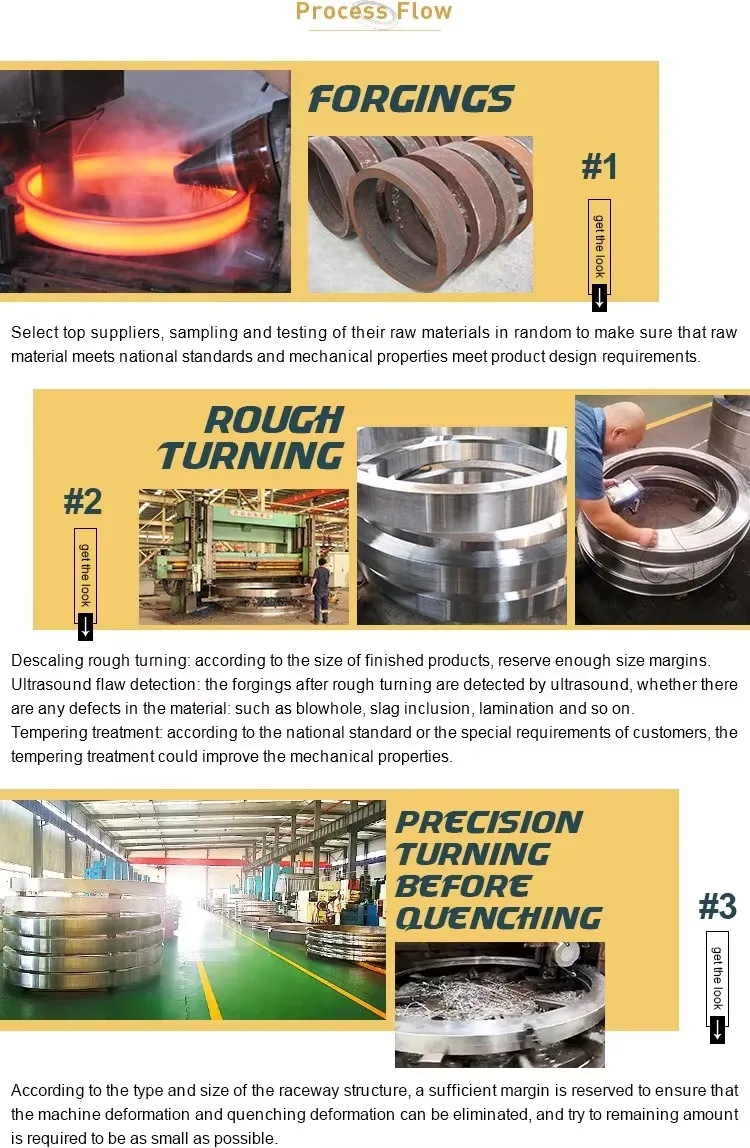

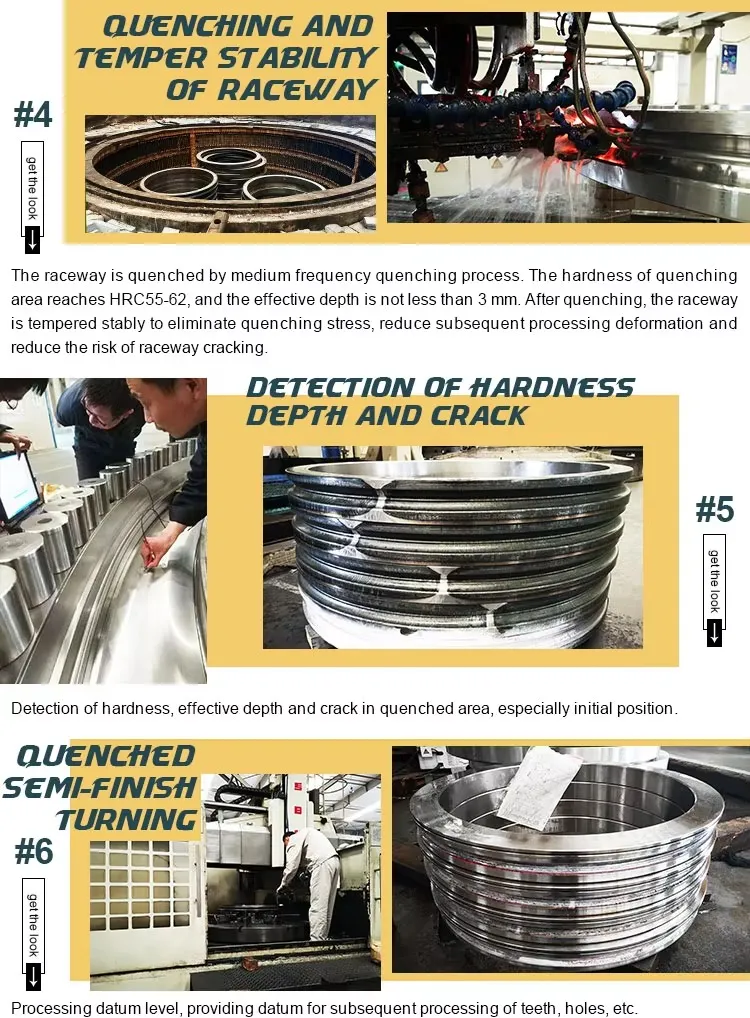

Manufacturing Excellence: Our raceways are quenched using medium frequency processes, achieving a hardness of HRC55-62 with a depth of no less than 3mm. This eliminates quenching stress and reduces the risk of cracking, ensuring long-term durability in heavy-duty industrial environments.
| Parameter | Details |
|---|---|

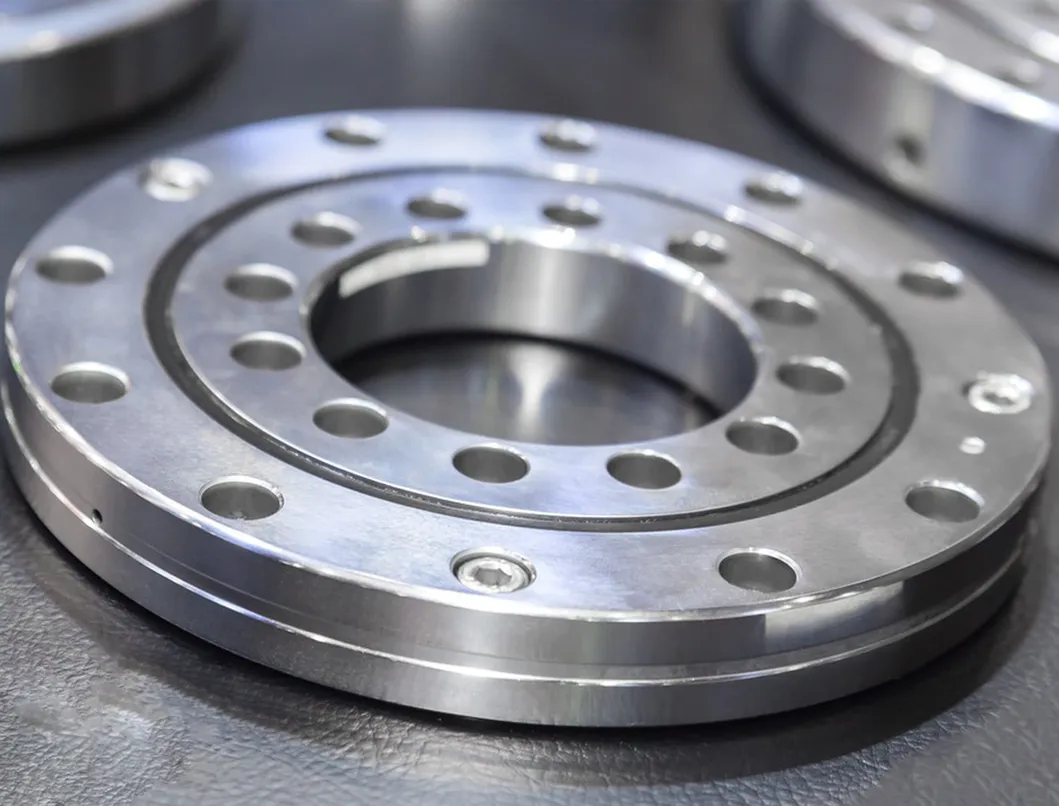

| Types | Single-row four point ball, Crossed roller, Double row ball, Three-row roller |
| Rolling Elements | Steel ball / Cylinder Roller (GCr15/GCr15SiMn) |
| Bearing Material | 50Mn / 42CrMo / 42CrMo4V |
| Cage Material | Nylon / Steel / Copper |
| Diameter Range | 50mm - 10000mm |
| Raceway Hardness | 55-62HRC |

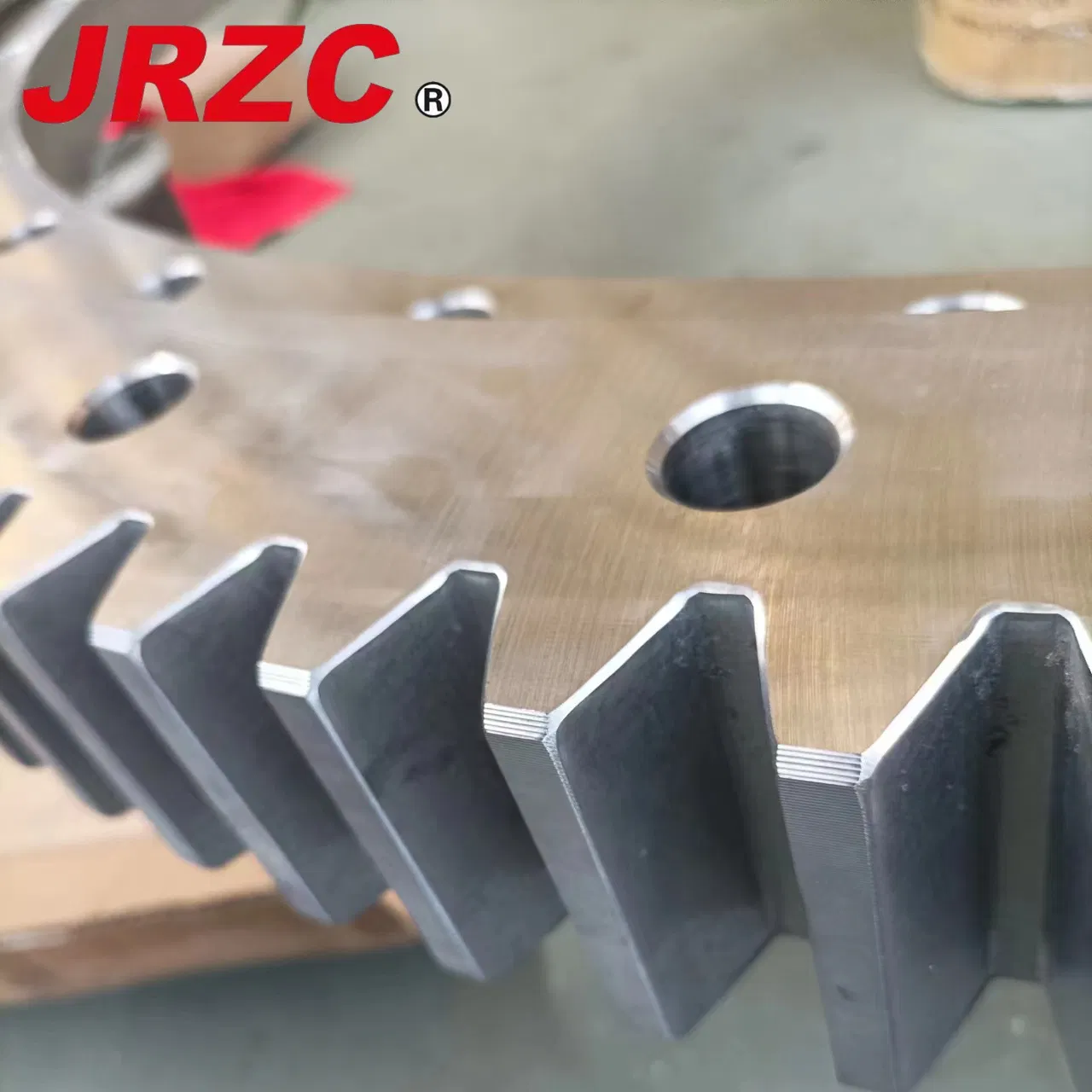

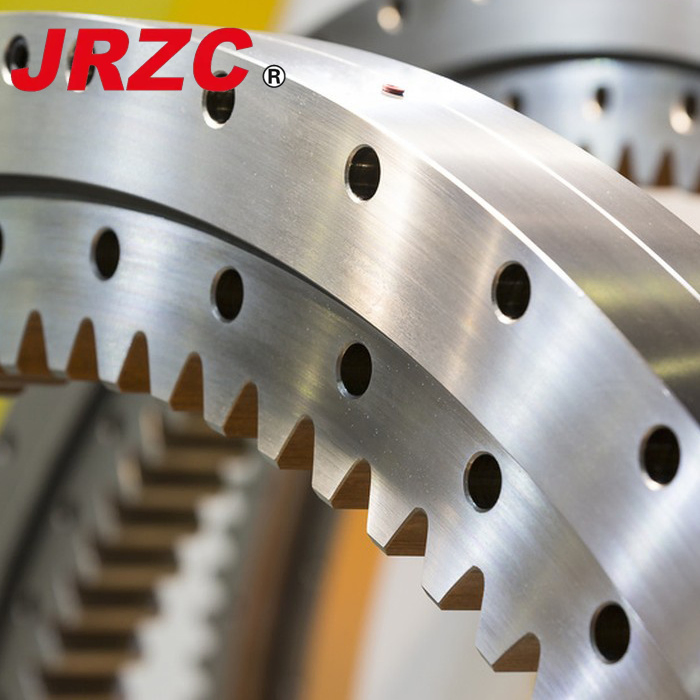

| Gear Options | No gear, Internal gear, External gear |
| Certification | ABS, BV, DNV, ISO9001, GL |

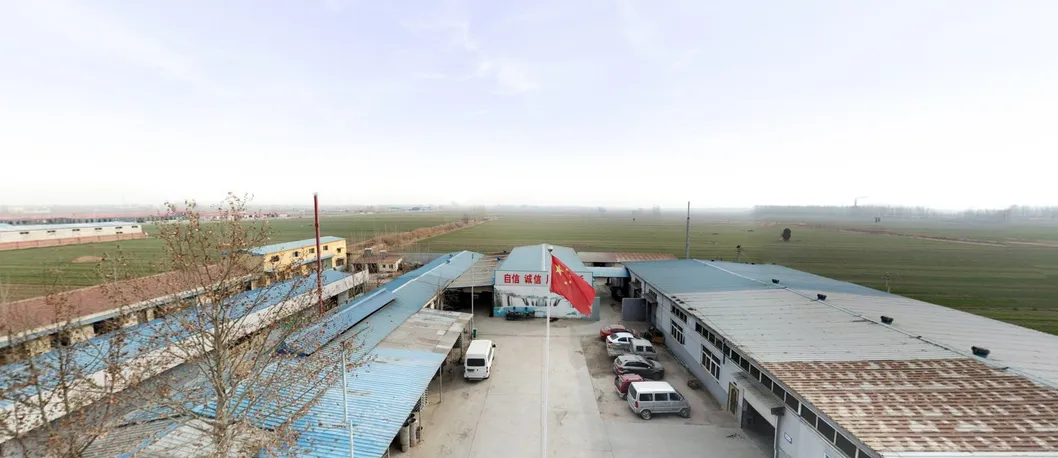

20+ Years of Manufacturing Experience
Over 160 sets of imported production equipment and ISO9001 international quality certification. Annual output value exceeds 40 million yuan with extensive cooperation across Asia, Europe, and the Americas.
