Ebmotrix Bearings
1 / 5

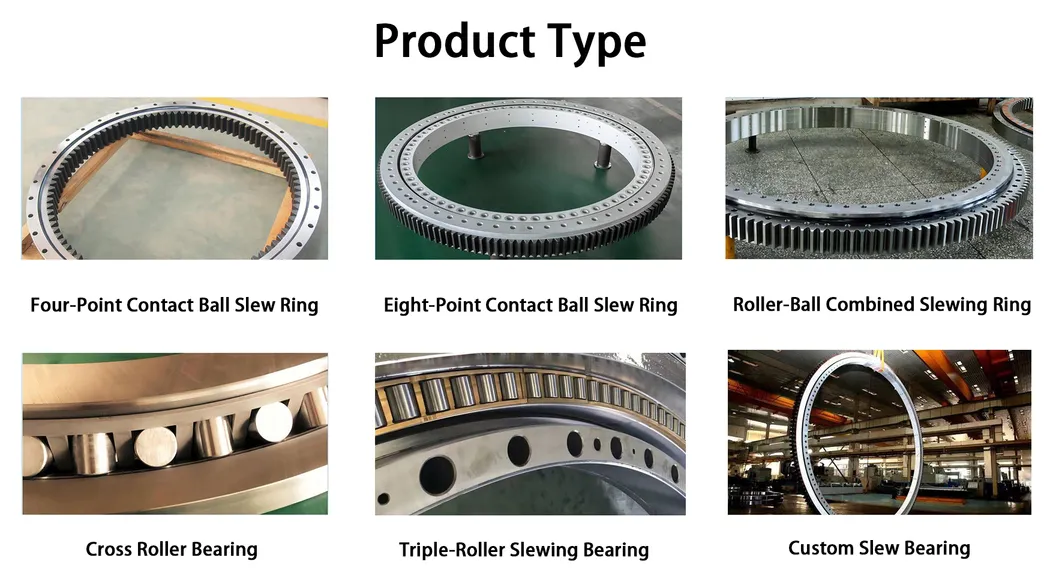

| Bearing Type | Single Row Four Point Contact Ball, Single Row Crossed Cylindrical Roller, Double Row Ball, Three-Row Roller Slew Ring Bearing |
| Rolling Elements | Steel ball / Cylinder Roller (GCr5/GCr15SiMn) |
| Bearing Material | 50Mn / 42CrMo / 42CrMo4V / Stainless Steel |
| Cage Material | Nylon 1010 / Steel / Brass |
| Diameter Range | 50mm - 10000mm |
| Raceway Hardness | 55-62HRC |

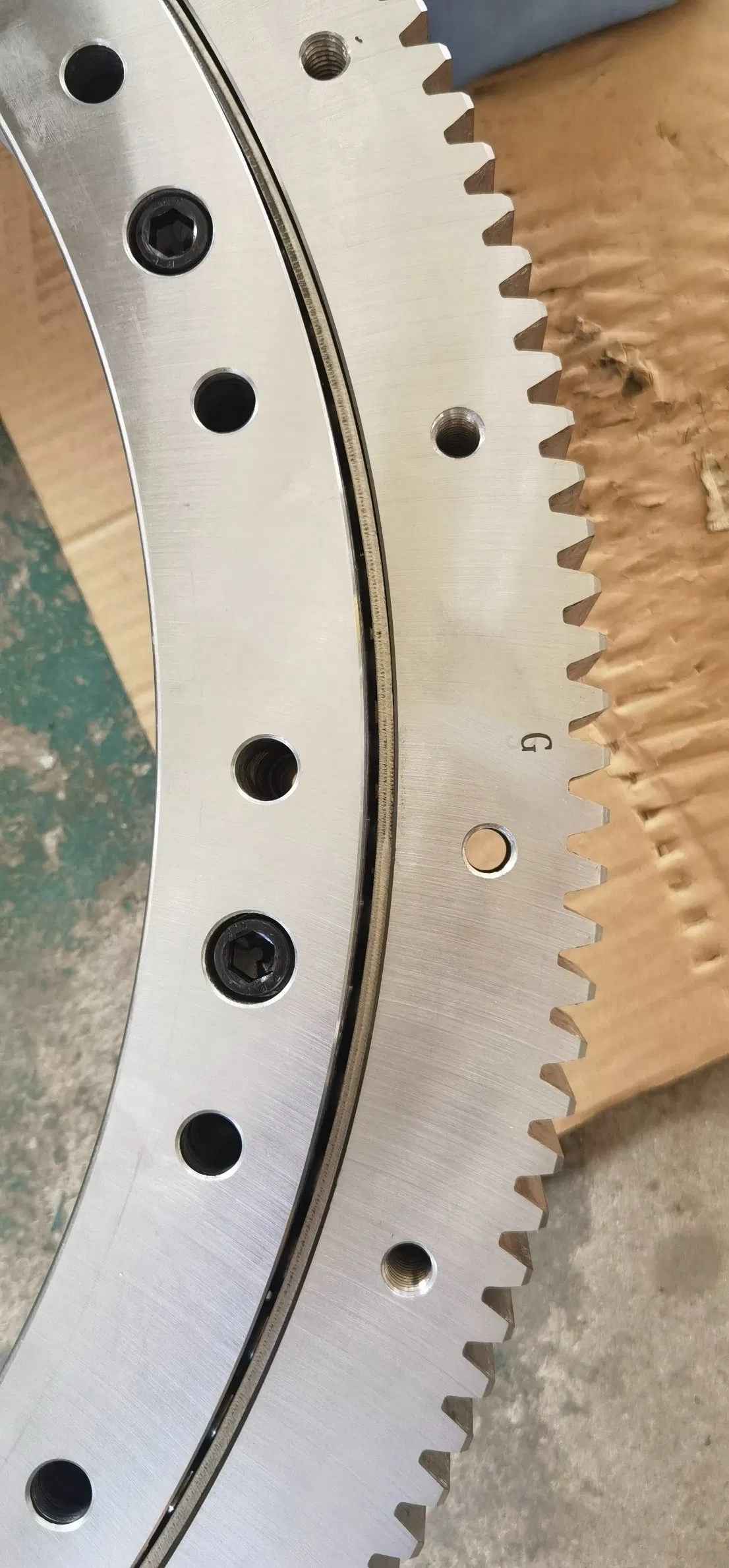

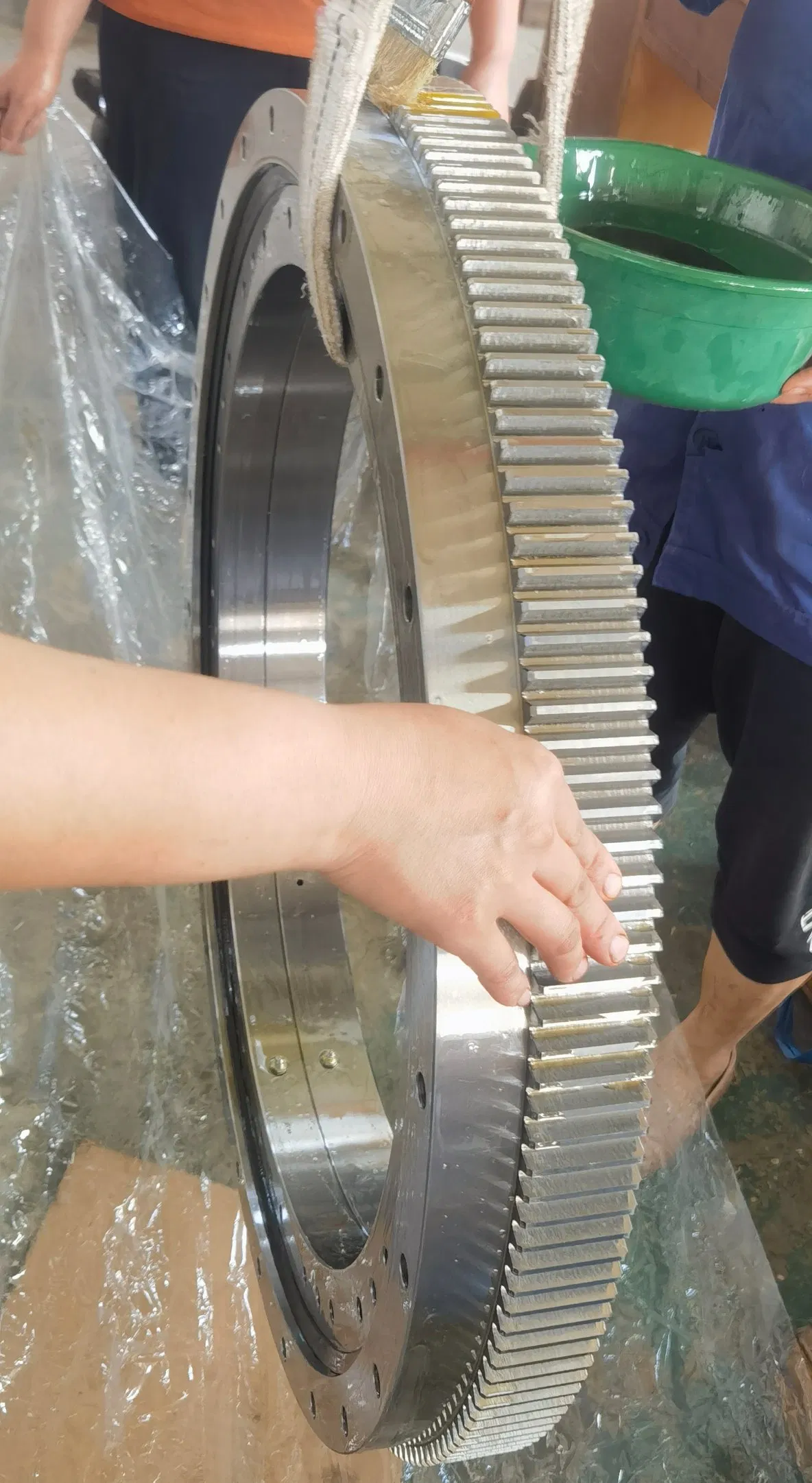

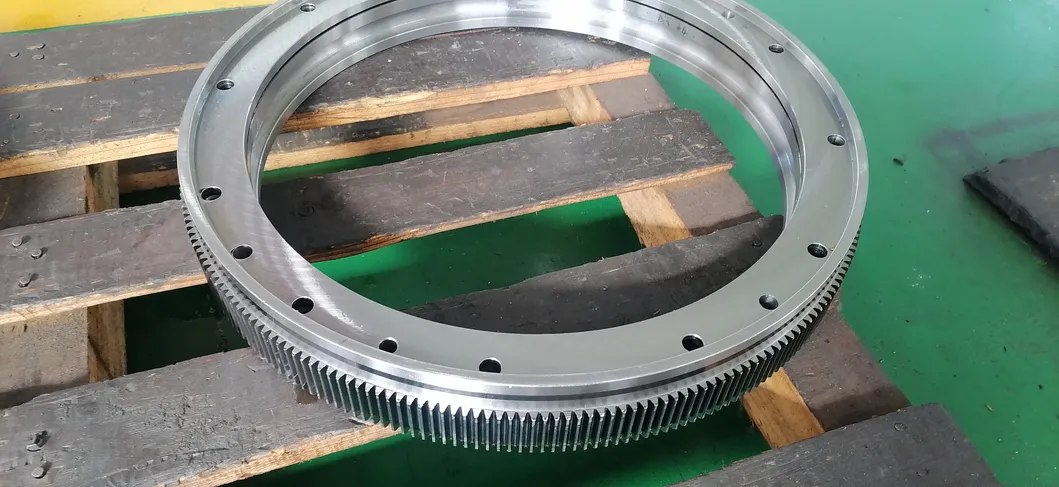

| Gear Options | No gear, Internal gear, External gear |
| Certificates | ABS, BV, DNV, ISO9001, GL |

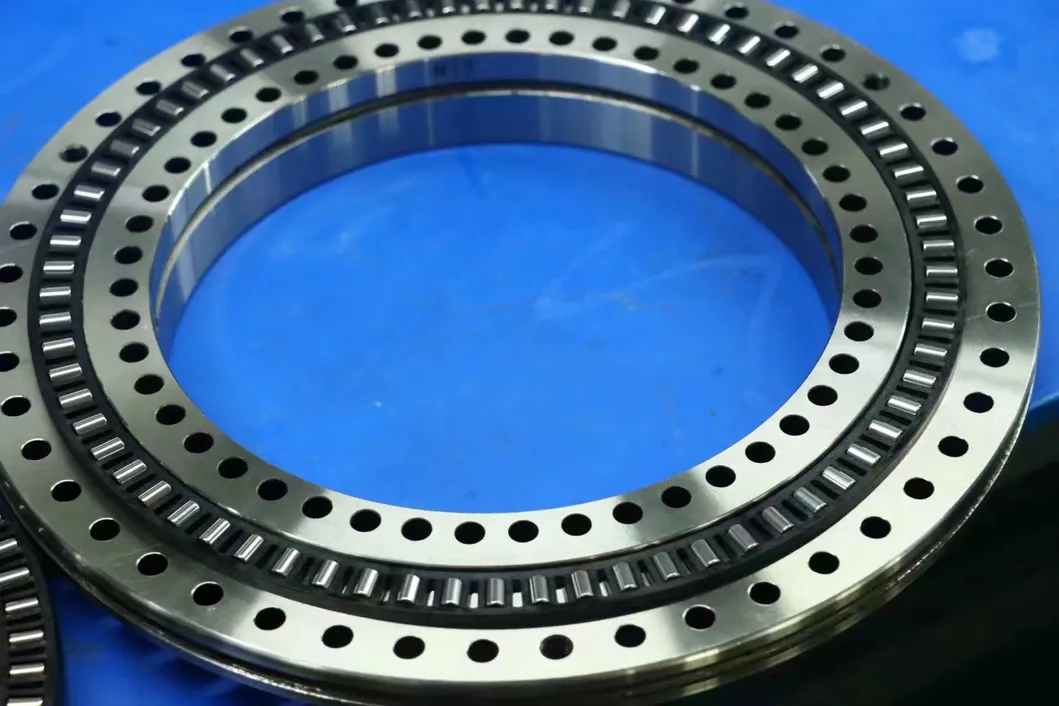

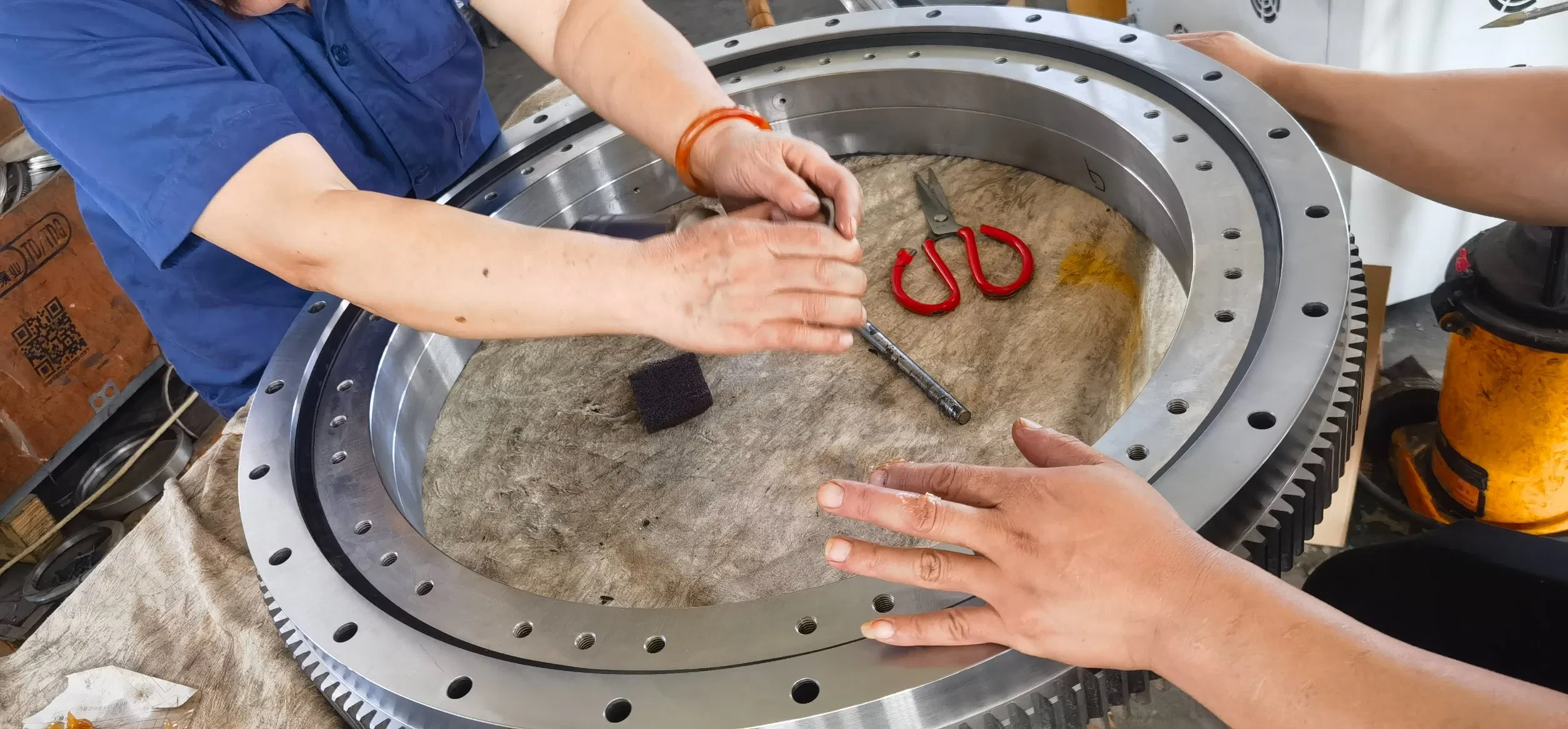

Slewing ring bearings are large-size rolling bearings that can accommodate axial, radial and moment loads acting either singly or in combination and in any direction. They can perform both slewing (oscillating) movements as well as rotational movements. A slewing ring bearing consists of an inner ring, an outer ring and rolling elements (balls or cylindrical rollers) separated by polyamide spacers.

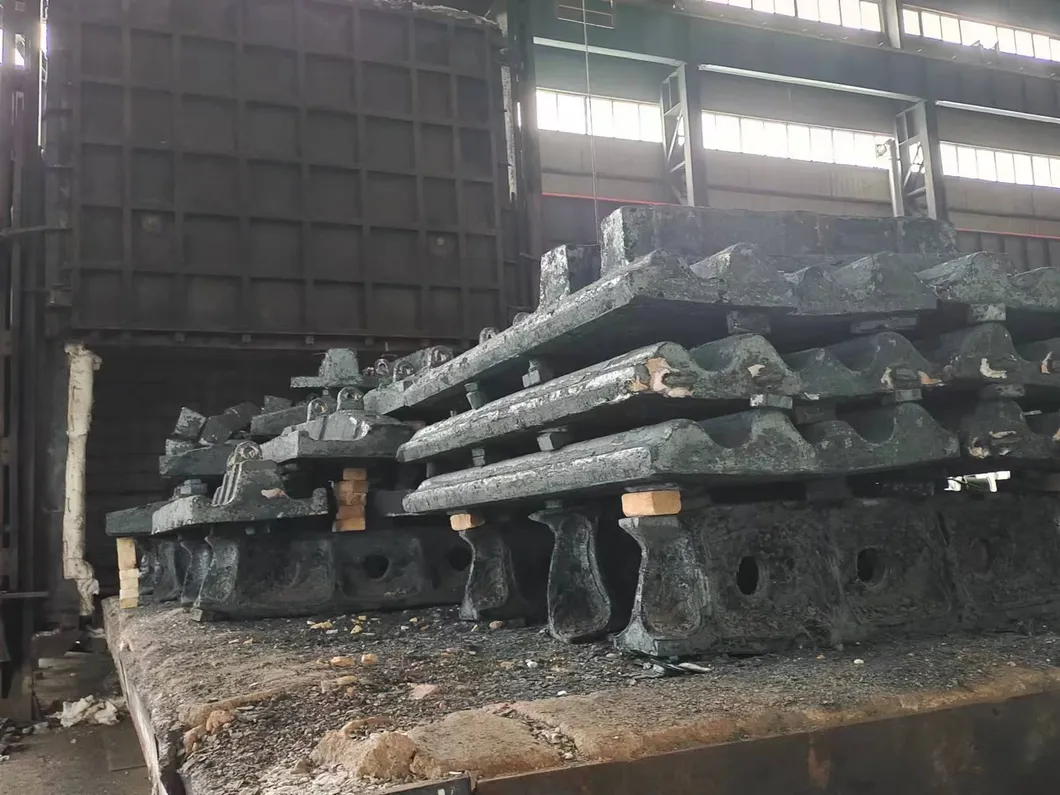

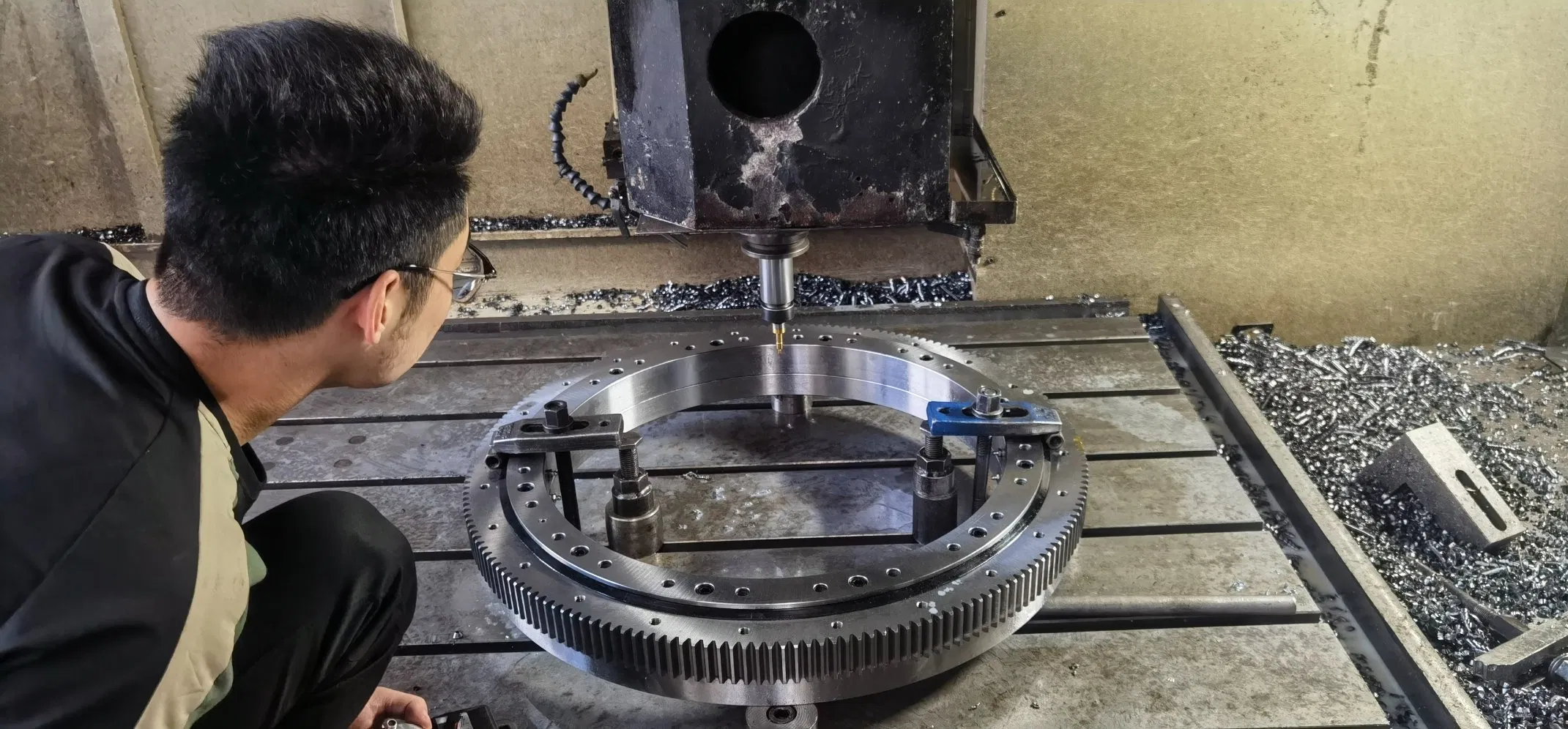

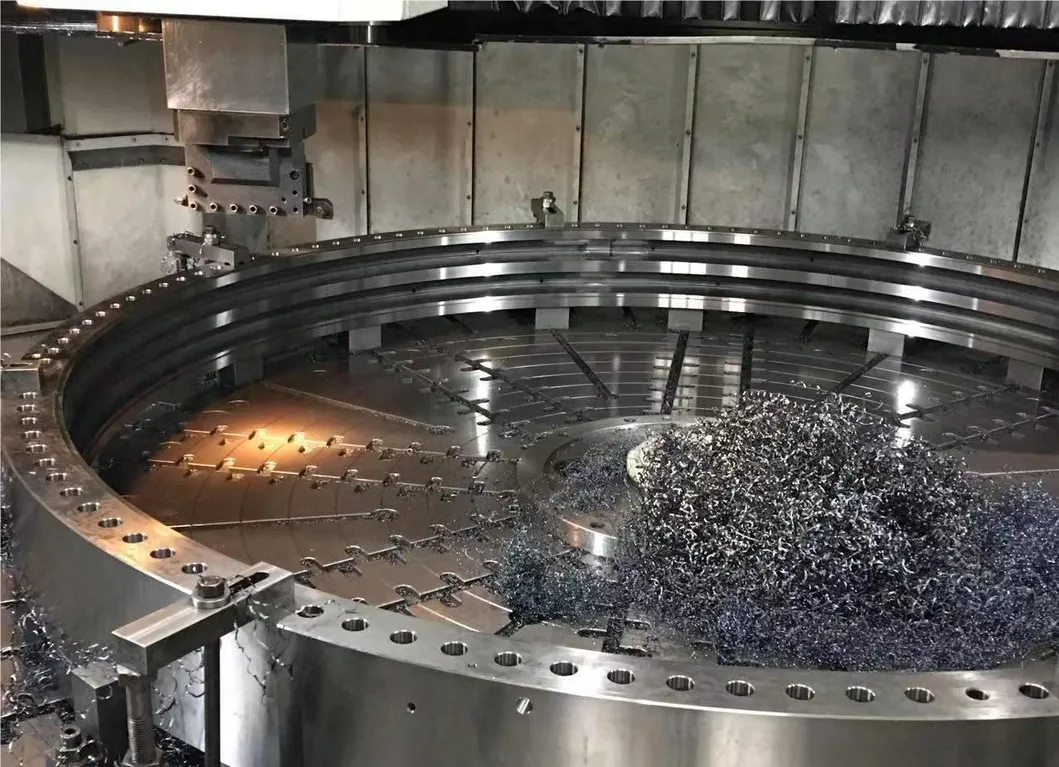

Equipped with modern facilities to produce Slew Rings up to 8000mm OD. Fully integrated manufacturing allows complete control over quality and scheduling to meet demanding customer requirements.
Professional technical experts provide engineering analysis using advanced computer technology to solve challenging specifications and provide cost-effective solutions.
