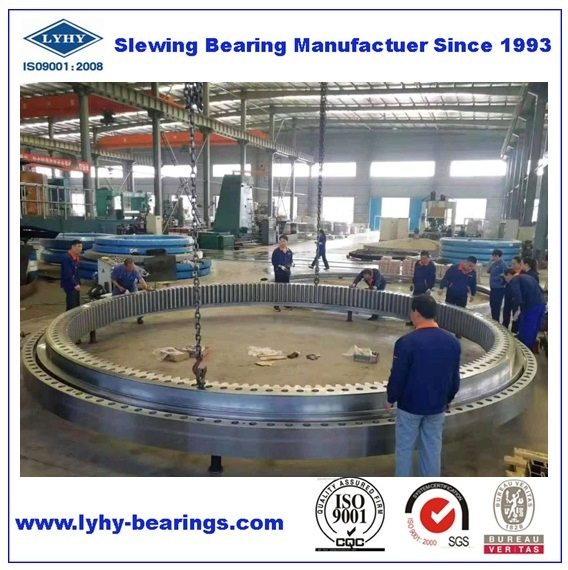

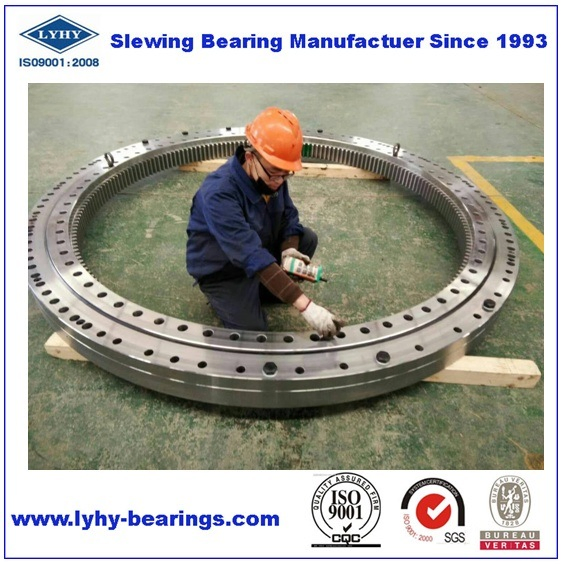

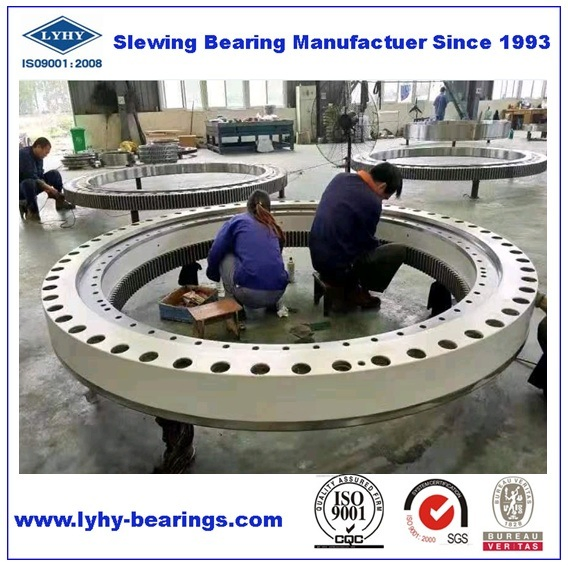

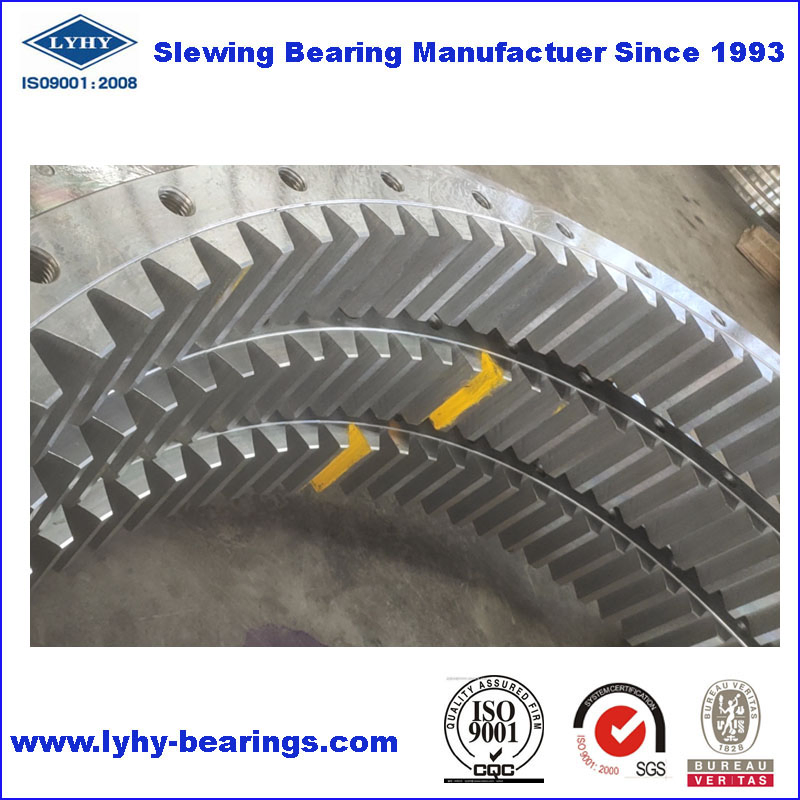

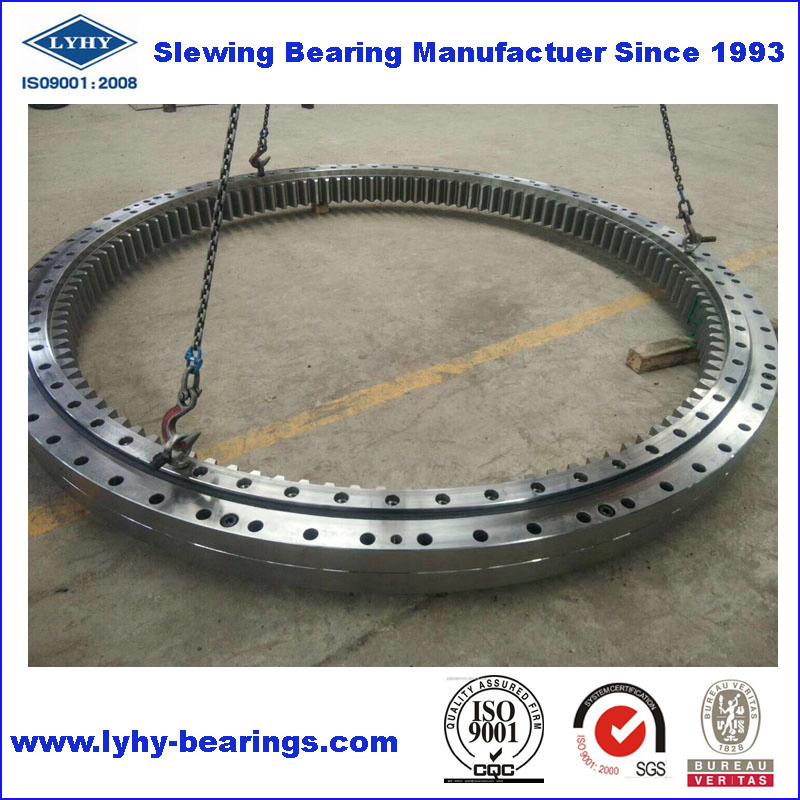

Slewing Ring Bearing Customized with Internal Gear (013.60.2240) Slewing Bearing Single Row Ball Swing Bearing

Basic Specifications

Model NO.013.60.2240

Outer Dimension2418mm

Inner Diameter2065mm

MaterialAlloy

Bearing TypeNon-Aligning / Thrust Bearing

SeparationUnseparated

Production Capacity8000 PCS Per Year

HS Code84821090

Product Description

Our single row four point contact ball slewing bearings are designed to handle axial force, radial force, and resultant moments simultaneously. This robust structure makes them ideal for various heavy-duty industrial applications.

Technical Parameters

Slewing Bearing Number	OD (mm)	ID (mm)	Height (mm)
013.60.2240	2418	2065	144
013.60.2500	2678	2325	144
013.60.2800	2978	2625	144
013.75.3150	3376	2922	174
013.75.4000	4226	3772	174
2787/1210G2	1530	1210	122
2789/2735	2990	2735	160

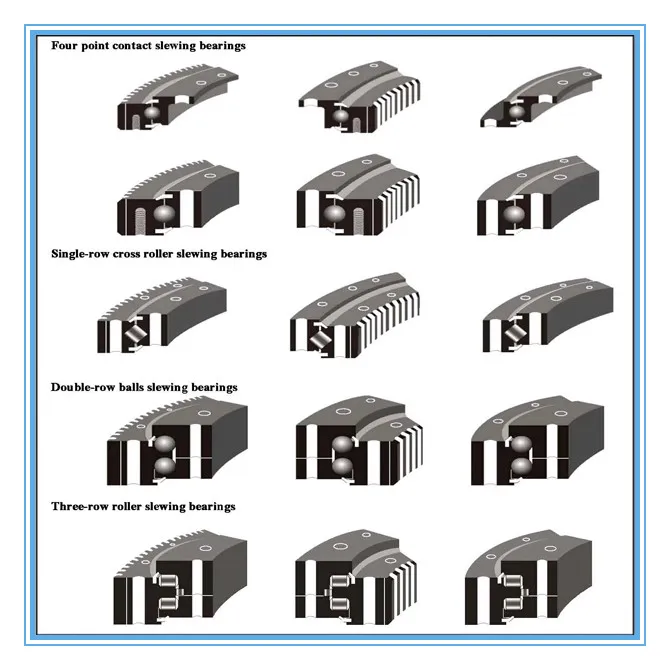

Available Structures

Single row ball slewing bearings
Double row ball slewing bearings
Crossed roller slewing bearings
Triple row roller slewing bearings
Flange slewing bearings

Manufacturing Features

Advanced Materials: Utilizes 42CrMo and 50Mn for maximum durability.
Precision Engineering: Low noise and low vibration design.
Size Range: Outside Diameter from 300mm to 6000mm.
Strict Quality Control: Every unit undergoes rigorous inspection to ensure long-term performance.

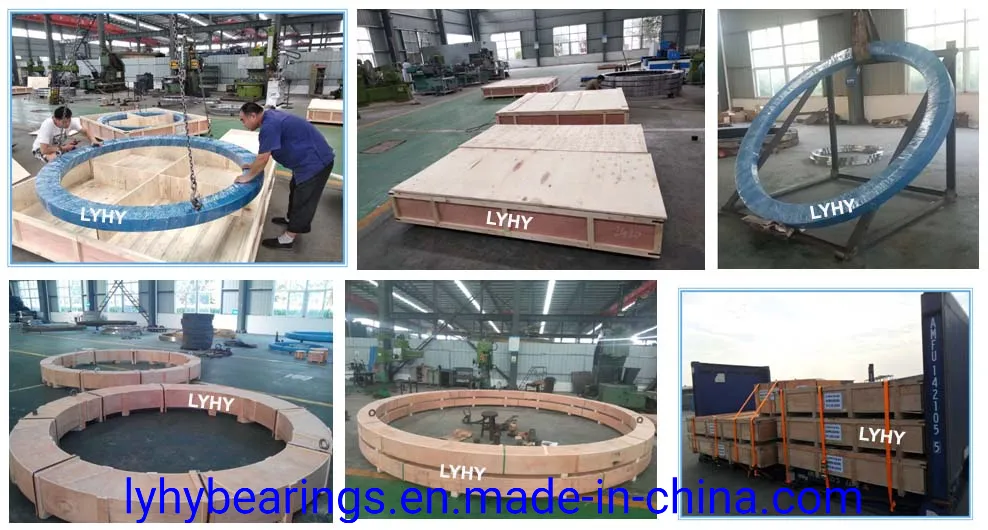

Packaging & Shipping

1. Bearing surface is coated with anti-rust oil and wrapped in plastic film.
2. Protected with Kraft paper and professional reinforcement belts.
3. Final packing in sturdy wooden boxes to prevent moisture and rust during transit.

Dimensional Reference (OD/ID/H)

OD	ID	H	W.T.	Types
403.5	234	55	25	06 0307 00
640	434	56	44	21 0541 01
816	573	90	129	06 0675 00
1218	930	98	268	01 1050 00
2534	2042	144	1482	06 2242 00
3200	2914	90	716	01 3031 00

Frequently Asked Questions

What materials are used for these slewing bearings? Most slewing bearings are manufactured using high-grade 42CrMo or 50Mn alloy steel to ensure high load-carrying capacity and wear resistance.

Can you provide customized slewing ring bearings? Yes, we can design and manufacture both standard and non-standard ball bearings and roller bearings according to specific technical requirements and dimensions.

What is the typical size range for your rotary bearings? We produce bearings with an outside diameter ranging from 300mm up to 6000mm, covering a wide variety of industrial crane and turntable needs.

How are the bearings protected against rust during shipping? Each bearing is treated with anti-rust oil, wrapped in plastic film and Kraft paper, and secured in a professional wooden box for maximum protection against moisture.

What types of slewing ring structures are available? We offer single-row ball, double-row ball, crossed roller, triple-row roller, and flange type slewing bearings to suit different load and space requirements.

What is the minimum order quantity for these bearings? The minimum order quantity is 1 piece, making it suitable for both replacement needs and new large-scale projects.
