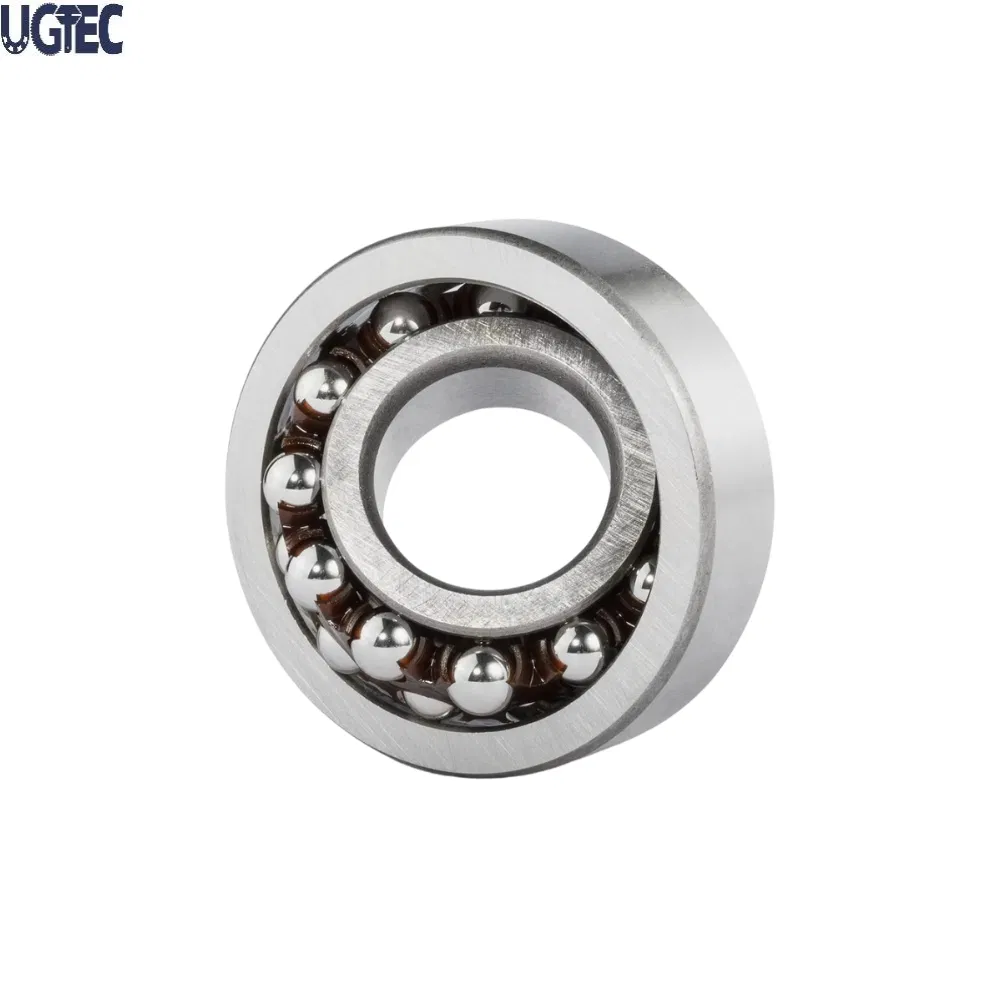

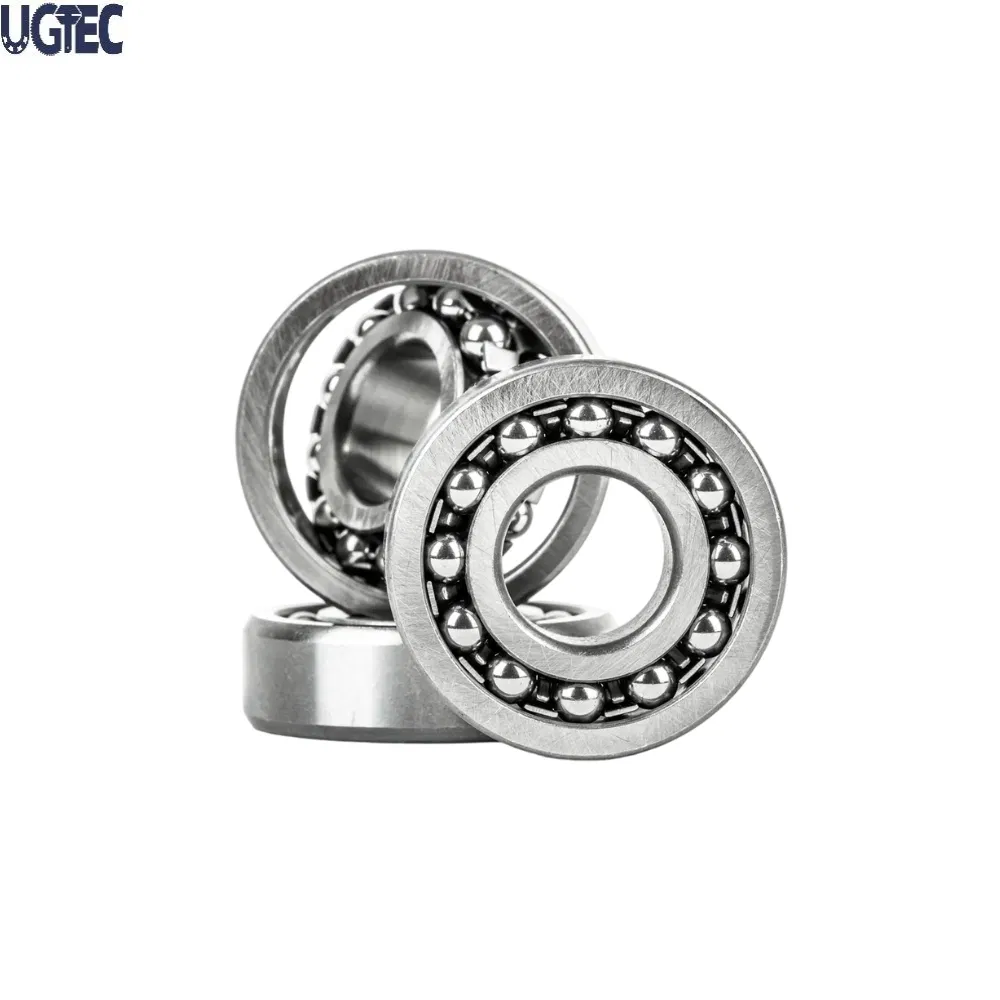

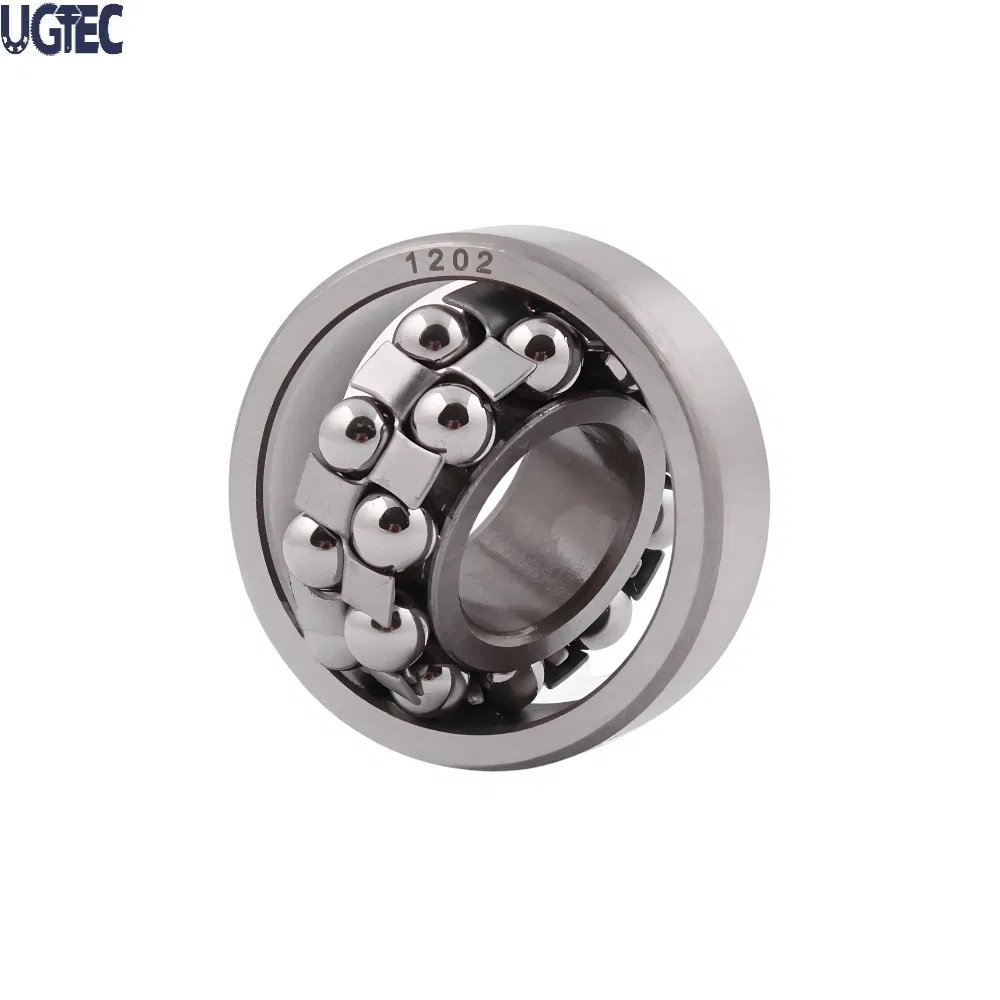

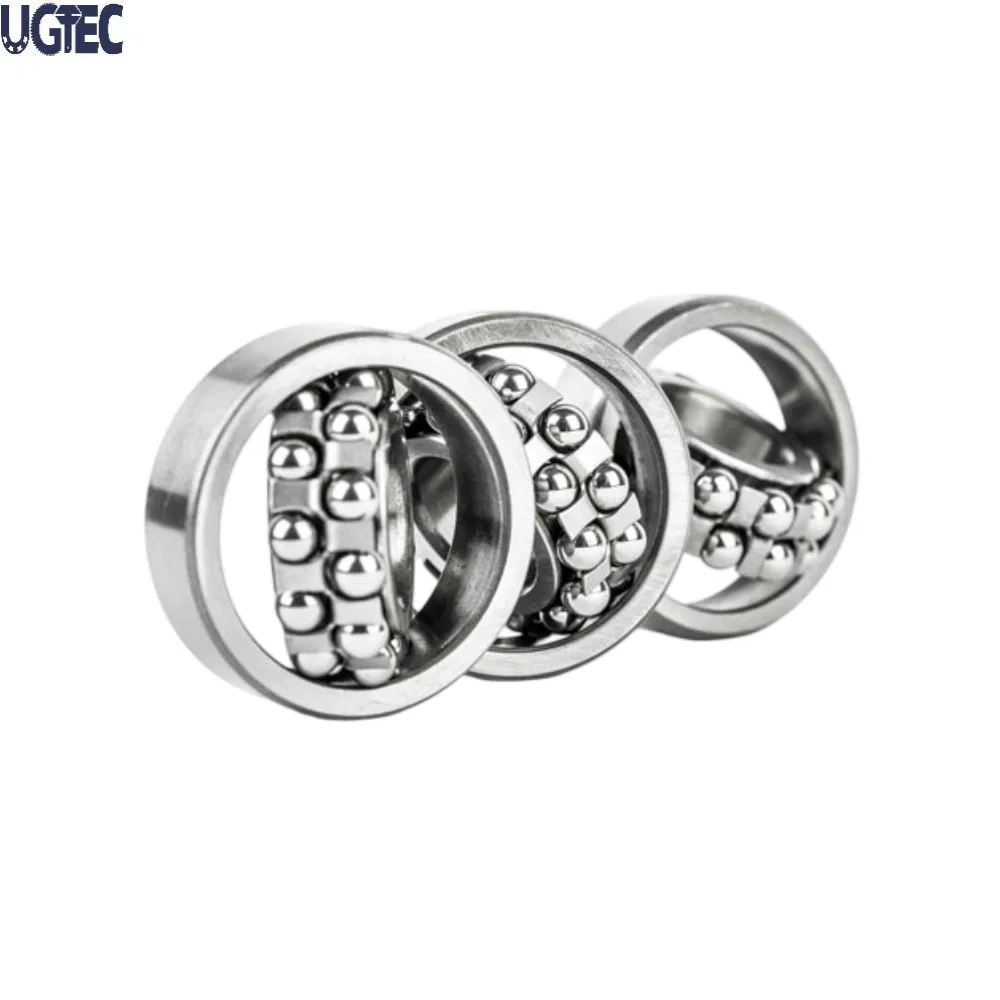

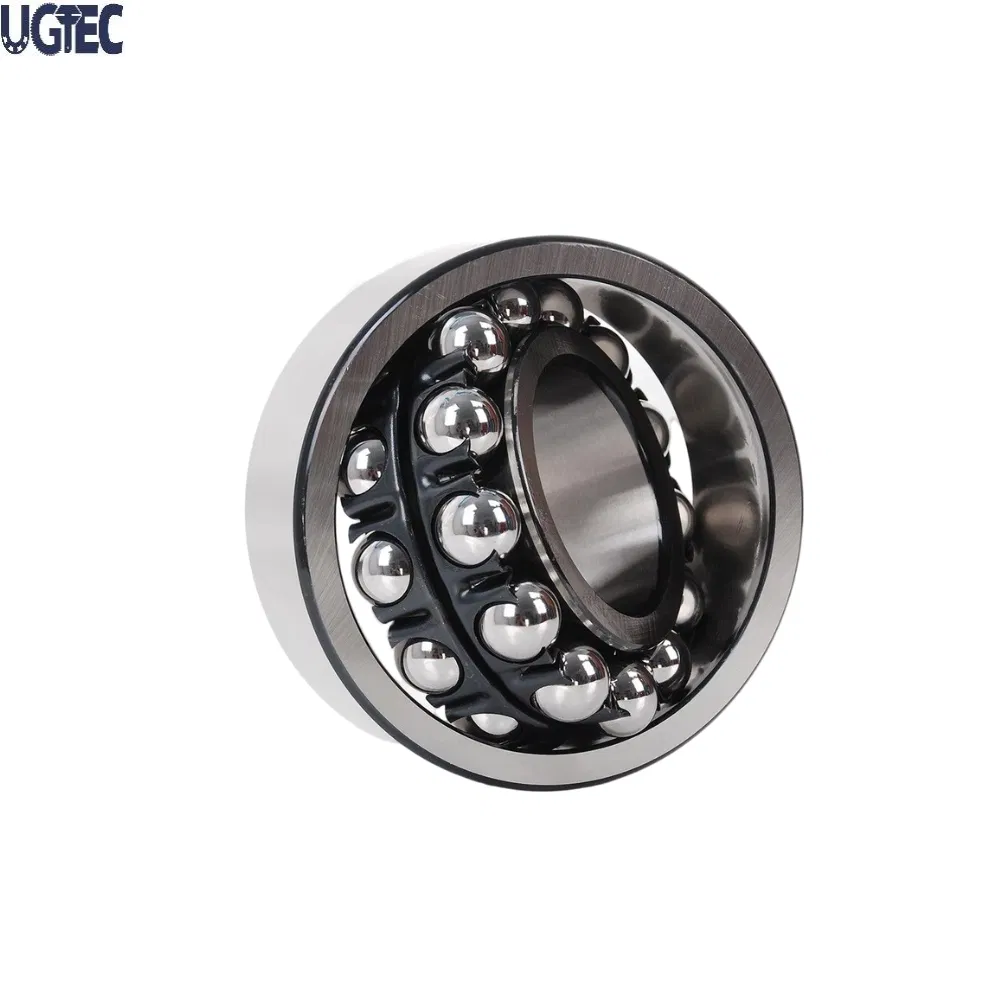

Primarily addressing misalignment issues caused by installation errors, shaft bending, or housing deformation. The spherical raceway design allows smooth operation even with slight misalignment, reducing additional load, friction, and wear while extending service life.
| Bearing No. | Dimensions (mm) | Mass (kg) | |||
|---|---|---|---|---|---|
| d | D | B | r/smin | ||
| 1200 | 10 | 30 | 9 | 0.6 | 0.033 |
| 1201 | 12 | 32 | 10 | 0.6 | 0.039 |
| 1202 | 15 | 35 | 11 | 0.6 | 0.048 |
| 1203 | 17 | 40 | 12 | 0.6 | 0.072 |
| 1204 | 20 | 47 | 14 | 1.0 | 0.120 |
| 1205 | 25 | 52 | 15 | 1.0 | 0.140 |
| 1206 | 30 | 62 | 16 | 1.0 | 0.220 |
| 1207 | 35 | 72 | 17 | 1.1 | 0.320 |

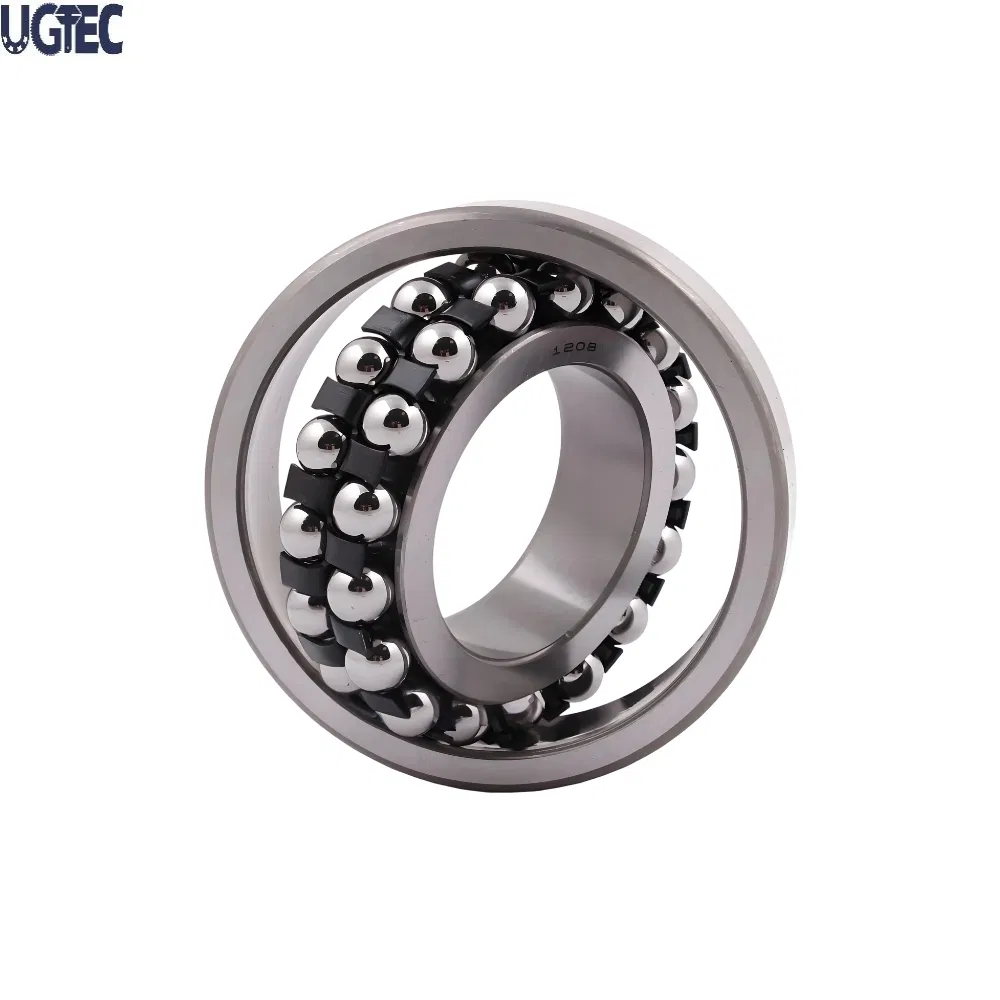

| 1208 | 40 | 80 | 18 | 1.1 | 0.415 |
| 1209 | 45 | 85 | 19 | 1.1 | 0.465 |
| 1210 | 50 | 90 | 20 | 1.0 | 0.525 |
| 2200 | 10 | 30 | 14 | 0.6 | 0.042 |
| 2205 | 25 | 52 | 18 | 1.0 | 0.150 |
| 2300 | 10 | 35 | 17 | 0.6 | 0.077 |
| 2308 | 40 | 90 | 33 | 1.5 | 0.889 |
