Square Flange Housing Chrome Steel Bearing Units for Mechanical Equipment Ucf213-40

1 / 5

Square Flange Housing Chrome Steel Bearing Units for Mechanical Equipment Ucf213-40

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

UCF213-40

Feature

Magnetically, Low Temperature, Corrosion Resistant, High Temperature, High Speed

Material

Bearing Steel

Housing Material

Cast Iron

Rows Number

Single

Operating Temp.

-20 °C to 120 °C

Lubricant

Grease

Quality

P0, P6, Z1V1, Z2V2

Product Description

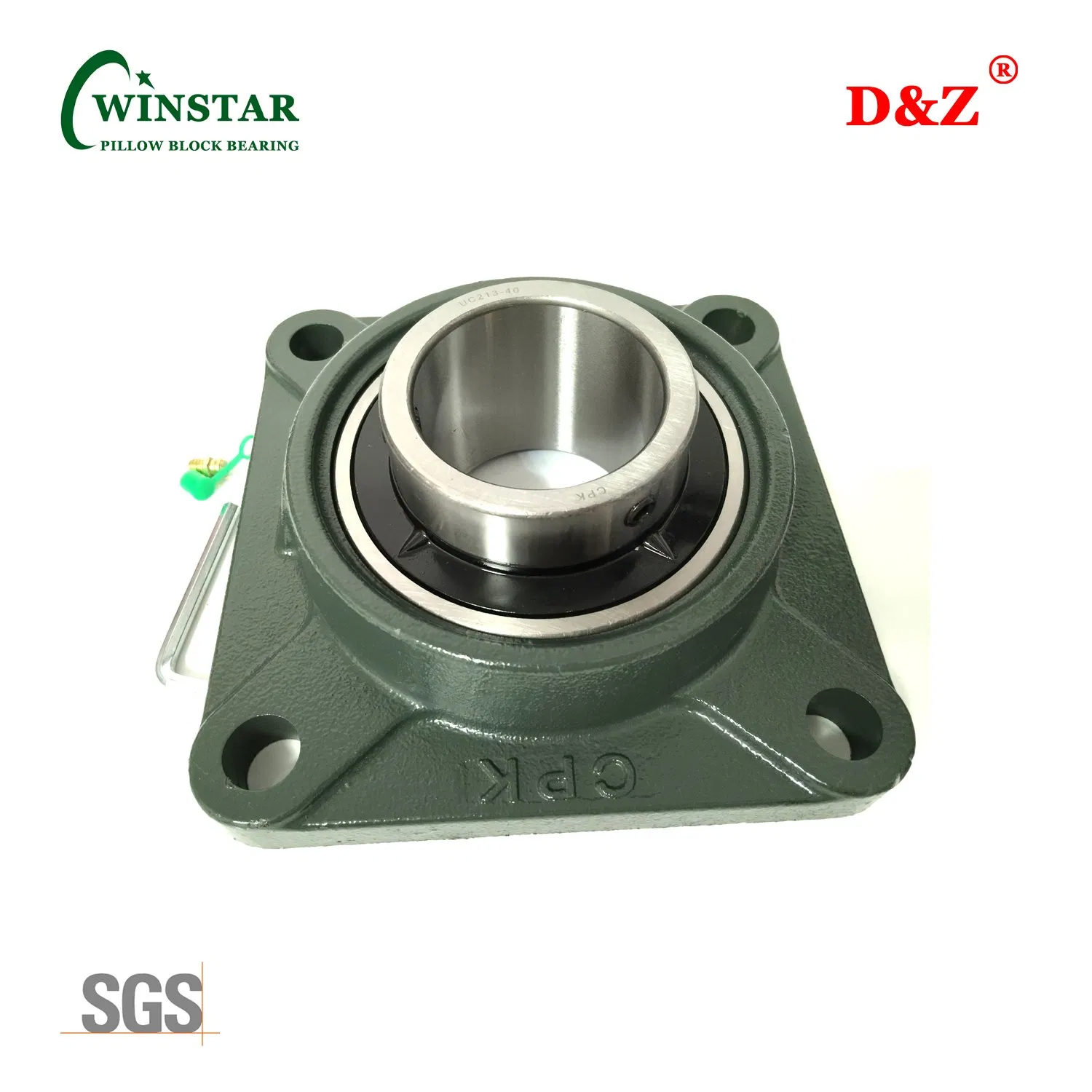

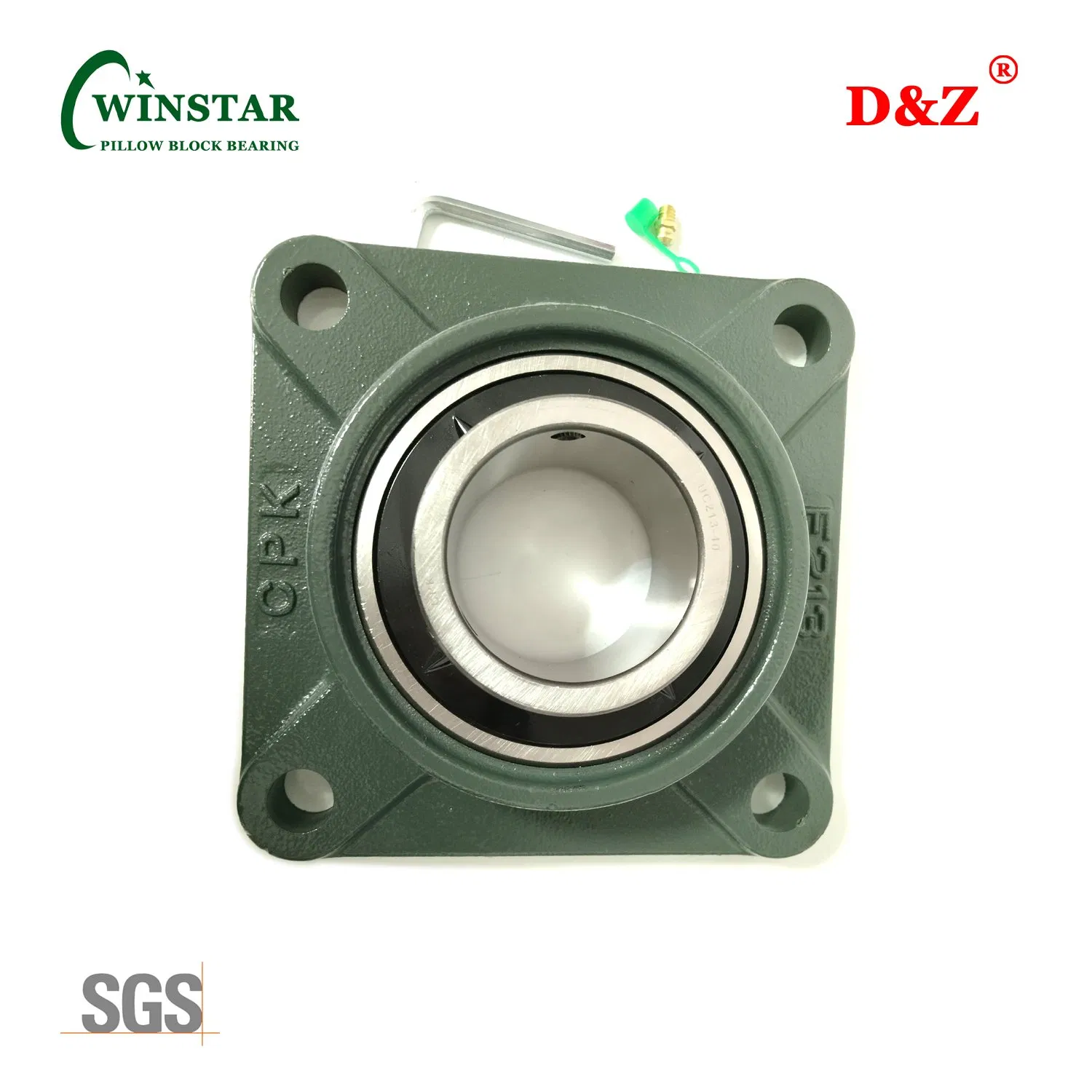

Square flanged ball bearing unit with set screw locking, cast iron housing.

UCF200 series is a Cast Iron Pillow Block Housing combined with a Chrome Steel Set Screw Insert Ball Bearing. This unit is a standard duty pillow block bearing with a wide inner ring, a standard base to center height and a 45˚ degree grease fitting allowing for re-lubrication of the insert bearing.

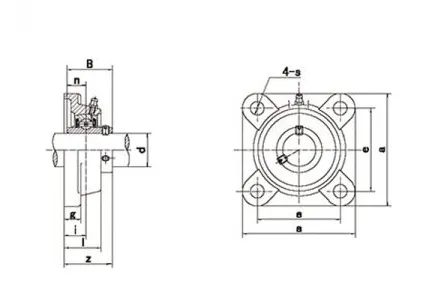

Square Flange Housing Chrome Steel Bearing Units

Technical Parameters

Bearing Number	Inner Diameter (d) MM	Width (B) MM	a	l	s	g	e	i	z	n	Bolt Size (MM)	Weight (KG)	Housing No.
UCF201	12	31	86	25.5	12	12	64	15	33.3	12.7	M10	0.59	F201
UCF202	15	31	86	25.5	12	12	64	15	33.3	12.7	M10	0.58	F202
UCF203	17	31	86	25.5	12	12	64	15	33.3	12.7	M10	0.57	F203
UCF204	20	31	86	25.5	12	12	64	15	33.3	12.7	M10	0.55	F204
UCF205	25	34.1	95	27	12	14	70	16	35.8	14.3	M10	0.73	F205
UCF206	30	38.1	108	31	12	14	83	18	40.2	15.9	M10	1.02	F206
UCF207	35	42.9	117	34	14	16	92	19	44.4	17.5	M12	1.33	F207
UCF208	40	49.2	130	36	16	16	102	21	51.2	19	M14	1.67	F208

Company Overview

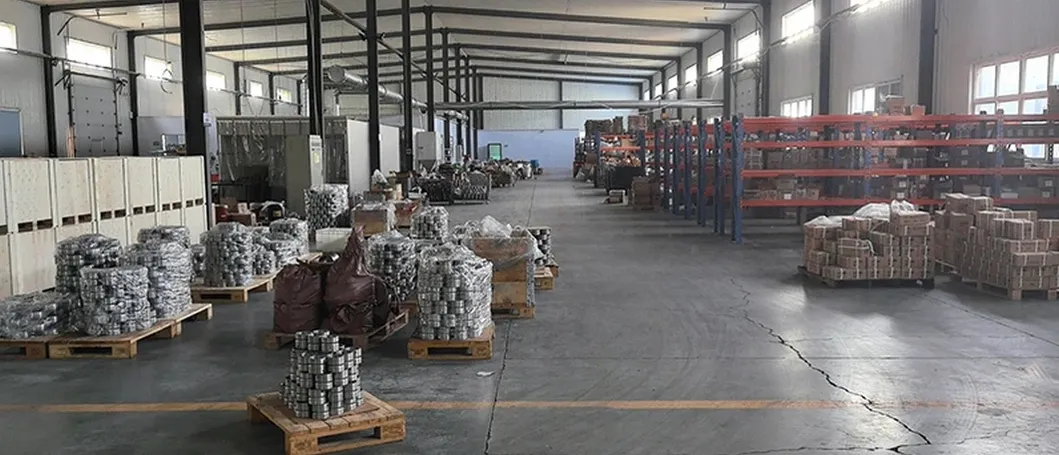

As a professional manufacturer for pillow block bearings, we have been dedicated to producing high-quality bearing Units since 2009. With many years of experience and expertise in the industry, we strive to provide our customers with reliable and efficient bearings for various applications, such as automotive, mining industry, textile industry and many other industries.

Our Advantages

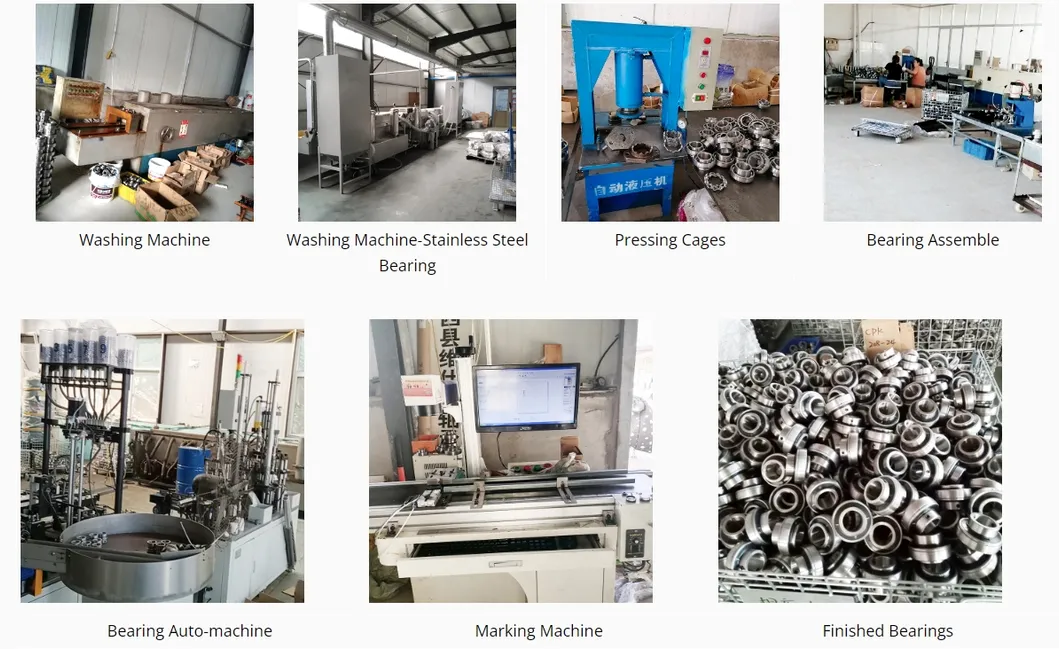

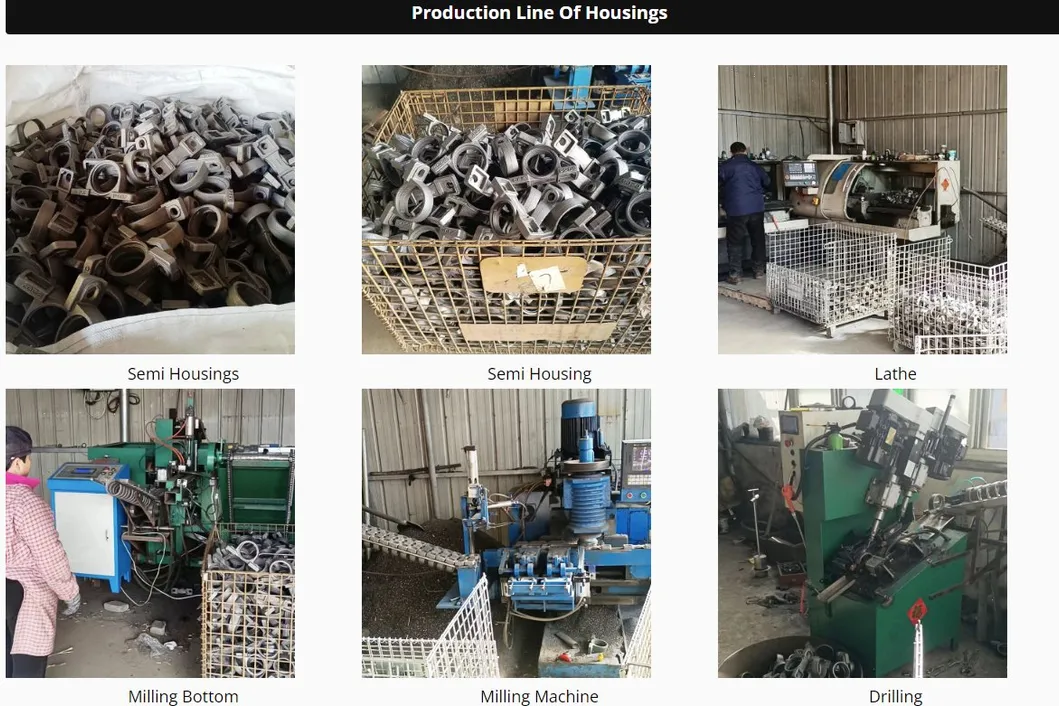

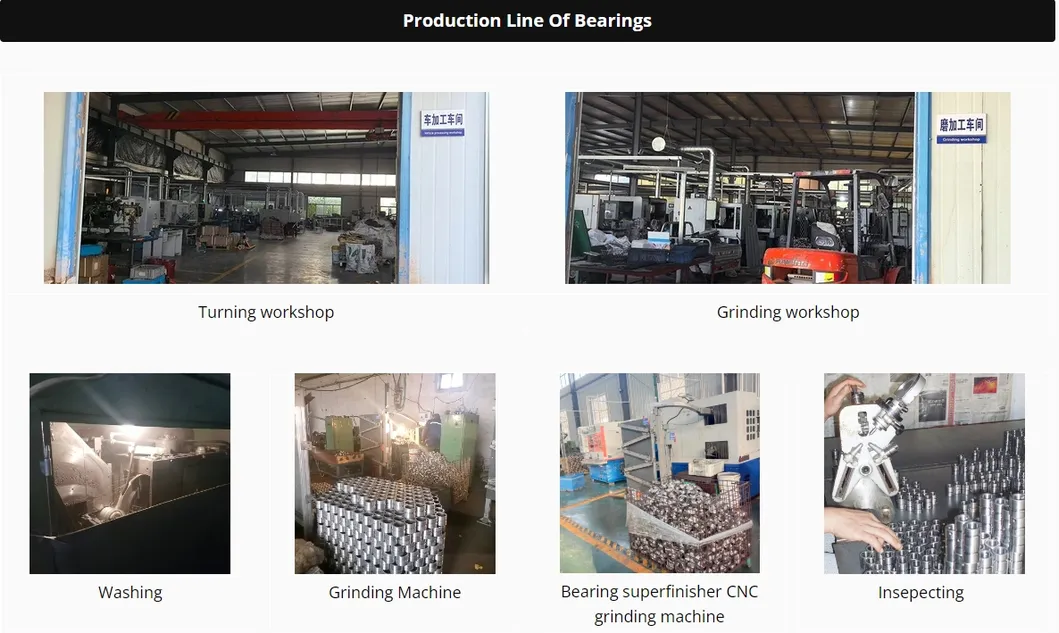

State-of-the-art technology and equipment for high-quality standard production.
Experienced engineers and technicians ensuring rigorous reliability and durability testing.
Wide range of bearing types and sizes to meet diverse industrial needs.
Commitment to precision and long-lasting performance in all bearing units.

After Sales Service

We provide top-notch after-sales service to our customers. Our team of experienced technicians is always ready to assist with any technical issues or questions you may have regarding our products, ensuring smooth operation for your mechanical equipment.

Frequently Asked Questions

Q1: What materials are used in the UCF200 series? A: The UCF200 series features high-quality Chrome Steel (Bearing Steel) for the insert ball bearing and durable Cast Iron for the pillow block housing.

Q2: Can these bearing units be re-lubricated? A: Yes, they come equipped with a 45-degree grease fitting which allows for easy re-lubrication of the internal bearing to extend service life.

Q3: What is the operating temperature range? A: These units are designed to operate efficiently within a temperature range of -20 °C to 120 °C.

Q4: How is the bearing secured to the shaft? A: The UCF series uses a set screw locking mechanism on the wide inner ring to securely attach the bearing to the cylindrical shaft.

Q5: What are the typical applications for square flange bearing units? A: They are widely used in automotive systems, textile machinery, mining equipment, and various other industrial mechanical assemblies.
