Ebmotrix Bearings
1 / 5
| Model NO. | UC202+F204 |
| Feature | High Temperature, High Speed |
| Material | Cast Iron & Bearing Steel (GCr15) |
| Quality Level | P0, P2, P4, P5, P6 |
| Seal Type | Black Seal, F Seal, Four Star Seal, R3 Seal |
| Applications | Concrete Mixer Truck, Construction Equipment, Agriculture Machinery, Printing Machines, Crane, Excavator, etc. |
| Package Size | 10.00cm * 10.00cm * 10.00cm |
| Package Gross Weight | 2.500kg |
| Lead Time | 5~30 Days |

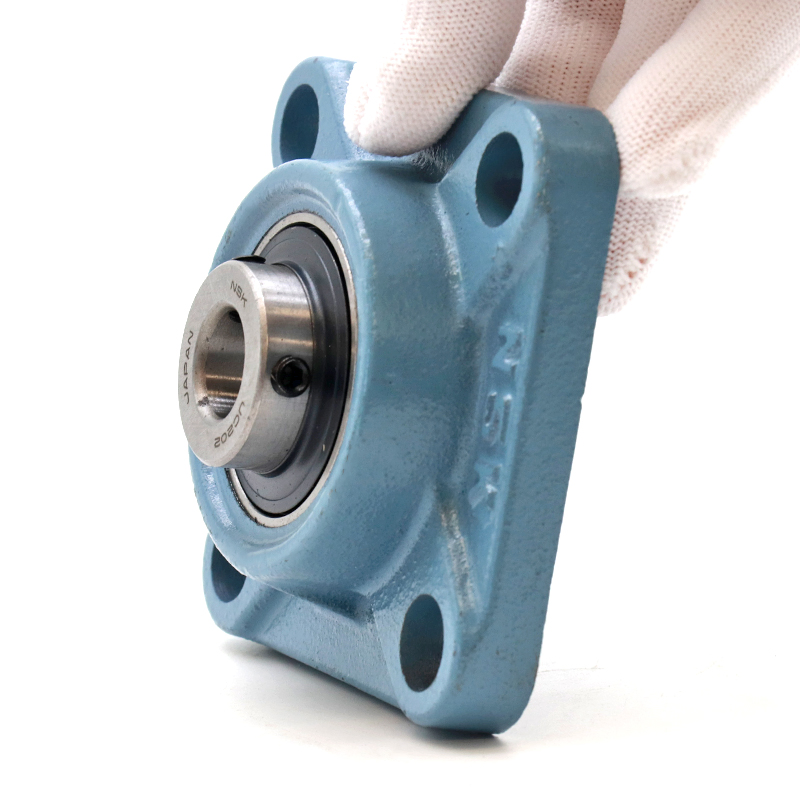

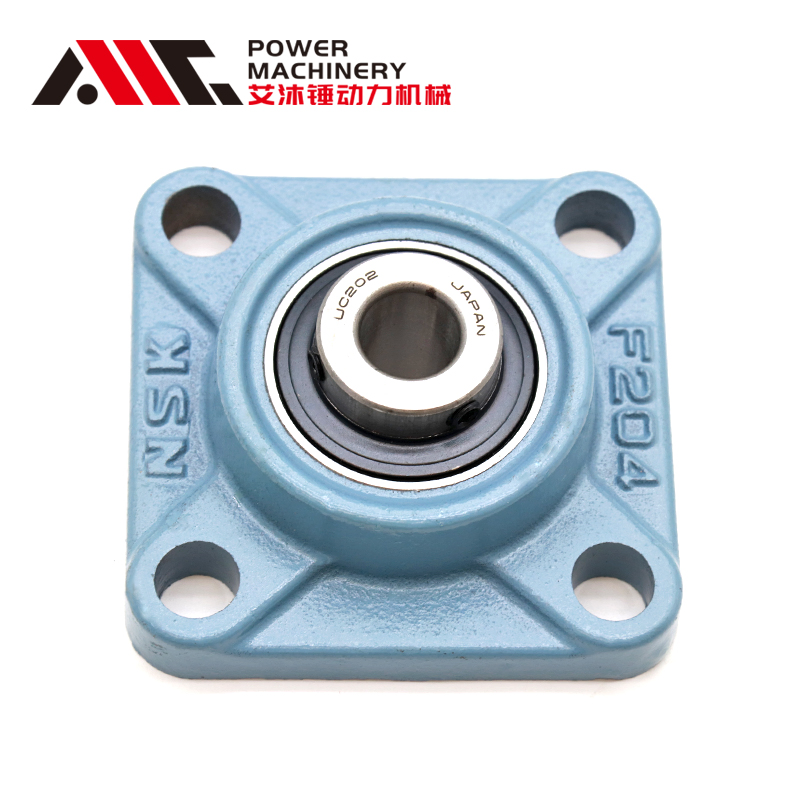

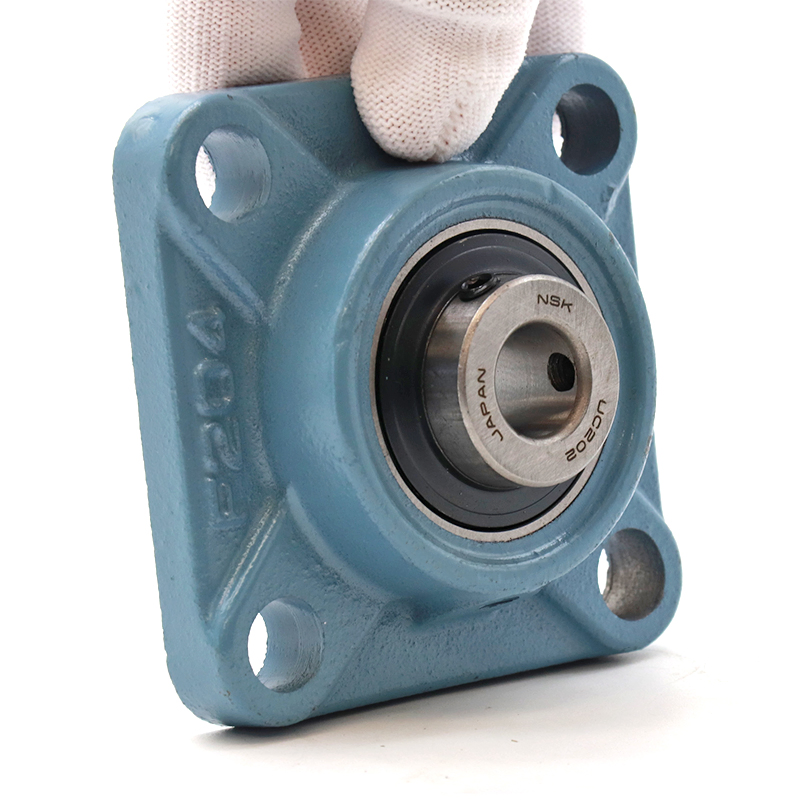

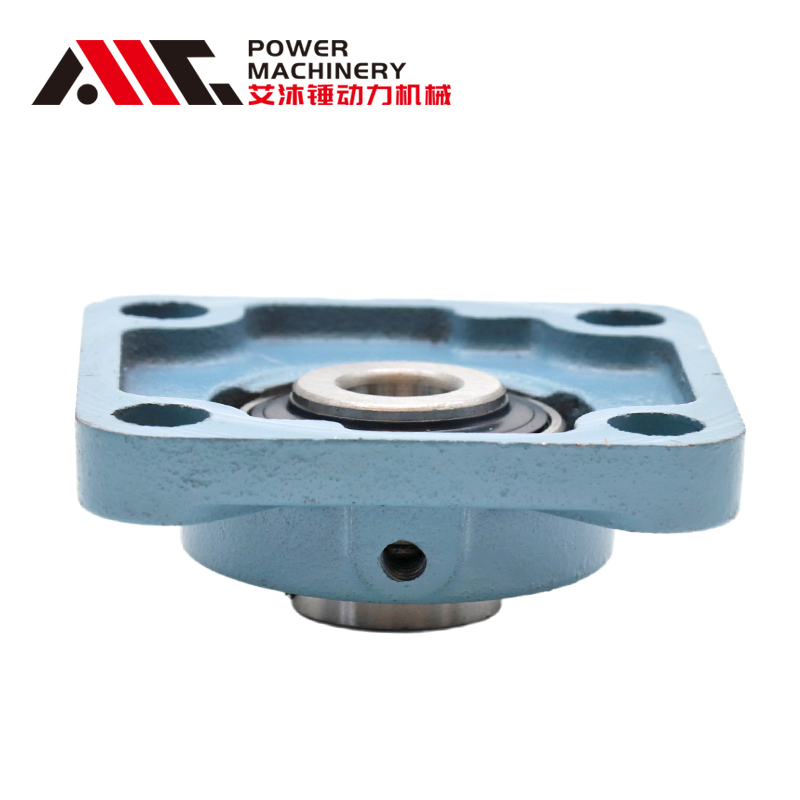

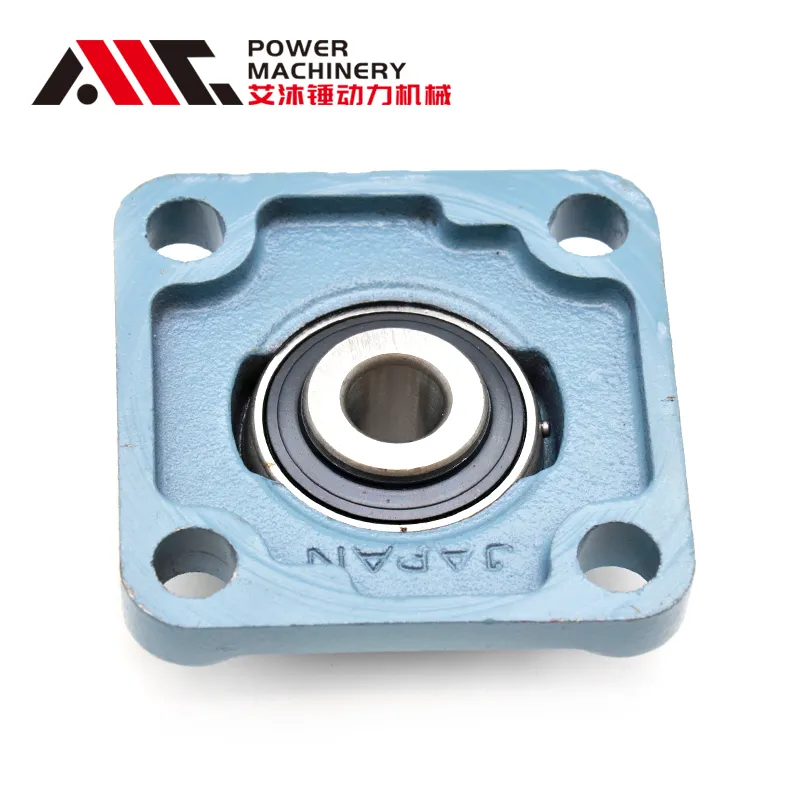

Pillow Block Bearing Unit: UC202+F204
| Specification Item | Measurement Data |
|---|---|
| Product No. | UC202+F204 |
| Housing Overall Length | 86 mm |
| Housing Overall Width | 29.5 mm |
| Housing Overall Height | 24.5 mm |
| Insert Bearing (d) | 15 mm |
| Insert Bearing (D) | 47 mm |
| Insert Bearing (B) | 31 mm |
| Weight | 0.85 kg |
We utilize high-grade bearing steel (GCr15) instead of standard carbon steel, ensuring significantly higher hardness and an extended service life.

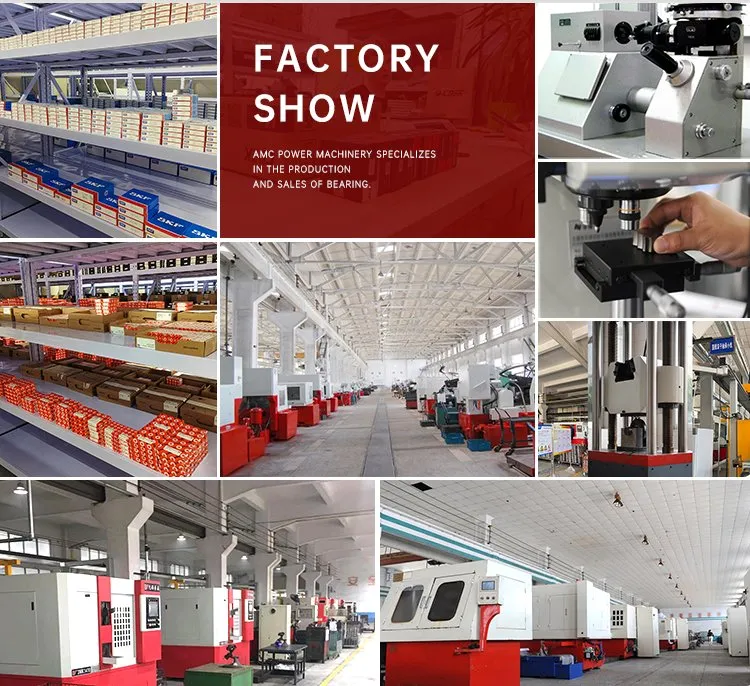

Equipped with our own facility, we maintain stable temperature and speed control to increase the toughness of the steel, avoiding the brittleness often found in outsourced products.
Our bearings are engineered to a height accuracy of 0~-0.004mm, supporting rapid speeds with exceptional smoothness.
Through multiple grinding stages, the chamfers and surfaces are polished to a high degree, resulting in low noise and high operational efficiency.
