| Model NO. | MTSV71904 | Outer Dimension | Small (28-55mm) |
| Material | Bearing Steel | Spherical | Non-Aligning Bearings |
| Load Direction | Axial Bearing | ID / Od / B | 15mm / 35mm / 11mm |
| Weight | 0.03kg | Production Capacity | 1000PCS/Week |
| Product Name | Angular contact ball bearing |
| Series | C72 series |
| Contact Angle | 15° |
| Ring Material | Gcr15/ Carbon Steel/ Stainless Steel/ Si3N4/ ZrO2 |
| Cage Material | Nylon / Phenolic Resin |
| Load Rating (Cdyn) | 7.35kN |
| Attainable Speed (Oil) | 150,000 RPM |
| Precision Class | P4, P5 or requested |
| Application | Spindle, Auto, tractor, machine tool, electric machine, water pump, agricultural machinery, textile machinery, air compressor, shipping, logistic, aerospace |

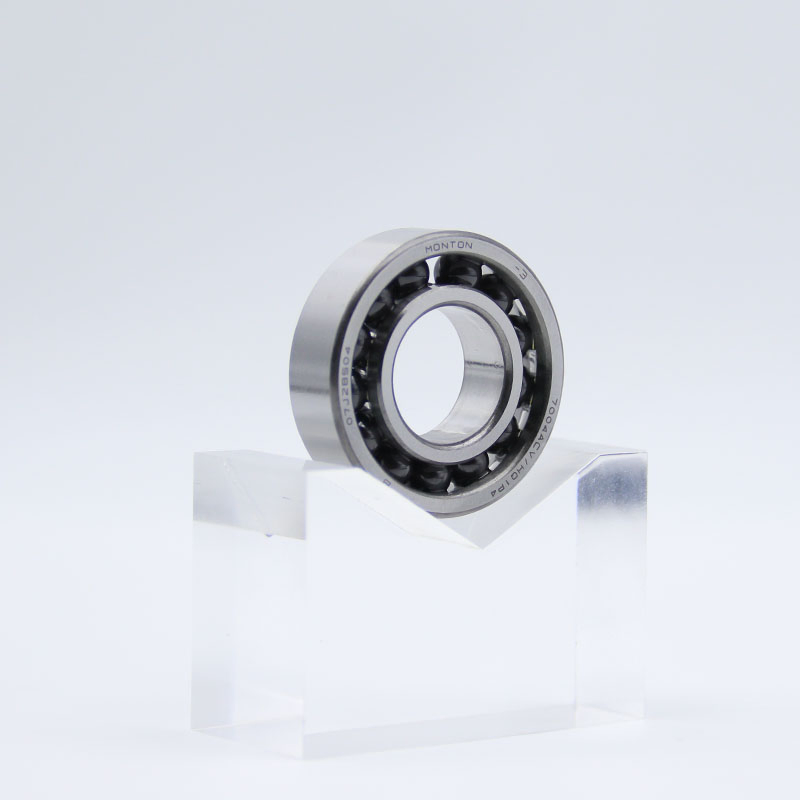

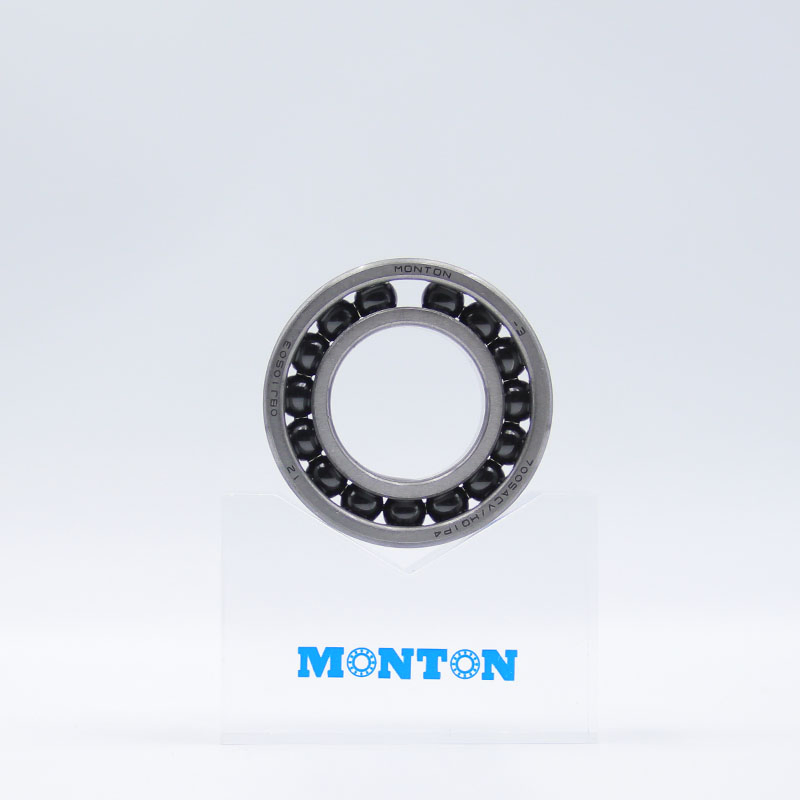

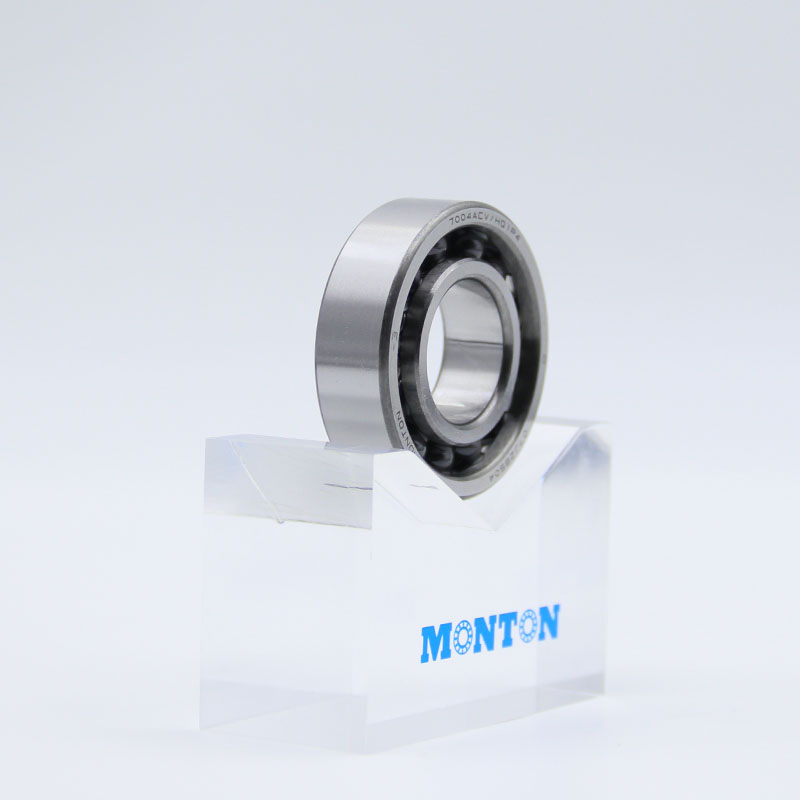

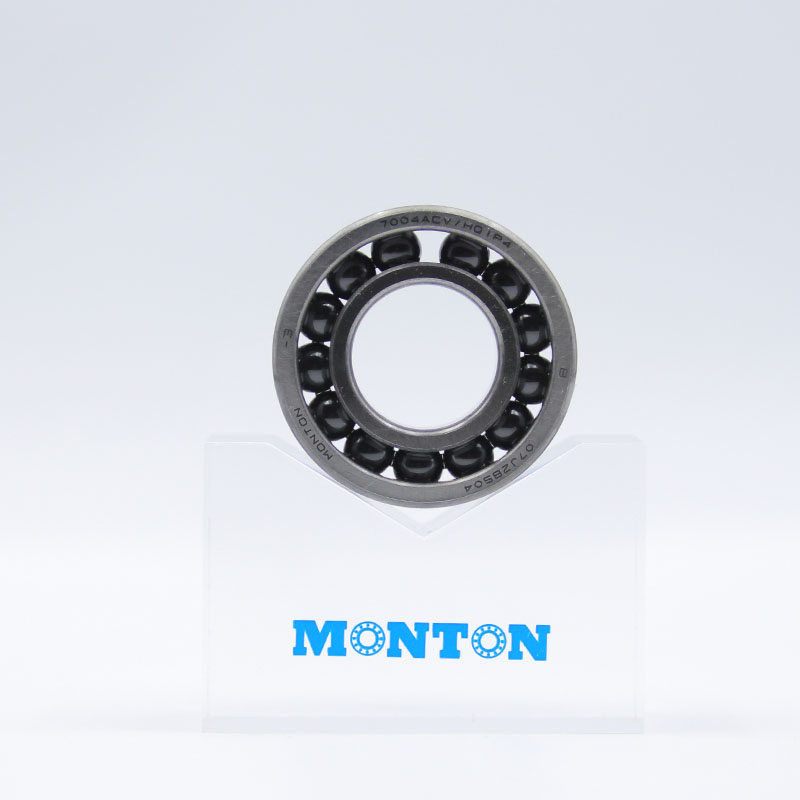

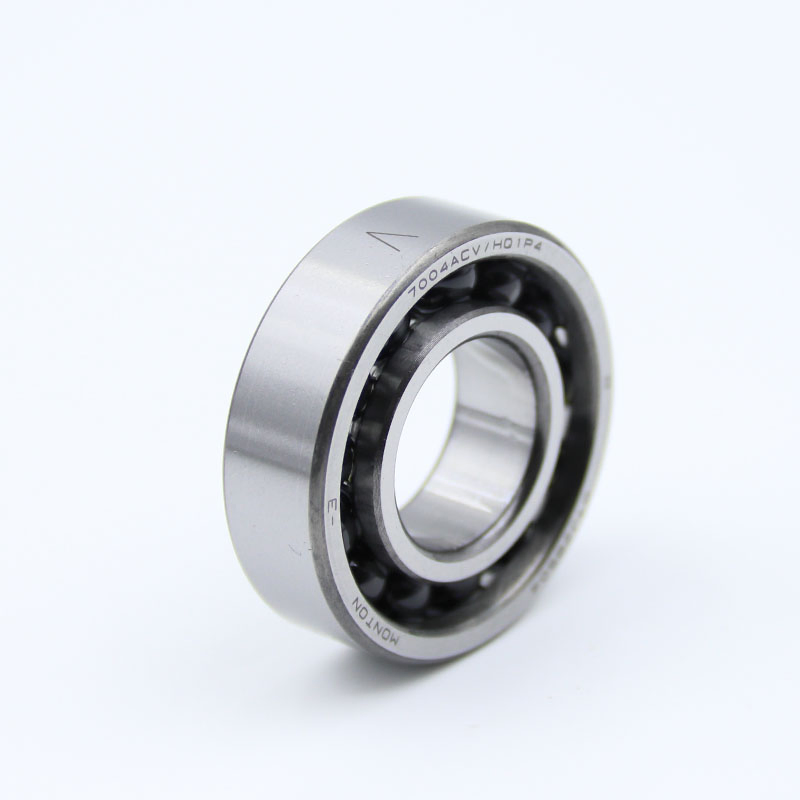

Full ceramic turbine bearings are designed for model gas jet turbine applications. These bearings play a vital role in ensuring accuracy and durability for high-speed performance.
We offer full complement (no cage/retainer) ceramic solutions with ABEC 7 tolerance (P4). The Si3N4 (Silicon Nitride) ceramic grade is utilized for its suitability in high-speed, long-endurance environments.
Benefits include reduced weight, reduced ball inertia, and massive improvements in low lubrication scenarios. The high hardness of ceramic-on-ceramic systems provides superior resistance against hard particles and ensures 100% corrosion resistance with no ferritic content.
| Bearing Code | d (mm) | D (mm) | B (mm) |
| MTSV7000 | 10 | 26 | 8 |
| MTSV708 | 8 | 22 | 7 |
| MTSV788 | 8 | 16 | 6 |
| MTSV7001 | 12 | 28 | 8 |
| MTSV7002 | 15 | 32 | 9 |
| MTSV71904 | 20 | 37 | 9 |
