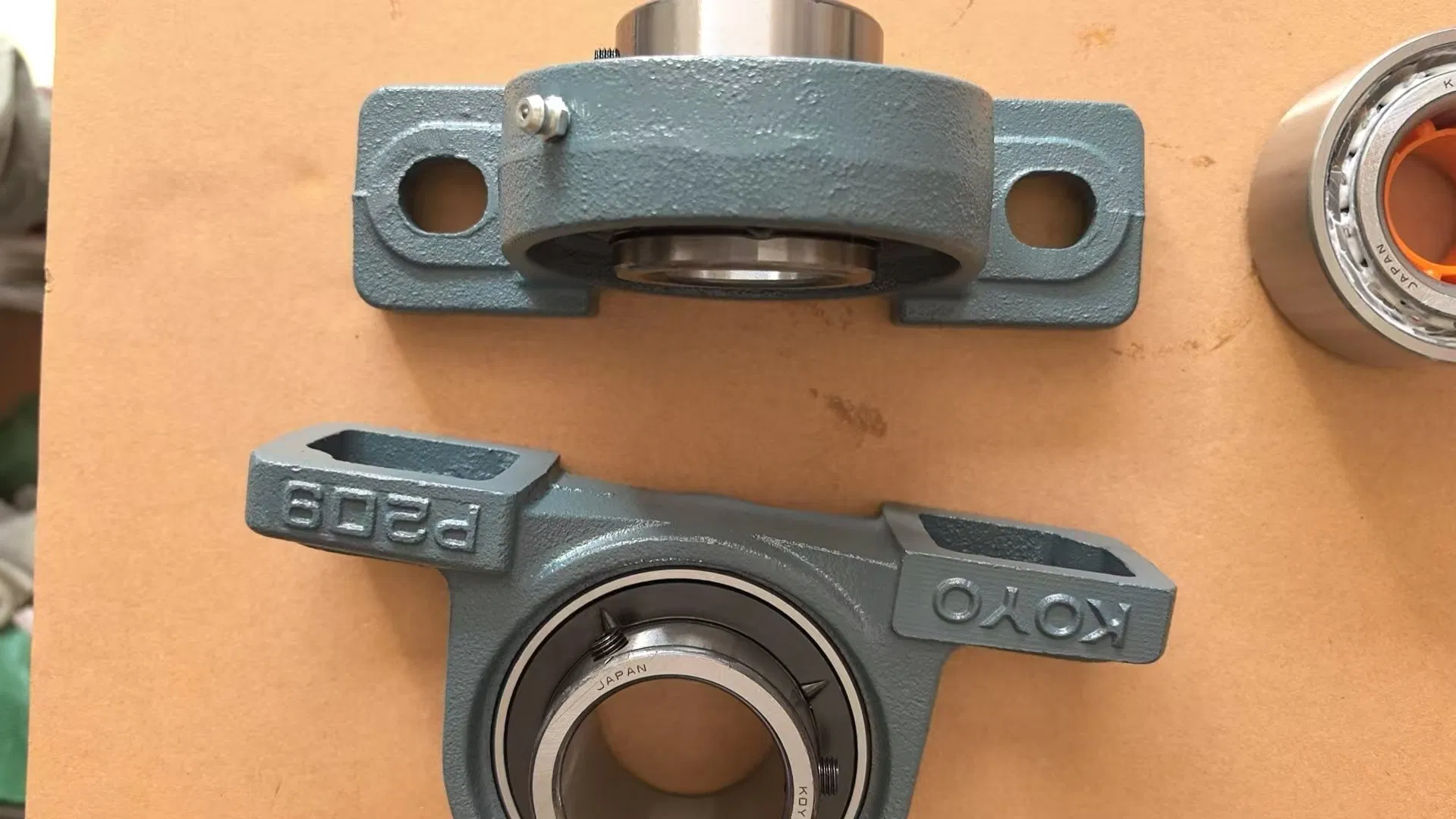

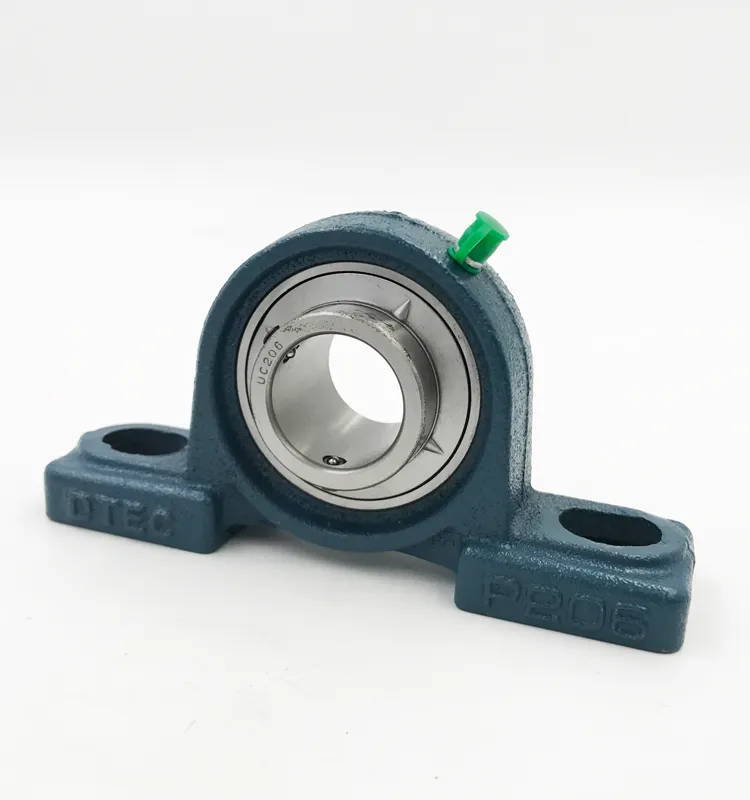

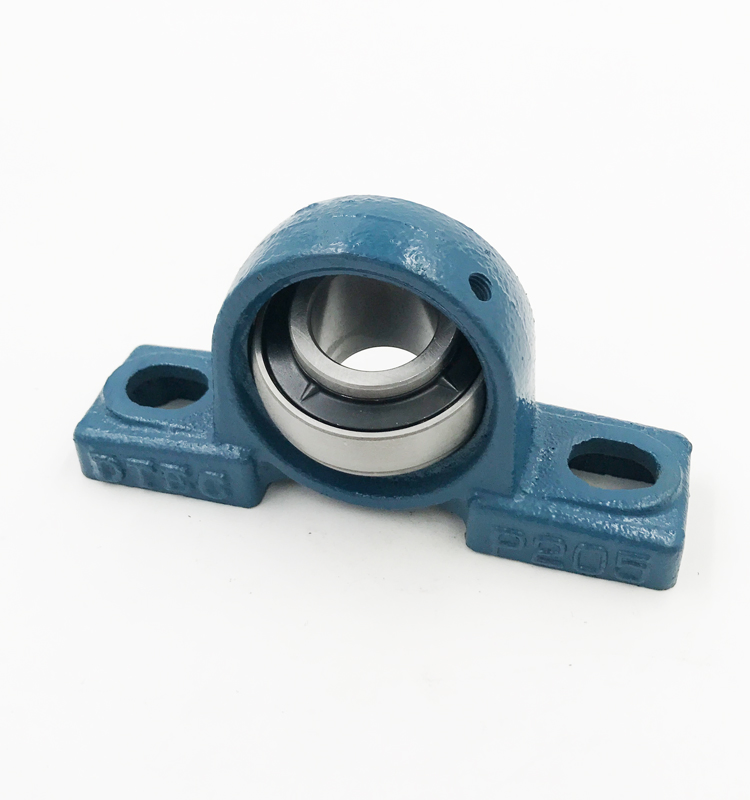

Pillow Block Bearings consist of an insert bearing mounted in a housing, which can be bolted to a support surface. Better support shafts rotating inside your application with durable and robust pillow block bearings, especially designed for applications prone to shaft bowing at high speeds.
Strong and stiff cast iron housing, suitable for constant and alternating directions of rotation.
Take-up ball bearing units typically mounted in take-up frames for better load balance.

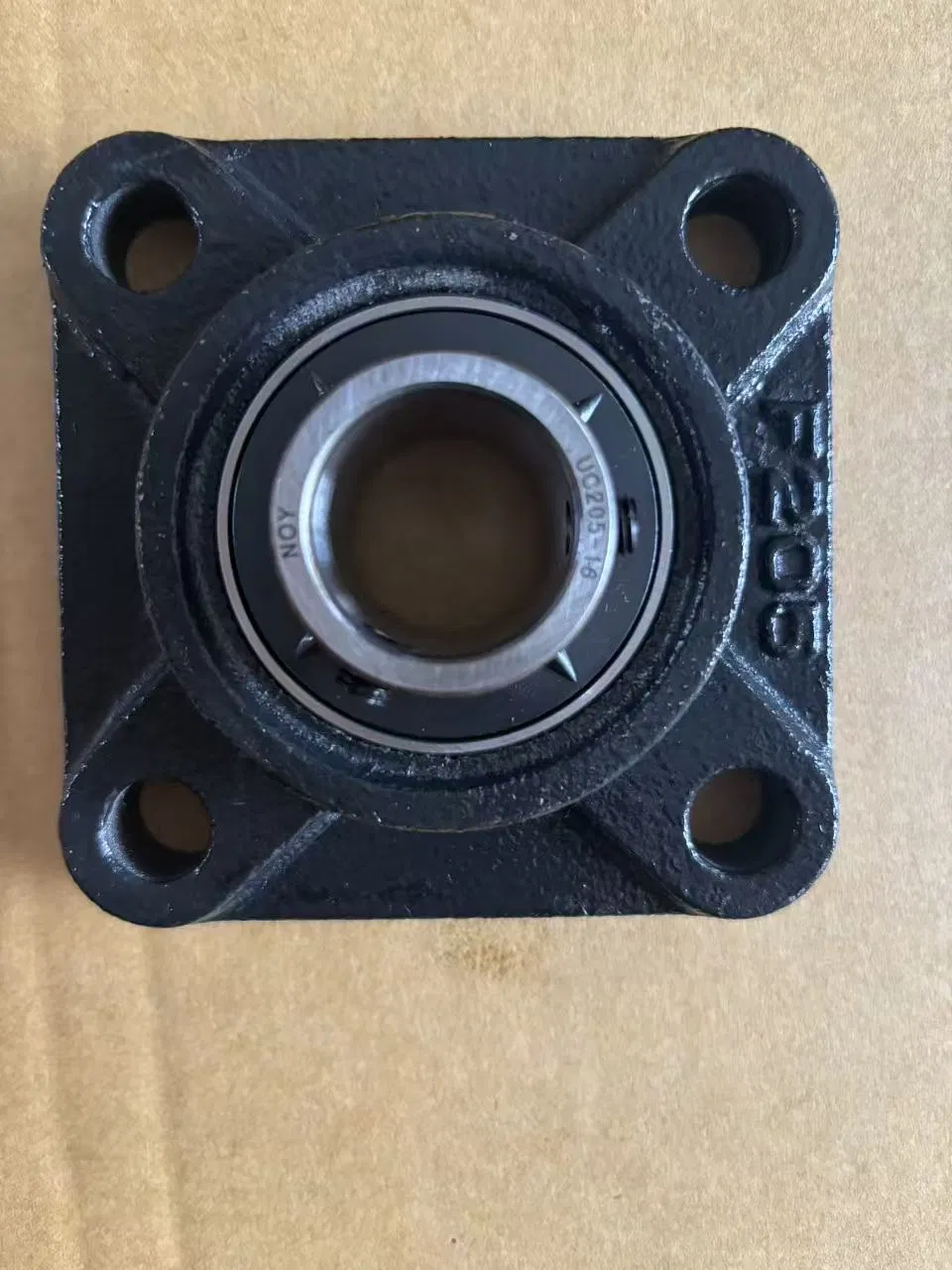

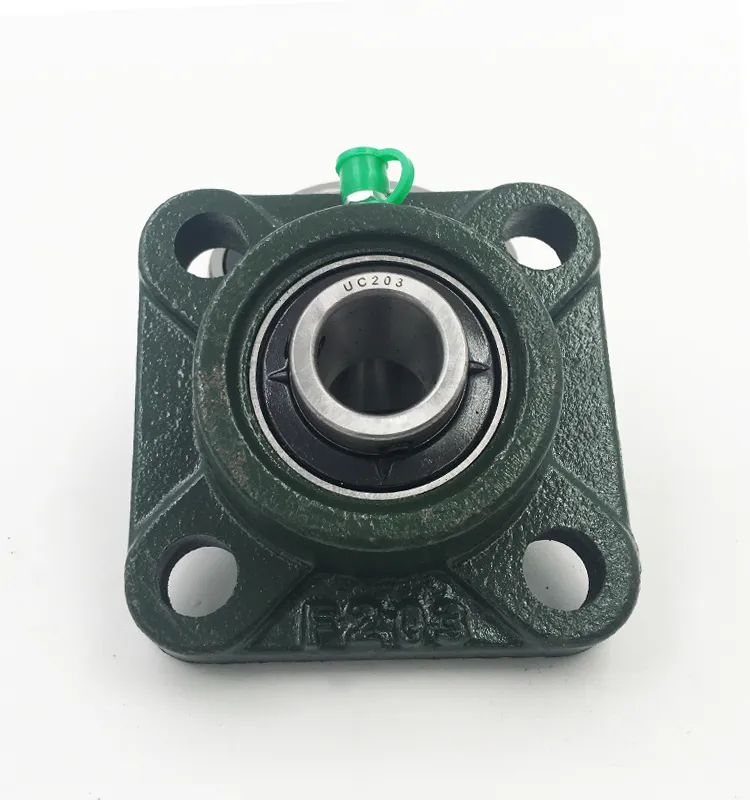

Square flanged units compliant with Japanese Industrial Standards, ideal for machine walls.

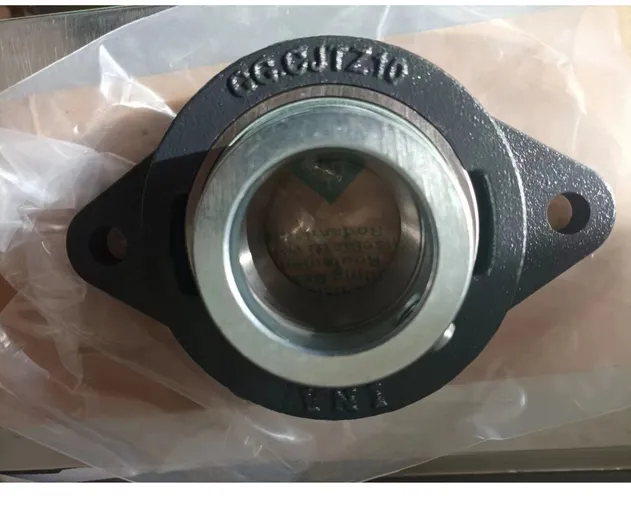

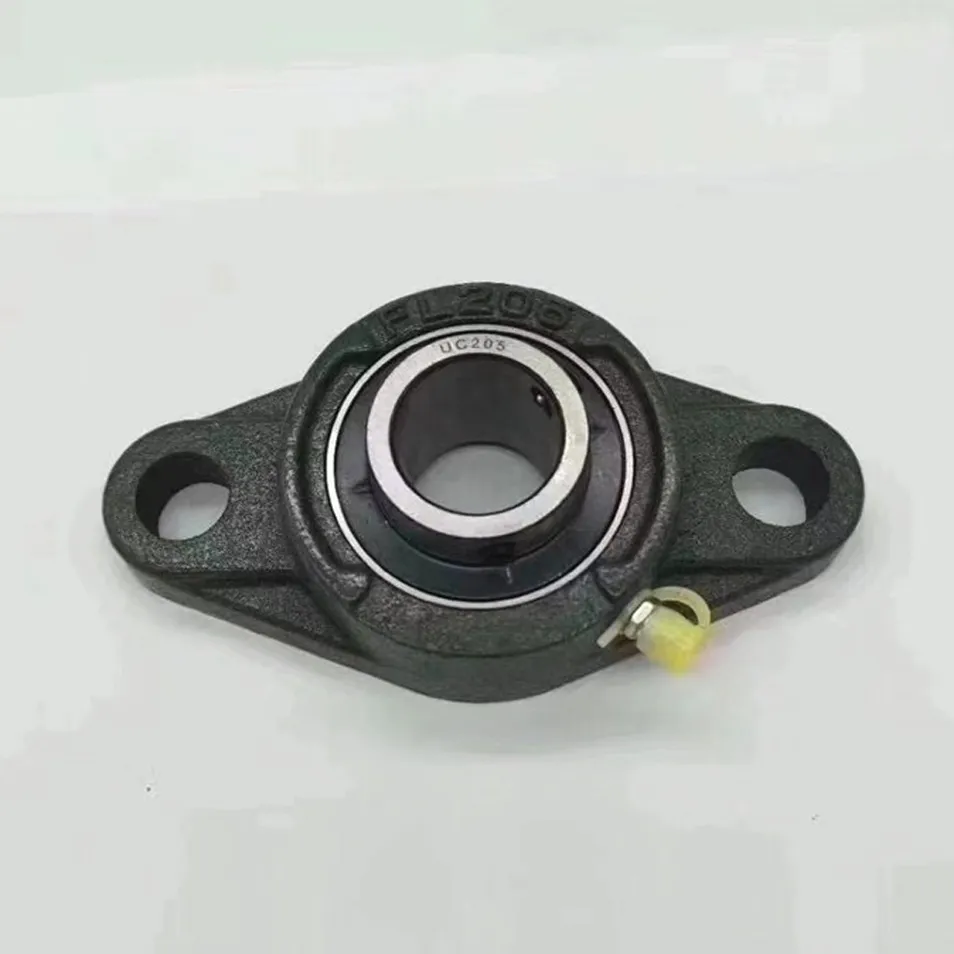

Two-bolt flange units for applications where mounting space is limited.
| Model NO. | d (mm) | D (mm) | H (mm) | Weight (kg) | Model NO. | d (mm) | D (mm) | H (mm) | Weight (kg) |
| UCP201 | 12 | 127 | 30.2 | 0.7 | UCF201 | 12 | 86 | 33.3 | 0.6 |
| UCP202 | 15 | 127 | 30.2 | 0.7 | UCF202 | 15 | 86 | 33.3 | 0.6 |
| UCP204 | 20 | 127 | 33.3 | 0.7 | UCF204 | 20 | 86 | 33.3 | 0.6 |
| UCP205 | 25 | 140 | 36.5 | 0.8 | UCF205 | 25 | 95 | 35.8 | 0.8 |
| UCP208 | 40 | 184 | 49.2 | 1.9 | UCF208 | 40 | 130 | 51.2 | 1.7 |
| UCP210 | 50 | 206 | 57.2 | 2.6 | UCF210 | 50 | 143 | 54.6 | 2.5 |
Low Noise

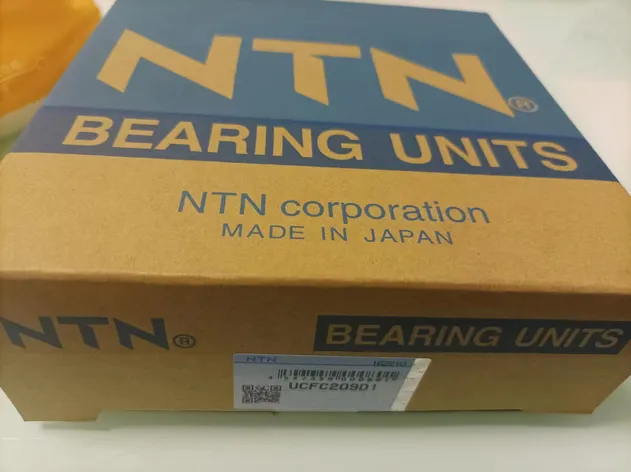

Long-life working time
High Precision
