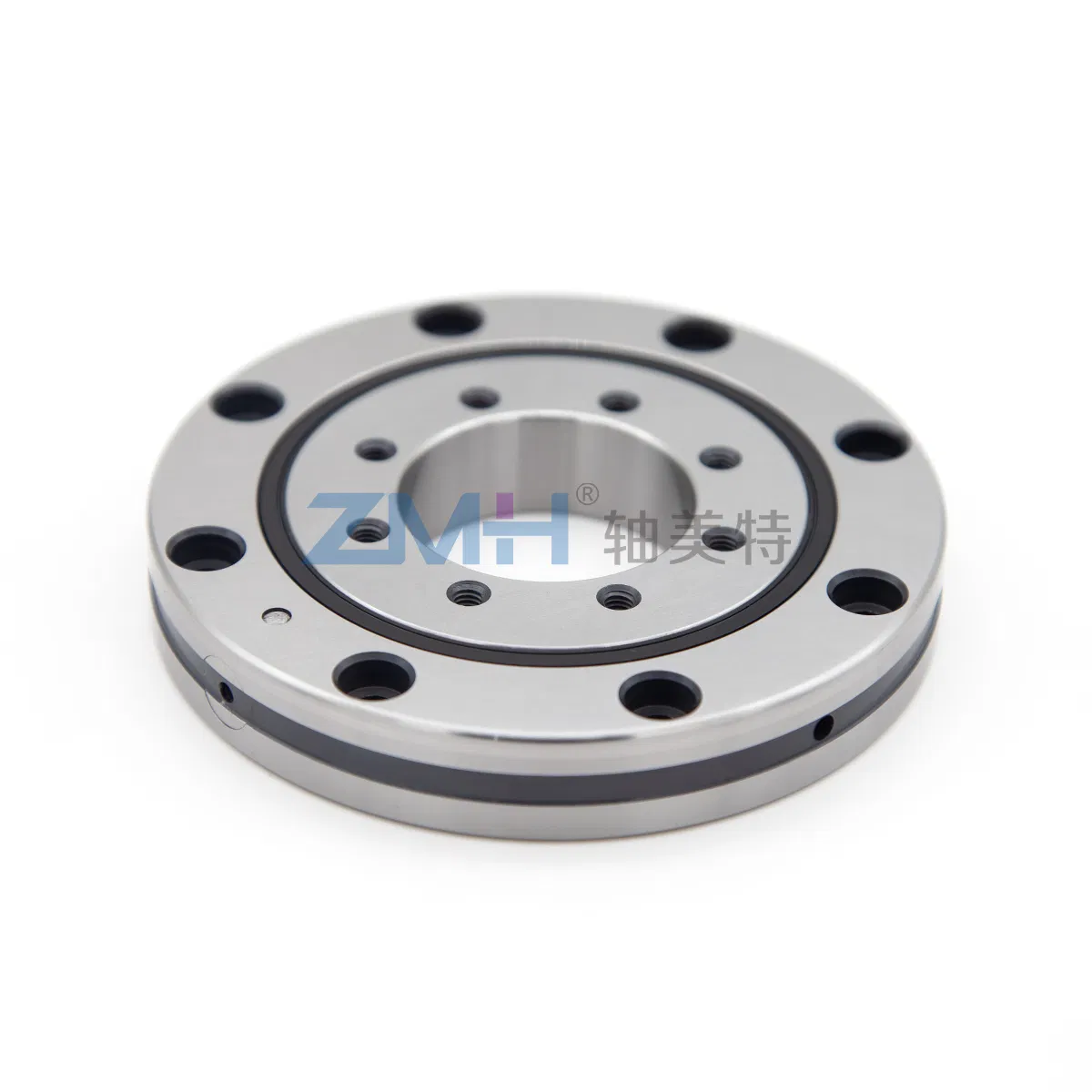

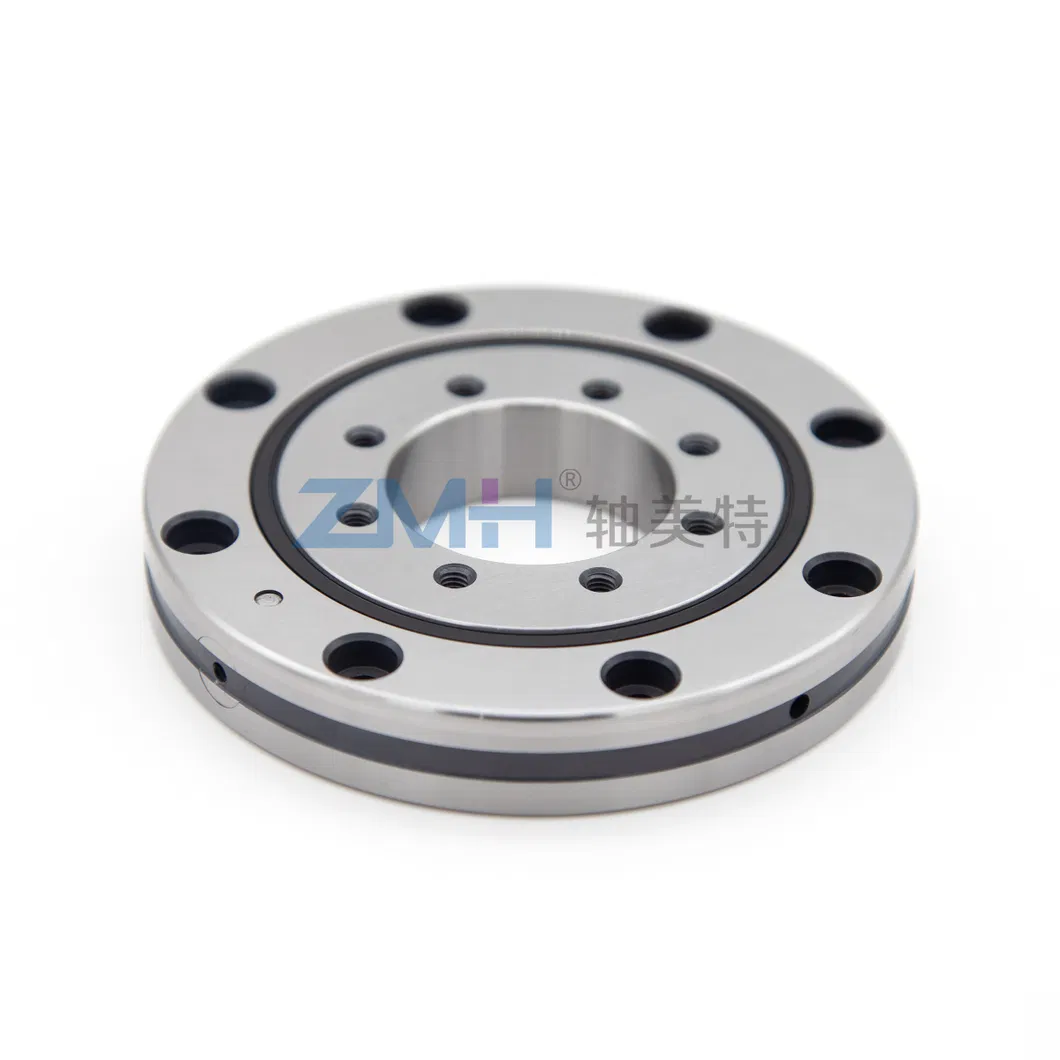

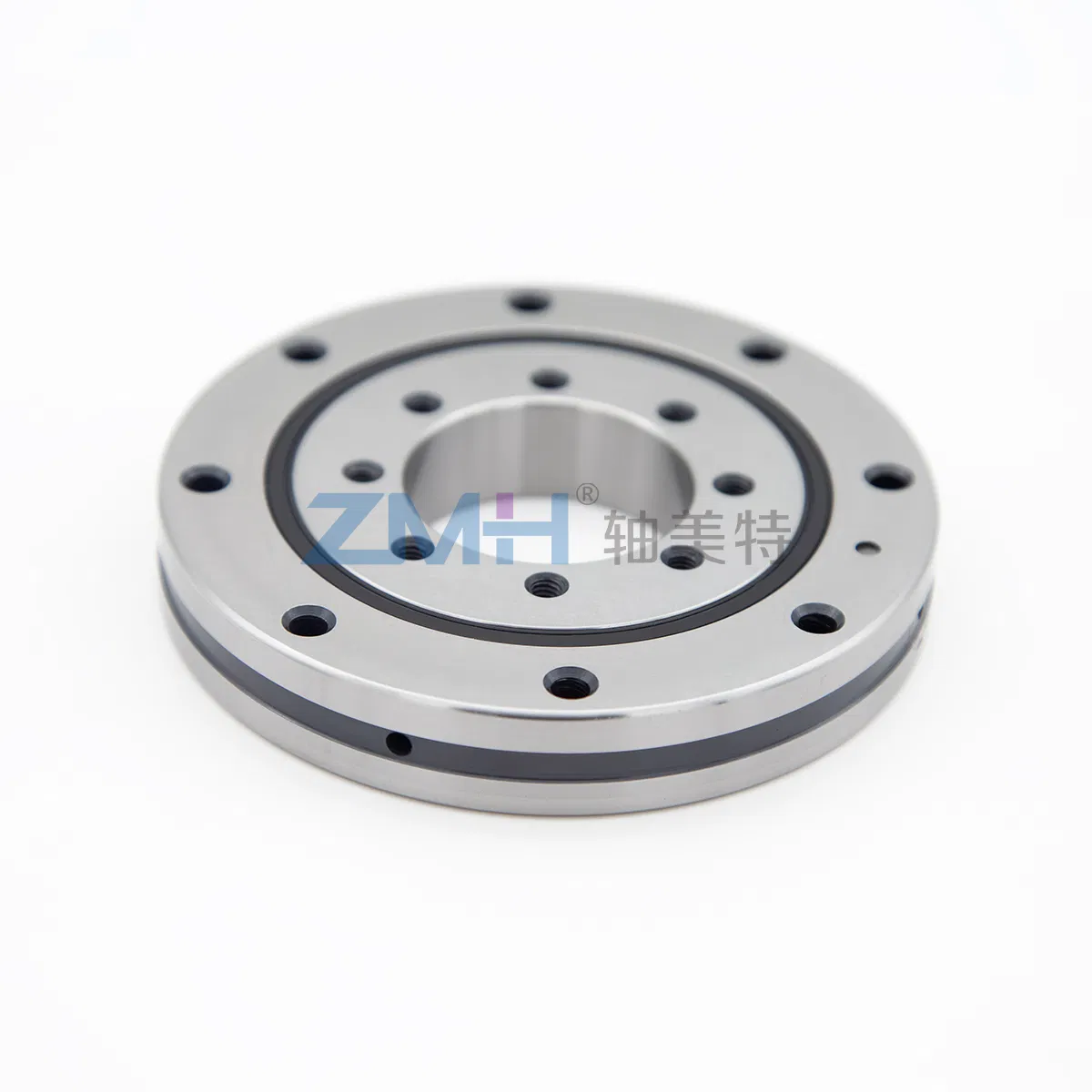

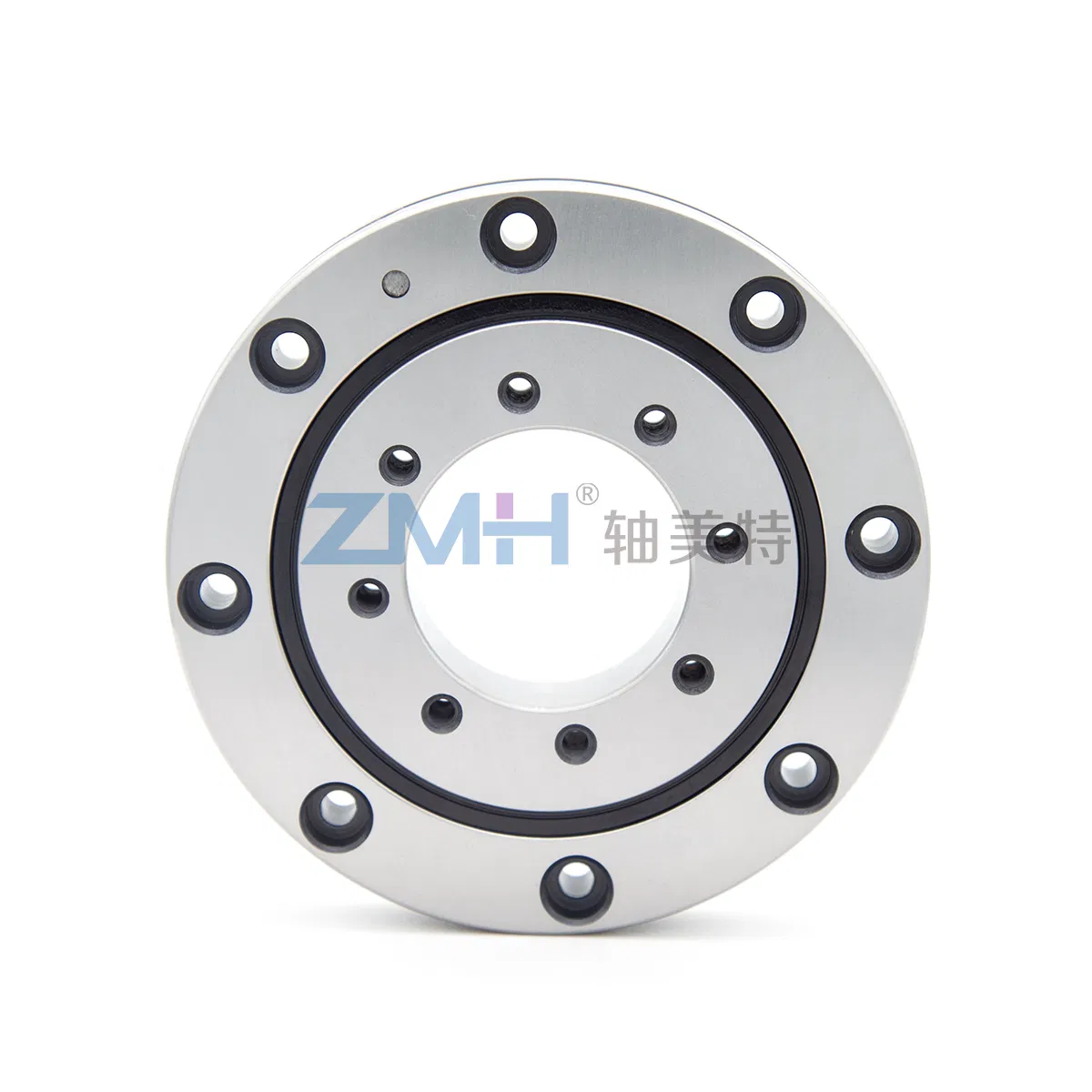

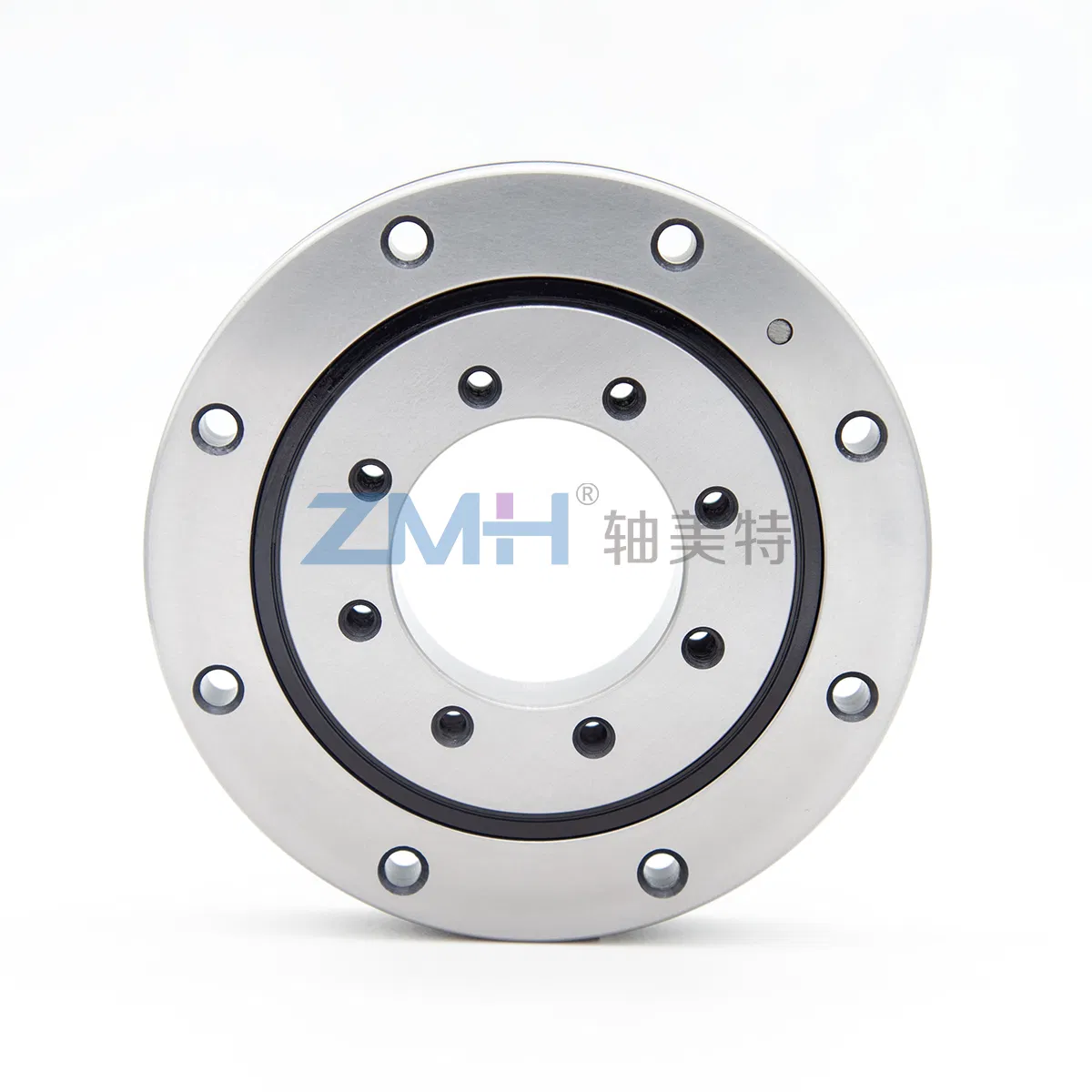

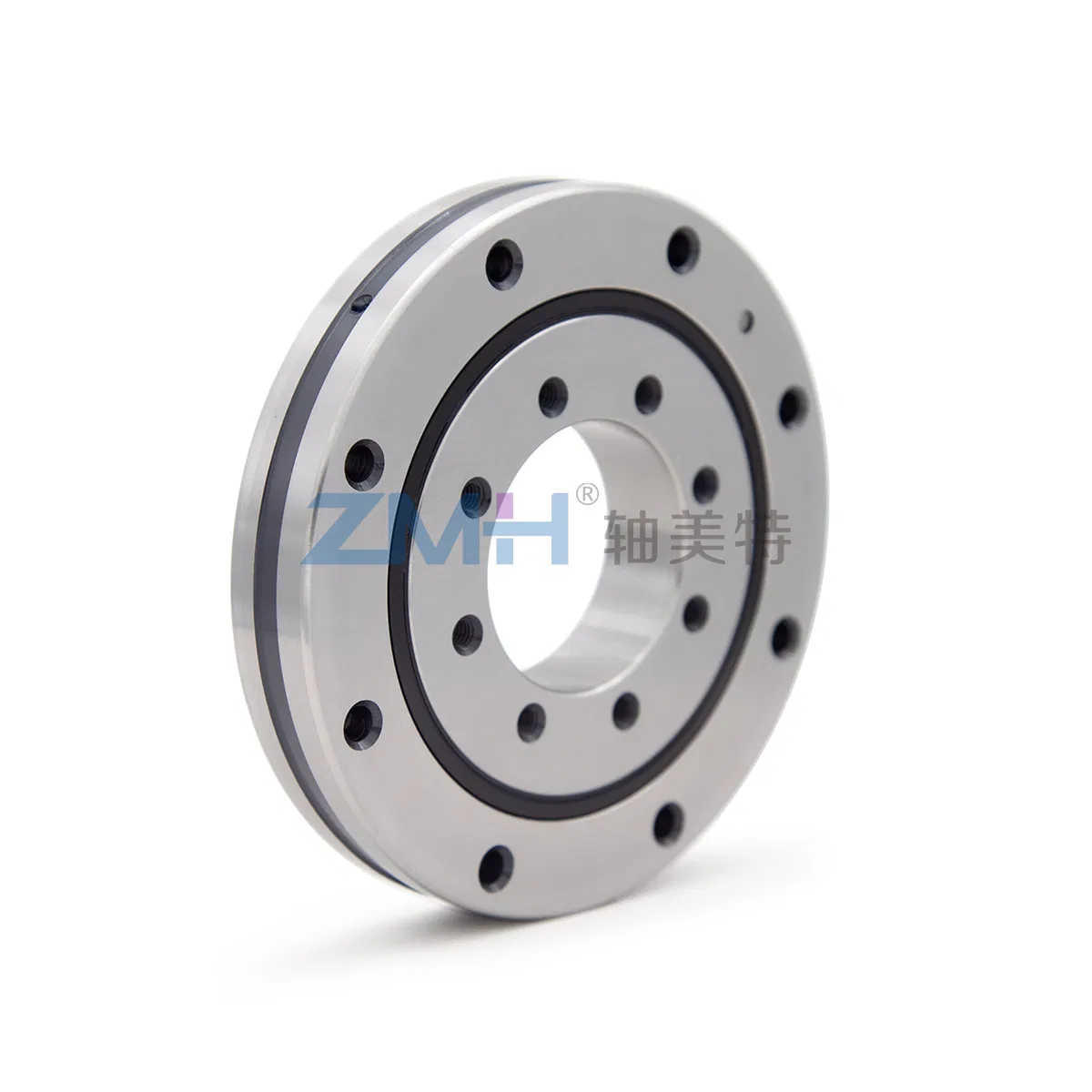

The RU type (outer ring and inner ring overall type) is designed with integrated mounting holes, eliminating the need for fixing flanges or support seats during installation. Because both the outer and inner rings are integral structures, installation has minimal impact on performance, ensuring stable rotation accuracy and torque.
Key Applications: Most suitable for joint or rotating parts of industrial robots, machining center rotating tables, precision rotating tables, medical equipment, measuring instruments, and reducers.
| Metric No. | ID | OD | Radial - ID Accuracy | Radial - OD Accuracy | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| P0 | P6 | P5 | P4 | P0 | P6 | P5 | P4 | |||
| MRBS5008 | 50 | 66 | 13 | 10 | 5 | 4 | 13 | 13 | 8 | 5 |
| MRBS6008 | 60 | 76 | 13 | 10 | 5 | 4 | 13 | 13 | 8 | 5 |
| MRBS7008 | 70 | 86 | 15 | 10 | 5 | 4 | 18 | 18 | 10 | 6 |
| MRBS8008 | 80 | 96 | 15 | 10 | 5 | 4 | 18 | 18 | 10 | 6 |
| MRBS9008 | 90 | 106 | 15 | 13 | 6 | 5 | 18 | 18 | 10 | 6 |
| MRBS10008 | 100 | 116 | 15 | 13 | 6 | 5 | 18 | 18 | 10 | 6 |
| MRBS12008 | 120 | 136 | 20 | 13 | 6 | 5 | 20 | 20 | 11 | 7 |
| MRBS15008 | 150 | 166 | 25 | 18 | 8 | 6 | 25 | 25 | 11 | 7 |
| MRBS20013 | 200 | 226 | 30 | 20 | 10 | 8 | 30 | 30 | 15 | 10 |
