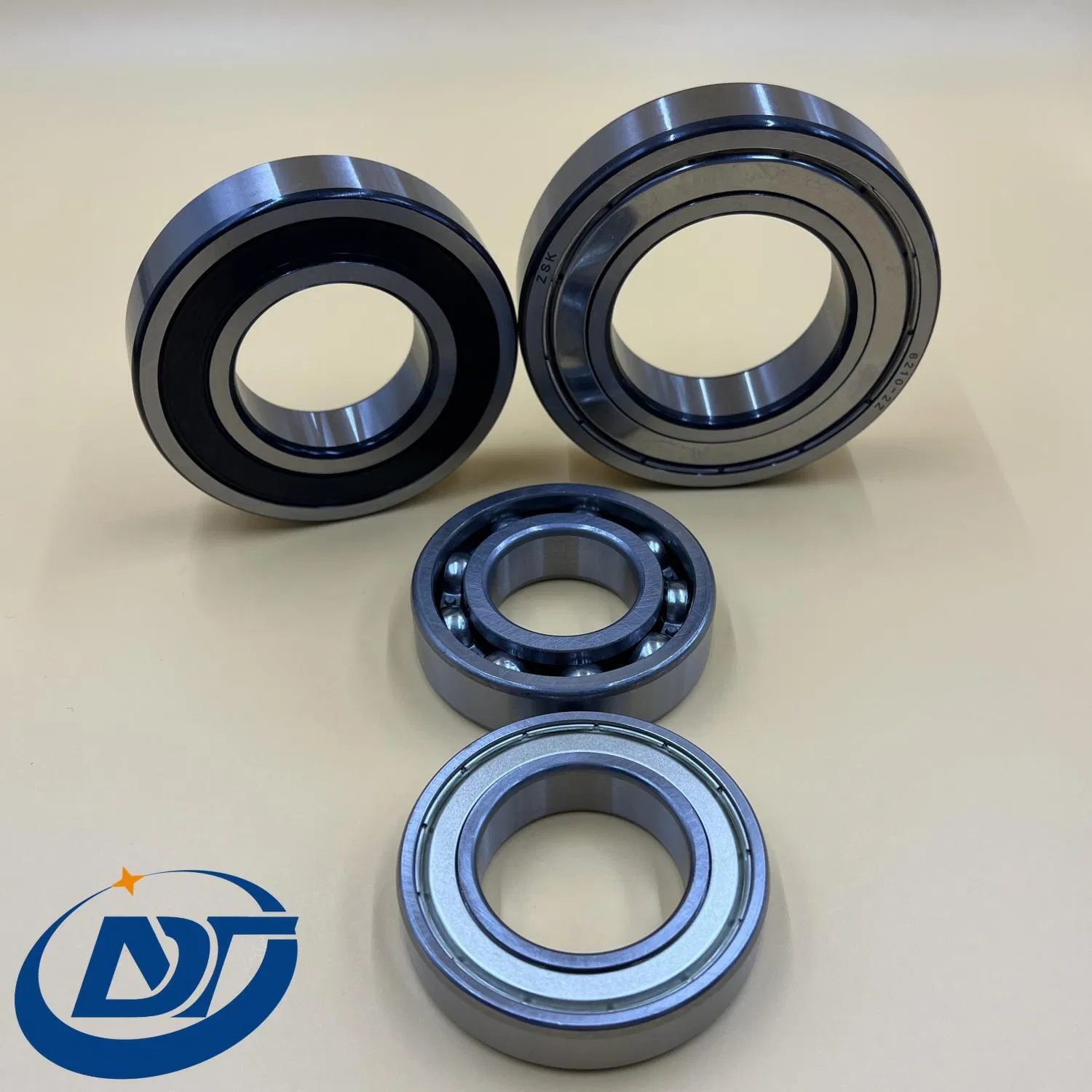

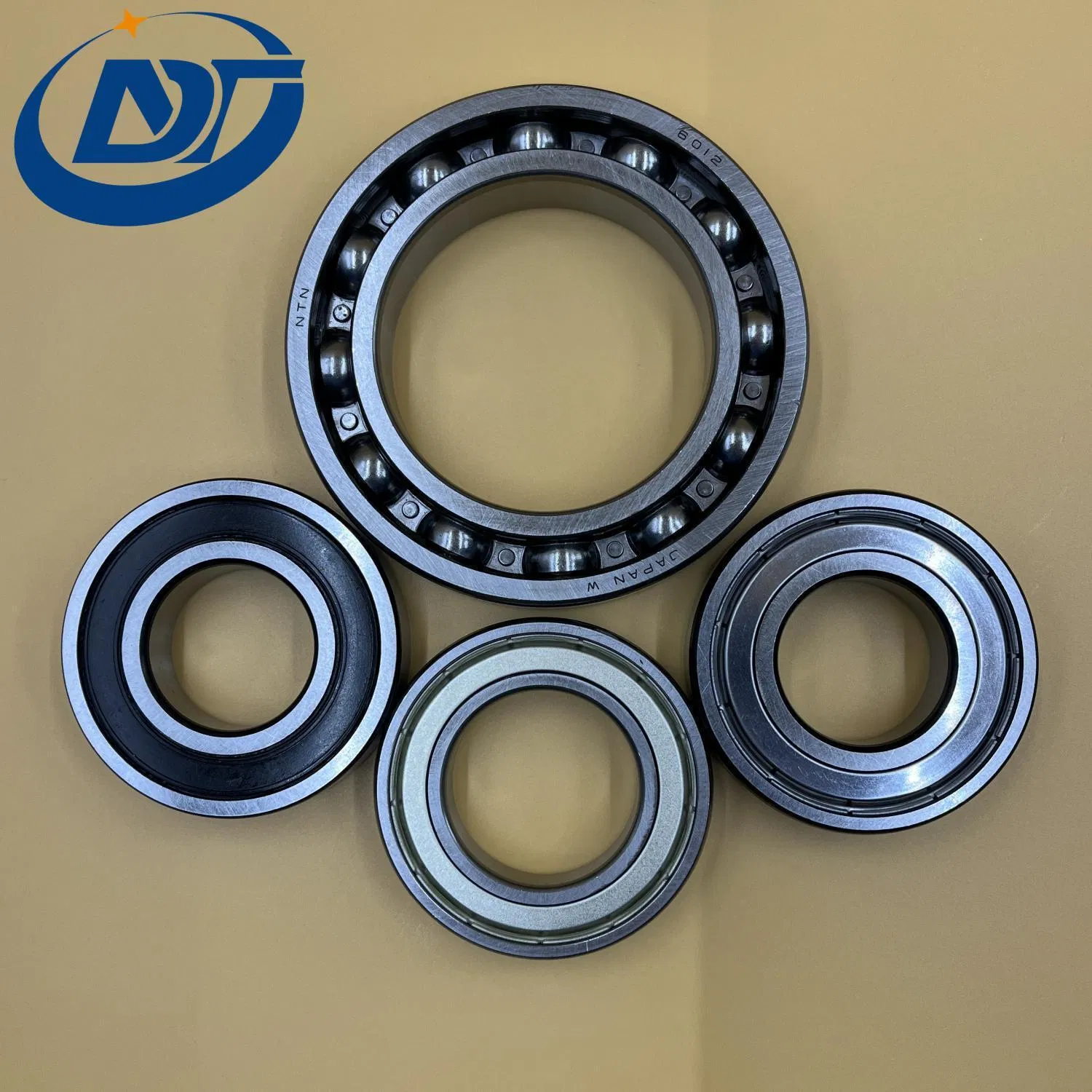

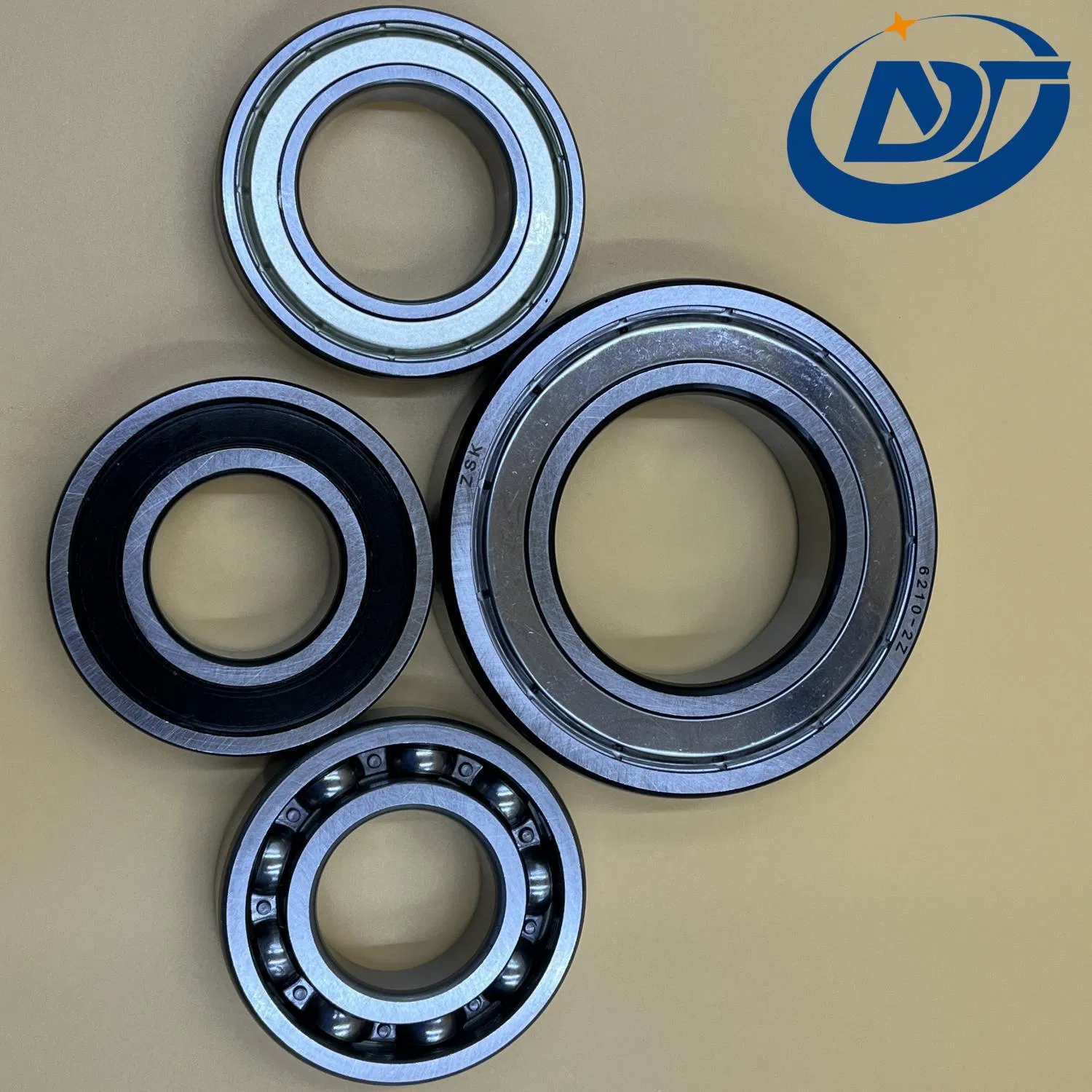

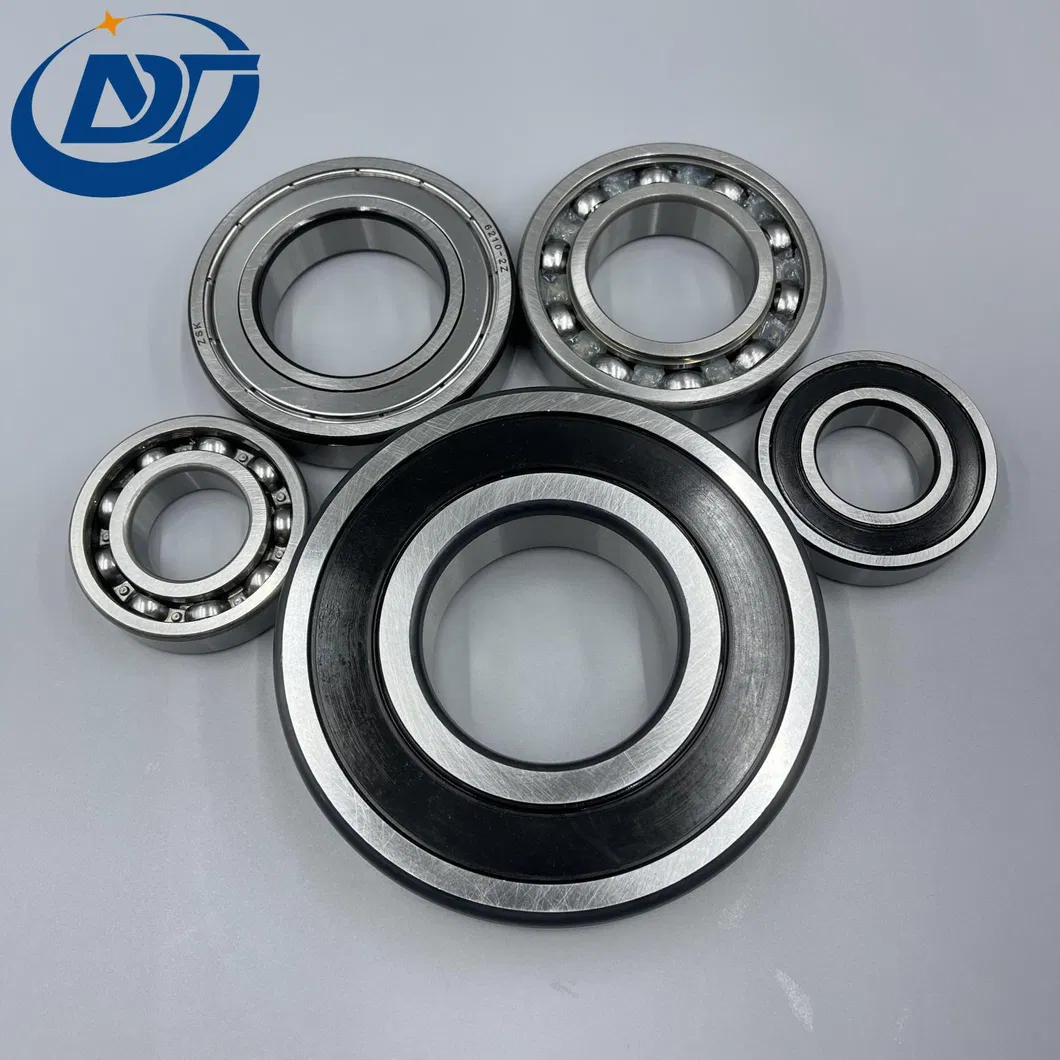

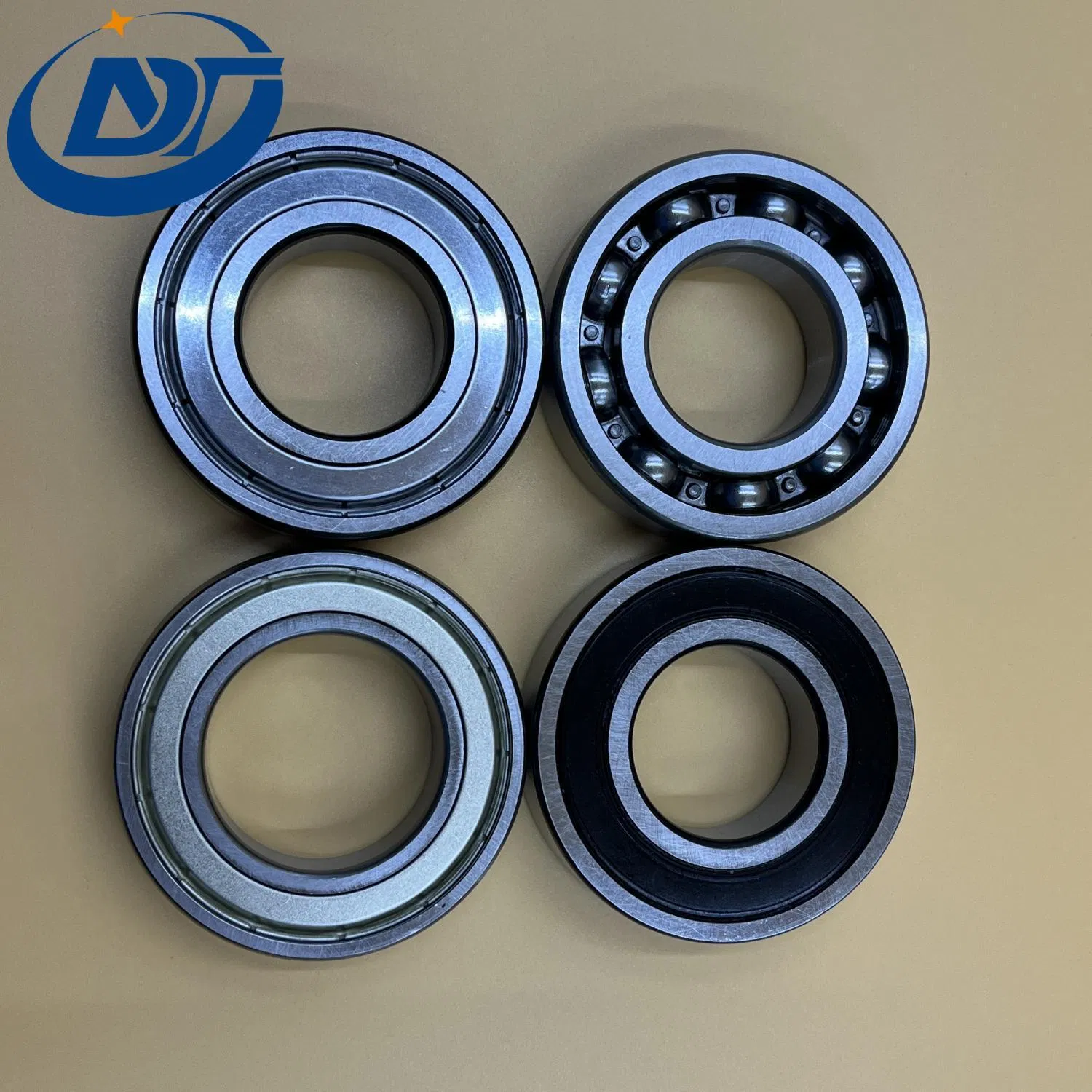

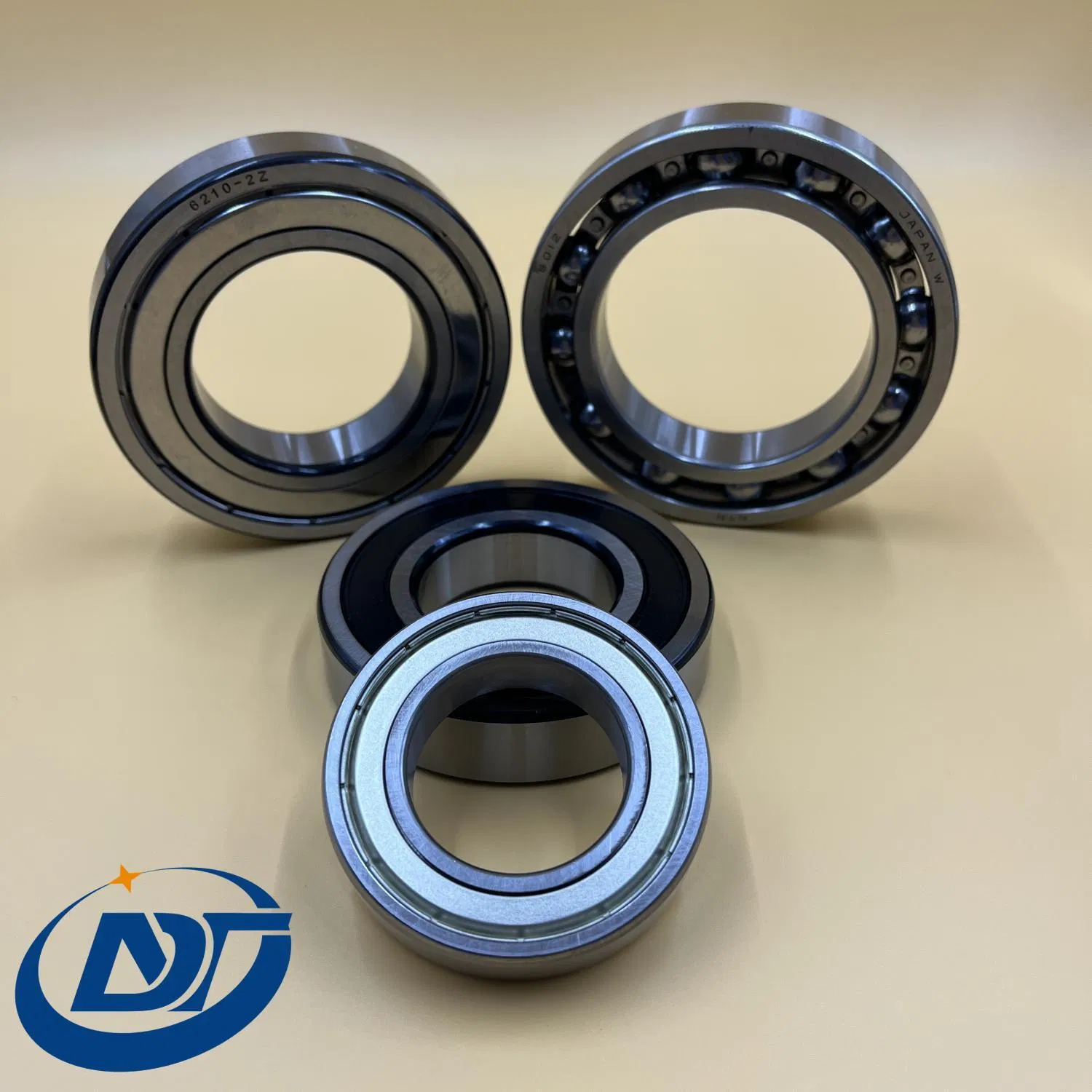

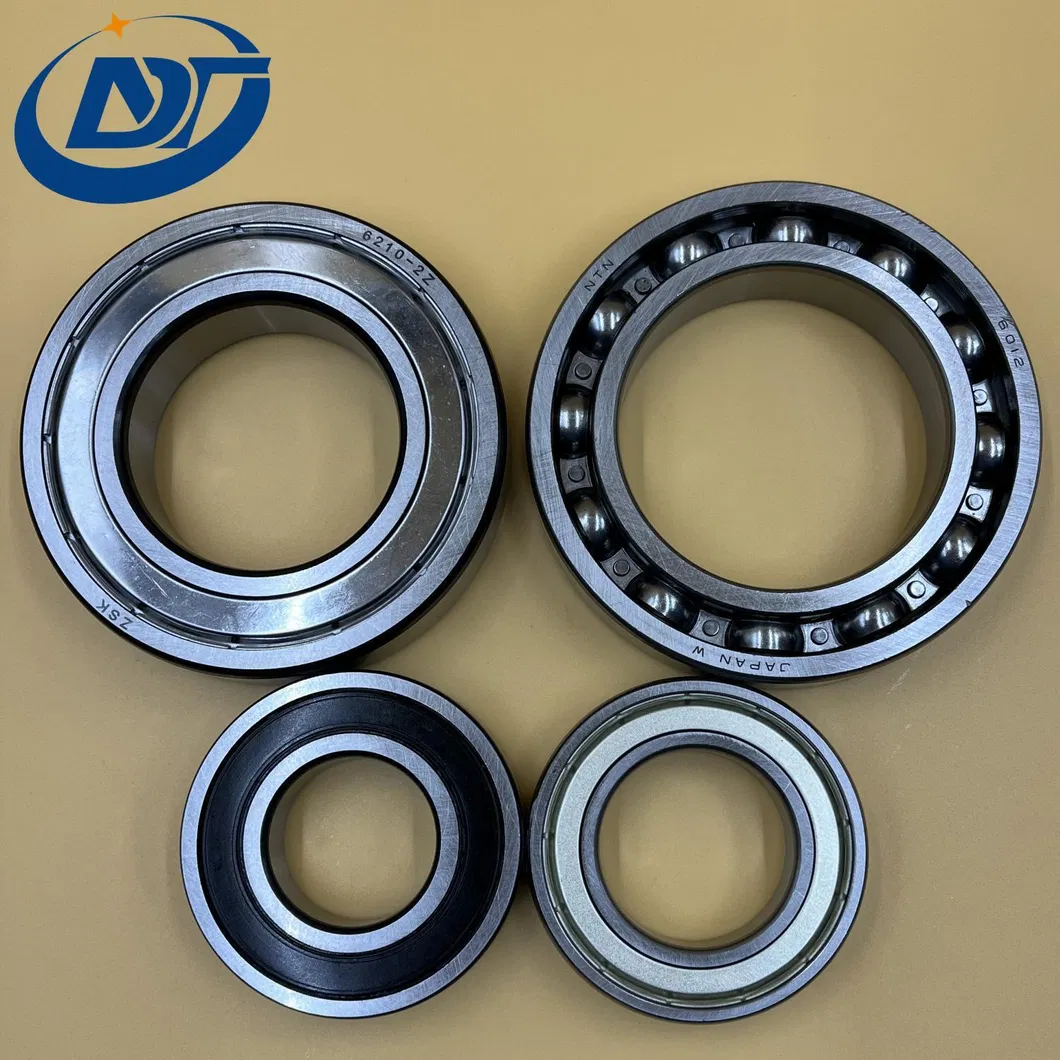

Single row deep groove ball bearings are the most widely used roller bearing type globally due to their versatility and overall performance. They feature deep raceway grooves with inner and outer rings having circular arcs of slightly larger radius than the balls. Their non-separable basic design offers several advantages:
| Bearing No. | Dimensions (mm) | Basic Load (KN) | Max Speed (RPM) | Weight (kg) | ||||
|---|---|---|---|---|---|---|---|---|
| Bore (d) | Outer (D) | Width (B) | Dynamic Cr | Static Cor | Grease | Oil | ||
| 6000 | 10 | 26 | 8 | 4.58 | 1.98 | 20000 | 28000 | 0.018 |
| 6001 | 12 | 28 | 8 | 5.10 | 2.38 | 19000 | 26000 | 0.02 |
| 6002 | 15 | 32 | 9 | 5.58 | 2.85 | 18000 | 24000 | 0.026 |
| 6005 | 25 | 47 | 12 | 10.10 | 5.85 | 13000 | 17000 | 0.075 |
| 6010 | 50 | 80 | 16 | 16.94 | 12.95 | 7000 | 9000 | 0.250 |
| 6014 | 70 | 110 | 20 | 29.68 | 24.20 | 5600 | 6700 | 0.575 |

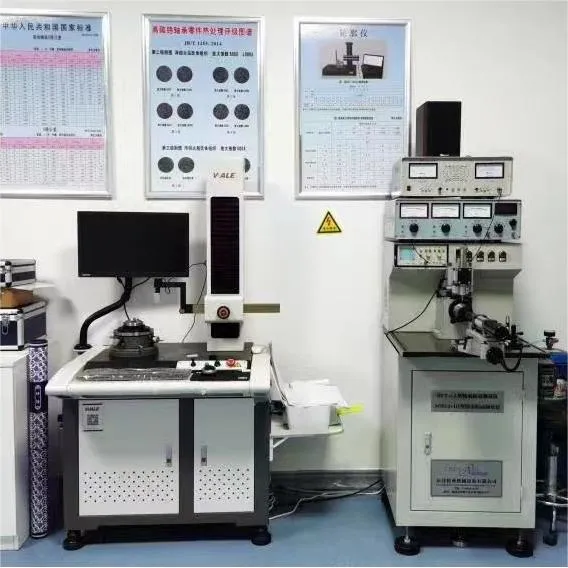

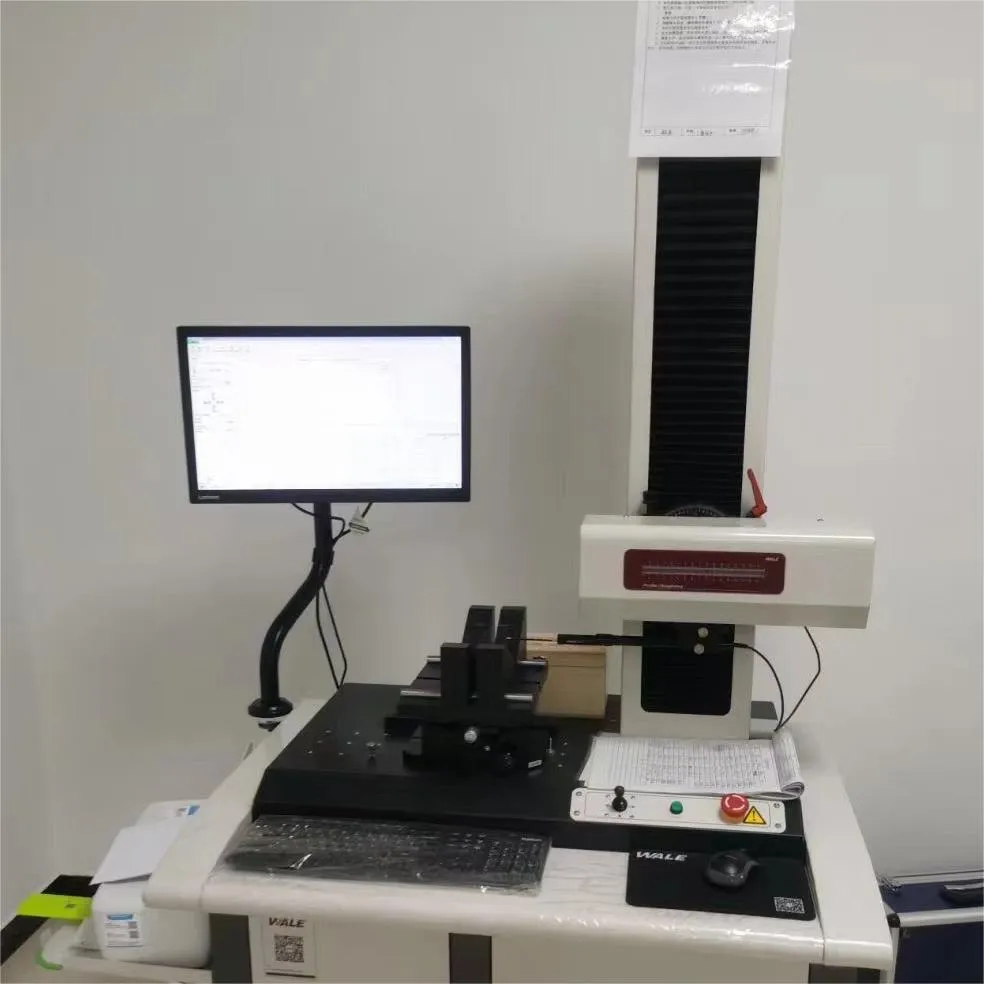

Our professional testing center is equipped with advanced diagnostic equipment. Every bearing undergoes multiple technical screenings and tests to ensure performance matches device precision and safety standards.
