📊 Basic Information
Model NO.
15/20/25/30/35/45/55/65
Material
S55c, Carbon Steel, Stainless Steel
Moving Structure
Slide Rail + Slide Block
Linear Guide Length
100~4000mm
Precision Level
N/H/P/up/Sp
Types of Slider
Rectangular Slider and Flange Slider
Linear Guideway Type
Ball Type Linear Guide Rails
Surface Treatment
Polished
Hardness of Slider
60-62HRC
Corrosion Resistance
High Corrosion Resistance
Transport Package
Cartons, Wooden Box

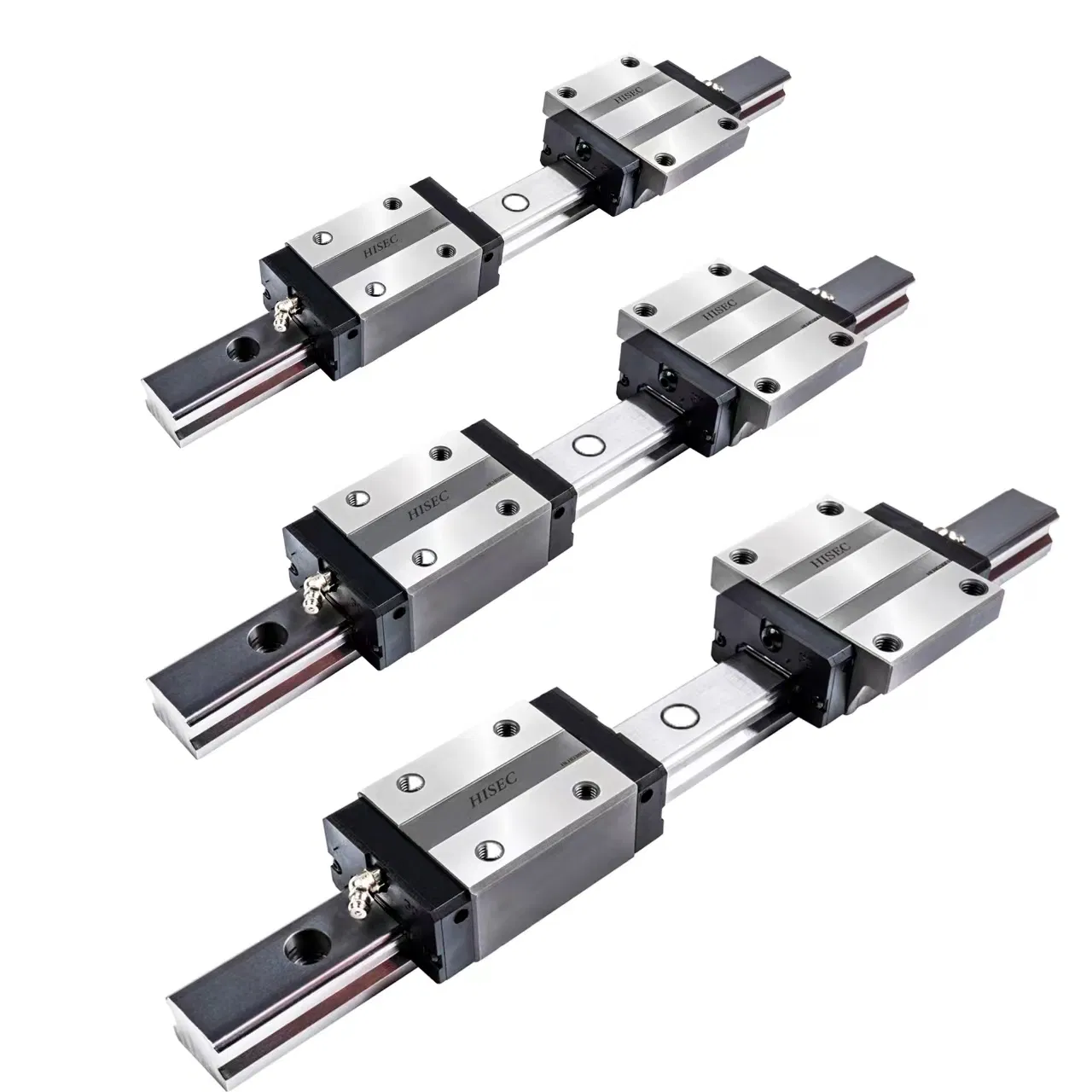

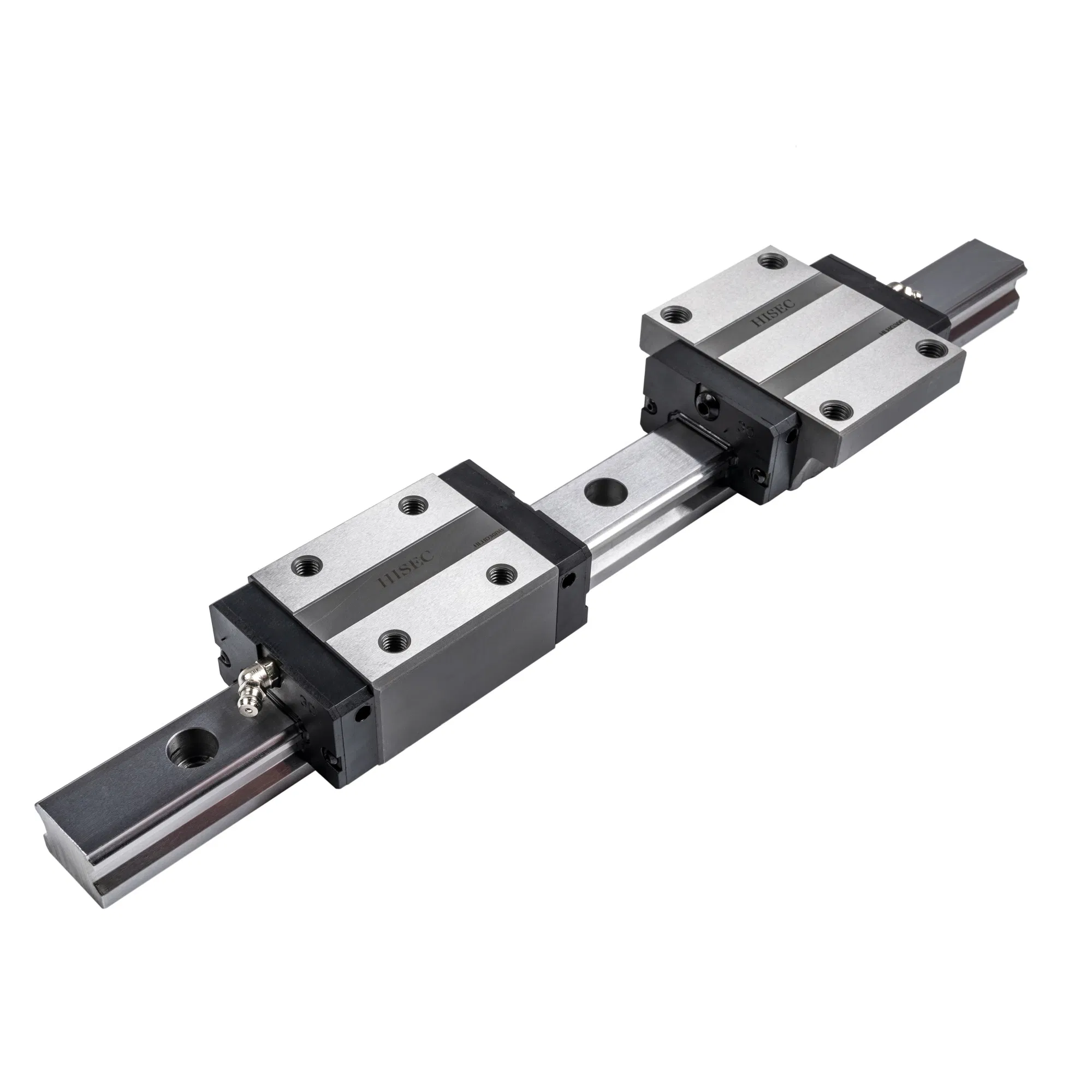

🛠️ Product Description
HISEC guide rail products use advanced material technology, precision technology and production testing equipment to ensure ultra-high stability and durability. After strict quality control, its smoothness, accuracy, bearing capacity and life have reached the industry-leading level, providing a higher cost performance.

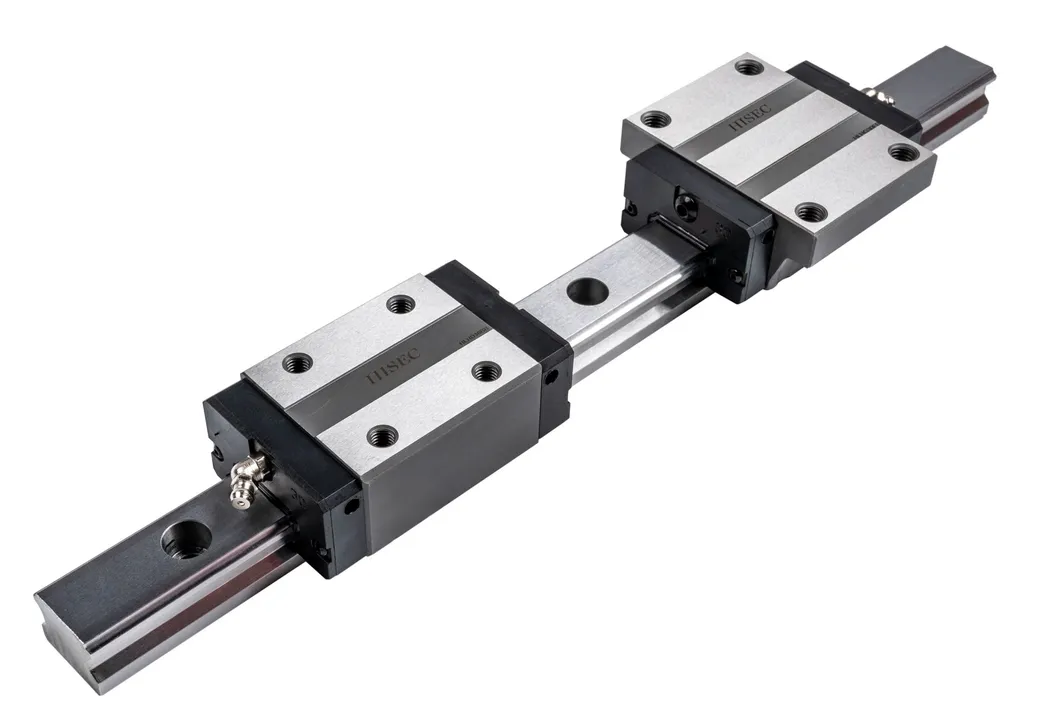

📏 Precision Grade Specifications
| Project |
N (General) |
H (High) |
P (Precision) |
SP (Super) |
UP (Top) |
| Combined high tolerance (H) | ±0.1 | ±0.04 | 0-0.04 | 0-0.02 | 0-0.01 |
| Combination width tolerance (W) | ±0.1 | ±0.04 | 0-0.04 | 0-0.02 | 0-0.01 |
| Single shaft pairs High tolerance (△H) | 0.03 | 0.02 | 0.01 | 0.005 | 0.003 |
| Single shaft pairs Wide tolerance (△W) | 0.03 | 0.02 | 0.01 | 0.005 | 0.003 |
⚙️ Key Performance Features

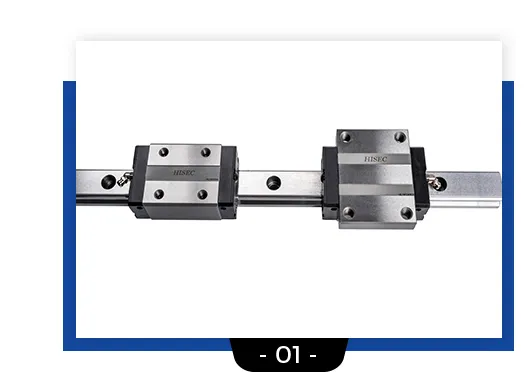

Exquisite workmanship, smooth guarantee
We adhere to the strict requirements of product quality to provide you with higher quality products.

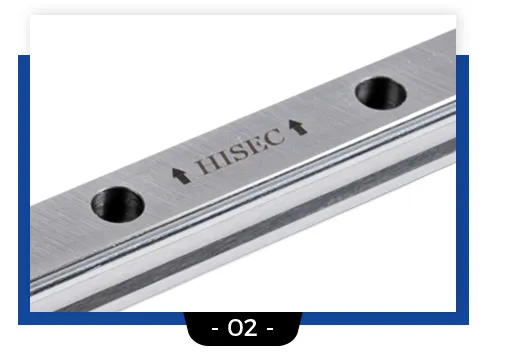

High speed, low noise
Comprehensive sealing system, smooth sliding without jam, high positioning accuracy.

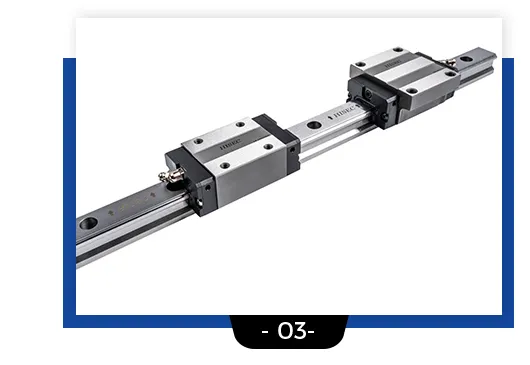

Fine workmanship, high steel
High strength steel, precise cutting, no burrs and unevenness, customizable length, easy to install slide.

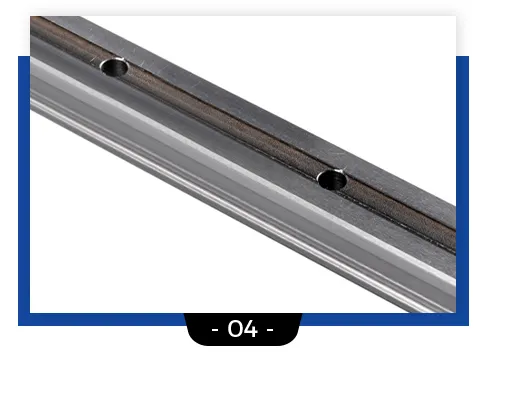

High positioning accuracy
The coefficient of friction is reduced to 1/50 of the sliding rail, and the difference between dynamic and static friction becomes very small.
🏢 Industry Expertise
The manufacturer is a professional enterprise dedicated to strengthening services for the global market. The main business focuses on the production and sales of linear guide rails and linear transmission related parts. With a legacy in production since 2018, the manufacturer integrates independent research and development into mass production. Currently, the marketing network covers the European Union countries, North America, Japan, South Korea, Brazil, the Middle East, and other global markets. We adhere to the concepts of innovation and quality, providing efficient and stable linear rail solutions for the global manufacturing industry.
❓ FAQ
What materials are used for HISEC linear guides?
Our linear guides are manufactured using high-quality S55c, Carbon Steel, and Stainless Steel to ensure maximum durability and strength.
What is the hardness level of the sliders?
The sliders feature a hardness of 60-62HRC, providing excellent wear resistance and a long service life.
What precision levels are available for these guide rails?
We provide multiple precision grades to meet different industrial needs, including N (General), H (High), P (Precision), SP (Super High), and UP (Top Grade).
Can the length of the linear guide be customized?
Yes, the length is customizable within the range of 100mm to 4000mm to fit your specific machine requirements.
Are the linear guides suitable for high-speed applications?
Absolutely. Our products feature a comprehensive sealing system and high-strength steel design that allows for high speed and low noise operation with smooth sliding.
How do HISEC linear guides handle friction?
The coefficient of friction is significantly reduced to 1/50 of traditional sliding rails, ensuring minimal difference between dynamic and static friction for high positioning accuracy.
